New Holland® Compatible
CR9040 Feeder House Chain Kit (BSN HAJ111073)

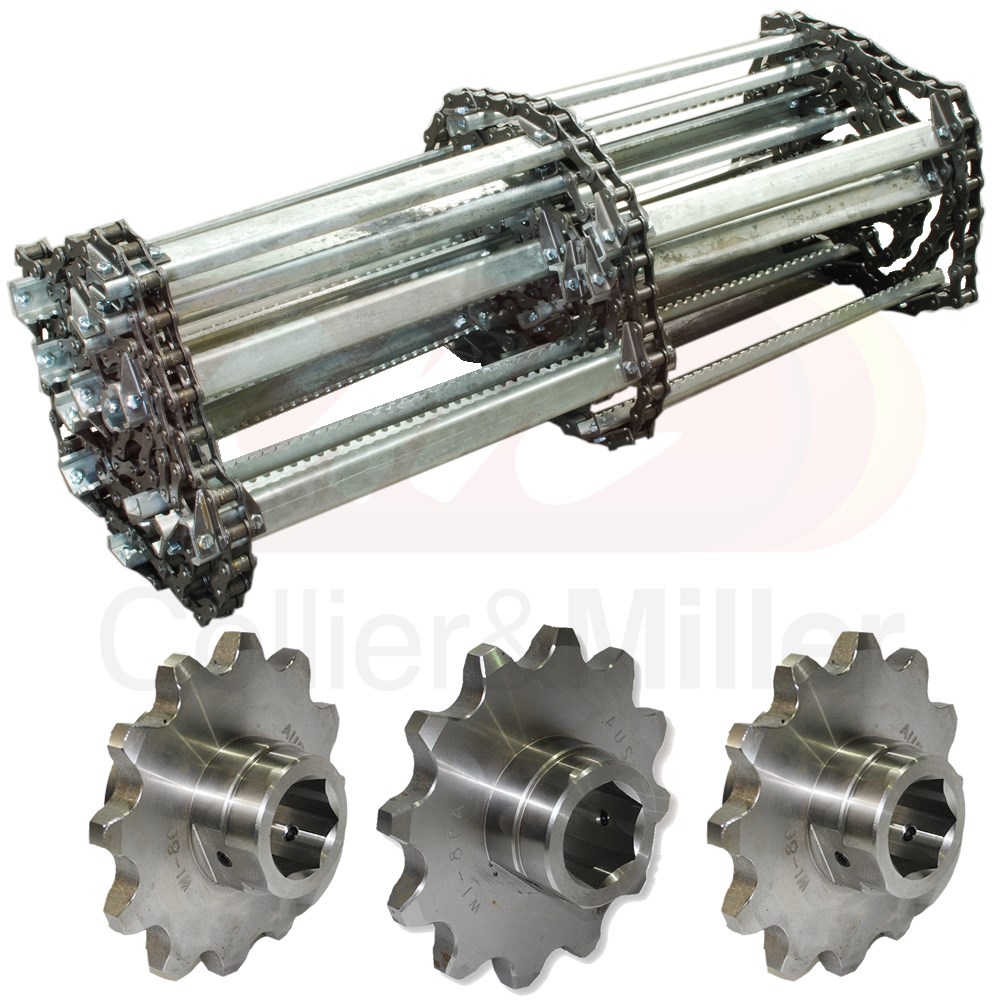

C&M aftermarket feeder house chain and sprocket kit to fit the feeder house on New Holland® CR9040 model combine harvesters. This kit contain 1 x feeder chain set including bars and 3 x feeder sprockets. Feeder house sprockets are different when the serial number changes.
* This chain assembly bar spacing 17.25" center to center on sprockets.
| SERIES |
MODEL |
SERIAL/YEAR |
| New Holland® CR |
CR9040 |
(09/06-01/12) |
| BRAND |
PART NO. |
DECRIPTION |
| New Holland® |
87372056 |
CONVEYOR Feeder, 112 Links, x 41.4mm = 4636.8mm; Replaces P/N 86556410 FOR CR920, CR940, CR960 ONLY |
| New Holland® |
766379 |
2 X Outer Sprockets 12T x 1.750" Hex Bore |
| New Holland® |
766380 |
1 x Inner Sprocket 12T x 1.750" Hex Bore |

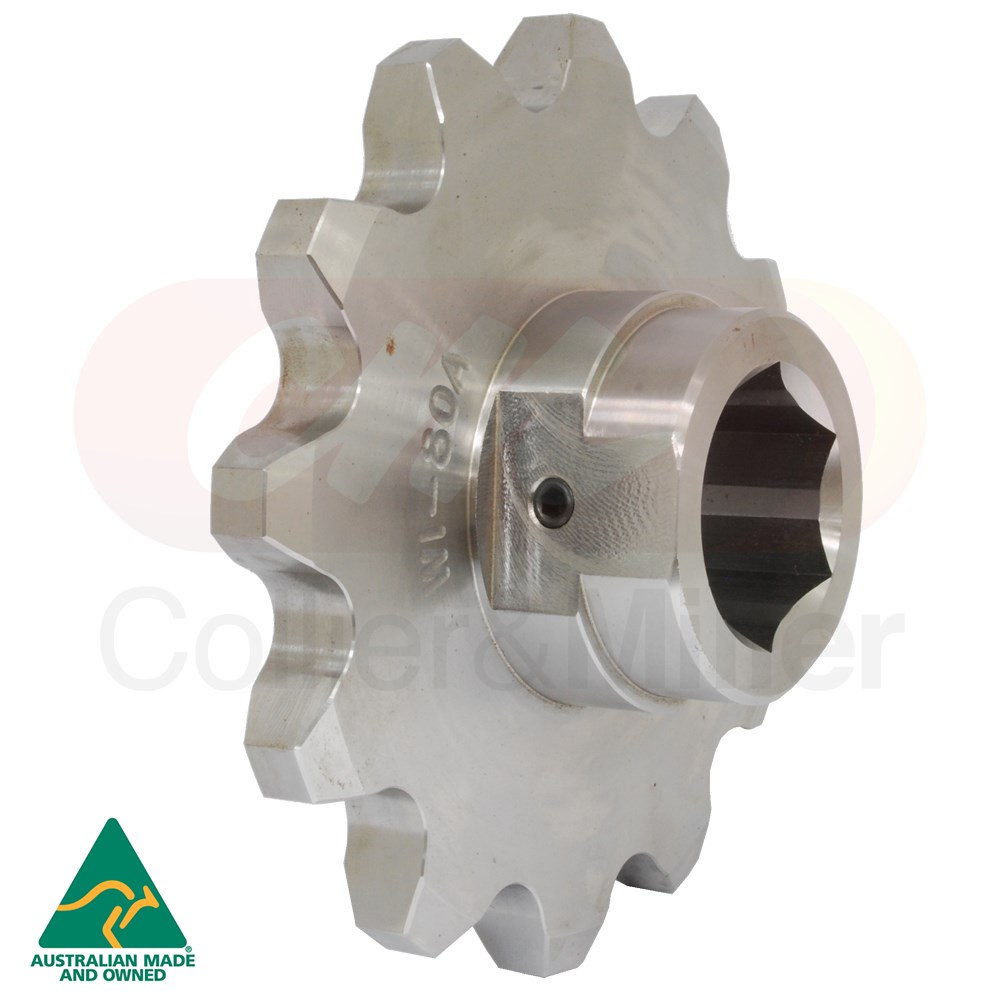

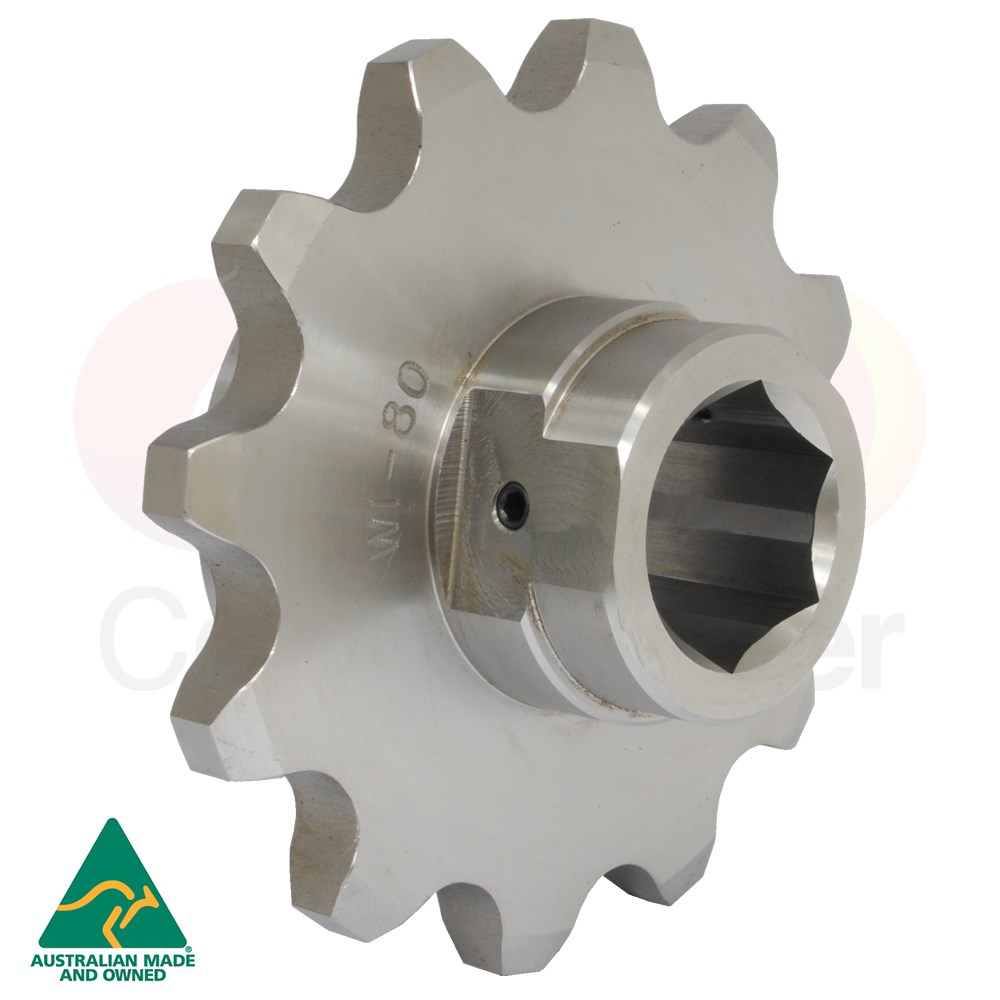

Sprocket Features
- C&M Made In Australia
- Electroplated Finish
- 12T x 1-3/4" Bore Sprocket
- Grade 1045 Sprocket Material
Chain Features
- Quality CA557 Chain
- Same spacing as the OEM chain
- Roll-Serrated Electroplated Bars
- 3 x Connectors 6 x Offset Links
- High tensile fasteners
- Ready to install
