Fendt® Compatible IDEAL® 8 Feeder House Chain & Sprocket Kit – 3 Chain

Keep the product feeding system on your Fendt® IDEAL® 8 in top condition with this C&M aftermarket 3-chain feeder house chain and sprocket kit. Designed for IDEAL® 8 combine harvesters fitted with the 3-chain feeder house, the kit includes one complete feeder chain assembly and three matching 12-tooth sprockets, providing the main wear components required for a practical feeder house refurbishment.

The C&M feeder chain assembly uses 26 slats with a closer 8-link outer-chain spacing, compared with the original Fendt® arrangement of 18 slats with a wider 12-link outer-chain spacing. This higher slat count provides a different crop-engagement pattern through the feeder house while retaining the required four-chain configuration for the listed machine.

Fendt® OEM Cross-Reference

C&M Replacement Part Numbers:

• ACX317755A – Feeder House Chain Assembly
• ACW081994A – 12T x 50mm Bore Feeder Sprocket

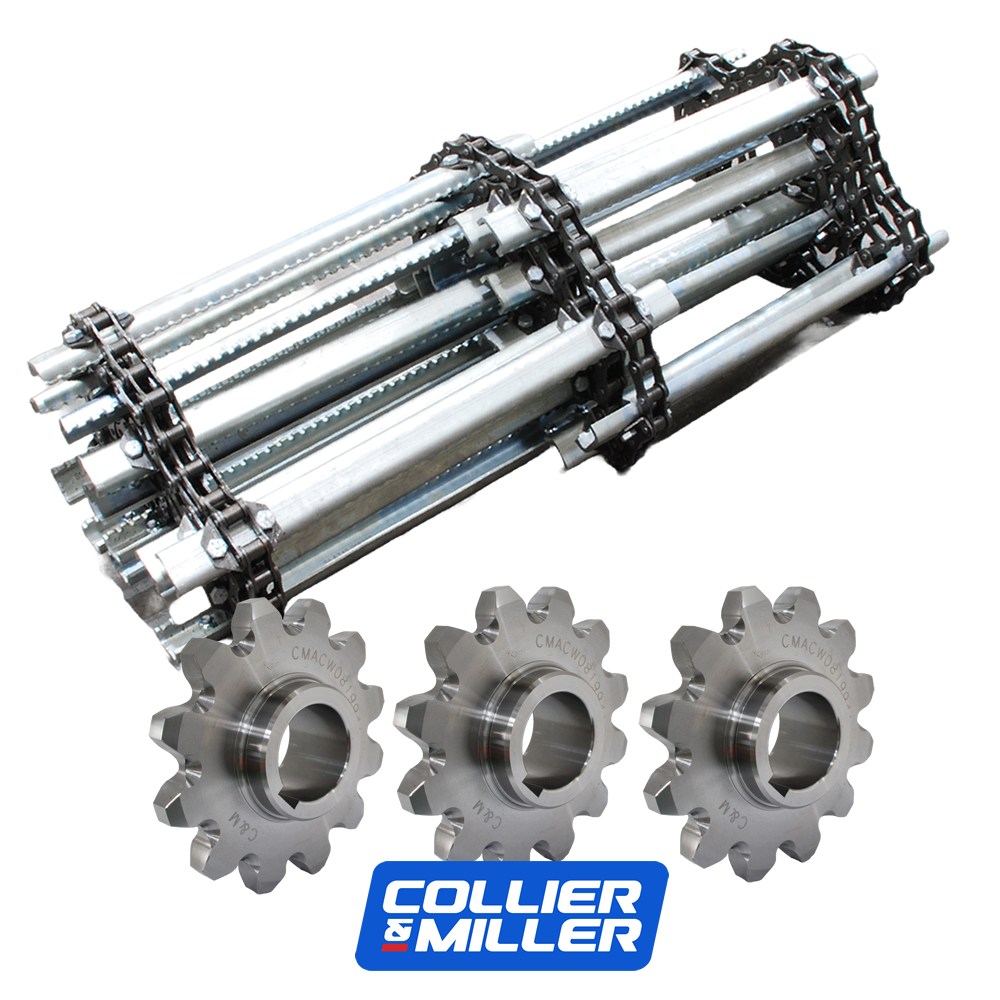

What's Included

• 1 x ACX317755A complete feeder house chain assembly
• 3 x ACW081994A 12-tooth x 50mm bore feeder sprockets

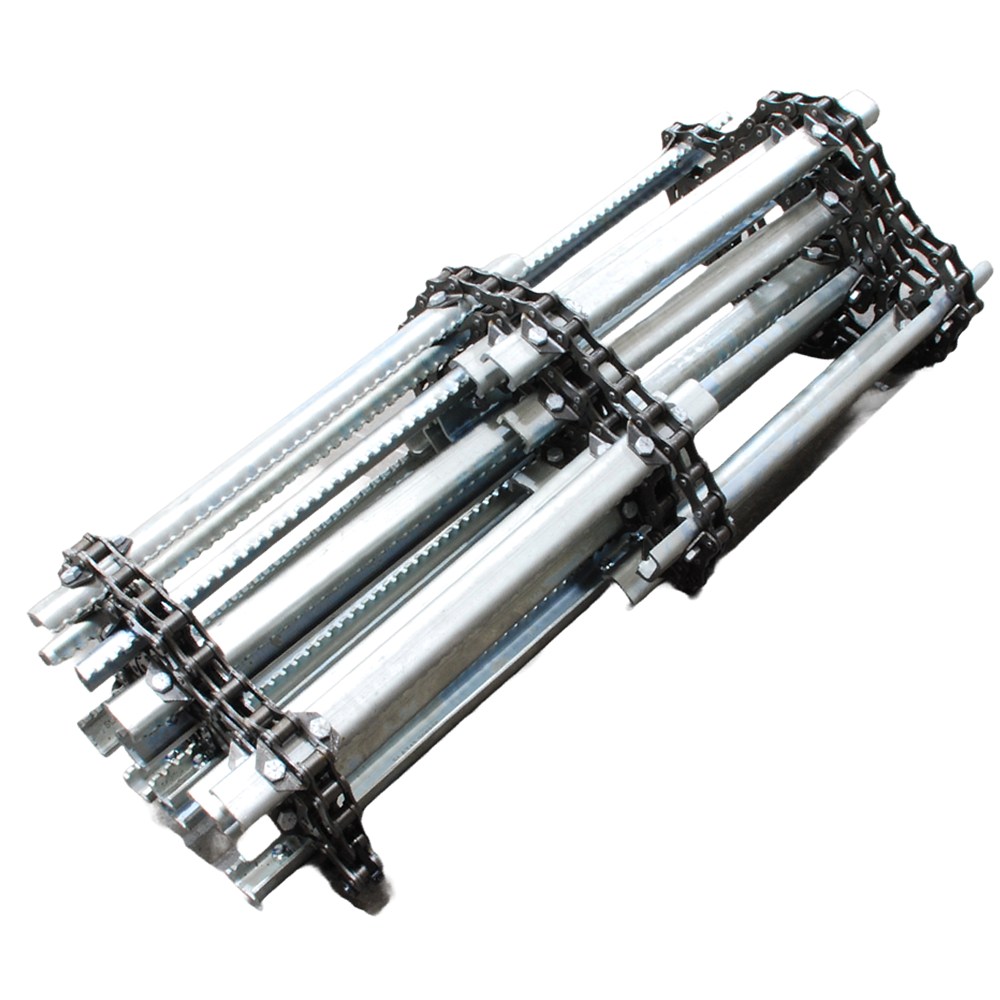

Feeder House Chain Specifications & Features

• Complete four-chain feeder house assembly ready to install
• Premium CA557 feeder chain
• 26 slats with closer 8-link outer-chain spacing
• 6mm Grade 350 roll-serrated carbon-steel slats
• Electroplated slats for corrosion resistance and a consistent fastener seating surface
• High-tensile zinc-plated fasteners
• Includes 3 connectors and 9 offset links
• Chain supplied factory lubricated and pre-loaded to help reduce initial tensioning requirements
• Assembled and checked by C&M in Griffith, NSW

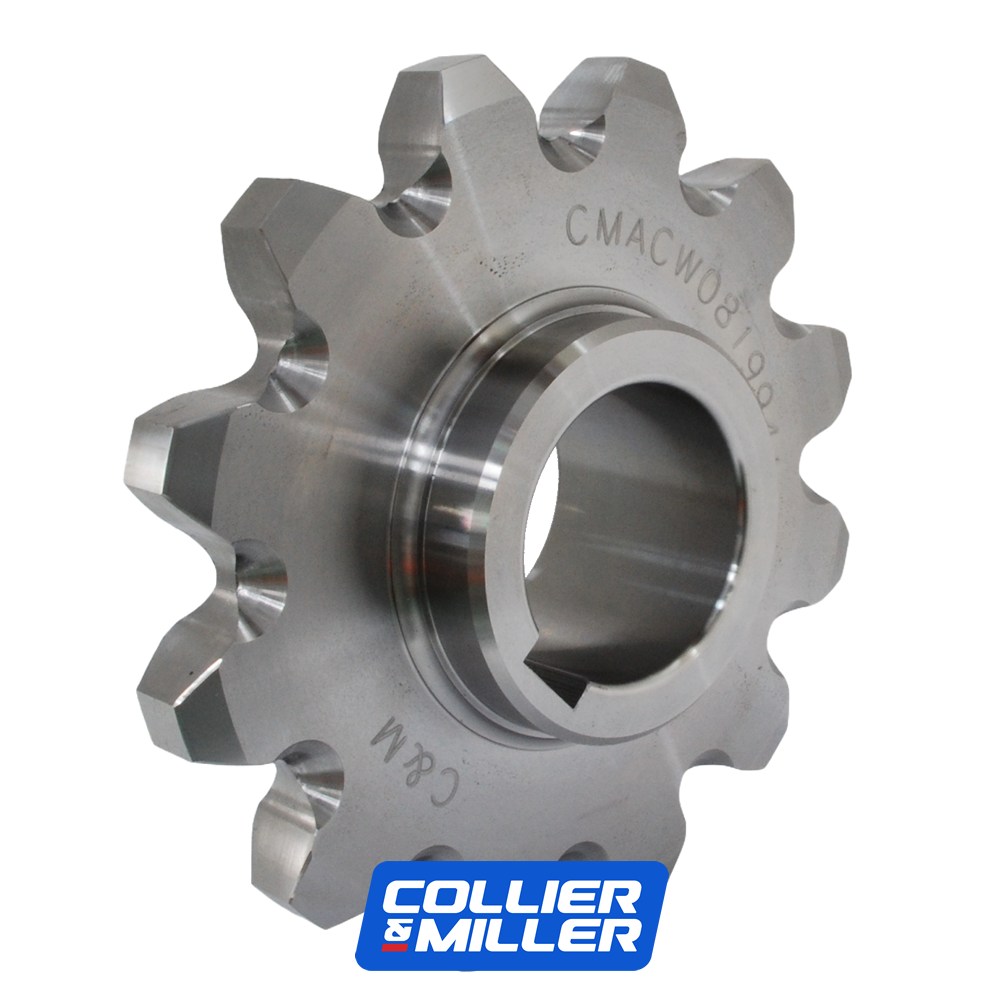

Sprocket Specifications & Features

• C&M made in Australia
• Grade 1045 steel construction
• 12-tooth sprocket
• 50mm bore
• Electroplated finish
• Special tapered keyway designed to accept the gib-head key

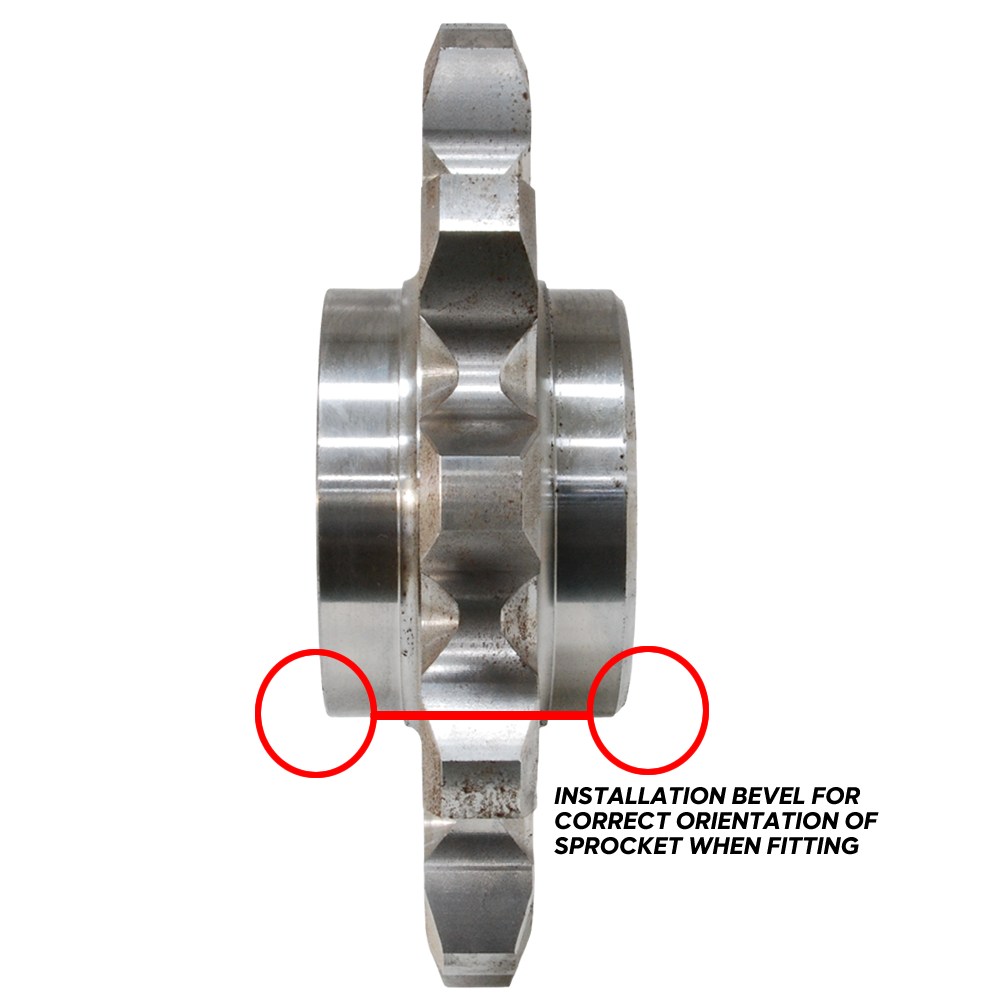

• Correctly machined boss to assist with sprocket orientation during installation

The C&M Difference

This kit brings the feeder house chain and matching sprockets together as one refurbishment package rather than replacing worn components individually. The feeder assembly uses C&M's Grade 350 roll-serrated electroplated slats, high-tensile fasteners and premium chain construction, while the matching Grade 1045 sprockets are manufactured in Australia. C&M feeder house chains are assembled and checked at our Griffith, NSW facility before delivery.

Expert Maintenance Review

When a feeder house chain has accumulated enough wear to require replacement, inspect the drive and idler sprockets at the same time. Worn tooth profiles can affect how a new chain seats and runs, potentially contributing to uneven chain loading and accelerated wear. This kit supplies four matching sprockets with the new chain assembly so the main chain-and-sprocket wear surfaces can be renewed together.

Installation Tip

Before fitting the chain assembly, confirm the feeder house is clean and inspect the sprocket shafts, bearings, keyways and gib-head keys for wear or movement. Install each ACW081994A sprocket in the correct orientation using the machined boss as a reference, then check that all four chains run square and evenly before final tensioning. Recheck chain tension after the initial period of operation.

Fendt® Compatible means the C&M aftermarket parts are intended to fit the machine model stated based on C&M research and customer feedback. C&M parts are aftermarket products and are not genuine Fendt® parts. Verify compatibility with your equipment before ordering. Fendt® is a registered trademark of AGCO Corporation.
