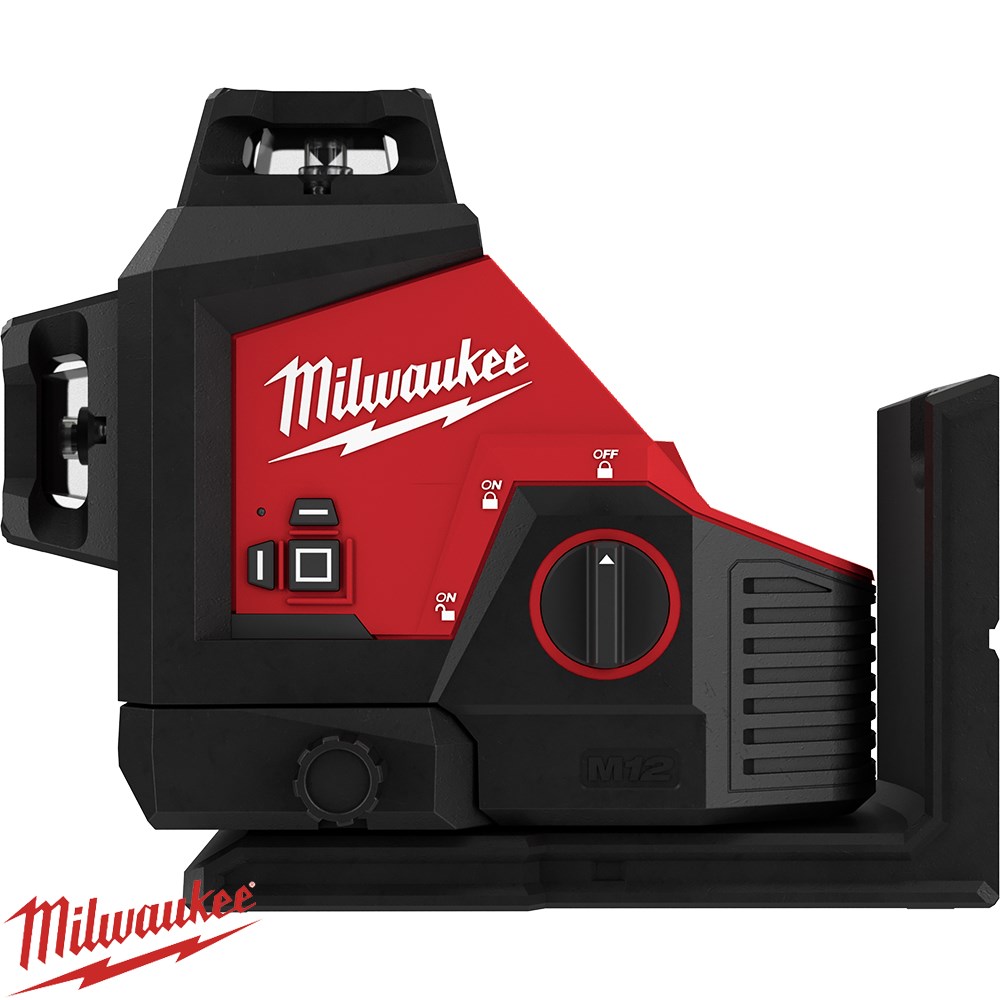

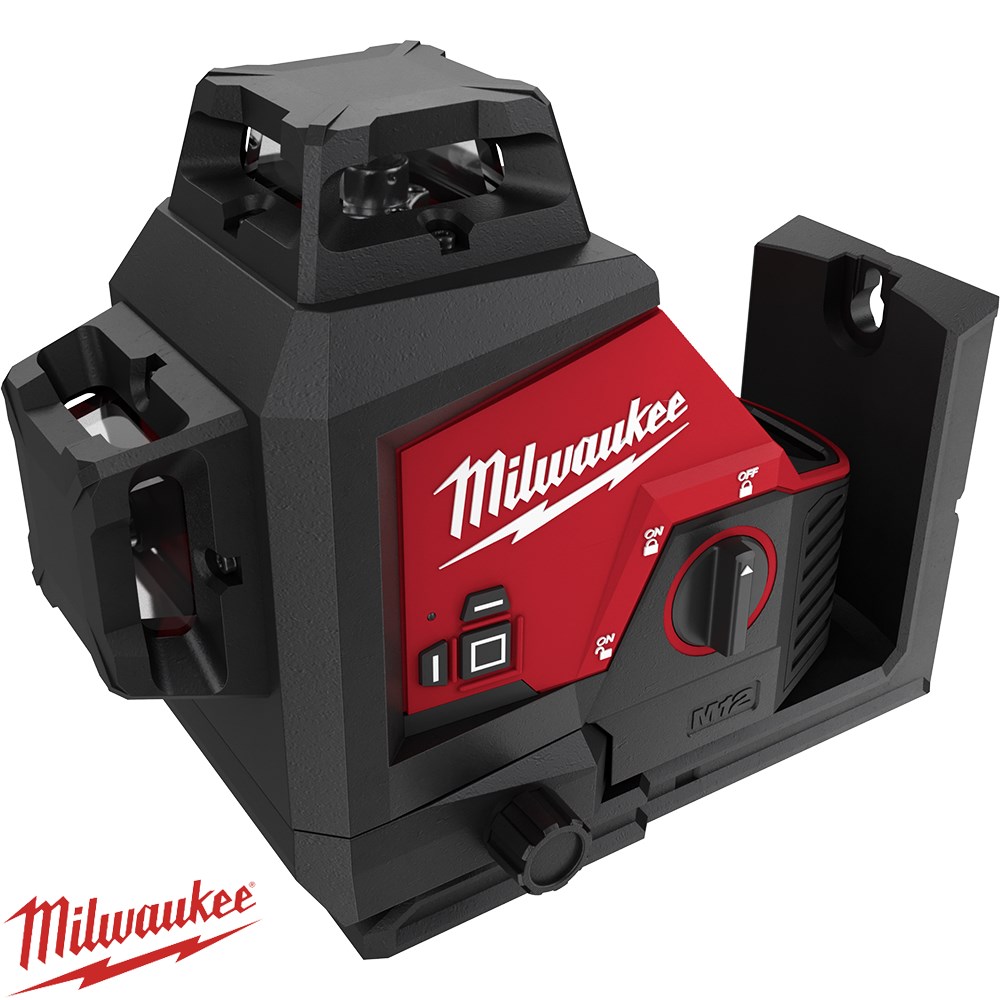

Milwaukee M12™ 3 Plane Laser Kit
The M12™ 3 Plane Laser is your all-in-one solution for precise alignment, leveling, squaring, and transfers, allowing you to easily layout large spaces with a single tool. It projects one horizontal line and two vertical lines for quick and accurate setups. Powered by M12™ REDLITHIUM™ batteries, it provides up to 15 hours of continuous runtime with a M12B4 4.0Ah battery, ensuring consistent productivity throughout your workday. The high-intensity green laser delivers exceptional visibility up to 38 meters and is up to 4x brighter than red lasers for superior performance in long-range applications.
The integrated bracket features a micro control knob and 330° rotation that pivots on the plumb point, enabling quick and precise point-to-point alignment. Amplified rare earth magnets deliver a strong hold on metal surfaces, while integrated screw and nail hang holes offer versatile setup options in any environment. The 3-mode pendulum system includes Manual Mode for angled use, Self-Leveling Mode with a 4° range and out-of-level indicator, and Pendulum Lock Mode to protect components during transport.
Built to withstand tough jobsite conditions, the M12™ 3 Plane Laser has a 1-meter drop rating and is IP54 rated for resistance against dust and water. A convenient fuel gauge on the top and side provides quick battery status checks, helping you stay on top of your power needs.
Features
- All-in-one functionality with one horizontal and two vertical laser lines for alignment, leveling, squaring, and transfers
- Powered by M12™ batteries with up to 15 hours of continuous runtime using a 4.0Ah battery
- High-intensity green laser with 4x brightness compared to red lasers; visible up to 38 meters
- Integrated bracket with micro control knob and 330° rotation for precise alignment
- Amplified rare earth magnets for strong hold on metal surfaces; integrated screw and nail hang holes
- 3-mode pendulum system: Manual Mode, Self-Leveling Mode (4° range), and Pendulum Lock Mode
- 1-meter drop rating and IP54 rated for dust and water resistance
- Fuel gauge on the top and side for quick battery charge checks

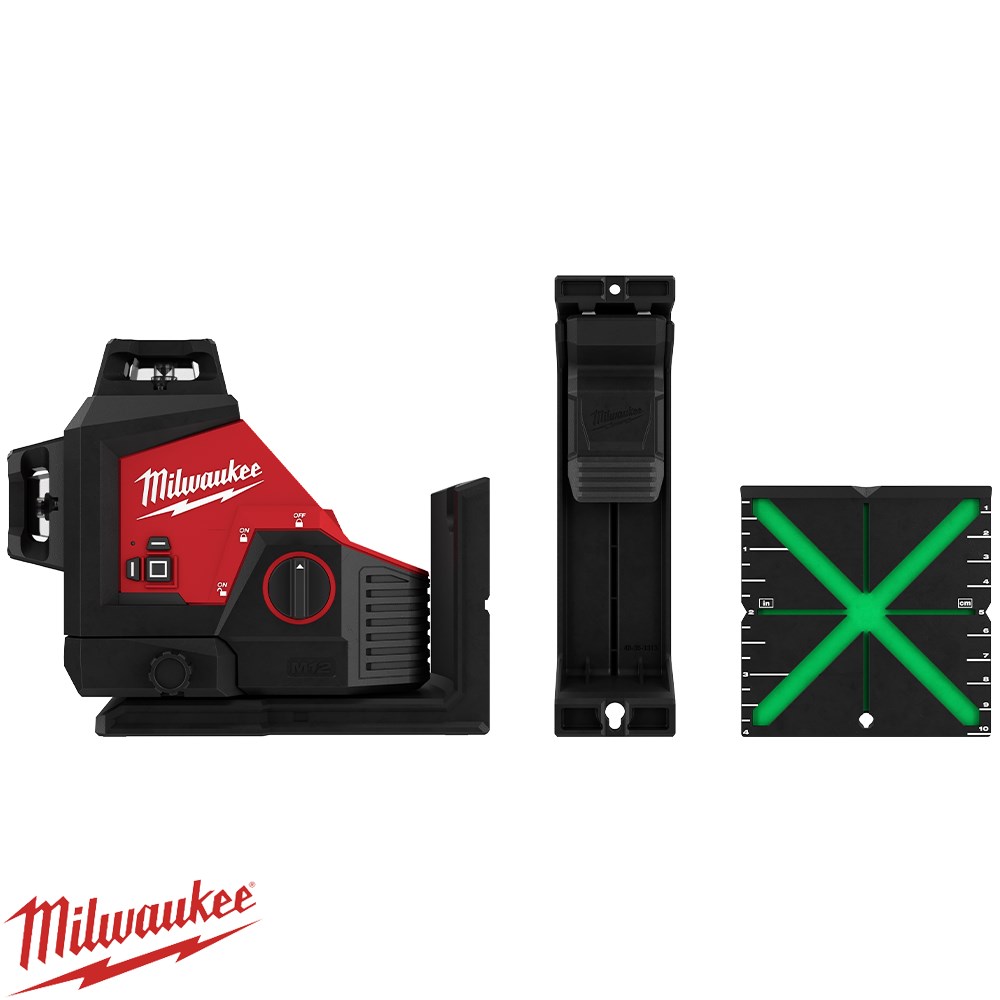

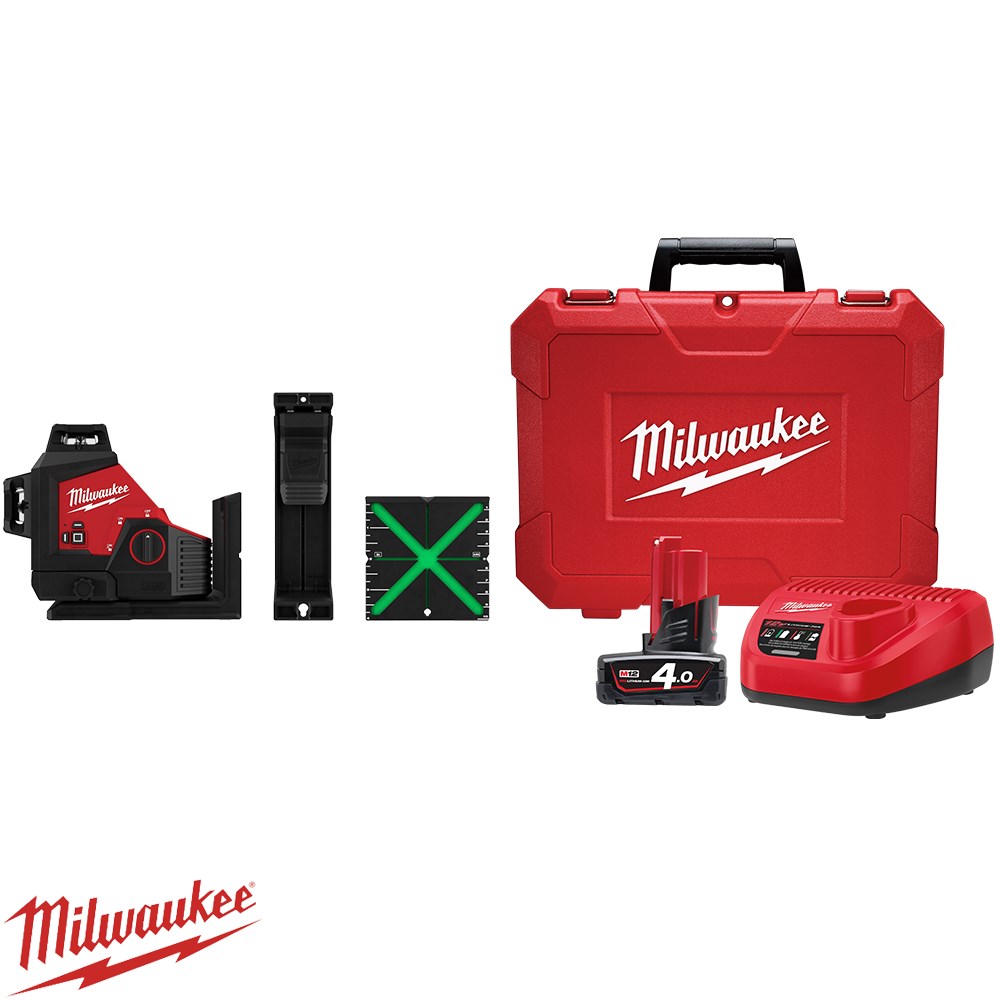

Includes
Specifications
- Platform: M12™
- IP Ratings: IP54
- Dimensions: 198 x 104 x 165 mm
- Weight: 1.09 kg
- Warranty: 3 Years
- Number of Beams: 3 Plane
- Locking Pendulum: Yes
- Self-Leveling: ± 4° Tilt
- Accuracy: ± 3.18 mm over 10 m
- Impact Resistant: 1 m
- Working Range: 38 m
- Range with Detector: 50 m
- Thread Mount: 1/4"-20, 5/8"-11
