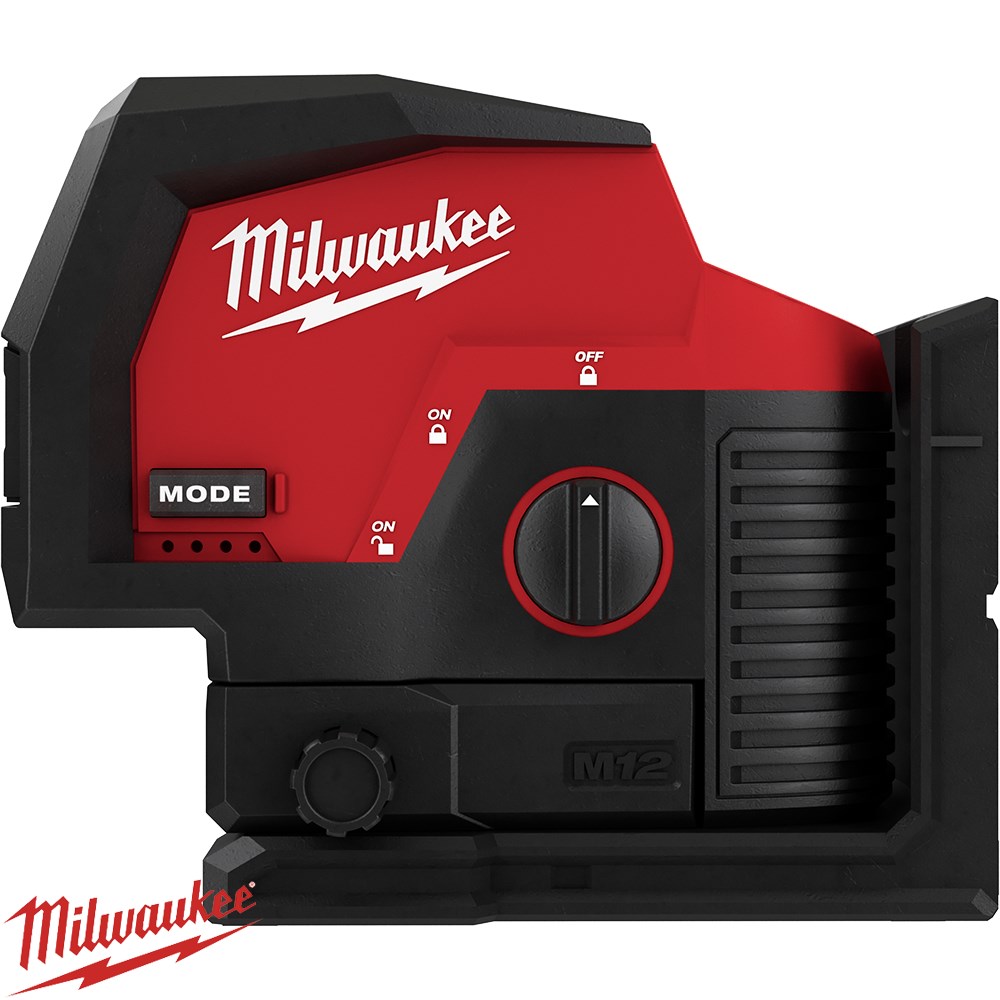

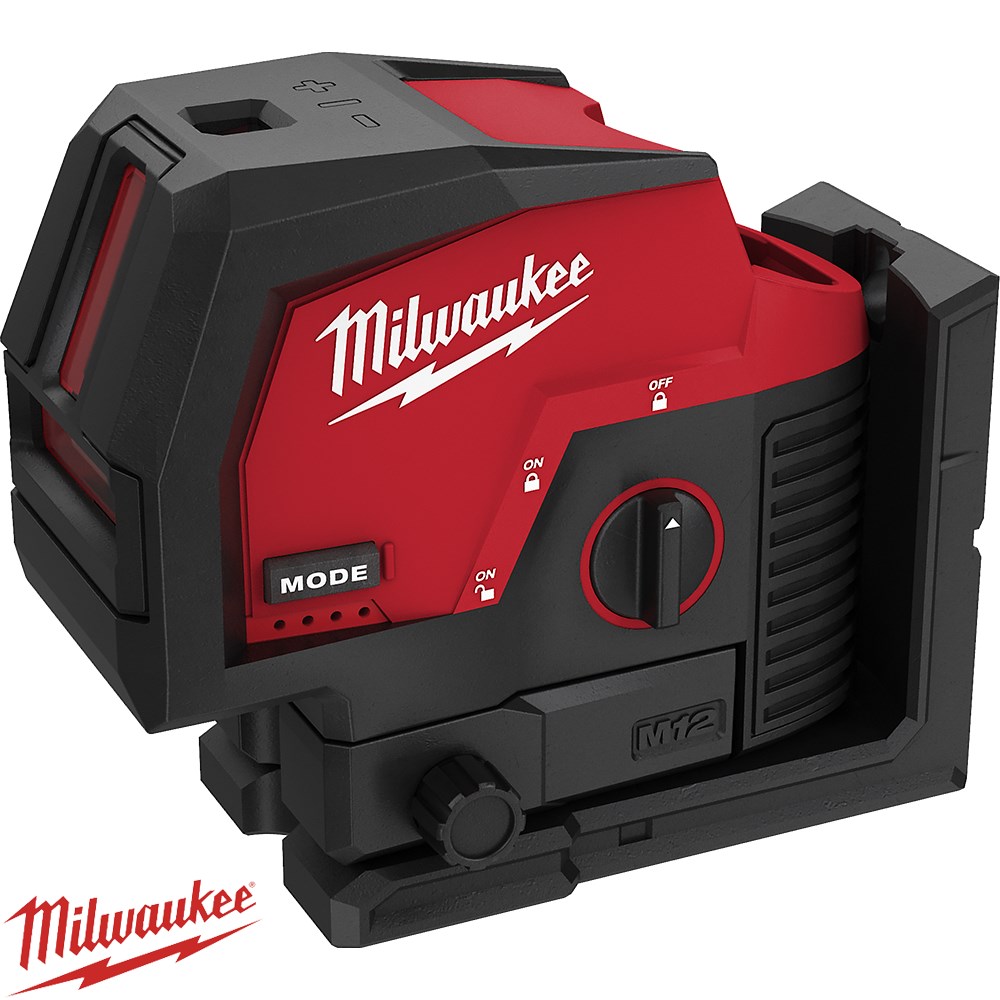

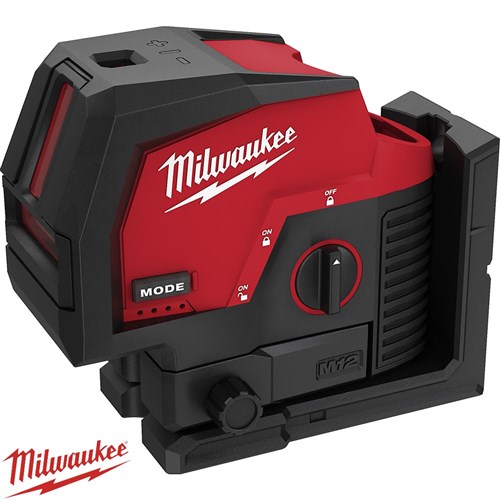

Milwaukee M12™ Cross Line + 2 Plumb Laser (Tool Only)
The M12™ Cross Line + 2 Plumb Laser offers versatile functionality for horizontal leveling, vertical alignment, and plumb point transfers from floor to ceiling. Powered by M12™ batteries, it delivers up to 15 hours of continuous runtime with a M12B3 battery pack, maximizing productivity. The high-intensity green beams provide 4x the brightness of red lasers and offer clear visibility up to 38 meters for long-range applications. With both vertical and horizontal lines for easy alignment and level applications, along with two plumb dots for quick floor-to-ceiling transfers, this laser covers all your layout needs.
The integrated magnetic bracket features a micro control knob for precise point-to-point alignment and 360° rotation that pivots on the plumb point for quick setups. Amplified rare earth magnets provide a strong hold on metal surfaces, while screw and nail hang holes make it easy to set up in any environment. Built tough with a 1-meter drop rating and IP54 protection, this laser is designed to withstand harsh jobsite conditions. The 3-mode pendulum system includes Manual Mode for angled use, Self-Leveling Mode with a 4° range and out-of-level indication, and Pendulum Lock Mode for safe transport. A convenient fuel gauge on the top and side offers quick battery checks, ensuring you’re always ready to work.
Features
- Horizontal leveling, vertical alignment, and plumb point transfer from floor to ceiling
- Powered by M12™ batteries with up to 15 hours of continuous runtime using a M12B3 battery pack
- High-intensity green beams with 4x brightness compared to red lasers; visibility up to 38 meters

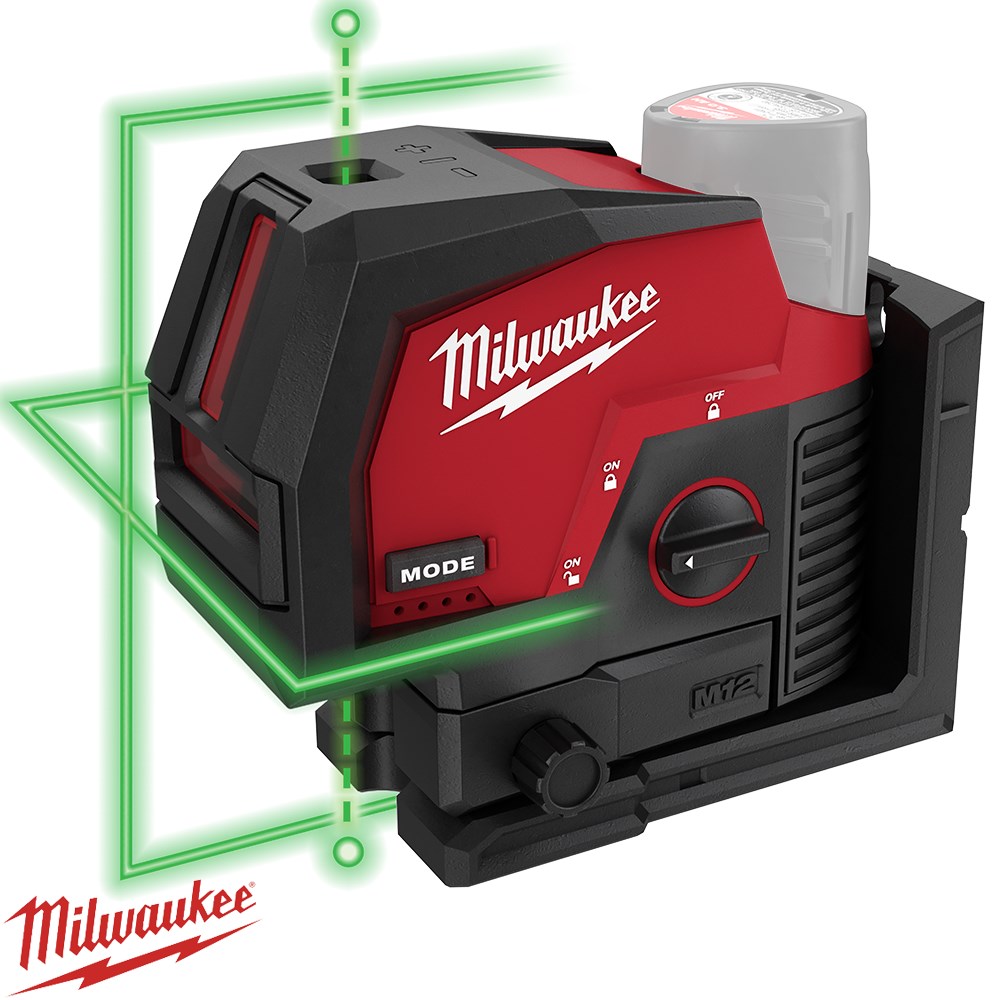

- Vertical and horizontal lines for easy alignment and leveling applications; two plumb dots for quick floor-to-ceiling transfers
- Integrated magnetic bracket with micro control knob for precise alignment and 360° rotation
- Amplified rare earth magnets for a secure hold on metal surfaces; integrated screw and nail hang holes for versatile setup
- 1-meter drop rating and IP54 rated for dust and water resistance
- 3-mode pendulum system: Manual Mode, Self-Leveling Mode (4° range), and Pendulum Lock Mode for transport protection
- Fuel gauge on top and side for easy battery charge monitoring

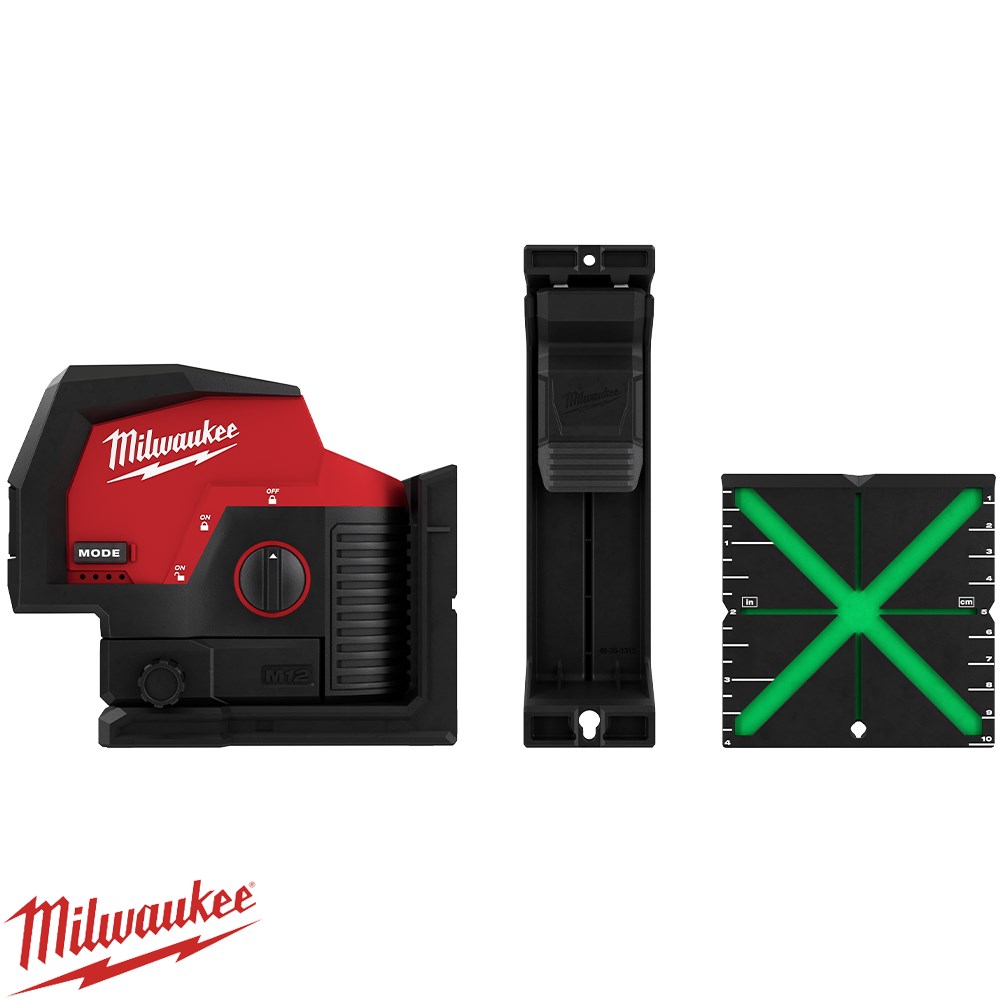

Includes
- M12™ Cross Line + 2 Plumb Laser [M12CPL]
- Laser Track Clip with Quick Connect [48351313]
- Laser Target [48351111]
- Carrying Case
Battery and charger sold separately
Specifications
- Platform: M12™
- IP Ratings: IP54
- Dimensions: 173 x 74 x 145 mm
- Weight: 1.0 kg
- Warranty: 3 Years
- Locking Pendulum: Yes
- Plumb Point Access: 2" (51 mm)
- Self-Leveling: ± 4° Tilt
- Accuracy: ± 3.18 mm over 10 m
- Impact Resistant: 1 m
- Working Range: 38 m
- Range with Detector: 50 m
- Thread Mount: 1/4"-20, 5/8"-11
