DRAPER BELT TWIN VEE 41.6" CASE MACDON NH HONEYBEE SOLD PER FOOT

CASE MACDON NH HONEYBEE SOLD PER FOOT

Product Code: MDDB416DV

Qty
1.0 - 149.9	$93.50 (inc GST)
150.0+	$88.83 (inc GST)

Detail
Applications
Downloads

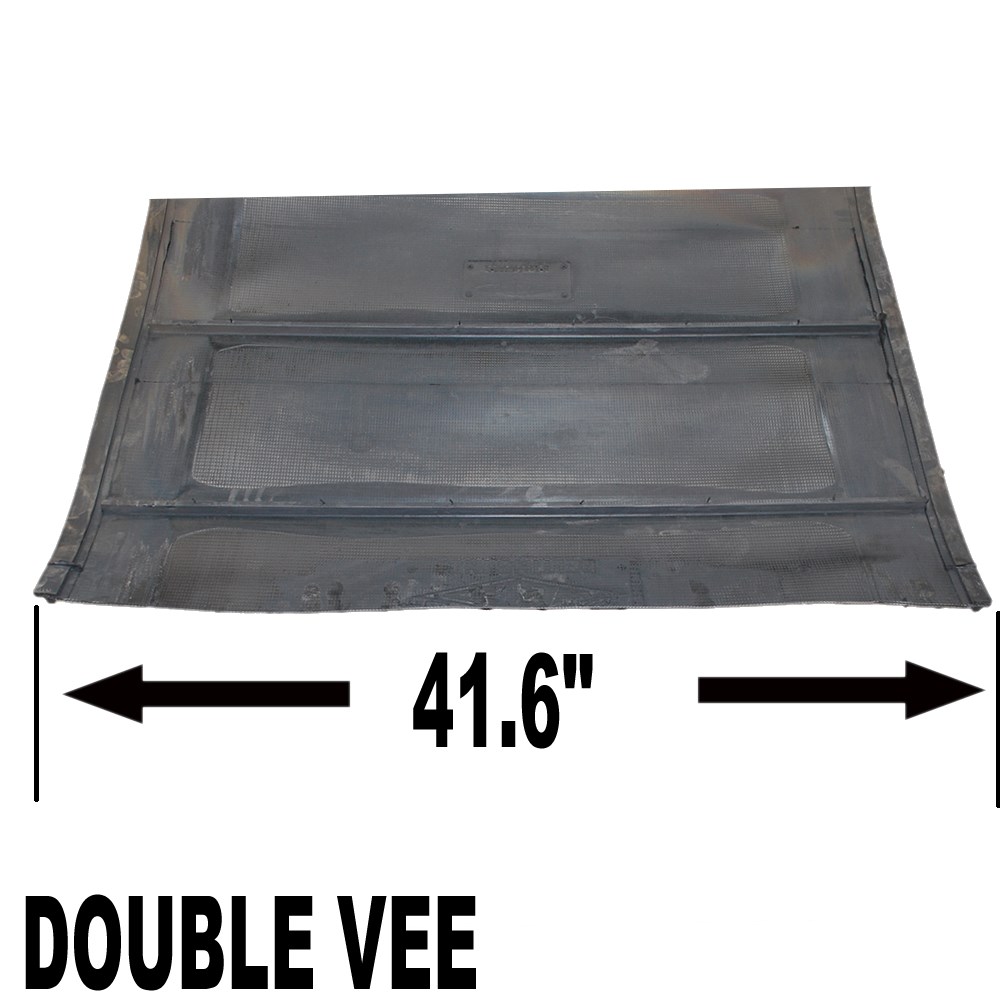

Draper Belting - 41.6" Double V

Aftermarket double-v draper belt to suit Macdon, Case & New Holland cutting platforms. This AG BELT™ branded double-v draper belt provides excellent long term durability and is the ideal replacement for your draper front. Featuring high performance single ply construction with fibreglass rod cleat reinforcment and crosshatch belt cover AG BELT™ offers excellent performance.

Part Numbers

220637 220638 220639 220640, 220642 174025 172460 172461 145959 145960 145961 145962 165337 172195 172196 172197 172198 20021499

Features

Specifications
Plies	1
Material	SBR/NBR Rubber Blend
Colour	Black
Belt Covers	AG BELT™ Crosshatch
Carcass	Poyester filament
Belt width	41.6"
Bulk roll	150'
Cleats	1/2" Tall snub nose
Cleats reinforcment	Fibreglass Rod
Cleat Spacing	12"
Edge Reinforcement	Yes
Sise Seals	2
Edge v-guides	Yes

MODEL FITMENT	MAT Width	FRONT Width	LEFT HAND Exact Length	LEFT HAND Cut Length	RIGHT HAND Exact Length	RIGHT HAND Cut Length
Macdon 960, 962 - Double	41.6"	25'	222.00"	19'	269.00"	23'
Macdon 960, 962 - Triple	41.6"	25'	222.00"	19'	222.00"	19'
Macdon 960, 962 - Double	41.6"	30'	282.00"	24'	329.00"	28'
Macdon 960, 962 - Triple	41.6"	30'	282.00"	24'	282.00"	24'
Macdon 960, 962 - Double	41.6"	36'	354.00"	30'	402.00"	34'
Macdon 960, 962 - Triple	41.6"	36'	354.00"	30'	354.00"	30'
Macdon 972, 973, 974	41.6"	25'	249.00"	21'	249.00"	21'
Macdon D50, D60, D65	41.6"	25'	217.24"	19'	217.24"	19'
Macdon D50, D60, D65, FD70, FD75	41.6"	30'	277.24"	24'	277.24"	24'
Macdon D50, D60, D65, FD70, FD75	41.6"	35'	337.24"	29'	337.24"	29'
Macdon D60, D65, FD70, FD75	41.6"	40'	397.24"	34'	397.24"	34'
Macdon D60, D65, FD70, FD75	41.6"	45'	457.00"	39'	457.00"	39'
Macdon D1, FD1	41.6"	30'	277.24"	24'	277.24"	24'
Macdon D1, FD1	41.6"	35'	337.24"	29'	337.24"	29'
Macdon D1, FD1	41.6"	40'	397.24"	34'	397.24"	34'
Macdon D1, FD1	41.6"	45'	457.24"	39'	457.24"	39'
Macdon D1XL	49.6"	30'	277.24"	24'	277.24"	24'
Macdon D1XL	49.6"	35'	337.214"	29'	337.24"	29'
Macdon D1XL	49.6"	40'	397.24"	34'	397.24"	34'
Macdon D1XL	49.6"	45'	457.24"	39'	457.24"	39'
Case 1042, 2042	41.6"	30'	297.80"	25'	345.00"	29'
Case 1042, 2042	41.6"	36'	369.70"	31'	417.00"	35'
Case 1052, 2052	41.6"	25'	249.00"	21'	249.00"	21'
CASE 2052 TRIPLE DELIVERY	41.6"	39'	LH 87446868 389"	RH 87446870	RH EXT 87446869
Case 2142, 2152, 2162	41.6"	25'	217.24"	19'	217.24"	19'
Case 2142, 2152, 2162	41.6"	30'	277.24"	24'	277.24"	24'
Case 2142, 2152, 2162	41.6"	35'	337.24"	29'	337.24"	29'
Case 2152, 2162	41.6"	40'	397.24"	34'	397.24"	34'
Case 2152, 2162	41.6"	45'	457.00"	39'	457.00"	39'
New Holland 83C, 86C	41.6"	25'	217.24"	19'	217.24"	19'
New Holland 82C, 83C, 86C	41.6"	30'	277.24"	24'	277.24"	24'
New Holland 82C, 83C, 86C	41.6"	35'	337.24"	29'	337.24"	29'
New Holland 83C, 86C	41.6"	40'	397.24"	34'	397.24"	34'
New Holland 83C, 86C	41.6"	45'	457.00"	39'	457.00"	39'
