DRAPER BELT SINGLE V 41.6" CASE MACDON NH HONEYBEE SOLD PER FOOT

CASE MACDON NH HONEYBEE SOLD PER FOOT

Product Code: MDDB416SV

Qty
1.0 - 149.9	$66.00 (inc GST)
150.0+	$62.70 (inc GST)

Detail
Applications

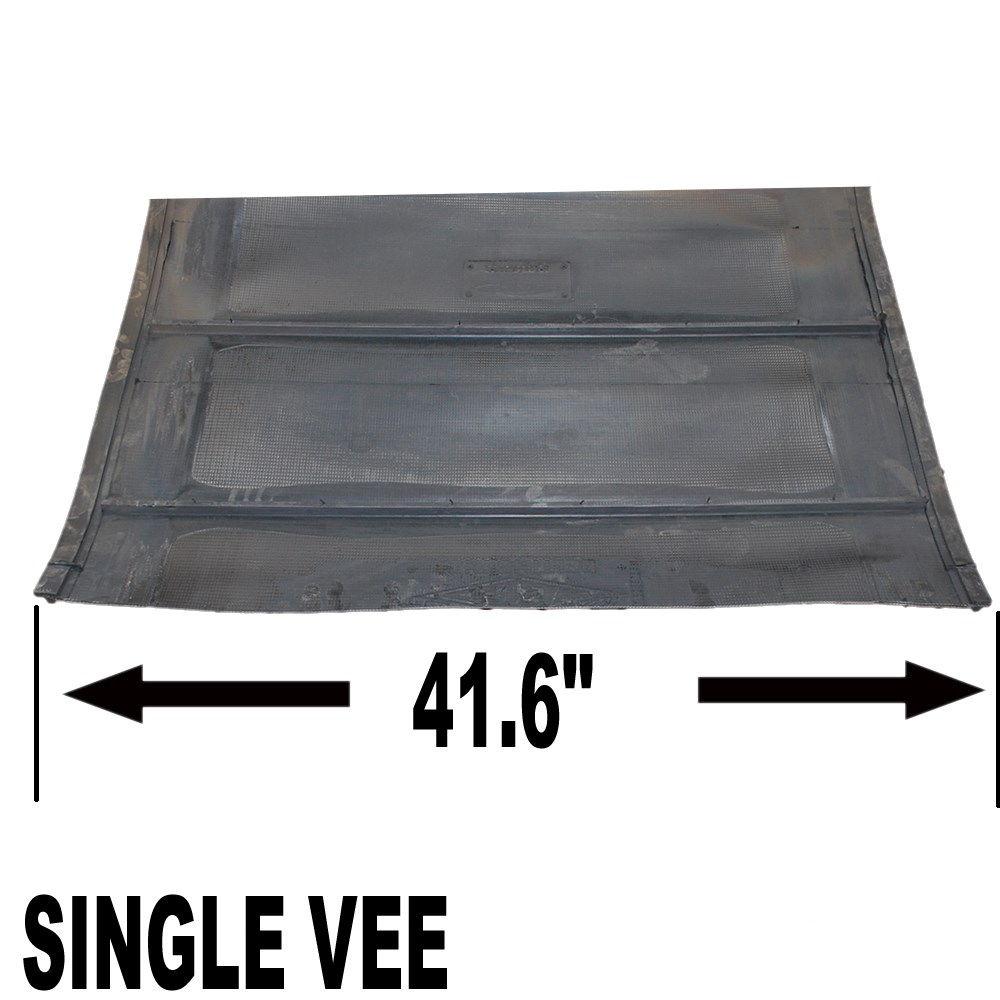

Draper Belting - 41.6" Single V

Aftermarket Draper belt to suit Macdon, Case & New Holland cutting platforms. Manufactured by WCCO in the USA, this side draper belt measures 41.6" wide, with straight cleats and has a single side V guide.

WCCO’s patented RAPTOR™ Belting uses 100% polyester filament fabric with a friction coating capability with higher tensile, tear, and puncture resistance. RAPTOR™ draper belting has higher strength properties, superior durability and also features an innovative teardrop-shaped fiberglass reinforcement rod inside of the cleat for increased stiffness, making it more significantly stiffer in the cross direction than its competition.

Part Numbers

220637 220638 220639 220640, 220642 174025 172460 172461 145959 145960 145961 145962 165337 172195 172196 172197 172198

MODEL FITMENT	MAT Width	FRONT Width	LEFT HAND Exact Length	LEFT HAND Cut Length	RIGHT HAND Exact Length	RIGHT HAND Cut Length
Macdon 960, 962 - Double	41.6"	25'	222.00"	19'	269.00"	23'
Macdon 960, 962 - Triple	41.6"	25'	222.00"	19'	222.00"	19'
Macdon 960, 962 - Double	41.6"	30'	282.00"	24'	329.00"	28'
Macdon 960, 962 - Triple	41.6"	30'	282.00"	24'	282.00"	24'
Macdon 960, 962 - Double	41.6"	36'	354.00"	30'	402.00"	34'
Macdon 960, 962 - Triple	41.6"	36'	354.00"	30'	354.00"	30'
Macdon 972, 973, 974	41.6"	25'	249.00"	21'	249.00"	21'
Macdon D50, D60, D65	41.6"	25'	217.24"	19'	217.24"	19'
Macdon D50, D60, D65, FD70, FD75	41.6"	30'	277.24"	24'	277.24"	24'
Macdon D50, D60, D65, FD70, FD75	41.6"	35'	337.24"	29'	337.24"	29'
Macdon D60, D65, FD70, FD75	41.6"	40'	397.24"	34'	397.24"	34'
Macdon D60, D65, FD70, FD75	41.6"	45'	457.00"	39'	457.00"	39'
Macdon D1, FD1	41.6"	30'	277.24"	24'	277.24"	24'
Macdon D1, FD1	41.6"	35'	337.24"	29'	337.24"	29'
Macdon D1, FD1	41.6"	40'	397.24"	34'	397.24"	34'
Macdon D1, FD1	41.6"	45'	457.24"	39'	457.24"	39'
Case 1042, 2042	41.6"	30'	297.80"	25'	345.00"	29'
Case 1042, 2042	41.6"	36'	369.70"	31'	417.00"	35'
Case 1052, 2052	41.6"	25'	249.00"	21'	249.00"	21'
CASE 2052 TRIPLE DELIVERY	41.6"	39'	LH 87446868 389"	RH 87446870	RH EXT 87446869
Case 2142, 2152, 2162	41.6"	25'	217.24"	19'	217.24"	19'
Case 2142, 2152, 2162	41.6"	30'	277.24"	24'	277.24"	24'
Case 2142, 2152, 2162	41.6"	35'	337.24"	29'	337.24"	29'
Case 2152, 2162	41.6"	40'	397.24"	34'	397.24"	34'
Case 2152, 2162	41.6"	45'	457.00"	39'	457.00"	39'
New Holland 83C, 86C	41.6"	25'	217.24"	19'	217.24"	19'
New Holland 82C, 83C, 86C	41.6"	30'	277.24"	24'	277.24"	24'
New Holland 82C, 83C, 86C	41.6"	35'	337.24"	29'	337.24"	29'
New Holland 83C, 86C	41.6"	40'	397.24"	34'	397.24"	34'
New Holland 83C, 86C	41.6"	45'	457.00"	39'	457.00"	39'
* Belts are supplied in a cut length that is 12 inches longer than the exct length
