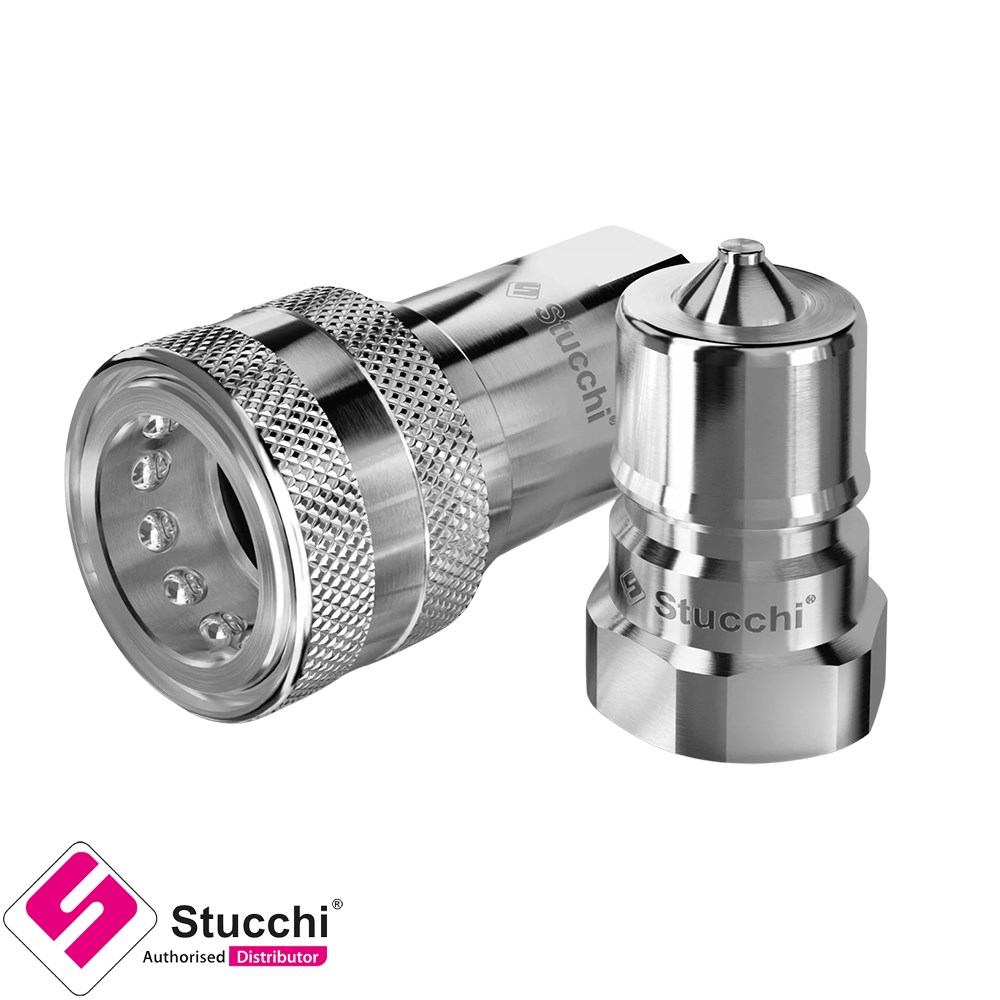

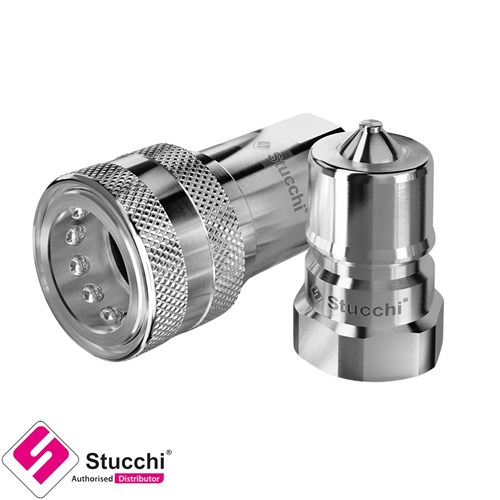

Hydraulic Male Poppet BSP 3/8" IRBX Series
Designed for precision and durability, the IRBX Series Male Poppet Coupling is built to handle tough hydraulic environments where resistance to corrosion and fluid aggressiveness is essential. Manufactured from AISI 316L stainless steel, it delivers reliable sealing and long service life in demanding industries such as oil & gas, industrial machinery, chemical, cooling, and food processing.
Features
- Poppet valve system for dependable sealing
- ISO 7241-1 Series B interchangeable
- Corrosion-resistant stainless steel AISI 316L
- FKM (Viton) sealing for high chemical and temperature resistance
- Pull-back sleeve connection and disconnection
- Engineered for harsh environmental conditions
Specifications
- Thread: BSP 3/8" (NPT ANSI B1.20.1)
- Max operating pressure: 20 MPa
- Burst pressure: 100 MPa
- Max flow rate: 46 L/min
- Seal type: FKM (Viton)
- Temperature range: -15°C to +180°C
- Connection force: 90 N
- Disconnection force: 35 N
- Spillage: 2.2 mL
- Length: 66 mm
- Max diameter: 34 mm
- Weight: [insert weight if available]
- Material: Stainless steel AISI 316L + brass retainer
- Standard: ISO DN 10
