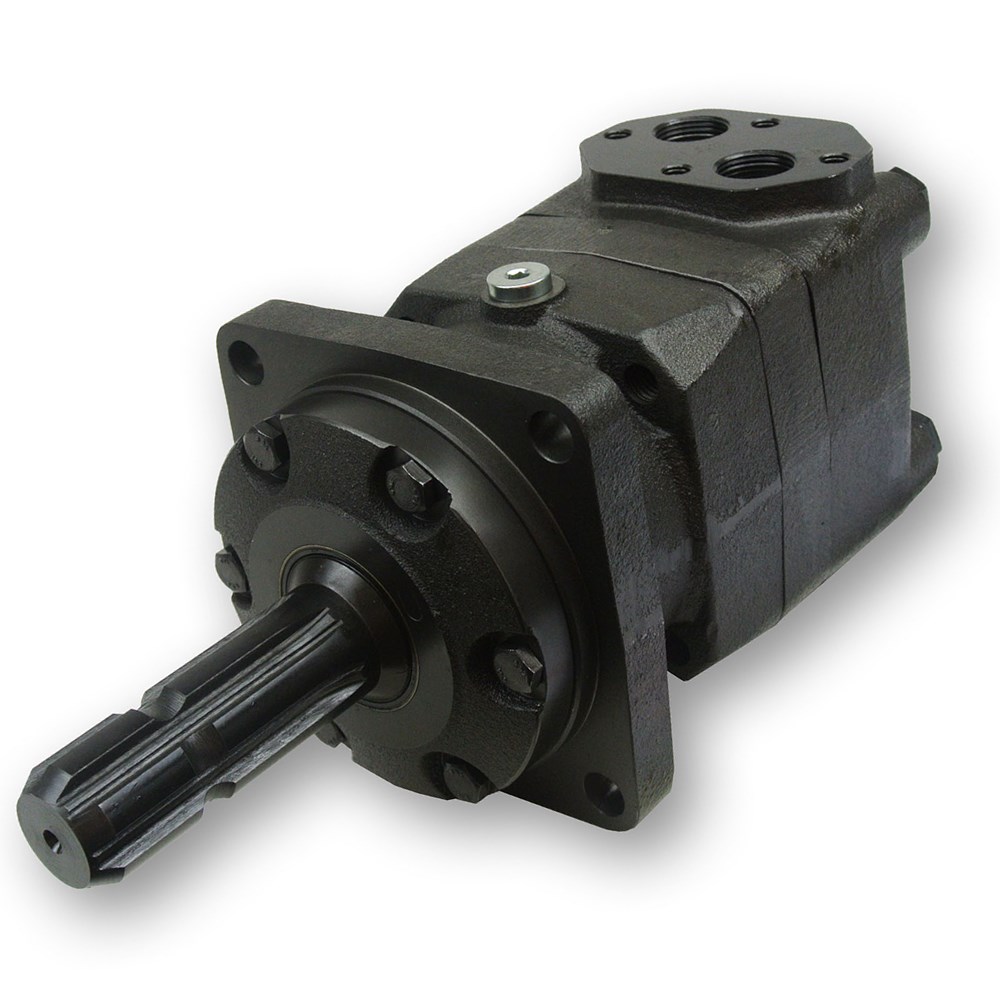

M+S HYD MOTOR 250CC 1.3/8" 6 SPLINE SHAFT 3/4" BSPP PORTS

1.3/8" 6 SPLINE SHAFT 3/4" BSPP PORTS

Product Code: MT250SLU

Detail
Downloads

M+S MT Series

DISC VALVE MOTOR (250CC)

Quality M+S disc valve hydraulic motor fitted with standard agricultural 1-3/8" x Z6 spline output shaft. This motor is designed for agricultural applications driving gearboxes for augers, pumps and other applications where a 1-3/8" x Z6 spline output shaft is desirable.

Features

MT Series Disc Valve Motor
Mount Square 4-Hole 125mm Spigot
Displacement 250cc/rev

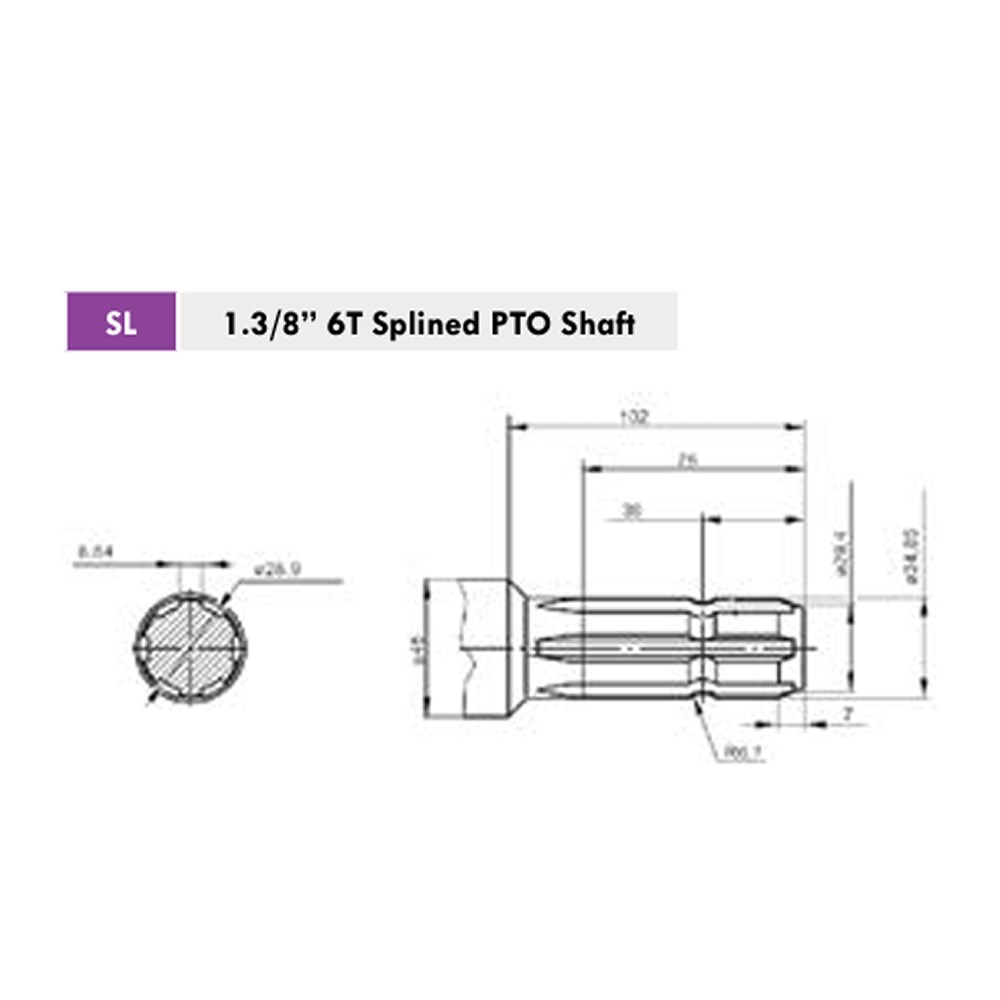

Output shaft 1-3/8" x Z6 spline shaft (Agricultural PTO)
Shaft Seal Rated @ 100 Bar
Ports 3/4 BSPP
Case Drain 1/4" BSPP

Applications

Agricultural applications that require 1-3/8" x Z6 spline output
Augers, Pumps

Performance

Motor performance is subject to correct application engineering design and installation.
