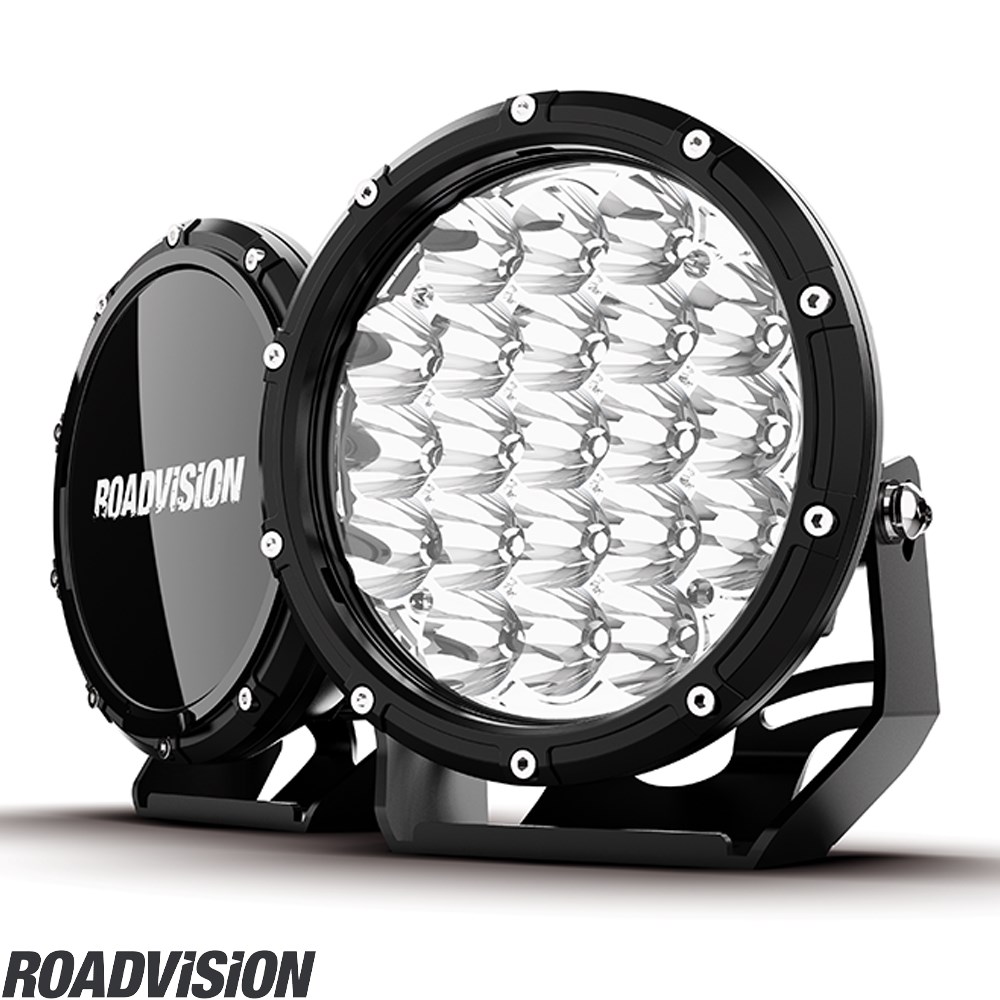

Roadvision Essential DLE Series LED Driving Lights
The Roadvision Essentials Series LED bar lights are the perfect choice for those seeking value without compromising on quality. Crafted from lightweight, tough die-cast aluminium, these lights feature IP-rated housing and utilize high-performing 5W Osram LEDs. They support a multi-volt 11-32V DC input and boast low current draw, thermal management technology, and a polycarbonate lens for durability in the toughest conditions.
With a combination of spot and driving optics, these LED driving lights produce a versatile beam pattern with long-distance range. Available in both 7” and 9” lengths, they offer an excellent entry-level solution while delivering great output, durability, and an ideal look for your rig.
Installation is straightforward with a simple 2-wire setup with a Deutsch plug. Each set includes clear and black protective covers. They also feature over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
Features
- Lightweight, tough die-cast aluminium construction
- IP-rated housing for durability
- High-performing 5W Osram LEDs
- Multi-volt 11-32V DC input with low current draw
- Thermal management technology
- Polycarbonate lens for tough conditions
- Available in 7” and 9” lengths
- Simple 2-wire installation with Deutsch plug
- Includes clear and black protective covers
- Over/under voltage protection
- Reverse polarity protection
- EMI/EMC radio interference approved
Specifications
- Beam Pattern: Spot
- Maximum Lumens: 14400lm per set
- Maximum Lux @ 10m: 11236lx per set
- Maximum Beam Distance @ 0.5lx: 1245m per set
- Maximum Beam Distance @ 1LX: 1060m per set
- Input Voltage: 11-32VDC
- Maximum Watts: 210W Per Set
- Number of LEDS: 21 x 5W Osram Each
- Current Draw @ 13.8V: 11.2~15.0 Amps per set
- Lens Construction: Polycarbonate
- Housing Construction: Die-Cast Aluminium
- Wiring: 2 Pin Deutsch Plug

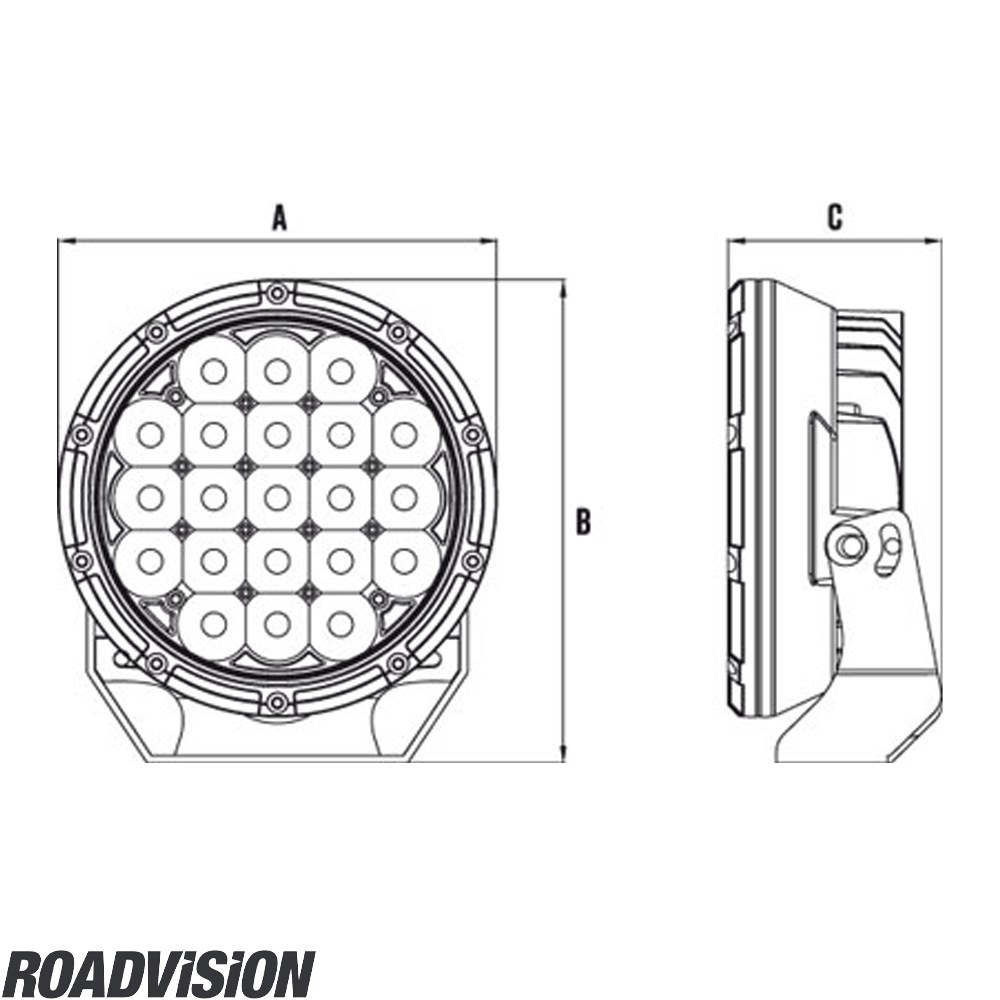

- Dimensions LxHxW: 175 x 192 x 85mm
