ACCUMULATOR 0.75L DIAPHRAGM MAX PRESSURE: 210 BAR- 1/2BSPP TYPE M28X1.5 (NON-REPAIRABLE)

MAX PRESSURE: 210 BAR- 1/2BSPP TYPE M28X1.5 (NON-REPAIRABLE)

Product Code: STDA075

Detail
Downloads

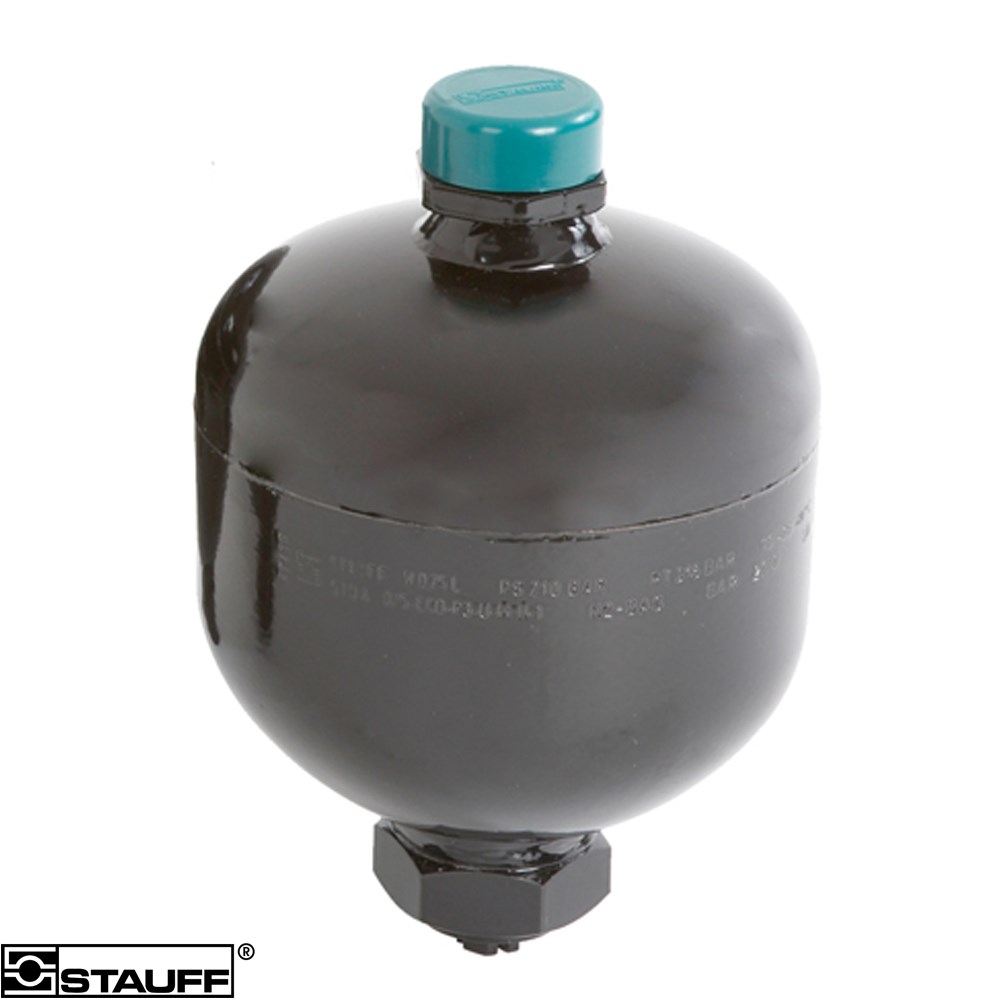

Stauff® 0.75L Diaphragm Accumulator 210 Bar – STDA-075

The Stauff® STDA-075-NBR-P3-B-M-N-1 is a high-performance 0.75L diaphragm accumulator engineered for robust energy storage and system stabilisation. Rated for a maximum working pressure of 210 bar, this genuine Stauff® unit effectively absorbs hydraulic shocks and dampens pulsations to safeguard your hydraulic circuit.

Designed for seamless integration into industrial and mobile hydraulic setups, this Type STDA configuration features a durable NBR (Buna-N®) diaphragm and a secure, non-repairable construction. We provide Australia-wide shipping for this accumulator. To ensure safe transit and compliance with dangerous goods regulations, this unit is supplied with no gas pre-charge.

Product Benefits & Performance

Reliable Energy Storage: Maintains consistent system pressure and provides emergency power backup.
Shock Absorption: Significantly reduces mechanical stress by dampening hydraulic "water hammer" and vibration.
Maintenance-Free Reliability: The sealed, non-repairable (STDA) design offers a tamper-proof and durable safety solution.
Simplified Logistics: Shipped uncharged to facilitate immediate Australia-wide dispatch without dangerous goods restrictions.

Technical Specifications & Configuration

Type: STDA (Diaphragm Non-Repairable)
Accumulator Volume: 0.75 Litre
Maximum Working Pressure: 210 Bar (P3)
Diaphragm Material: NBR (Buna-N®)
Oil Port Connection: G 1/2" BSPP (B)
Gas Port Connection: M28x1.5 (M)
Special Option: Standard (1) – No Pre-Charge

Typical Applications

Agricultural Equipment: Enhances suspension and load-sensing performance in tractors and harvesters.
Industrial Machinery: Provides pressure compensation and pulsation dampening in manufacturing power units.
Mobile Plant: Ideal for braking and steering circuits in demanding earthmoving environments.

Product specifications are subject to manufacturing tolerances. This unit must be correctly pre-charged with nitrogen by a qualified professional before system operation.
