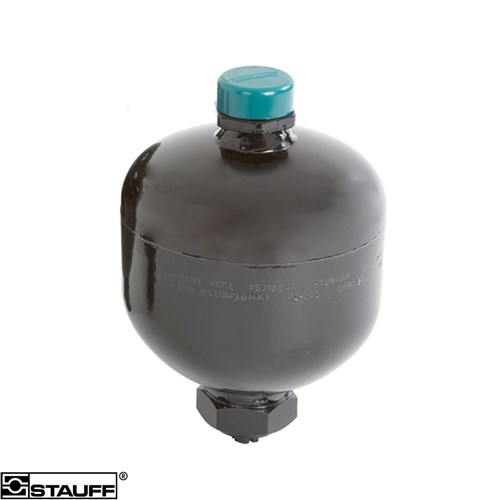

Stauff® 1.4L Diaphragm Accumulator 210 Bar – STDA-140
The Stauff® STDA-140-NBR-P3-B-M-N-1 is a high-capacity 1.4L diaphragm accumulator engineered for robust energy storage and pressure stabilisation. Rated for a maximum working pressure of 210 bar, this genuine Stauff® unit effectively dampens hydraulic shocks and pulsations to safeguard industrial and mobile hydraulic circuits.
Designed for long-term reliability, this Type STDA configuration features a durable NBR (Buna-N®) diaphragm and a tamper-proof, non-repairable construction. We provide Australia-wide shipping for this unit. To ensure safe transit and maintain compliance with dangerous goods regulations, this accumulator is supplied with no gas pre-charge.
Product Benefits & Performance
- High-Volume Stabilisation: Ideal for larger hydraulic systems requiring significant pulsation dampening and energy storage.
- Shock Absorption: Protects system integrity by mitigating hydraulic "water hammer" and reducing mechanical vibration.
- Maintenance-Free Design: The sealed, non-repairable (STDA) construction provides a durable, safety-focused solution for demanding environments.
- Nationwide Dispatch: Shipped uncharged to facilitate fast delivery across Australia without dangerous goods restrictions.
Technical Specifications & Configuration
- Type: STDA (Diaphragm Non-Repairable)
- Accumulator Volume: 1.4 Litre
- Maximum Working Pressure: 210 Bar (P3)
- Diaphragm Material: NBR (Buna-N®)
- Oil Port Connection: G 1/2" BSPP (B)
- Gas Port Connection: M28x1.5 (M)
- Special Option: Standard (1) – No Pre-Charge
Typical Applications
- Agricultural Equipment: Critical for boom suspension and load-sensing circuits in high-capacity harvesters.
- Industrial Power Units: Provides pressure compensation and emergency power backup for manufacturing plant.
- Mobile Hydraulics: Used in braking, steering, and suspension circuits for heavy earthmoving machinery.
Product specifications are subject to manufacturing tolerances. This unit must be correctly pre-charged with nitrogen by a qualified professional before system operation.
