OTR Titan Axles

HUB & STUB ASSY 50S-5 50MM SQ

5 STUD ON 140MM PCD

Product Code: TA00145
$268.70
EACH inc GST
Afterpay Logo
4 payments of $67.18
In Stock Low Stock Out of Stock Please See Attributes 2
Increase value Decrease value

  • Detail
  • Downloads

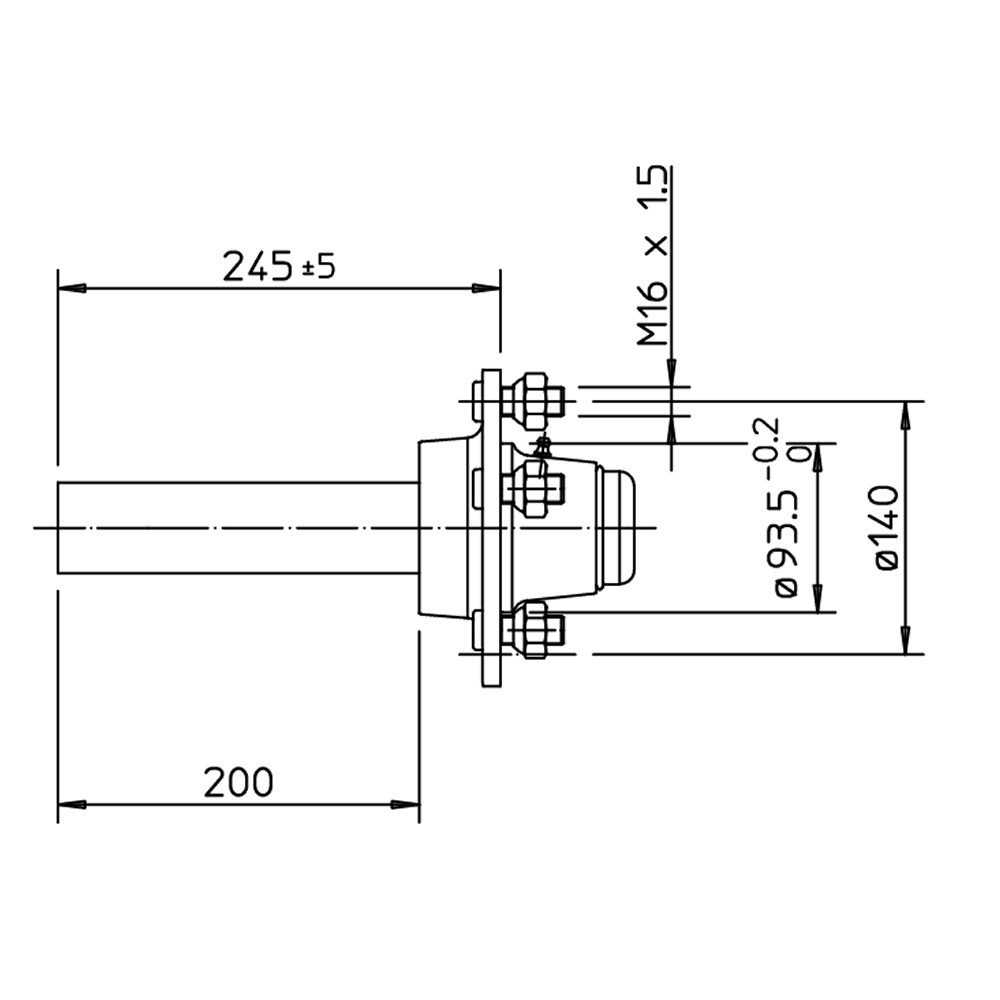

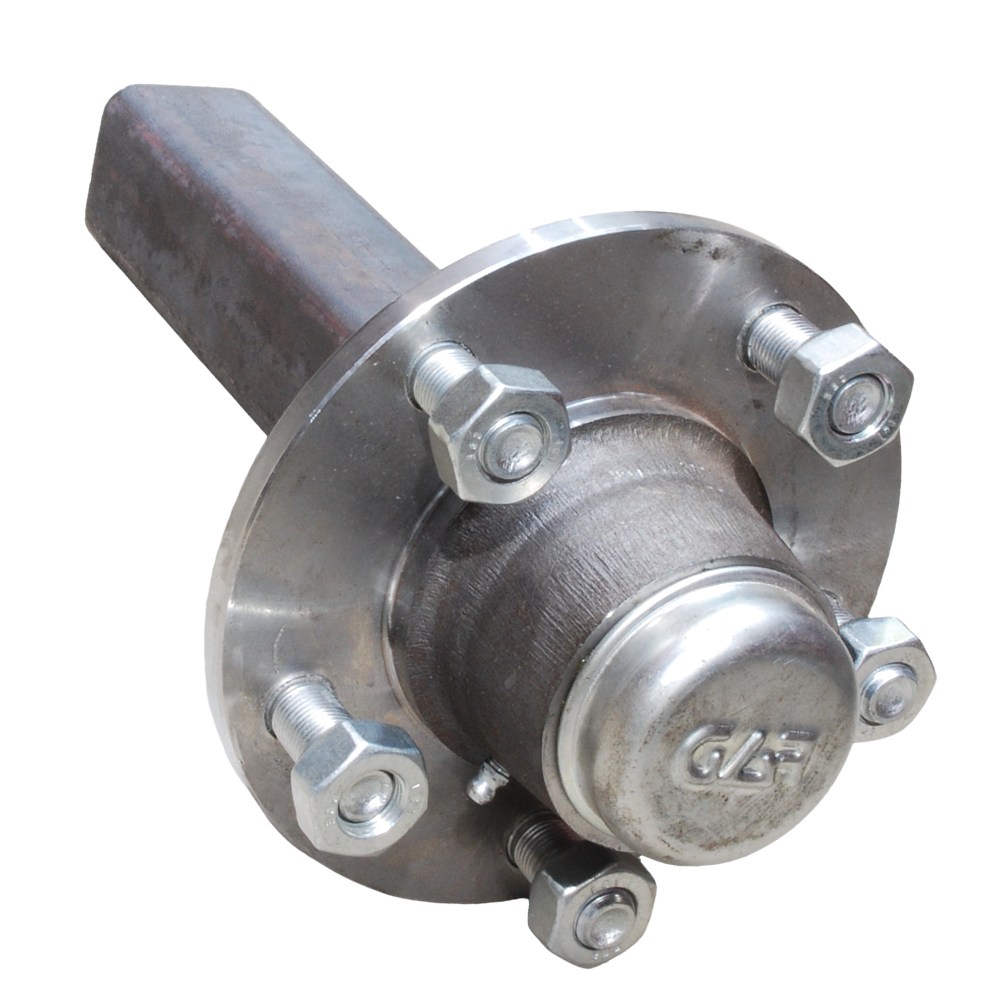

FAD® Stub Axle Assembly

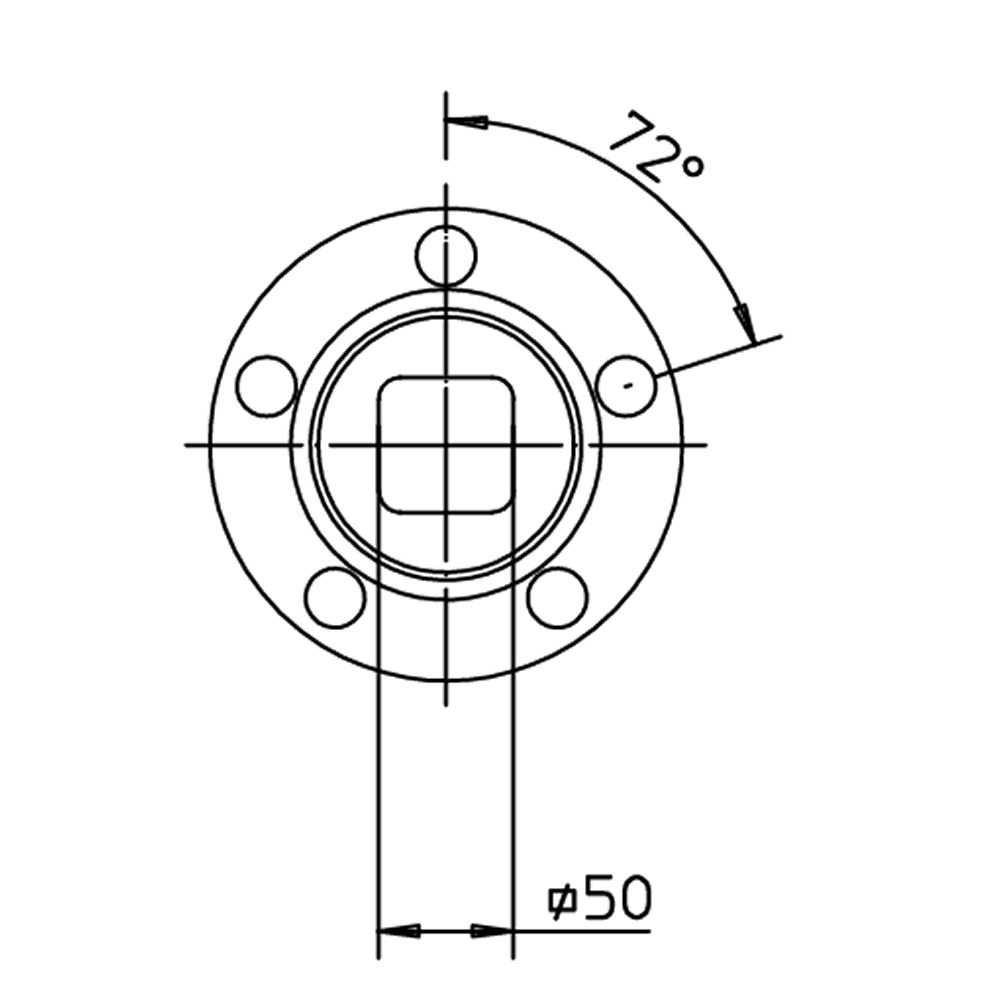

50-5 (DIN Standard 5/140PCD)


FAD® Imported stub axle designed for heavy duty off-highway agricultural applications.

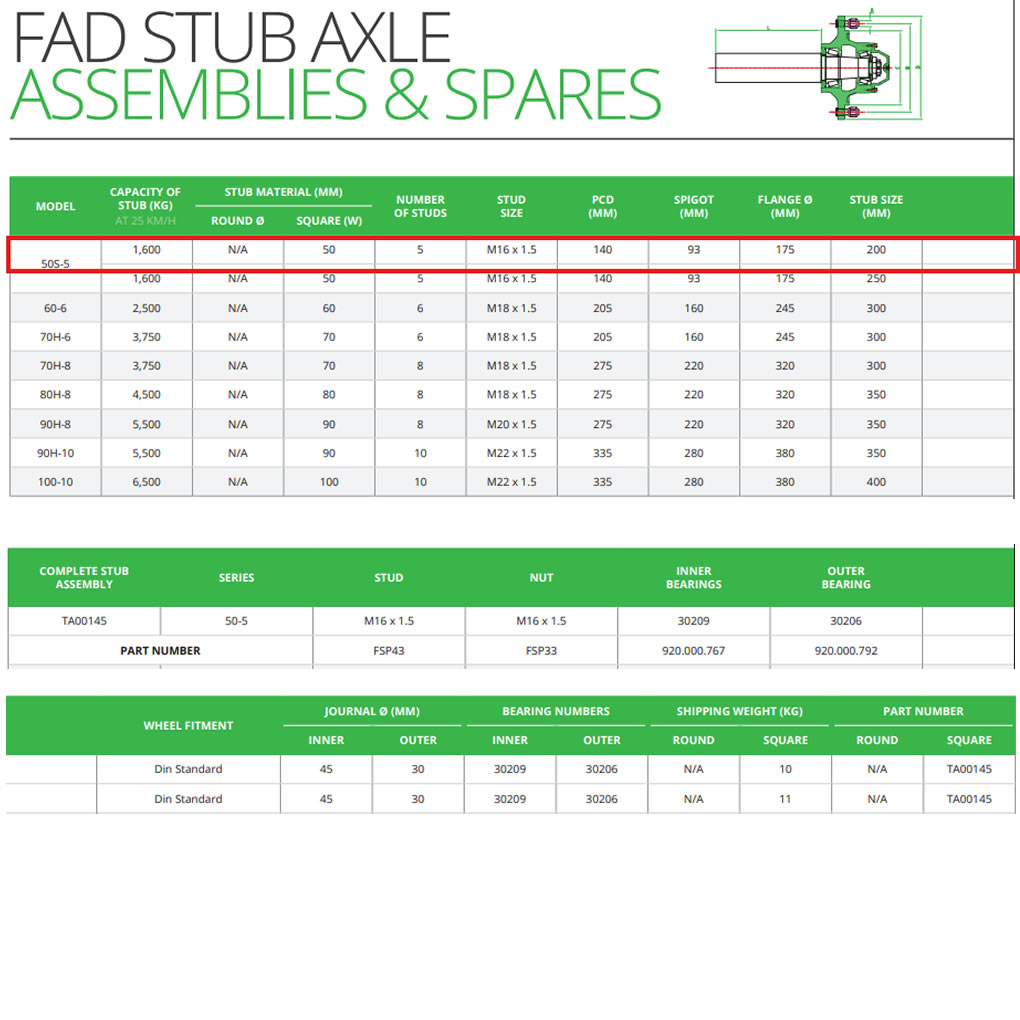

AXLE
MODEL		 CAPACITY
 @25kph		 STUB
MATERIAL		 STUD
NUMBER		 STUD
SIZE		 PCD Ø
(MM)		 SPIGOT Ø
(MM)		 FLANGE Ø
(MM)		 STUB SIZE
(MM)
50S-5 1600kg 50MM SQUARE 5 M16X1.5 140 93.5 175 200

WHEEL
FITMENT		 JOURNAL
INNER Ø		 JOURNAL
OUTER Ø		 BEARING
INNER		 BEARING
OUTER		 SHIPPING
WEIGHT		 PART
NUMBER
40 30 30209 30206 10 TA00145


Features
  • FAD Imported
  • Seal = 53x85x10
  • Seal Ring = 45.5x53x13
  • Dust Cap 63mm
  • Axle Nut M27x2
  • Split Pin 35mm

Documents
