TOHO ELEC CHAIN HOIST 1T/3M

ELECTRIC THREE PHASE 2 SPEED

Product Code: TECH3PH2SP0103
  $2450.00
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail
  • Parts & Codes
  • Downloads

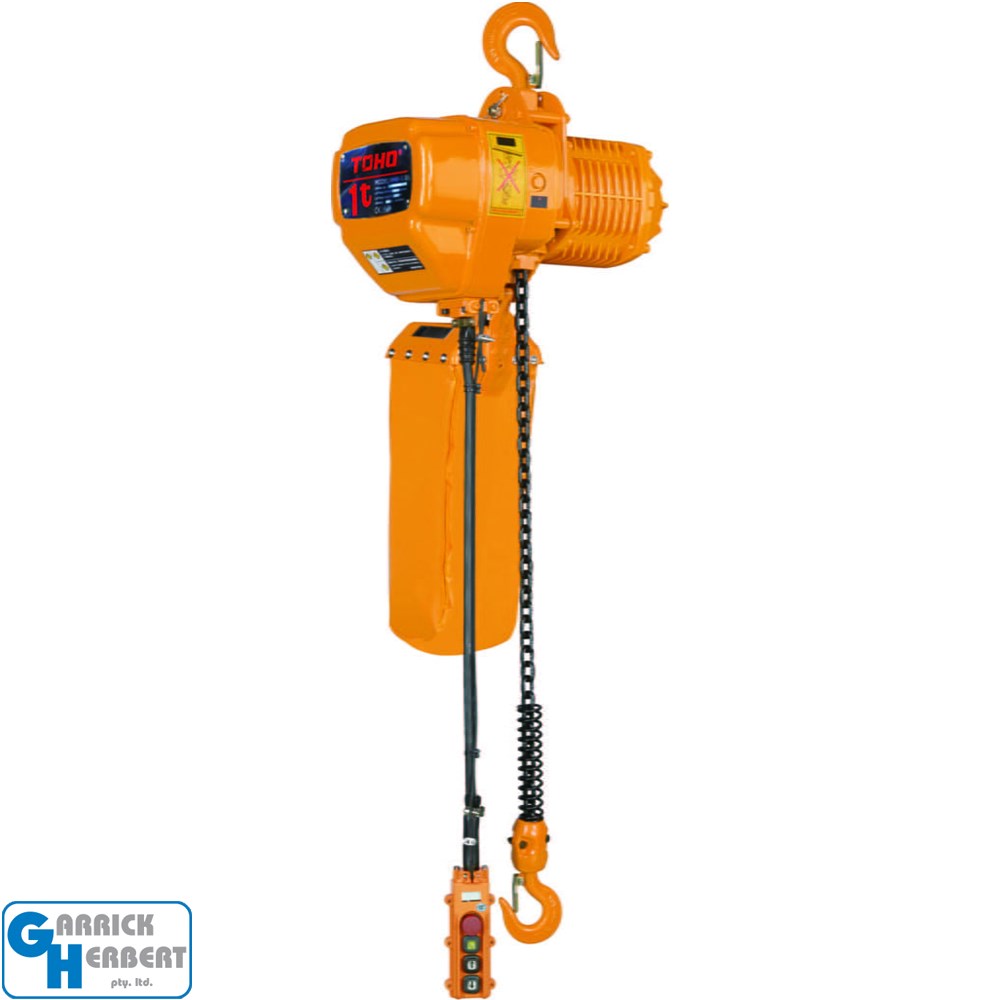

TOHO ELEC CHAIN HOIST 1T/3M

The TOHO ELEC CHAIN HOIST 1T/3M (3-Phase) is a powerful and efficient lifting solution designed for heavy-duty tasks. With a 1-tonne (1000kg) capacity and a 3-meter standard lift, this hoist features a dual-speed 1.8kW 3-phase motor that offers lifting speeds of 1.2m/min on low speed and 3.5m/min on high speed, making it suitable for a variety of lifting applications. The compact, lightweight design, combined with a pressed steel structure and high-strength alloy steel hooks, ensures durability and reliable operation. The 7.1mm grade 80 alloy steel load chain is built to last, and the limit switches at both the top and bottom of the hoist prevent chain runout for added safety. With an IP54 hoist rating and IP65 control rating, the TOHO hoist is designed to withstand dust and water exposure. Compliant with ASNZS 1418.2 standards, it offers flexibility with optional re-chaining to meet specific lifting requirements.

Features

  • 1T (1000kg) capacity with a 3m standard lift
  • Dual-speed 1.8kW 3-phase motor with lifting speeds of 1.2m/min (low) and 3.5m/min (high)
  • High-tensile alloy steel hooks for strength and safety
  • 7.1mm grade 80 alloy steel load chain for long-lasting performance
  • Limit switches to prevent chain runout
  • IP54 rated hoist and IP65 rated control for dust and water resistance
  • Complies with ASNZS 1418.2 safety standards
  • Option to re-chain to your required length (limits apply)
  • Compact, lightweight design for easy handling and operation

NOTE: This product is available exclusively online and ships directly from the supplier's warehouse
