TYPHOON CENTRE FEED DRUM

MACDON & CASE DRAPER FRONTS INCLUDING CA20 MOUNTING KIT

Product Code: TY2-CA20
$8497.50
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 3
Increase value Decrease value

  • Detail
  • Tech Specs
  • Downloads

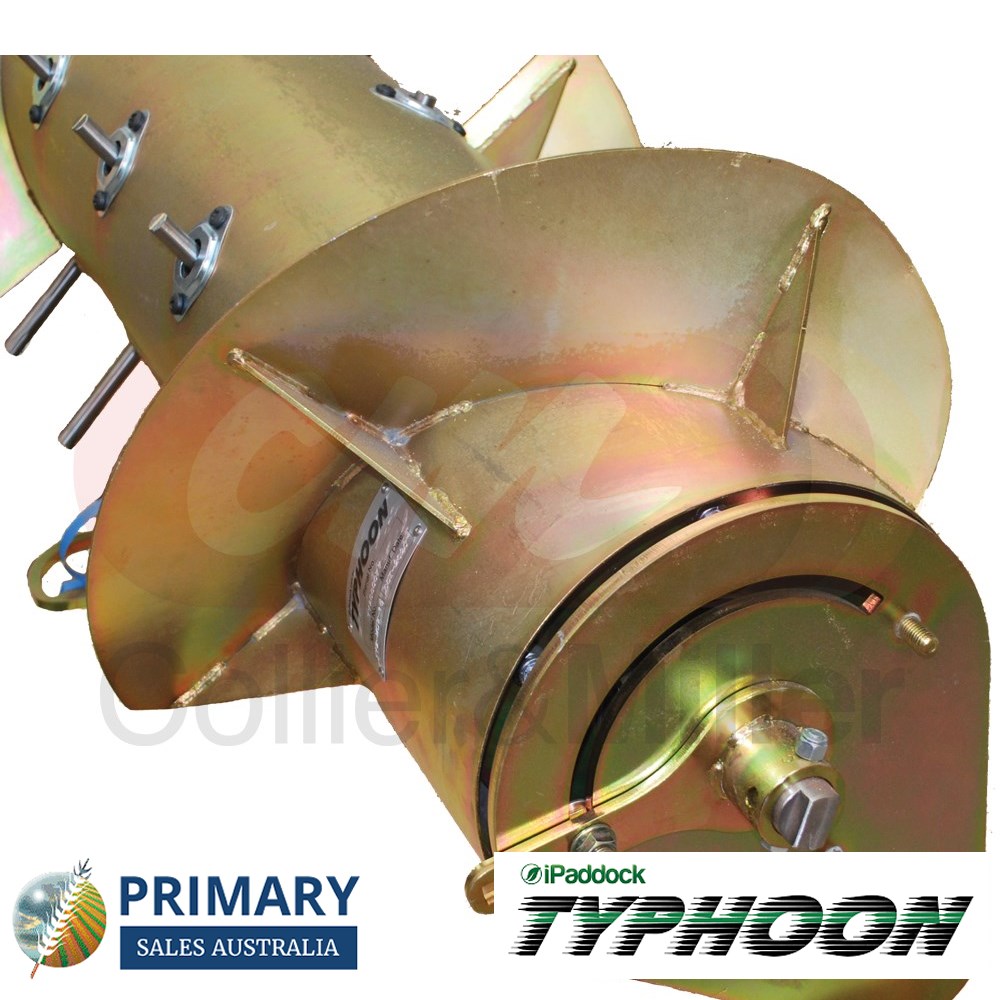

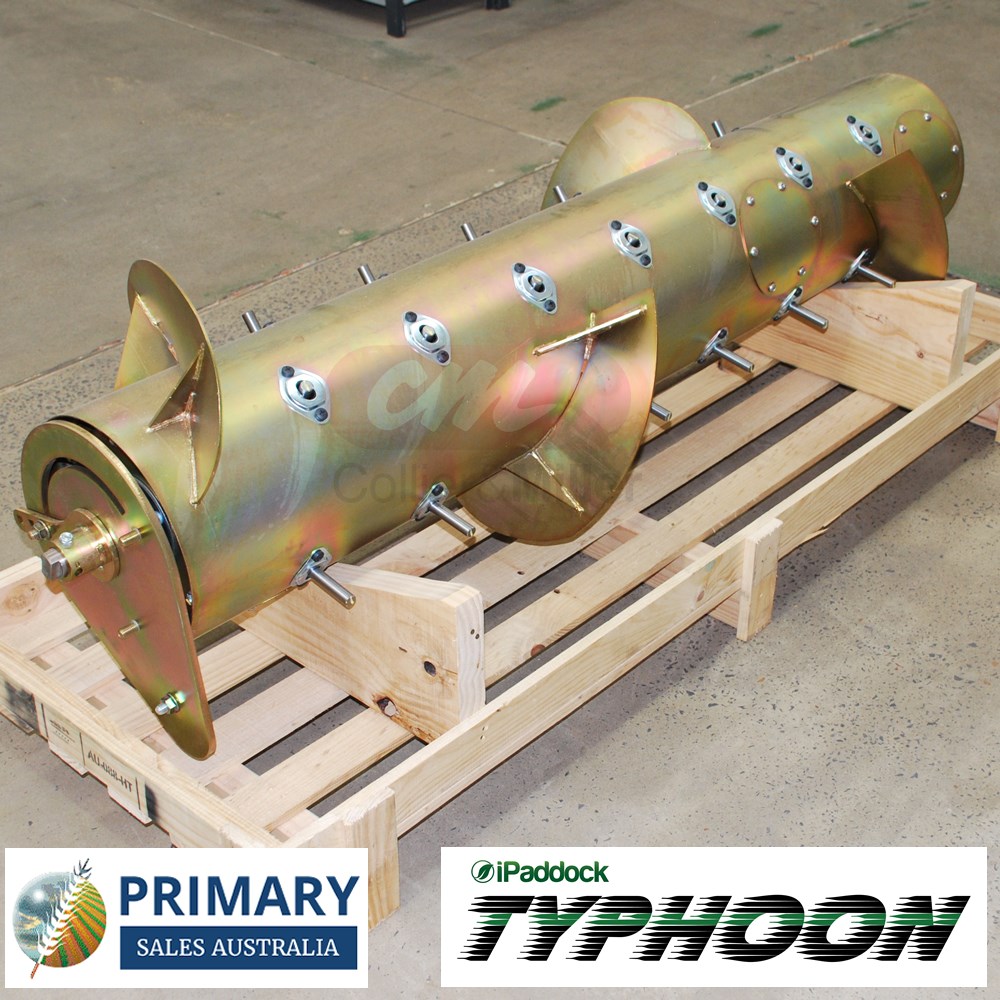

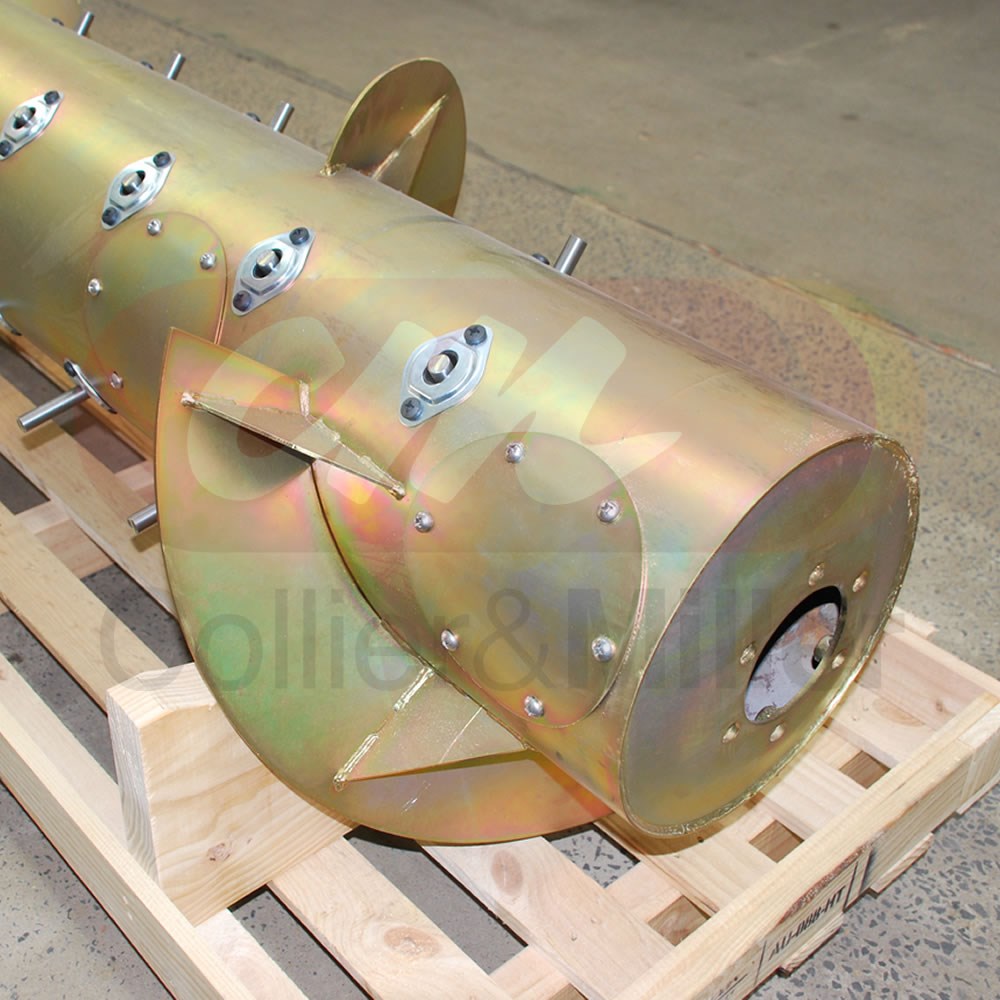

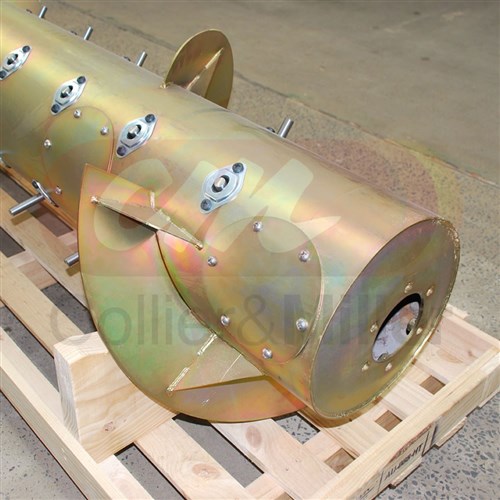

Genuine iPaddock Typhoon™
Centre Feed Drum Kit (CA20 Adaptor)

Designed to fit Case-IH®, Macdon® & New Holland® Draper Fronts with a CA20 combine adaptor the Australian made iPaddock Typhoon™ feed drum has over 3 years of grower trial and testing in the harshest conditions. Upgraded from the original Turbo™ drum, the Typhoon™ contains new and improved design features to create better product feeding allowing you to harvest up to 50% faster. With a one nut, 150 degree quick set finger timing, 25 solid fingers set in a super agressive pattern, high strength 2 piece retractable finger guides, and premium NSK bearings.

Typhoon® has a 40% larger, precision aligned crankshaft and the internal reversing clutch has been deleted. With a more agressive flight design and fully welded internal steel structure, the Typhoon™ is made from a thicker steel, and electroplated, making it more robust and stronger than the original.

Part numbers
  • Replaces Macdon 151288
  • Replaces Case & New Holland 87560981
Series Models Serial/Year
Macdon® D Series D50, D60, FD70 CA20 Combine Adaptor
Case-IH® 21 Series 2142, 2152, 2162 CA20 Combine Adaptor
New Holland®  82C, 83C, 86C CA20 Combine Adaptor

Features
  • Patented paddle flights minimise light crop repeating issues by eliminating the usual “dead zone” under the drum.
  • Fast and simple adjustable finger timing through 150°, so you can easily adjust it for any conditions
  • Typhoons aggressive pattern of retractable fingers grabs crop and steadily pulls it through the massive crop window
  • Full width between the outer flights uses the whole feeder house resulting in less wear
  • Eliminating blockages means less reversing
  • Harvest later at night without the risk of plugging from slug feeding
  • Easy installation with clear instructions provided
  • Quick set, one nut finger timing
  • 40% larger crank
  • No reversing clutch
  • Kit contains drum & mounting kit
    Fitting Instructions

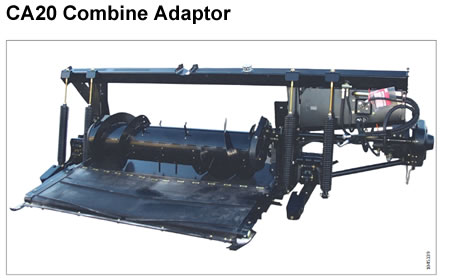

    MacDon® CA20 Combine Adaptor
    Unique Identification


    MacDon manufactured the CA20 combine adaptors to fit primarily D50, D60 & FD70 draper fronts, however some later models of D60 fronts were equipped with the CA25 adaptor as well. We suggest you confirm your header front model and combine adaptor type prior to ordering.

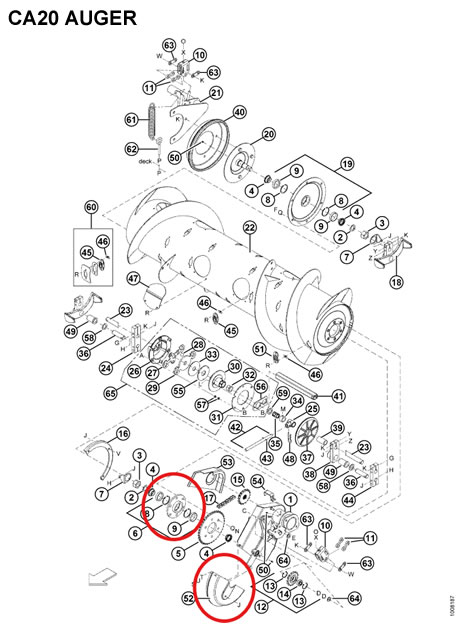

    The CA20 adaptor is supplied with unique 'plastic half drive cover' that is not part of the CA25 design. Confirmation of this 'plastic half drive cover' means the drum is off a CA20 adaptor and will require the correct mounting kit.




    Kit Components
    Code
    Code
    Qty
    TYDA2
    TYPHOON CENTRE FEED DRUM
    1
    TYMPACA202
    TYPHOON DRUM MOUNTING KIT CA20
    1
