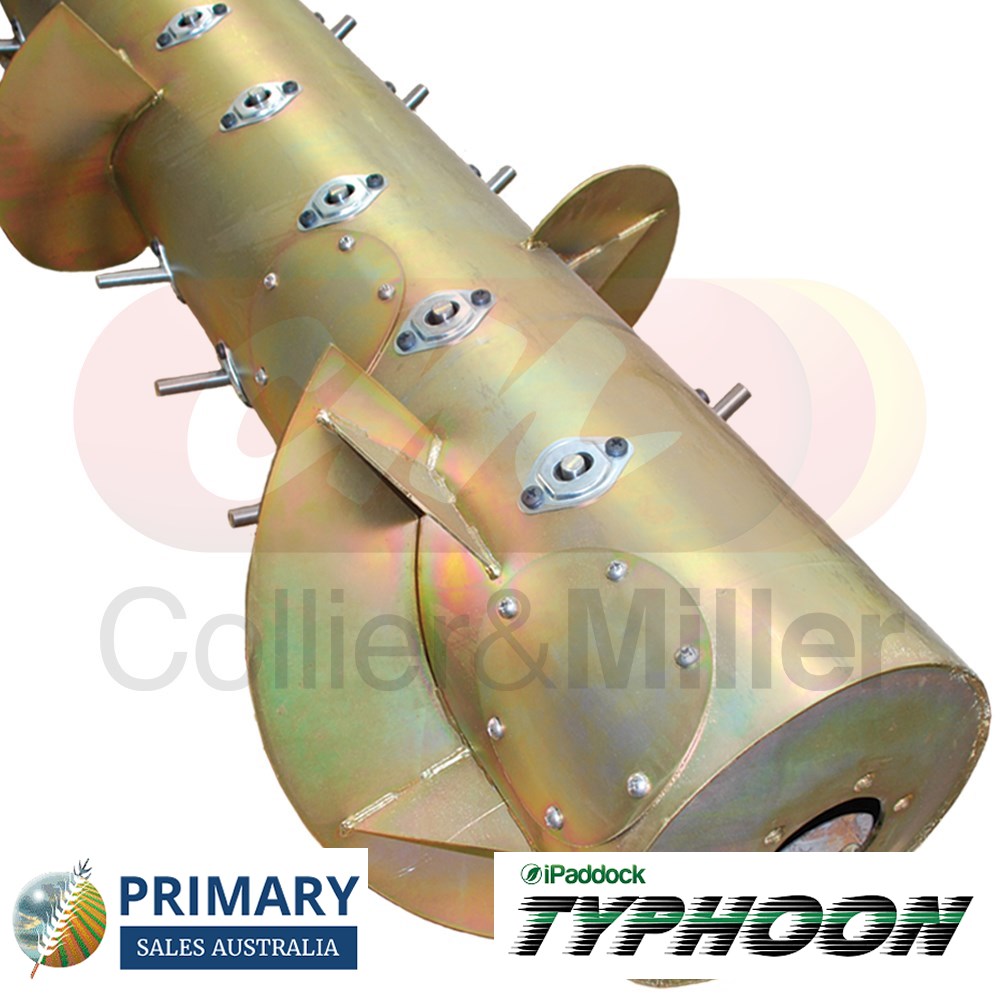

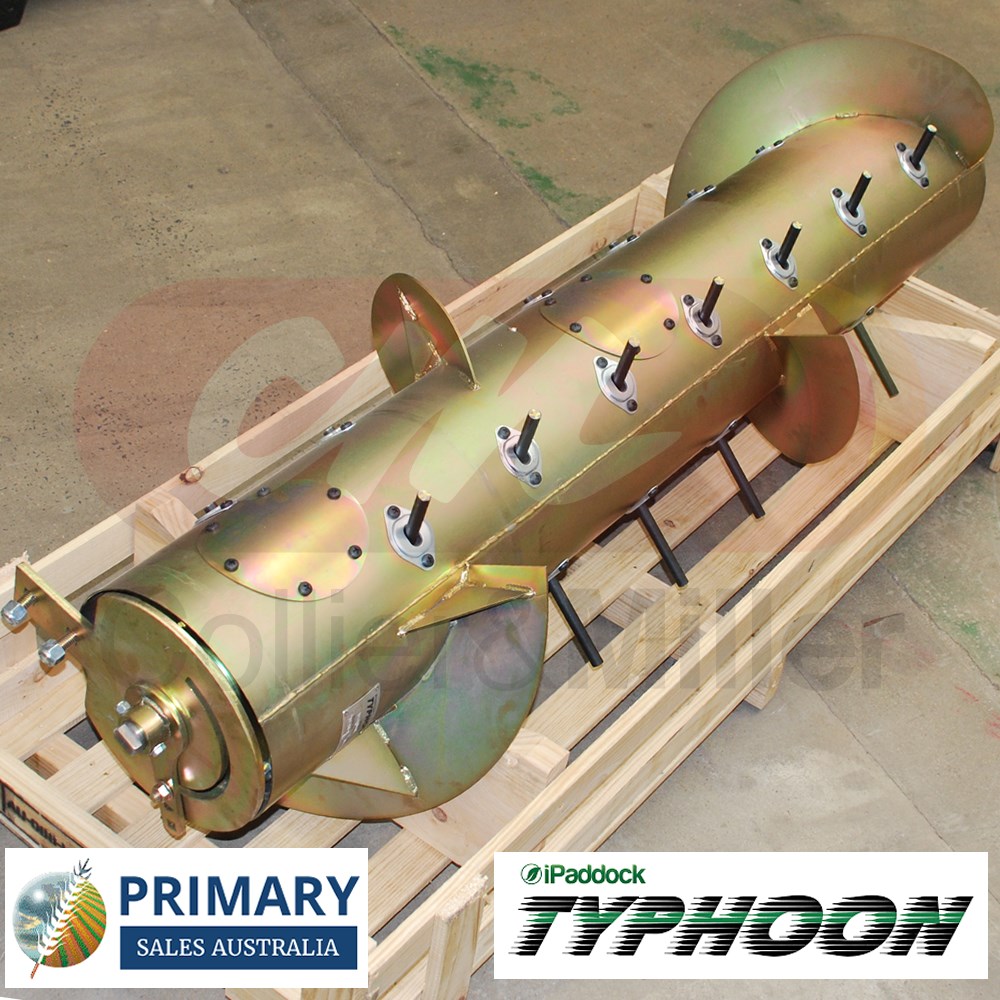

Genuine iPaddock Typhoon™
Centre Feed Drum Kit (CA25 Adaptor)
Designed to fit Macdon® Draper Fronts with a CA25 combine adaptor the Australian made iPaddock Typhoon™ feed drum has over 3 years of grower trial and testing in the harshest conditions. Upgraded from the original Turbo™ drum, the Typhoon™ contains new and improved design features to create better product feeding allowing you to harvest up to 50% faster. With a one nut, 150 degree quick set finger timing, 25 solid fingers set in a super agressive pattern, high strength 2 piece retractable finger guides, and premium NSK bearings.
Typhoon® has a 40% larger, precision aligned crankshaft and the internal reversing clutch has been deleted. With a more agressive flight design and fully welded internal steel structure, the Typhoon™ is made from a thicker steel, and electroplated, making it more robust and stronger than the original. Available on request for John Deere 600 & 700 Series , Midwest and CA25 adaptors (D65), D and FD1 Macdon fronts.
Part numbers
| Series |
Models |
Serial/Year |
| Macdon® D & FD Series |
D65, FD75 |

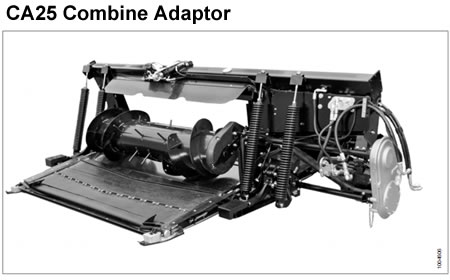

CA25 Combine Adaptor |
Features
- Patented paddle flights minimise light crop repeating issues by eliminating the usual “dead zone” under the drum.
- Fast and simple adjustable finger timing through 150°, so you can easily adjust it for any conditions
- Typhoons aggressive pattern of retractable fingers grabs crop and steadily pulls it through the massive crop window
- Full width between the outer flights uses the whole feeder house resulting in less wear
- Eliminating blockages means less reversing
- Harvest later at night without the risk of plugging from slug feeding
- Easy installation with clear instructions provided
- Quick set, one nut finger timing
- 40% larger crank
- No reversing clutch
- Kit contains drum & mounting kit
Fitting Instructions
