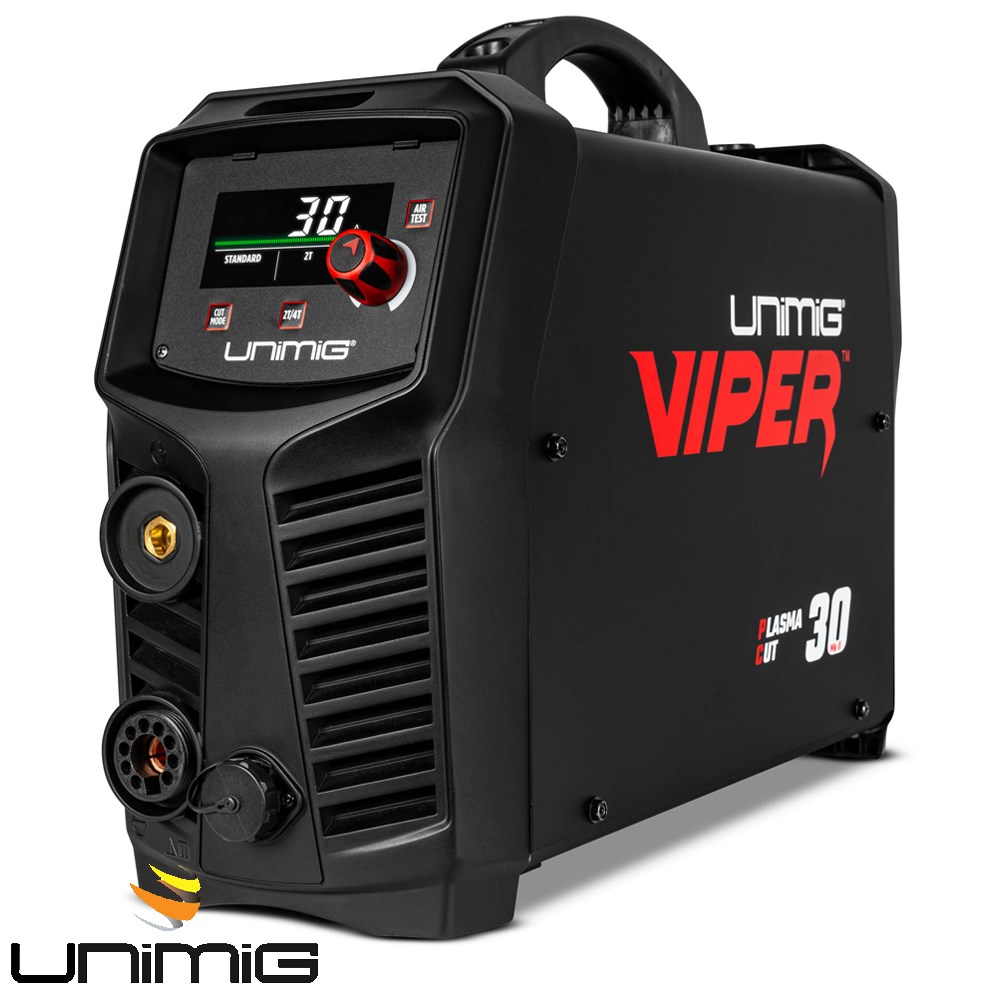

UniMig Viper Cut 30 Mk Ii Plasma Cutter
Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.
Machine Specifications
- Primary Input Voltage: 240v Single Phase
- Supply Plug: 10 Amp
- Rated Input Power (Kva): 7.5
- Rated Output: 92v
- Protection Class: Ip21s
- Insulation Class: F
- Minimum Generator (Kva): 8.0
- Dinse Connector: 10/25
- Standard:
- As/Nz60974-1:
- Warranty (Years): 2
Size & Weight
- Dimensions (Mm): 534x166x343mm
- Weight (Kg): 8.5kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
- Plasma Cut Specifications
- Plasma Cut Current Range: 20-30a
- Plasma Cut Duty Cycle @ 40°C: 15% @ 30a / 60% @ 23a / 100% @ 20a
- Mild Steel Cut Thickness: 12mm
- Mild Steel Severance Thickness: 14mm
- Aluminium Cut Thickness: 6mm
- Aluminium Severance Thickness: 8mm
- Stainless Steel Cut Thickness: 6mm
- Stainless Steel Severance Thickness: 8mm
- Air Flow Draw Off (L/Min): 170
- Air Flow Pressure (Bar): 5-6 (70-87 Psi)
- Plasma Arc Start: Pilot Arc
Contents
- VIPER™ CUT 30 Mk II Plasma Cutter
- 4m SC30 Plasma Torch
- 3m 300A Earth Clamp
- Air Regulator
- Operating Manual
