High performance raw-edge, center-corded v-belt for use in demanding applications. Featuring superior flexibility and wear resistance, raw-edge construction provides increase power transmission, improved grip and controlled slipage. Raw-edge belts are ideal for high performance drives found in agricultural, industrial and commercial applications.

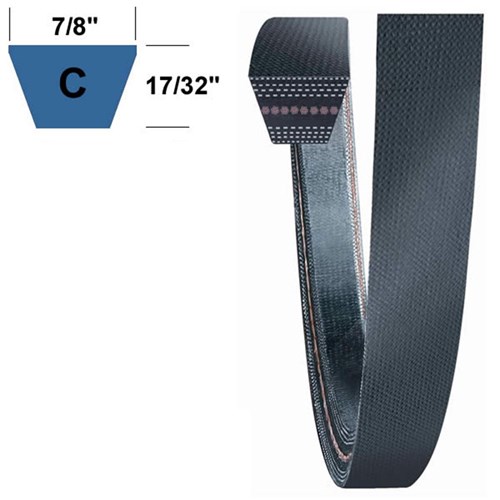

Dimensions
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
7/8" |
22.22 |
| Nominal cross-section |
9/16" |
14.28 |
| Length Internal (Li) |
Li=128" |
3251 |
Features
- Length designation Li = length internal
- Raw-edge multi-layer construction
- High tensile strength
- Improved flexibility for use with back idlers
- Increased heat dissipation for superior service life
- Controlled grip
- Anti-Static, oil & heat resistant
- Temperature range -25°C to +100°C
Construction
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions
- High modulus polyester cords placed at the centre neutralises the reverse bending stress
- Special rubber compound for better grip on smaller diameter pulleys
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation
BrandsWe supply several brands, depending on what is avaiable. When placing your order we will supply either
PIX-Spectra®-XR or
TIMKEN Super II® belts. If you require a specific brand please specify on the order.
387469 H87256 N110085 H24650 H24650H E37644 J18470 Z204690 Z23693 201900M1 213008M1 432436 832872M1 5303128 1033077M1 NEW HOLLAND 8070 NEW HOLLAND 8040 NEW HOLLAND 8060 JOHN DEERE 7720 JOHN DEERE 7700 JOHN DEERE 6600 JOHN DEERE 9400 JOHN DEERE CTS JOHN DEERE 9600 JOHN DEERE 9500 JOHN DEERE CTS II JOHN DEERE 9610 JOHN DEERE 9650 CTS JOHN DEERE 9410 JOHN DEERE 9510 JOHN DEERE 55.SQ/B JOHN DEERE 95 JOHN DEERE 105 JOHN DEERE 955 C128R
