High performance raw-edge, center-corded v-belt for use in demanding applications. Featuring superior flexibility and wear resistance, raw-edge construction provides increase power transmission, improved grip and controlled slipage. Raw-edge belts are ideal for high performance drives found in agricultural, industrial and commercial applications.

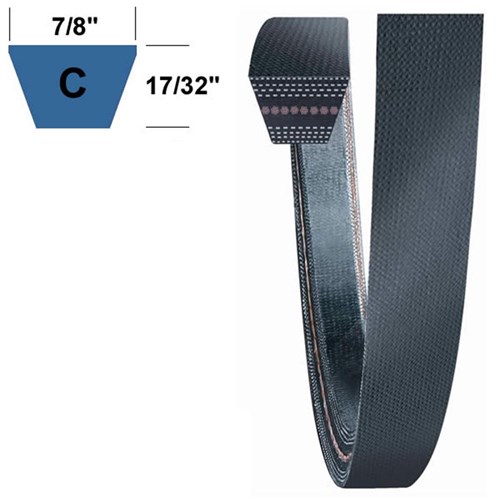

Dimensions
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
7/8" |
22.22 |
| Nominal cross-section |
9/16" |
14.28 |
| Length Internal (Li) |
Li=72" |
1828 |
Features
- Length designation Li = length internal
- Raw-edge multi-layer construction
- High tensile strength
- Improved flexibility for use with back idlers
- Increased heat dissipation for superior service life
- Controlled grip
- Anti-Static, oil & heat resistant
- Temperature range -25°C to +100°C
Construction
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions
- High modulus polyester cords placed at the centre neutralises the reverse bending stress
- Special rubber compound for better grip on smaller diameter pulleys
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation
BrandsWe supply several brands, depending on what is avaiable. When placing your order we will supply either
PIX-Spectra®-XR or
TIMKEN Super II® belts. If you require a specific brand please specify on the order.
1415141R1 410896 A-C72 1125976 1415411R1 1419232R1 1053399M1 CASE IH 710 CASE IH 726 CASE IH 711 CASE IH 725 NEW HOLLAND 8070 NEW HOLLAND 8060 NEW HOLLAND 8080 JOHN DEERE 9560 STS JOHN DEERE 9570 STS JOHN DEERE 9660 STS JOHN DEERE 9670 STS JOHN DEERE 9770 STS JOHN DEERE 9870 STS C72R
