High performance raw-edge, center-corded v-belt for use in demanding applications. Featuring superior flexibility and wear resistance, raw-edge construction provides increase power transmission, improved grip and controlled slipage. Raw-edge belts are ideal for high performance drives found in agricultural, industrial and commercial applications.

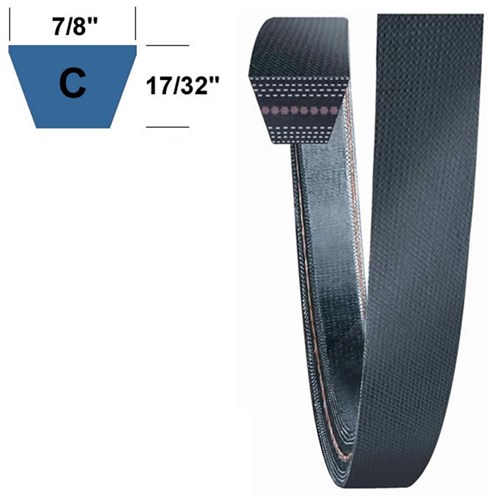

Dimensions
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
7/8" |
22.22 |
| Nominal cross-section |
9/16" |
14.28 |
| Length Internal (Li) |
Li=96" |
2438 |
Features
- Length designation Li = length internal
- Raw-edge multi-layer construction
- High tensile strength
- Improved flexibility for use with back idlers
- Increased heat dissipation for superior service life
- Controlled grip
- Anti-Static, oil & heat resistant
- Temperature range -25°C to +100°C
Construction
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions
- High modulus polyester cords placed at the centre neutralises the reverse bending stress
- Special rubber compound for better grip on smaller diameter pulleys
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation
BrandsWe supply several brands, depending on what is avaiable. When placing your order we will supply either
PIX-Spectra®-XR or
TIMKEN Super II® belts. If you require a specific brand please specify on the order.
5303096 0156910203 184793C1 673685R1 3180869M1 10171 360710V1 HORWOOD BAGSHAW 1070 CLAAS Dominator 48 HORWOOD BAGSHAW 2141 PTO 84817621 C96R 4255643332
