Case-IH® Compatible
Flagship 120, 230 & 240 Series Feeder House Sprocket

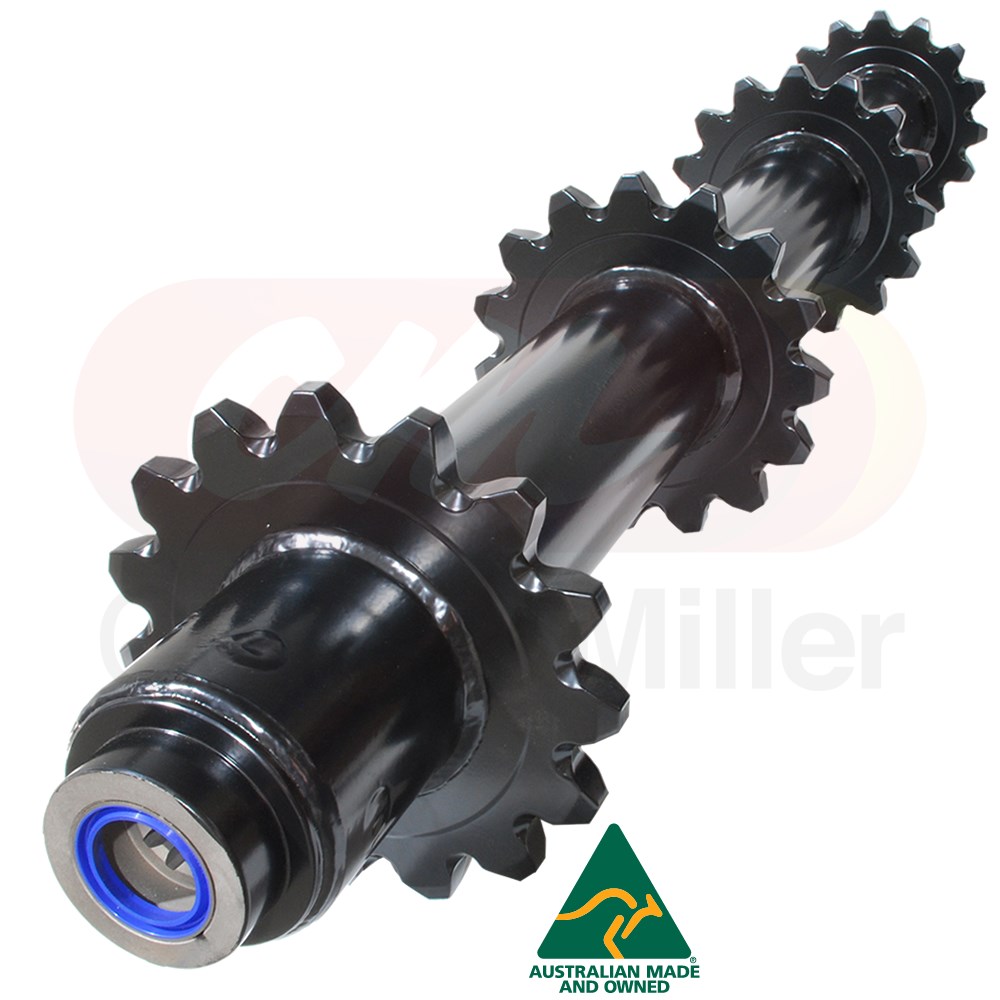

C&M aftermarket feeder house sprocket to fit Case-IH® 120, 230 & 240 series combine harvesters. This is an Australian made feeder house sprocket that fits the feeder house where no rock-trap is fitted. (Does not include radial pin clutch).

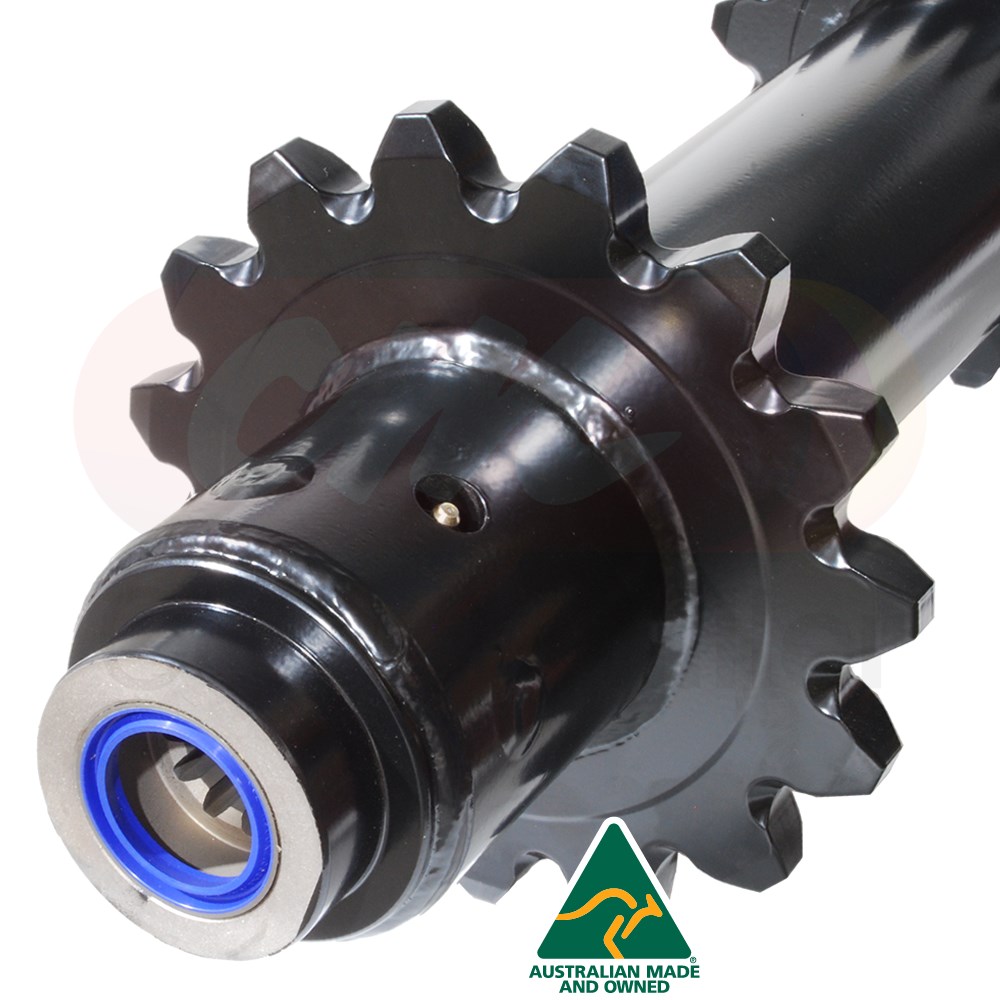

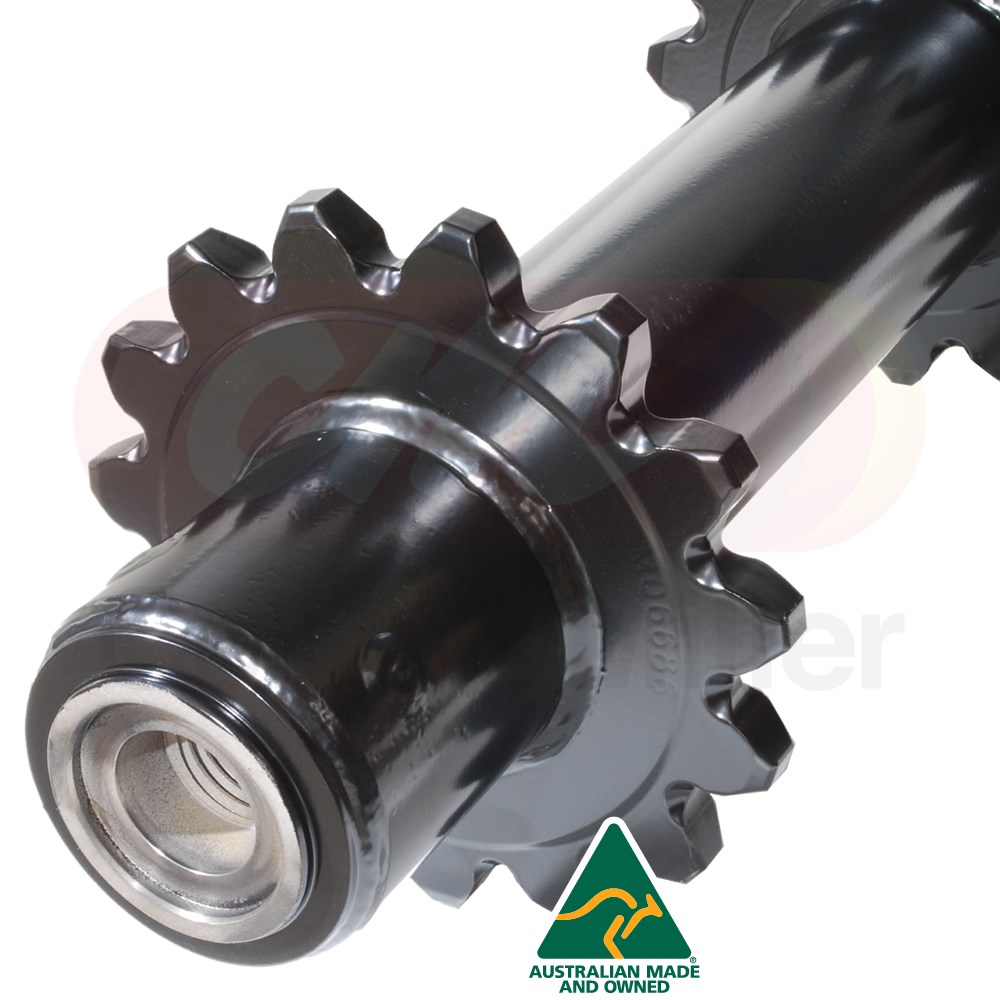

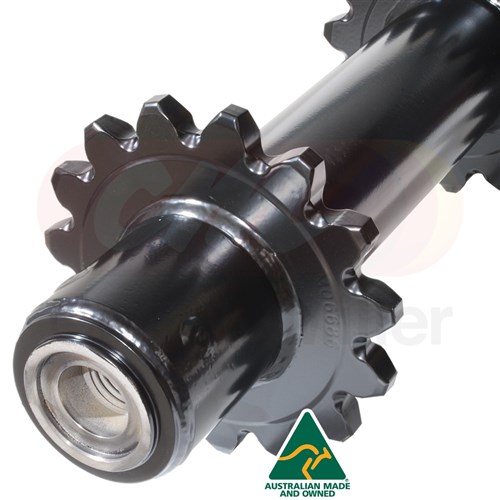

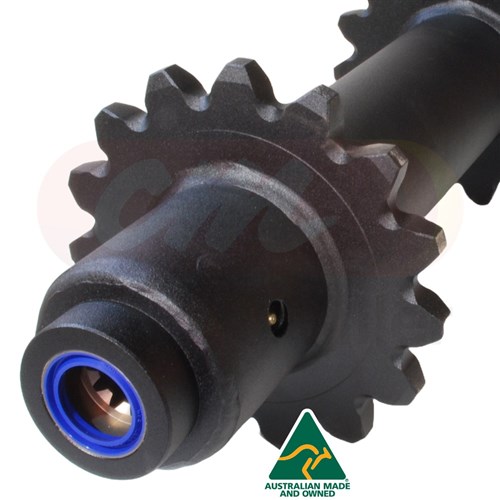

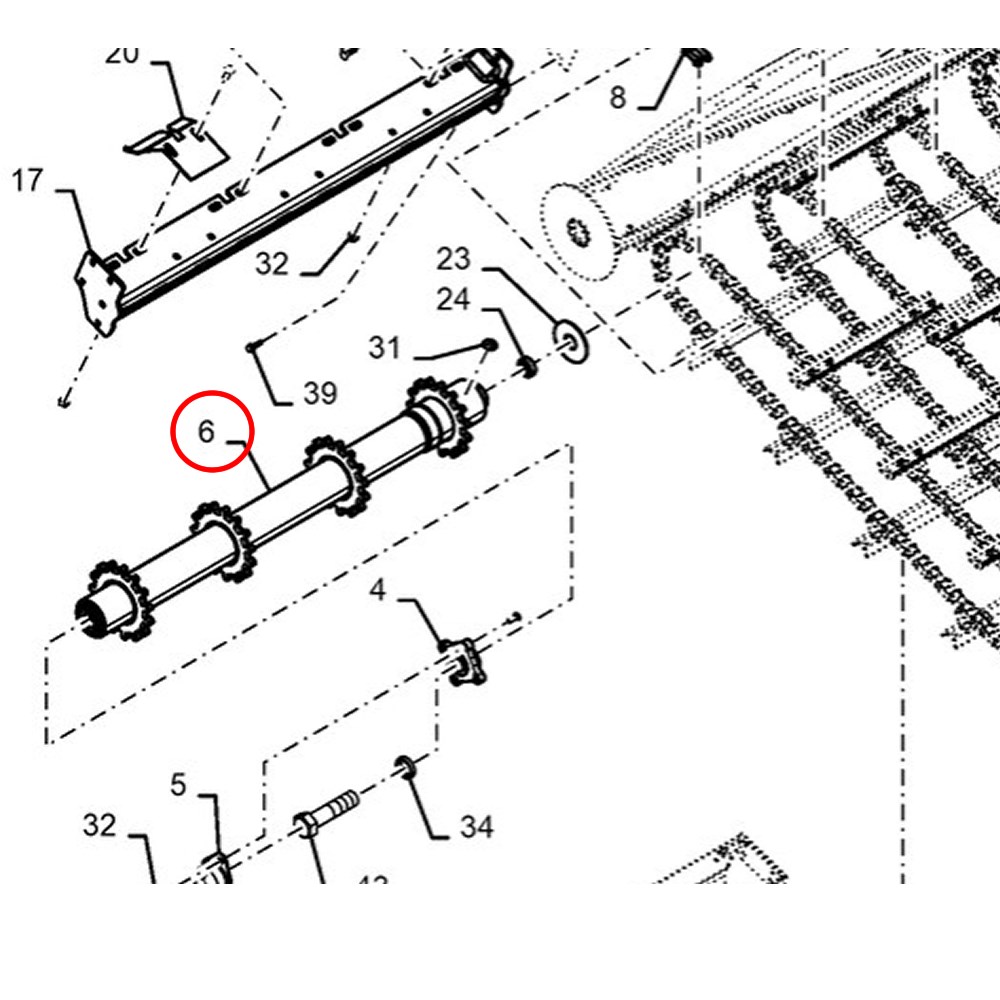

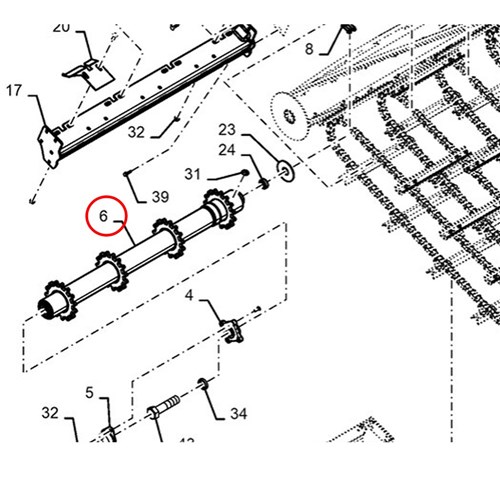

Manuctured as a single piece tube assembly that has 4 x 15 Tooth sprockets machined from grade 1045 steel welded to a central tube and fitted with a spline drive one end and threaded on the other. The sprocket will fit existing Case-IH® combine harvesters as the spline drive is matched to the OEM Case-IH® spline size and dimensions. All components are Australian made with manufacturing being completed in our factory.
* Sprocket does not include a radial pin clutch. Not recommended where rocks are present. Part Numbers
- Non Rock-Trap (87673520)
- Rock-Trap (84296465 84414915 47771414 84414906)
| Series |
Models |
Serial/Year/Part# |
| Case-IH® 120 Series |
7120, 8120, 9120 |
86773520 - No Rock Trap |
| Case-IH® 230 Series |
7230, 8230, 9230 |
84414906 - No Rock Trap |
| Case-IH® 240 Series |
7240, 8240, 9240 |
84414906 - No Rock Trap |
Features
- Sprocket only - includes nitride hardened splined hub.
- Special heavy wall seamless tube to cope with high radial loading
- Fully Australian designed and manufactured
- Does not include radial pin clutch as used with rock traps
- Grade 1045 sprocket material
- Supplied with Australian made spline hub.
- Hub component nitride hardened
- Greasable hub assembly
- Powdercoat black finish
|
SPROCKET DRIVE SPLINE AND BUSH SERVICE LIFE IS DIRECTLY AFFECTED BY INSTALLATION. ACCURATE GEARBOX OUTPUT SHAFT ALIGNMENT PERFORMED IN ACCORDANCE WITH CNH RECOMMENDATIONS WILL ENSURE OPTIMUM SERVICE LIFE.
DAMAGE AND WEAR OF THE SPLINED BUSH AND SPLINED SHAFT IS DIRECTLY ASSOCIATED WITH INCORRECT ALIGNMENT OF THE GEARBOX AND FEEDER CHAIN TOP SPROCKET DURING INSTALLATION AND/OR OPERATION. ANY DAMAGE AND WEAR ASSOCIATED WITH THESE PARTS WILL BE CONSIDERED NORMAL WEAR, TEAR OR AN INSTALLATION/OPERATION ISSUE AND WILL NOT BE COVERED BY WARRANTY.
|
