CASE FEEDER SPROCKET ASSY 15T

SPROCKET KIT 7120 8120 9120 7230 8230 9230 7240 8240 9240

Product Code: WI89KIT
$2950.00
EACH inc GST
Afterpay Logo
Unavailable for this order
Manufactured to Order
Increase value Decrease value

  • Detail
  • Interchange
  • Warranty
  • Downloads

Case-IH® Compatible

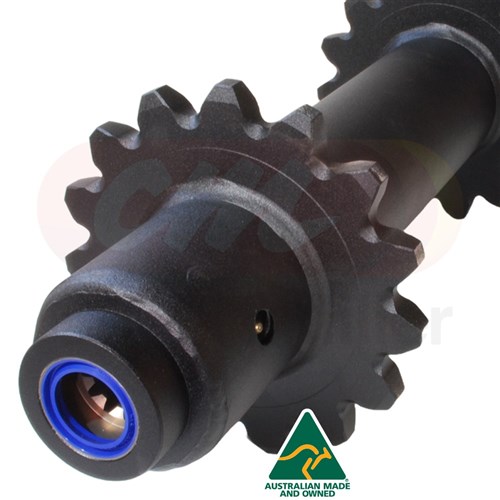

Flagship 120, 230 & 240 Series Feeder House Sprocket Kit


C&M aftermarket feeder house sprocket kit to fit Case-IH® 120, 230 & 240 series combine harvesters. This is an Australian made feeder house sprocket that fits the feeder house where no rock-trap is fitted. (Does not include radial pin clutch).

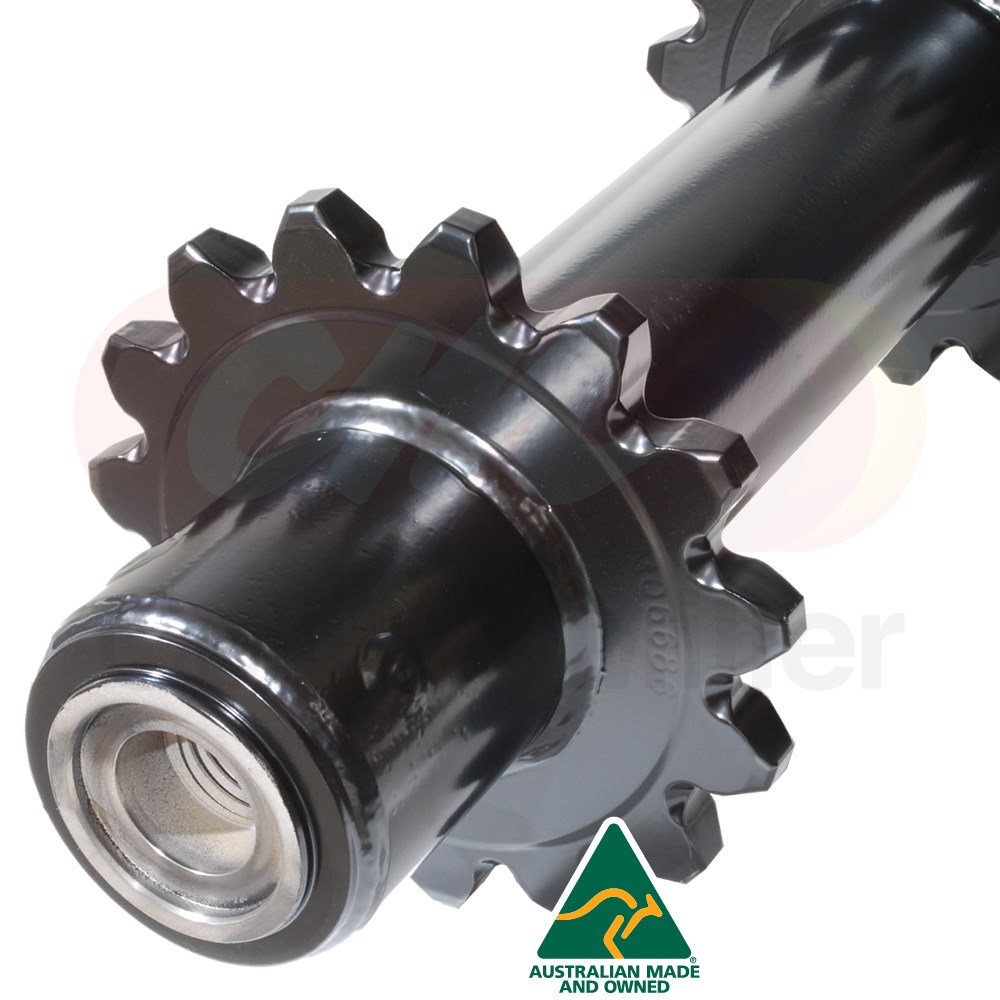

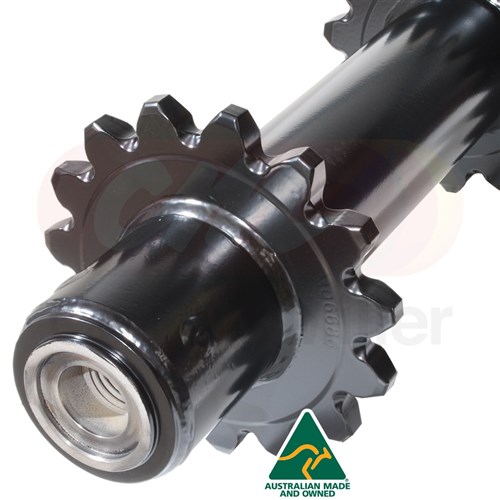

Manuctured as a single piece tube assembly that has 4 x 15 Tooth sprockets machined from grade 1045 steel welded to a central tube and fitted with a spline drive one end and threaded on the other. The sprocket will fit existing Case-IH® combine harvesters as the spline drive is matched to the OEM Case-IH® spline size and dimensions. The sprocket is Australian made, the kit includes a grease nipple, wiper seal, bearing and oil seal that should be replaced while fitting the sprocket.

* Sprocket does not include a radial pin clutch. Not recommended where rocks are present.

Part Numbers
  • Non Rock-Trap (87673520)
  • Rock-Trap (84296465 84414915 47771414 84414906)
Series Models Serial/Year/Part#
Case-IH® 120 Series 7120, 8120, 9120 86773520 - No Rock Trap
Case-IH® 230 Series 7230, 8230, 9230 84414906 - No Rock Trap
Case-IH® 240 Series 7240, 8240, 9240 84414906 - No Rock Trap

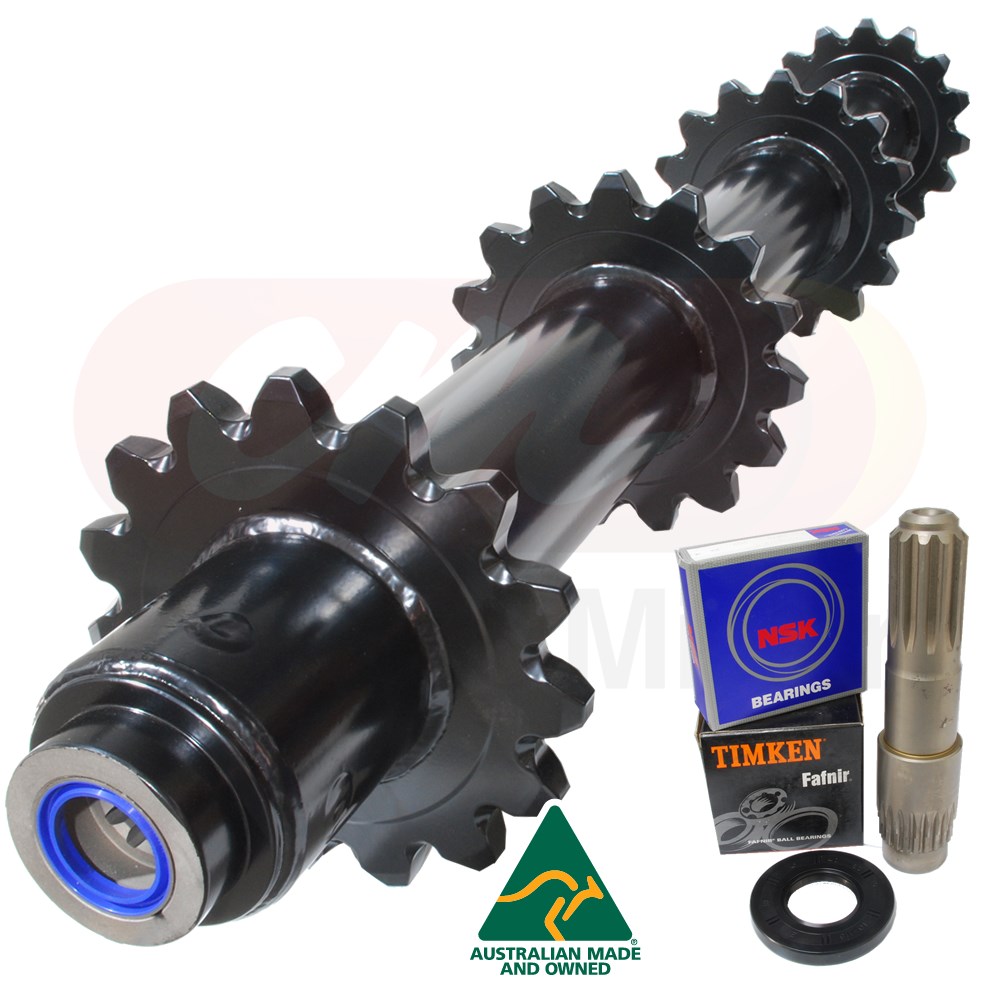

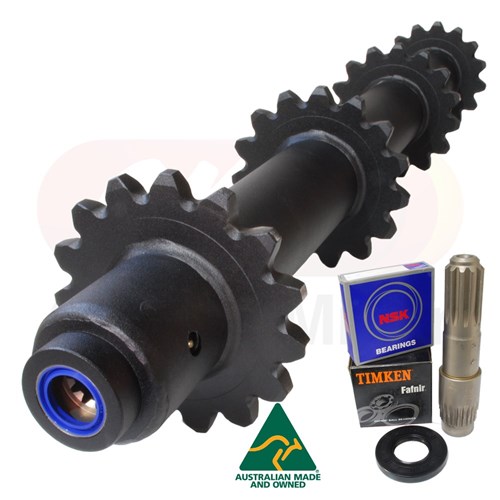

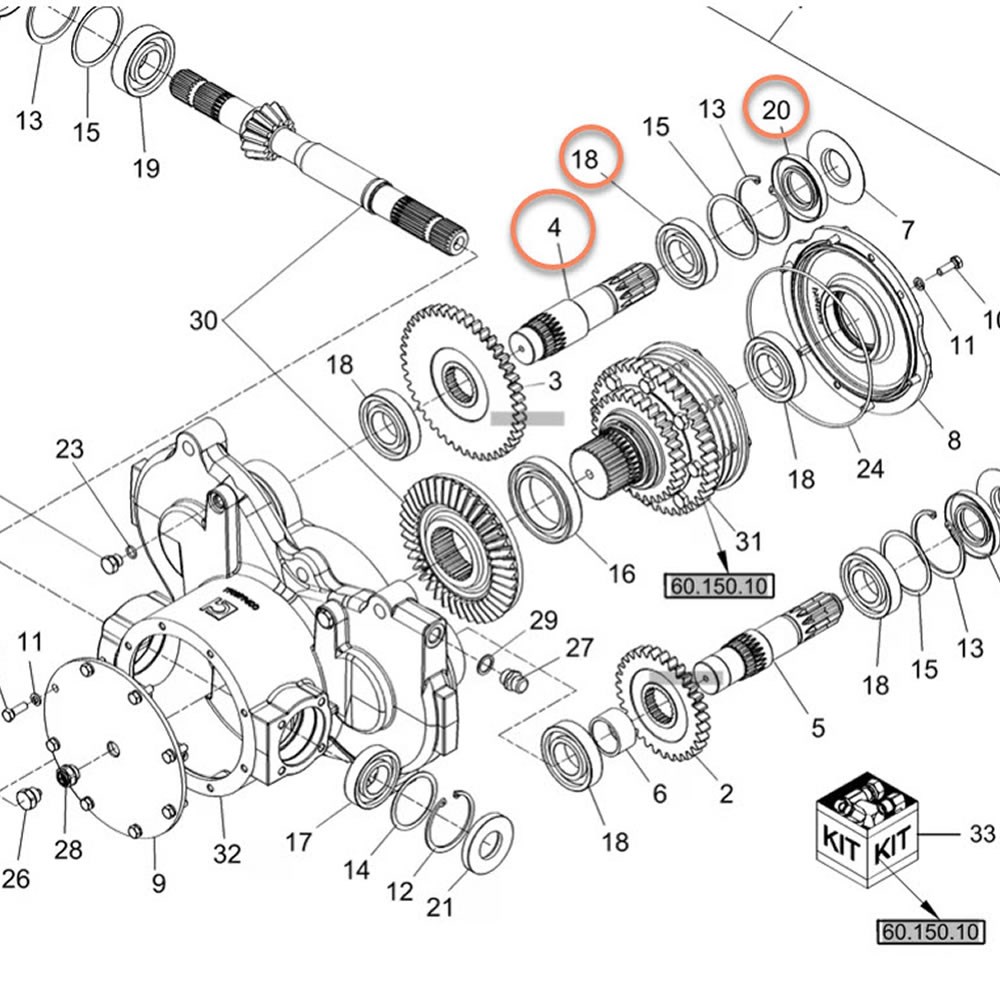

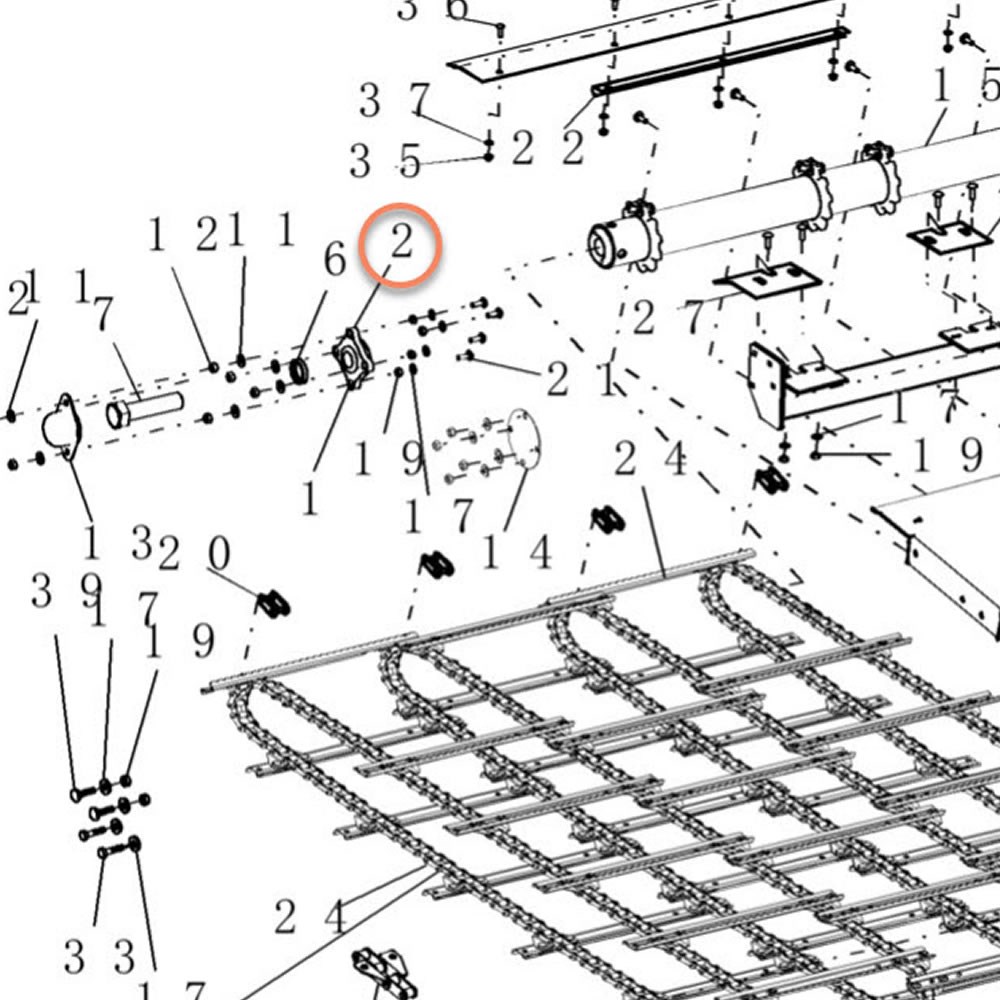

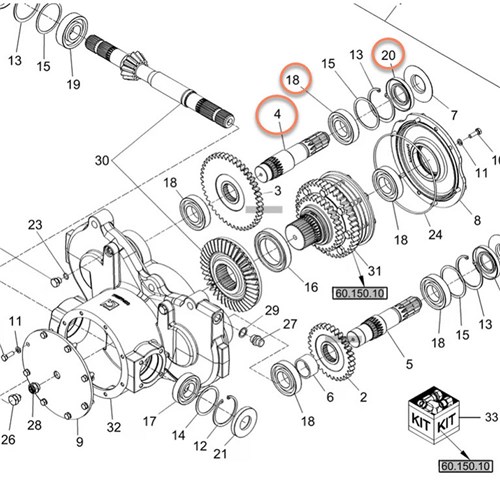

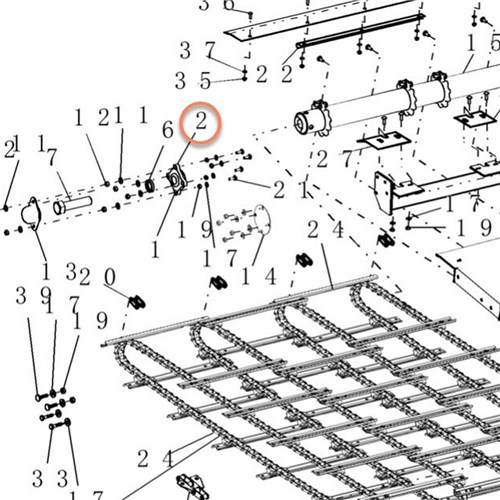

Parts Supplied in Kit
Item Case PN C&M PN

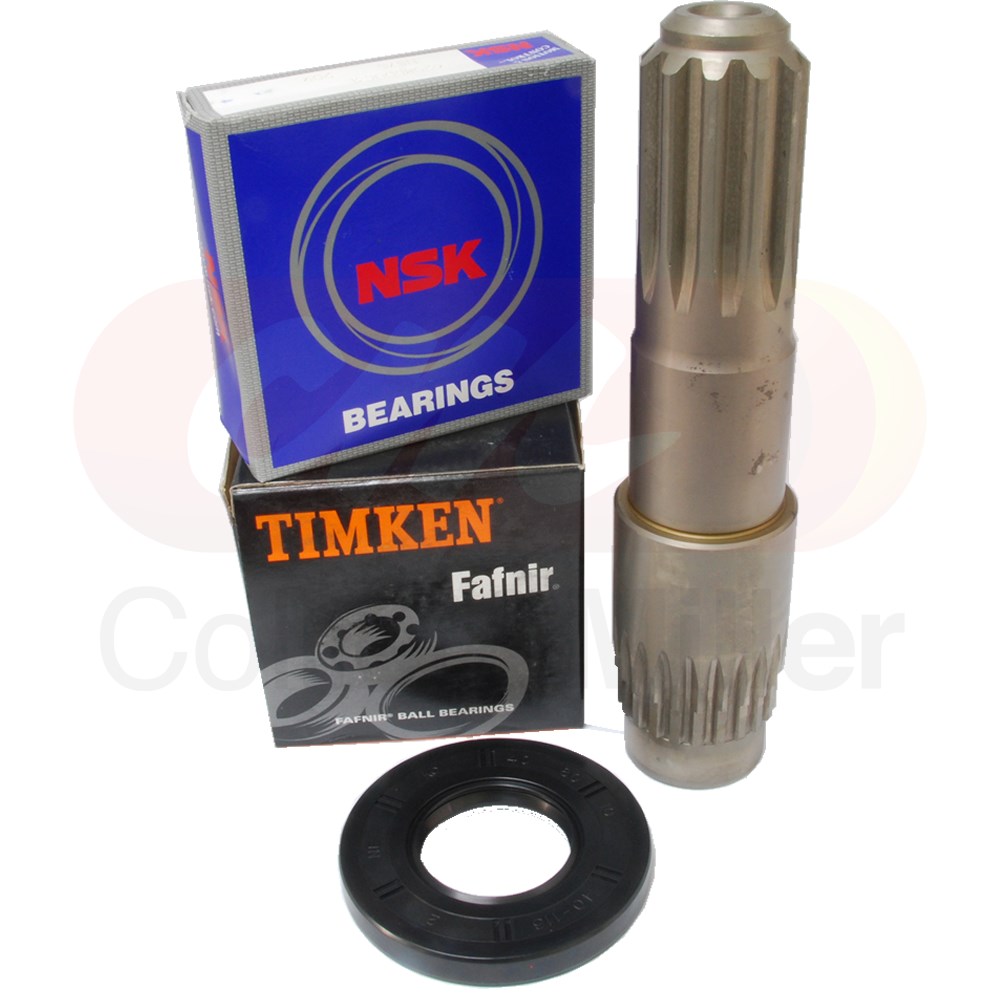

Complete sprocket 84296465 WI89
Feeder Sprocket RH side bearing (no housing) 86995212 1108KRRB
Gearbox Feed Conveyor Shaft 87282003 CM87282003
Gearbox Feed Conveyor Shaft Bearing 301164 6208DDUC3
Gearbox Feed Conveyor Shaft Seal 87612665 M40X80

Features

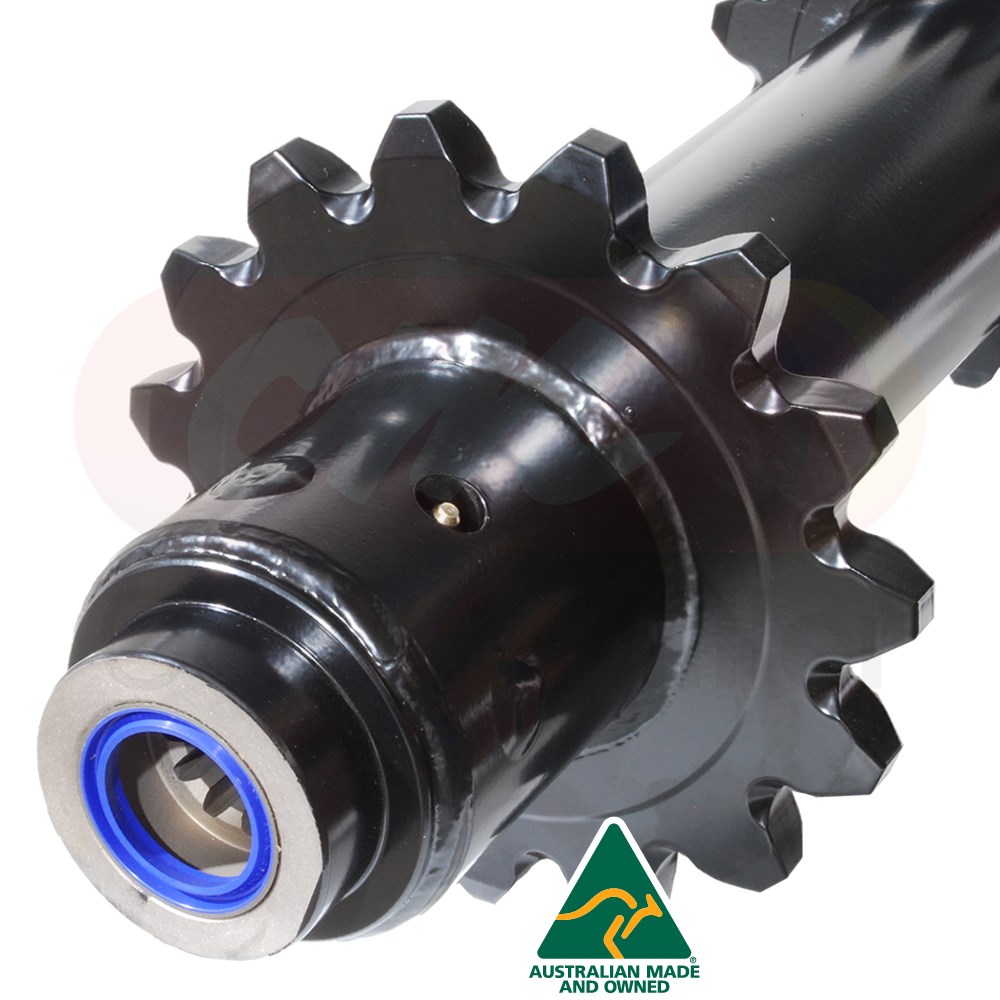

  • Sprocket includes nitride hardened splined hub.
  • Special heavy wall seamless tube to cope with high radial loading
  • Fully Australian designed and manufactured
  • Does not include radial pin clutch as used with rock traps
  • Grade 1045 sprocket material
  • Supplied with Australian made spline hub.
  • Hub component nitride hardened
  • Greasable hub assembly
  • Powdercoat black finish

SPROCKET DRIVE SPLINE AND BUSH SERVICE LIFE IS DIRECTLY AFFECTED BY INSTALLATION. ACCURATE GEARBOX OUTPUT SHAFT ALIGNMENT PERFORMED IN ACCORDANCE WITH CNH RECOMMENDATIONS WILL ENSURE OPTIMUM SERVICE LIFE.

DAMAGE AND WEAR OF THE SPLINED BUSH AND SPLINED SHAFT IS DIRECTLY ASSOCIATED WITH INCORRECT ALIGNMENT OF THE GEARBOX AND FEEDER CHAIN TOP SPROCKET DURING INSTALLATION AND/OR OPERATION. ANY DAMAGE AND WEAR ASSOCIATED WITH THESE PARTS WILL BE CONSIDERED NORMAL WEAR, TEAR OR AN INSTALLATION/OPERATION ISSUE AND WILL NOT BE COVERED BY WARRANTY.
