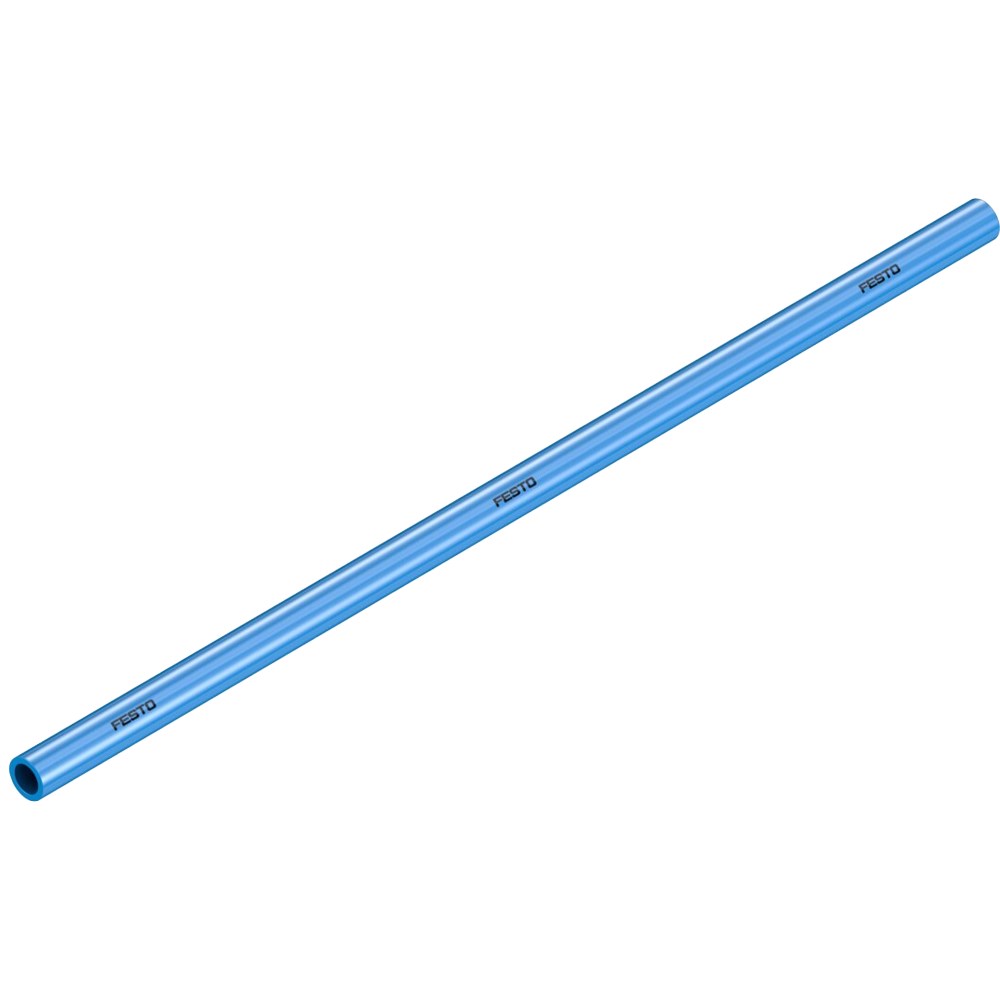

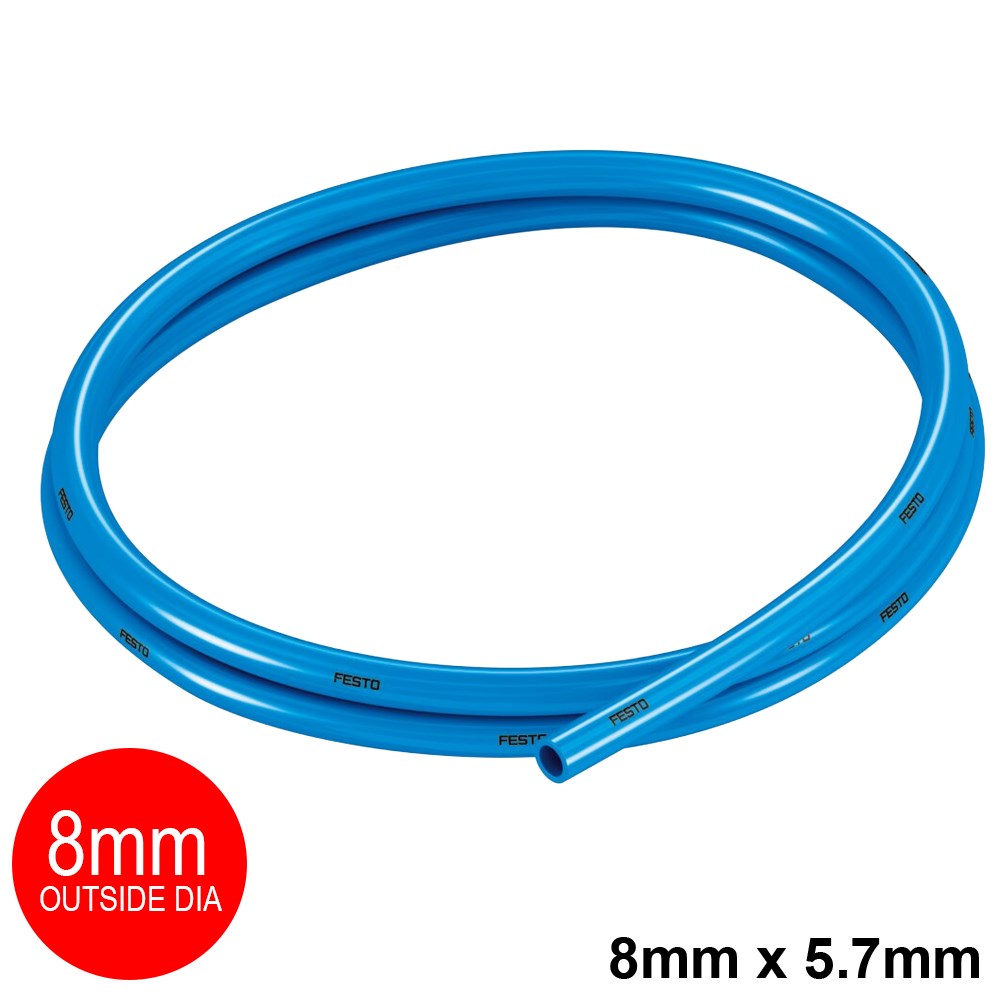

Festo PUN-H 8x1.25 Blue Polyurethane Pneumatic Tubing – 8mm (50m Coil)

This durable Festo pneumatic tubing is ideal for compressed air systems, automation equipment, manufacturing setups and workshop air lines. Made from high-quality polyurethane, it offers excellent flexibility, kink resistance, and long service life. The 8mm pneumatic tube is well-suited for energy chain installations and applications requiring frequent movement, delivering reliable airflow and consistent performance across varying temperatures and pressures.

Features

• Flexible, abrasion-resistant polyurethane construction
• Suitable for energy chains and dynamic moving applications
• Maintains smooth airflow with minimal resistance
• Compatible with compressed air and water (ice-free)
• TÜV certified and RoHS compliant
• Ideal for automation systems, factory air lines and machine installations

Specifications

• Part Number: PUN-H-8X1,25-BL
• Coil Length: 50 metres
• Colour: Blue
• Outer Diameter: 8 mm
• Inner Diameter: 5.7 mm
• Minimum Bending Radius: 21 mm (flow-relevant: 37 mm)
• Operating Pressure Range: -0.95 to 6 bar (temperature-dependent up to 10 bar)
• Operating Medium: Compressed air (ISO 8573-1:2010) & water (ice-free)
• Temperature Range: -35°C to 60°C
• Material: TPE-U (Polyurethane)
• Hardness: Shore D 52 ±3
• Weight: 0.0287 kg/m
• Fire Classification: UL94 HB
• Connections: Push-in connector O.D. 8mm / barbed fitting I.D. 6mm
• Certifications: TÜV approved; suitable for Li-ion battery production (reduced Cu/Zn/Ni values)
