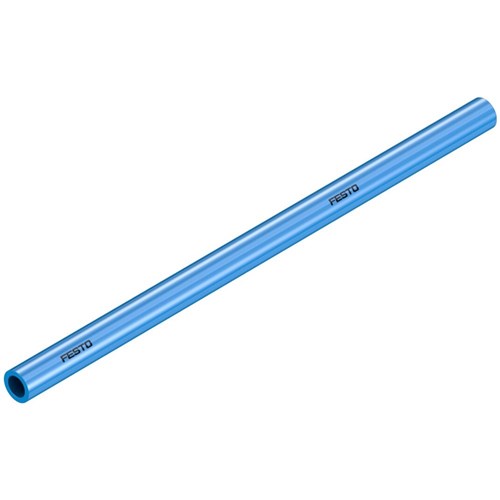

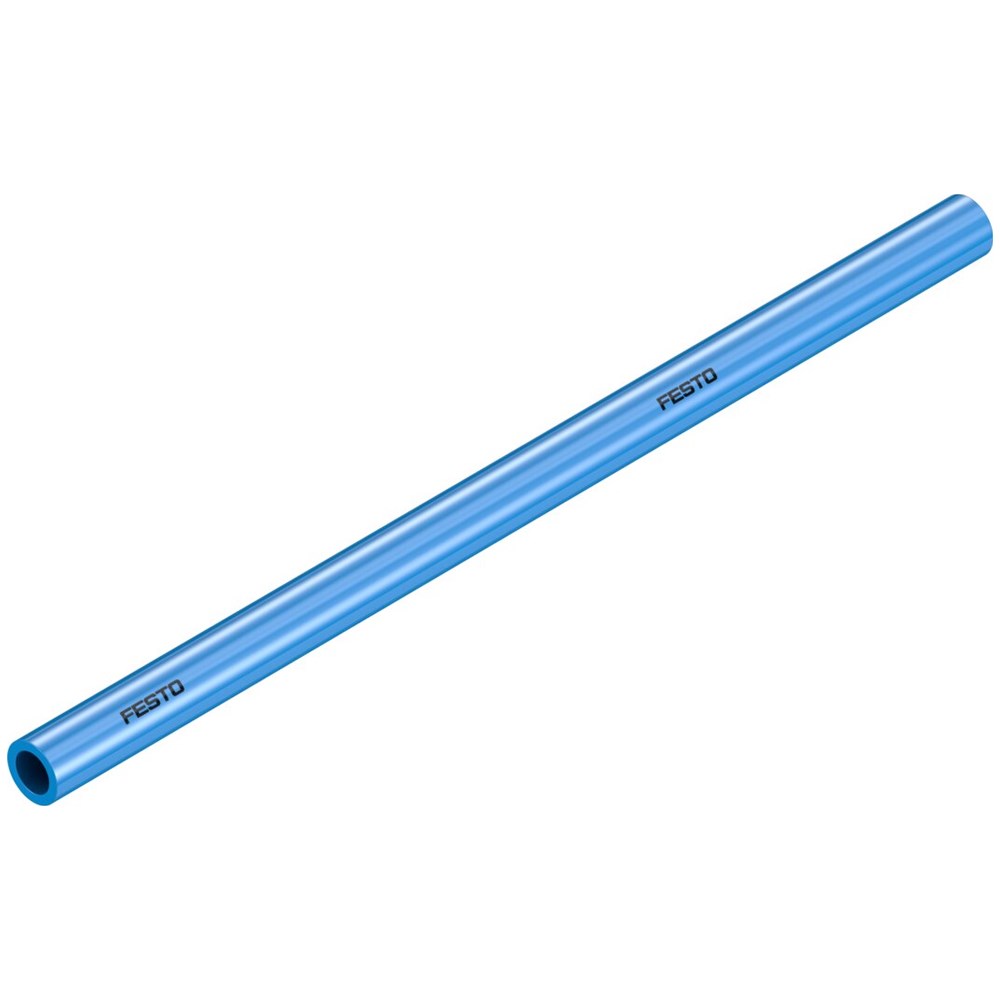

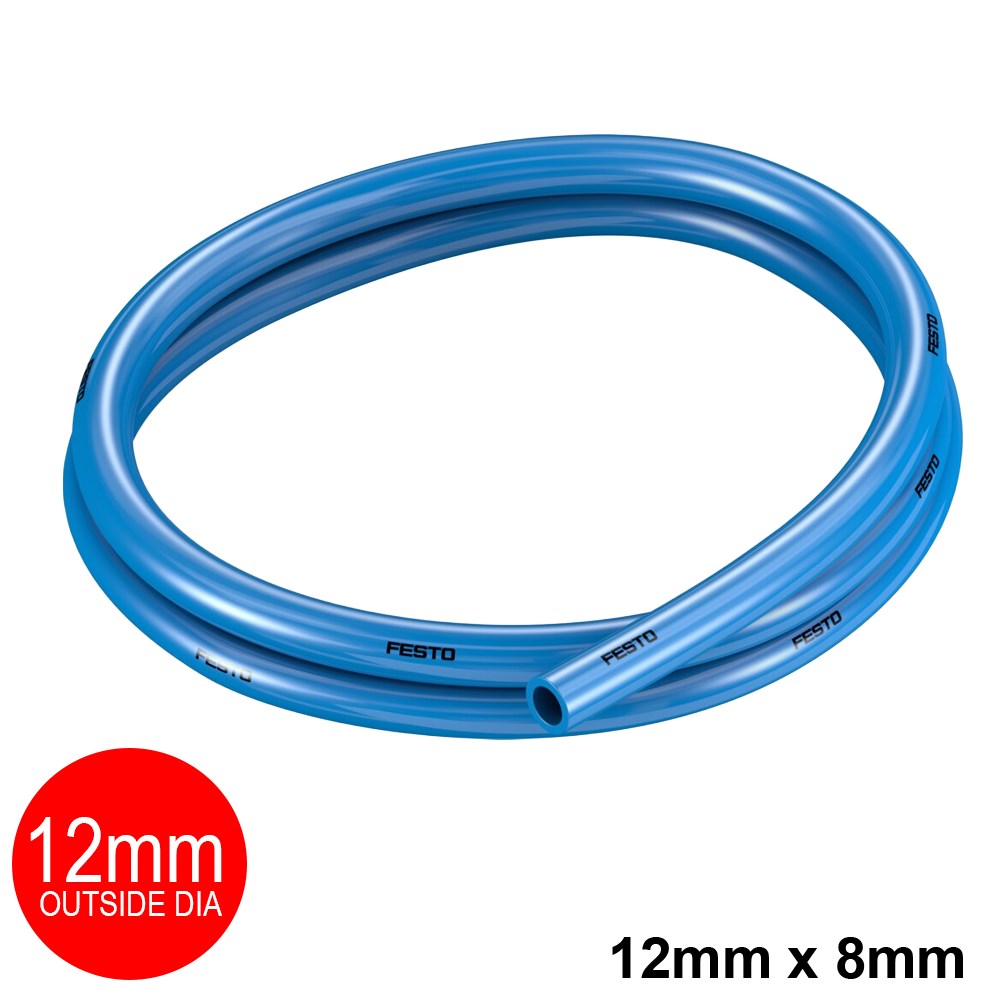

Festo PUN-H 12x2 Blue Polyurethane Pneumatic Tubing – 12mm (50m Coil)
The Festo 12mm pneumatic tubing is engineered for compressed air systems, industrial automation, and workshop air lines. Made from durable polyurethane, it offers superior flexibility, resistance to kinking, and long-lasting performance under demanding conditions. Ideal for energy chain applications, machine automation, and factory air supply, this tubing ensures smooth airflow and reliable operation across a wide temperature and pressure range.
Features
- Flexible, durable polyurethane construction
- Suitable for energy chain and high-movement applications
- Resistant to kinking and abrasion
- TÜV approved and RoHS compliant
- Compatible with compressed air and ice-free water
- Perfect for industrial automation, workshop air lines, and machine installations
Specifications
- Part Number: PUN-H-12X2-BL
- Coil Length: 50 metres
- Colour: Blue
- Outer Diameter: 12 mm
- Inner Diameter: 8 mm
- Minimum Bending Radius: 33 mm (flow-relevant: 62 mm)
- Operating Pressure Range: -0.95 to 6 bar (temperature-dependent up to 10 bar)
- Operating Medium: Compressed air (ISO 8573-1:2010) & water (ice-free)
- Temperature Range: -35°C to 60°C
- Material: TPE-U (Polyurethane)
- Hardness: Shore D 52 ±3
- Weight: 0.0729 kg/m
- Fire Classification: UL94 HB
- Connections: Push-in connector O.D. 12 mm
- Certifications: TÜV approved; suitable for Li-ion battery production (reduced Cu/Zn/Ni values)
