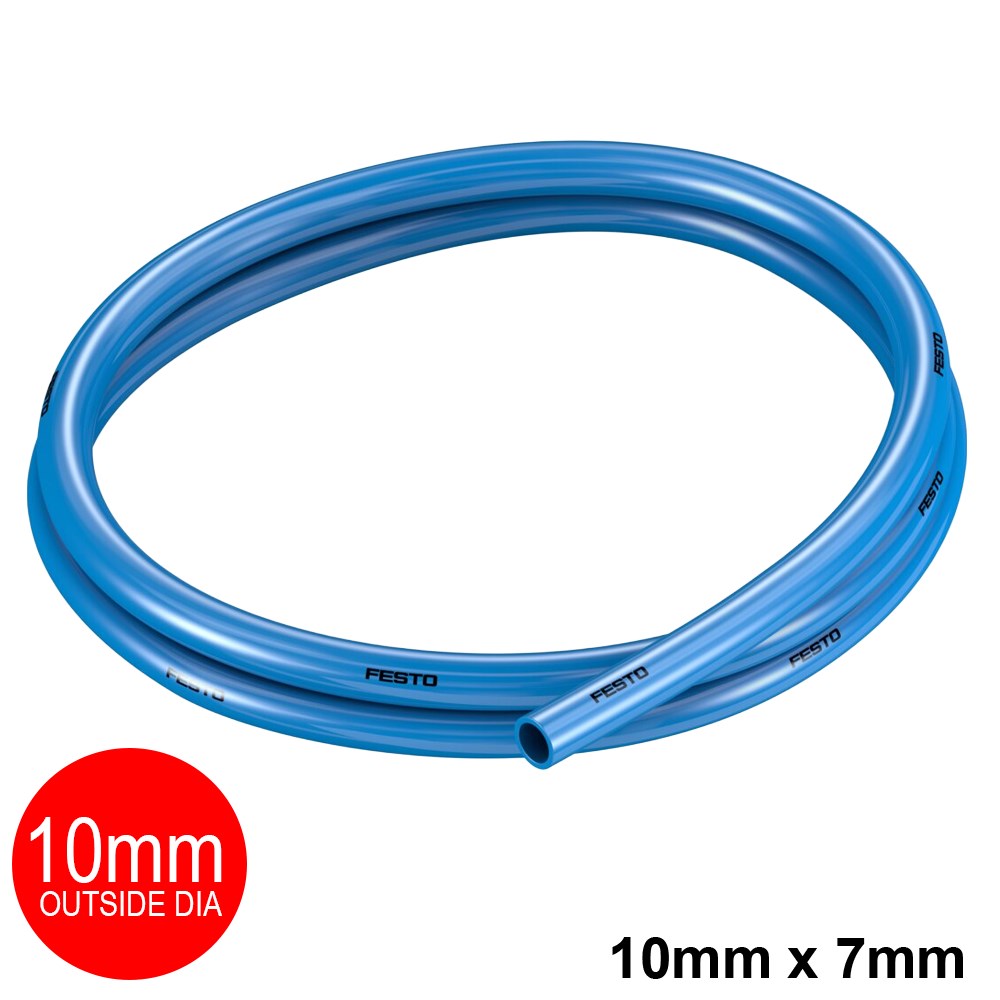

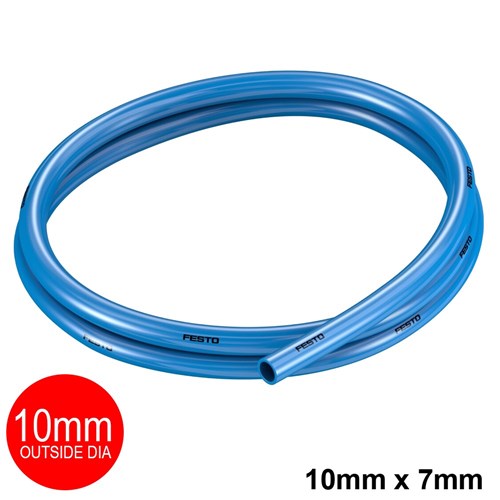

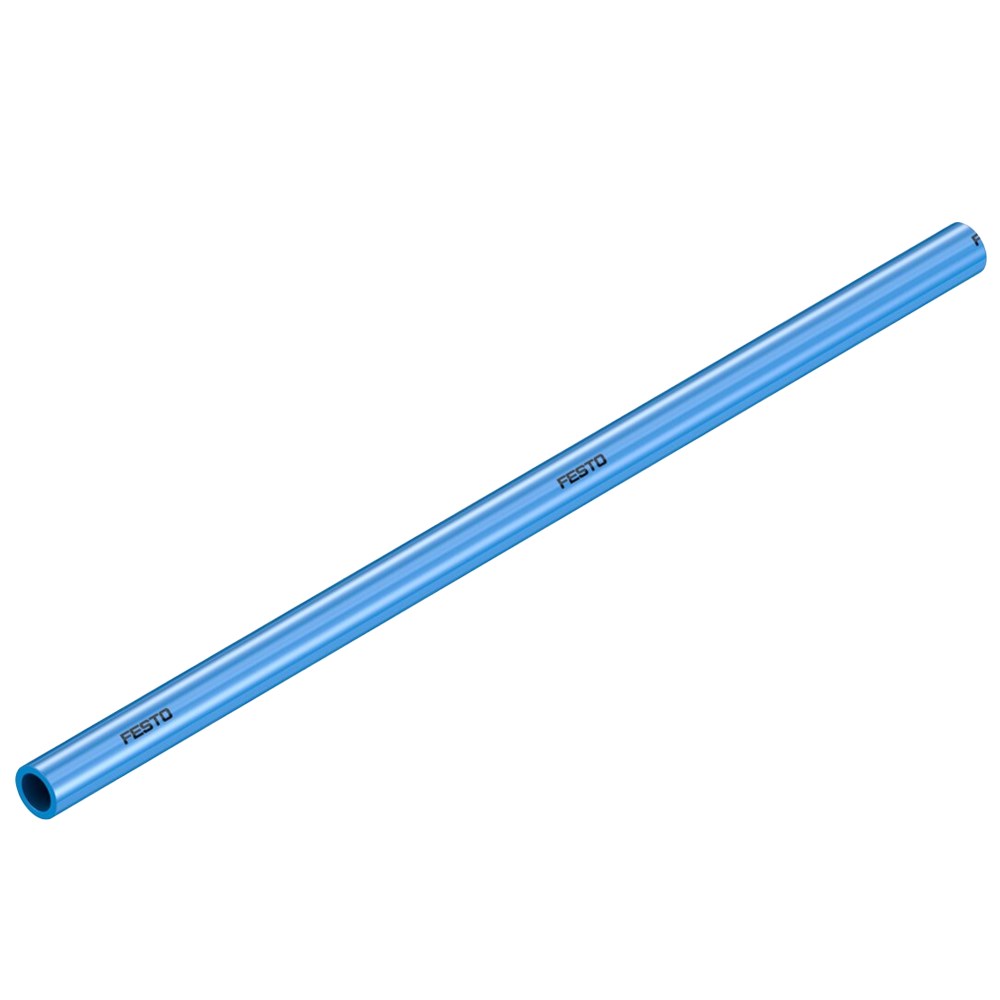

Festo PUN-H 10x1.5 Blue Polyurethane Pneumatic Tubing – 10mm (50m Coil)

The Festo 10mm pneumatic tubing provides reliable performance for compressed air systems, automation setups, and industrial air lines. Constructed from high-quality polyurethane, it offers excellent flexibility, kink resistance, and durability for demanding applications. Perfect for energy chain installations, machine automation, and factory air supply, this tubing ensures smooth airflow and consistent operation across a wide temperature and pressure range.

Features

• Durable, flexible polyurethane construction
• Ideal for energy chain and dynamic applications
• Resistant to kinking and abrasion
• TÜV approved and RoHS compliant
• Compatible with compressed air and ice-free water
• Perfect for industrial automation, workshop air lines, and machine installations

Specifications

• Part Number: PUN-H-10X1,5-BL
• Coil Length: 50 metres
• Colour: Blue
• Outer Diameter: 10 mm
• Inner Diameter: 7 mm
• Minimum Bending Radius: 28 mm (flow-relevant: 52 mm)
• Operating Pressure Range: -0.95 to 6 bar (temperature-dependent up to 10 bar)
• Operating Medium: Compressed air (ISO 8573-1:2010) & water (ice-free)
• Temperature Range: -35°C to 60°C
• Material: TPE-U (Polyurethane)
• Hardness: Shore D 52 ±3
• Weight: 0.0465 kg/m
• Fire Classification: UL94 HB
• Connections: Push-in connector O.D. 10 mm
• Certifications: TÜV approved; suitable for Li-ion battery production (reduced Cu/Zn/Ni values)
