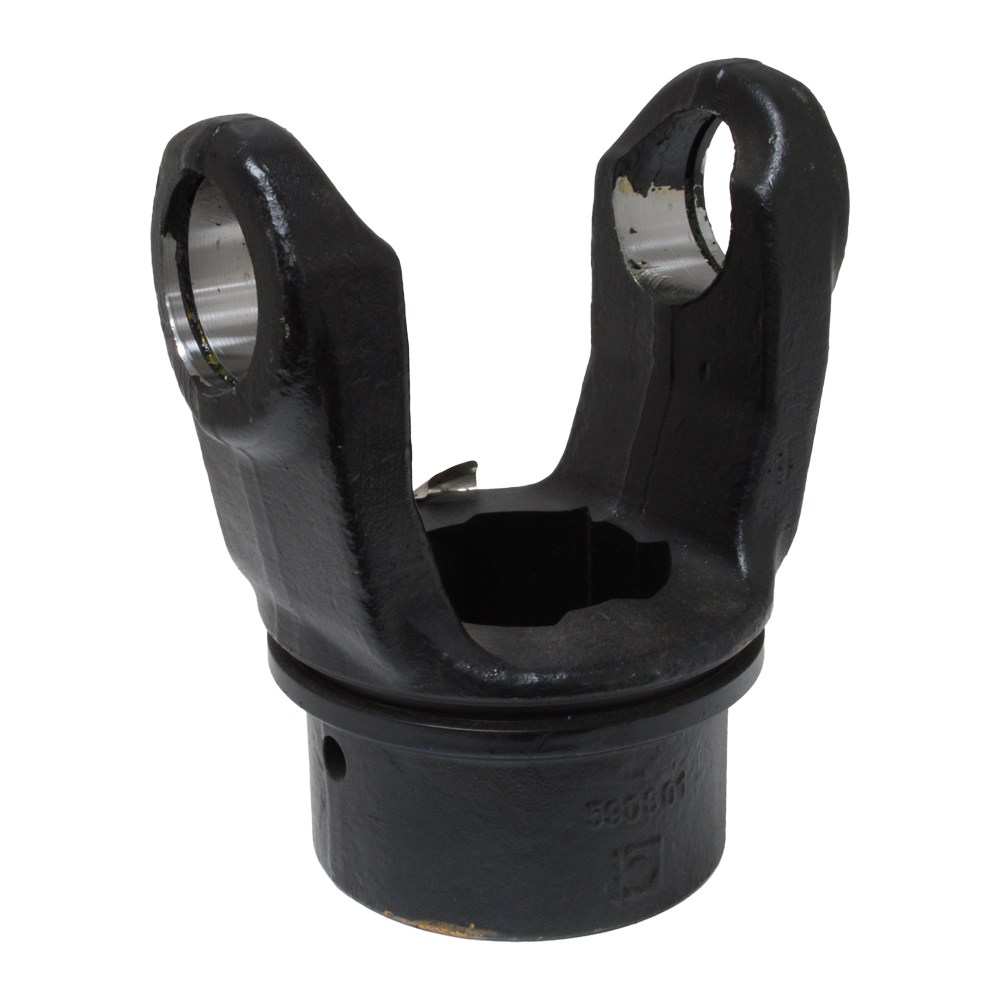

Genuine BYPY® SFT/SO Series Outer Profile Yoke
Restore the operation of your heavy-duty PTO driveline with this genuine BYPY® SFT/SO Series outer profile yoke. Designed for the outer sliding tube of compatible Bondioli & Pavesi® SFT/SO power take-off shafts, it provides the correct fit and strength required for demanding agricultural applications.
This replacement profile yoke is suitable for repairing PTO shafts with a damaged, cracked or excessively worn outer yoke. Its four-tooth profile connects to the outer telescoping tube, while the large 42 mm x 130 mm cross kit configuration suits extra-heavy-duty SFT/SO driveline assemblies.
Using a genuine Bondioli & Pavesi component helps maintain the intended dimensions, alignment and operating characteristics of the original PTO shaft, allowing worn components to be replaced without unnecessarily replacing the complete driveline.
Technical Specifications
- Brand: Genuine BYPY® / Bondioli & Pavesi®
- Component type: Outer profile yoke
- Compatible series: SFT/SO Series
- Tube position: Outer sliding profile tube

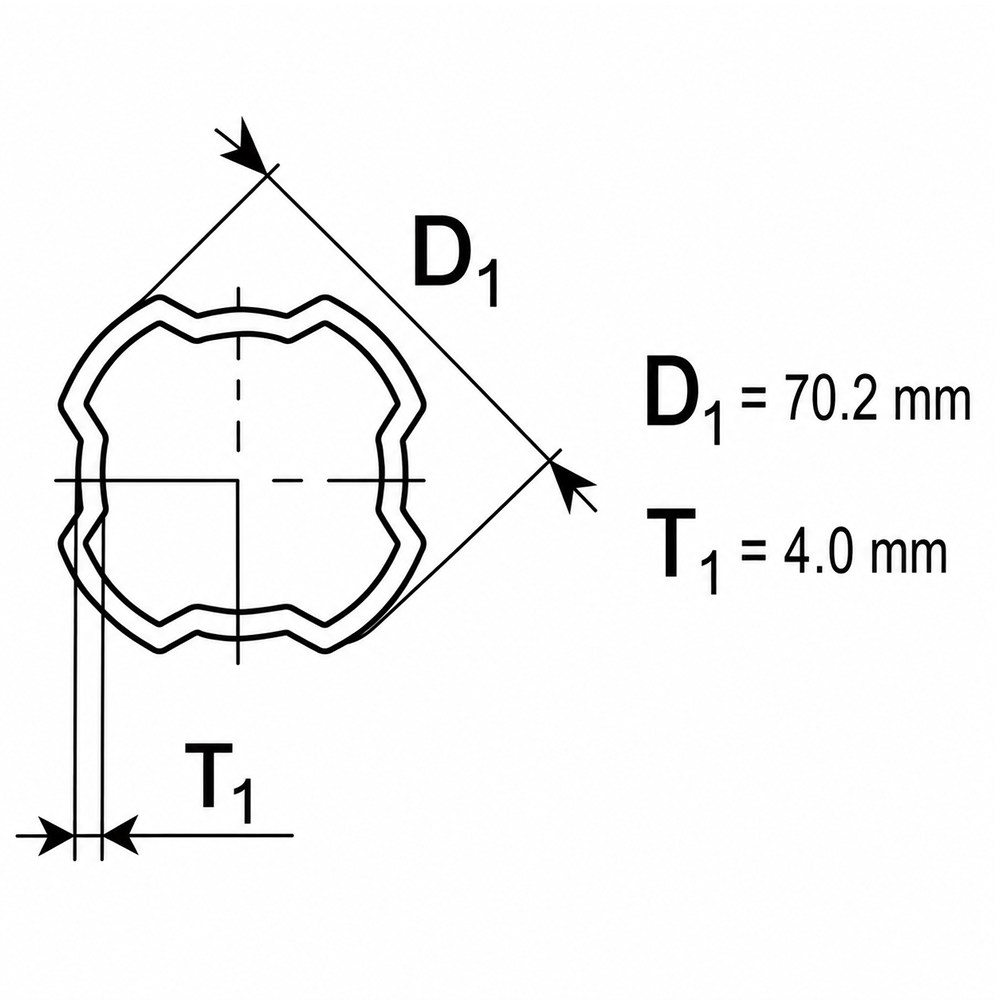

- Tube Profile: 4 Tooth 70.2mm x 4.0mm
- Cross kit cap diameter: 42 mm
- Cross kit overall width: 130 mm
- Profile type: SFT/SO four-tooth profile
- Application: Extra-heavy-duty agricultural PTO drivelines
Key Features
- Genuine Bondioli & Pavesi replacement component
- Designed for compatible SFT/SO Series PTO shafts
- Fits the outer telescoping profile tube
- Heavy-duty 42 mm x 130 mm universal joint configuration
- Four-tooth tube profile for dependable torque transmission
- Allows damaged driveline components to be repaired individually
- Helps restore correct PTO shaft alignment and operation
Check Compatibility Before Ordering
PTO shaft components that appear similar may use different tube profiles, universal-joint dimensions or yoke arrangements. Before ordering, confirm that your existing driveline uses an SFT/SO four-tooth outer profile and measure the universal-joint cross kit across the bearing caps.
- Measure one bearing cap diameter: 42 mm
- Measure the complete cross kit width: 130 mm
- Confirm the yoke fits the outer sliding tube
- Check that the tube has the matching four-tooth profile
- Compare the original yoke and driveline identification before installation
The C&M Difference
Collier & Miller supplies genuine PTO driveline components backed by practical agricultural parts knowledge. Our team can help identify the correct yoke by checking the cross kit measurements, tube profile and shaft series, reducing the risk of ordering an incompatible component and helping you get machinery back into operation sooner.
Expert Maintenance Review
When replacing a damaged profile yoke, inspect the complete PTO shaft rather than treating the yoke as an isolated component. Check the universal-joint cross kit, bearing caps, retaining components, telescoping tubes and safety guarding for wear, distortion or cracking. The sliding profiles should move freely without excessive rotational movement or binding.
A worn cross kit or distorted tube can place additional load on the replacement yoke and may cause premature failure. Replace any related components that fall outside the manufacturer’s service limits.
Installation Tip
Before beginning work, shut down the tractor and implement, remove the ignition key and ensure the driveline cannot rotate. Confirm the orientation of the original yoke before removing it and use the correct workshop equipment when installing the universal-joint bearing caps.
After assembly, check that all retaining components are fully seated, the joint articulates smoothly and the telescoping shaft slides correctly. Refit all PTO guards and shields before operating the machine. Never operate a PTO driveline with damaged, missing or incorrectly fitted guarding.
