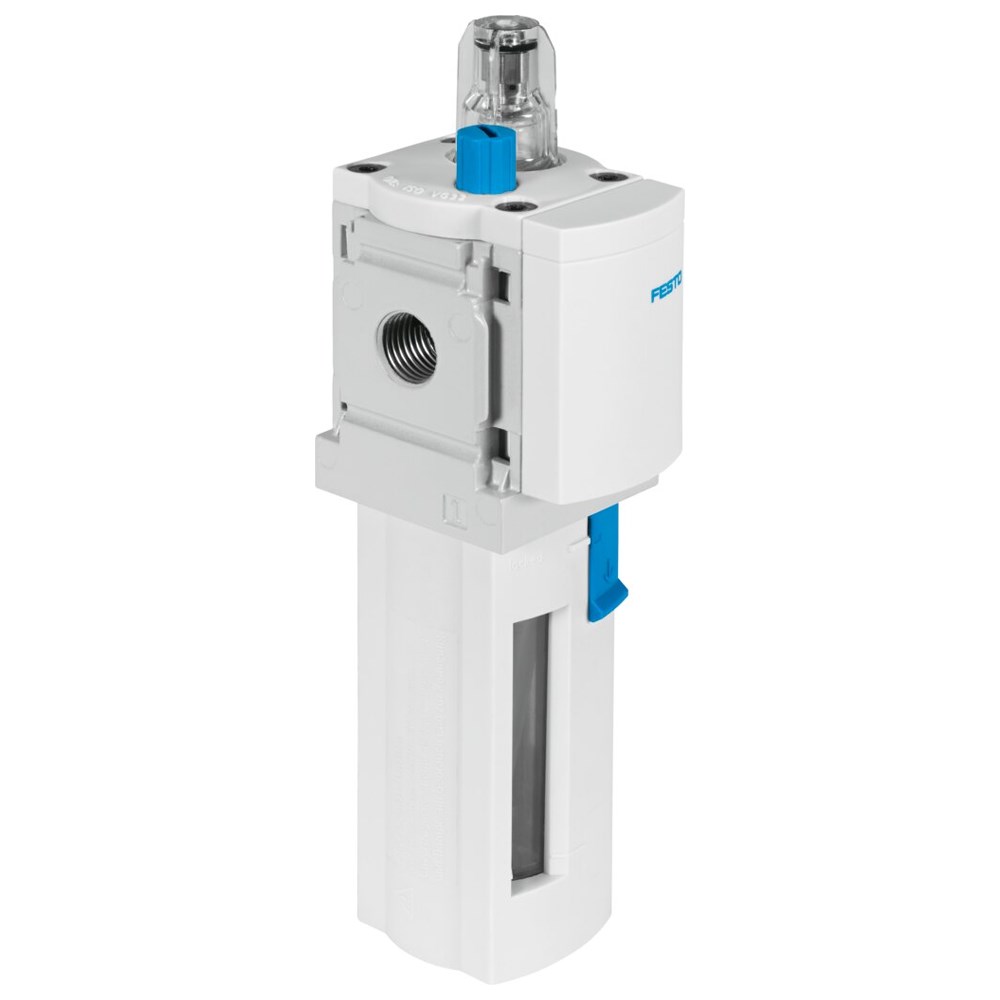

FESTO Modular Lubricator 1/8" – MS4-LOE-1/8-R
Designed for precise oil delivery in pneumatic systems, this proportional mist lubricator ensures smooth operation and extended equipment life. Compact and versatile, it supports vertical or in-line mounting and is suitable for industrial and food-safe applications.
Features
- Proportional mist lubrication for consistent performance
- Max oil capacity 30 cm³ for longer operation
- Plastic bowl guard for protection and durability
- Supports vertical mounting
- Compatible with lubricated operation
Specifications
- Size: 4
- Series: MS
- Operating Pressure: 1–12 bar
- Flow Rate: 1100 L/min (DIN 1343)
- Min Flow Rate for Lubrication: 40 L/min
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Oil Viscosity: ISO VG 32
- Corrosion Resistance: CRC2 (Moderate)
- Mounting: In-line or with accessories
- Port Size: G1/8
- Housing Material: Die-cast aluminium
- Bowl Material: PC
- Weight: 194 g
- RoHS Compliant
