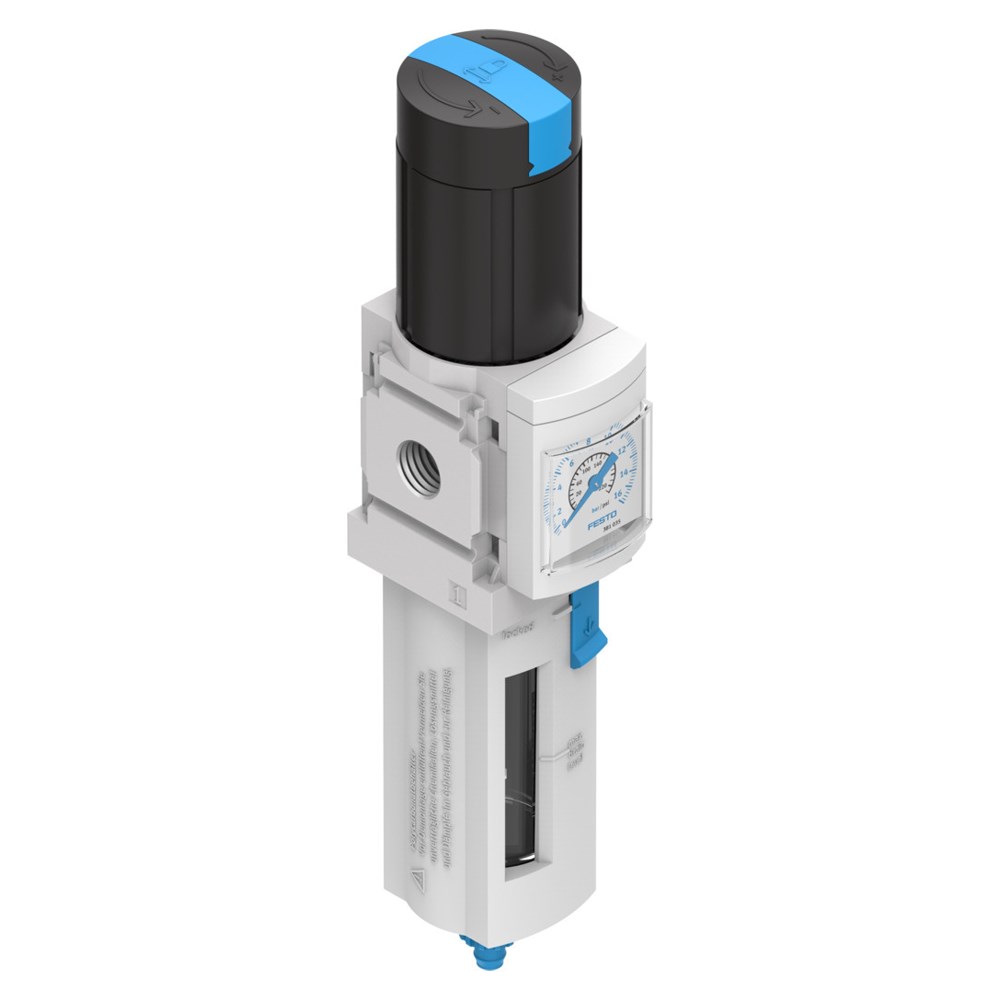

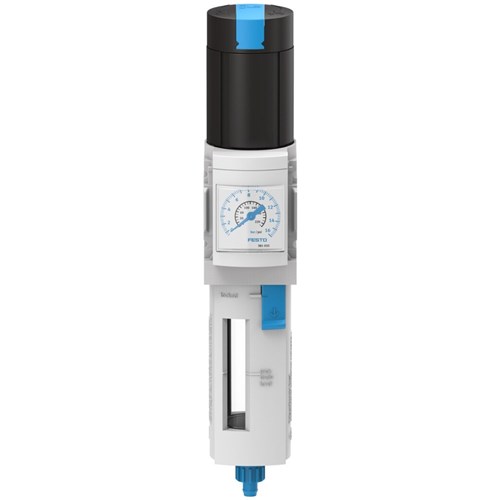

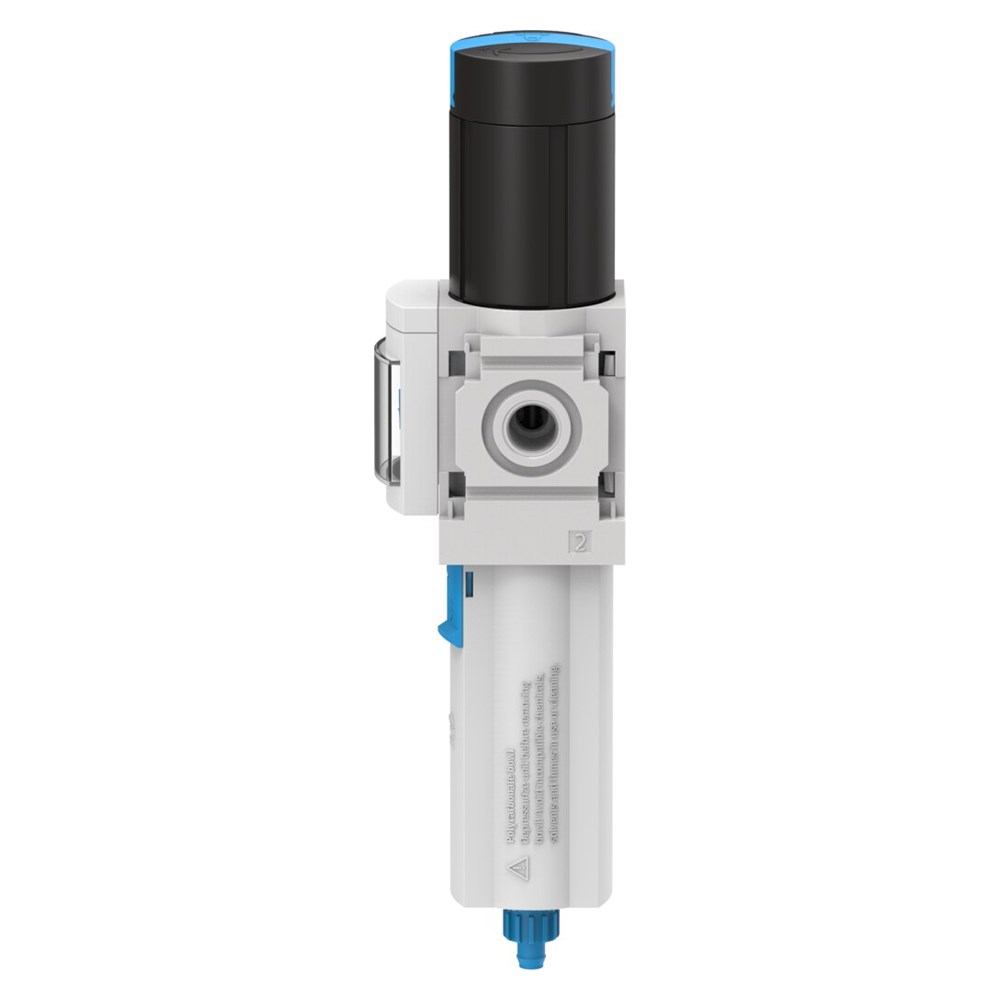

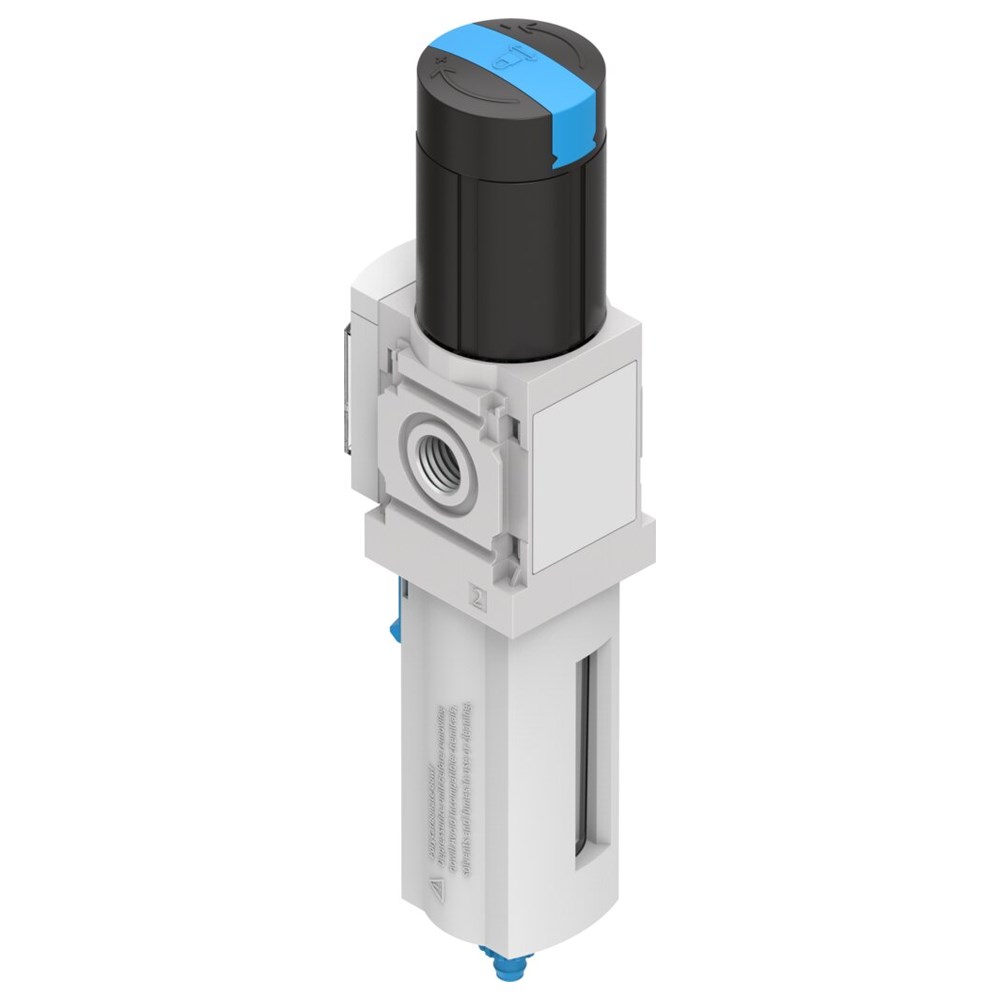

FESTO Filter Regulator 1/4" – MS4-LFR-1/4-D7-ERM-AS
A reliable filter regulator with manual condensate drain and integrated pressure gauge, designed to ensure clean, stable air supply in pneumatic systems. Its compact design and versatile mounting options make it ideal for industrial and food-safe applications.
Features
- Manual condensate drain for easy maintenance
- Integrated pressure gauge for real-time monitoring
- 40 µm filtration for effective air purification
- Rotary locking knob for secure adjustment
- Plastic bowl guard for durability
- Maintains consistent output pressure with secondary venting and return flow function
- Suitable for vertical mounting
Specifications
- Size: 4
- Series: MS
- Filtration Grade: 40 µm
- Condensate Volume: 19 ml
- Operating Pressure: 0.8–14 bar
- Pressure Regulation Range: 0.5–12 bar
- Flow Rate: 1500 L/min (DIN 1343)
- Operating Medium: Inert gases
- Air Purity at Outlet: ISO 8573-1:2010 [7:4:4]
- Degree of Condensate Separation: >75%
- Media & Ambient Temperature: -10°C to 60°C
- Corrosion Resistance: CRC2 (Moderate)
- Mounting: Front panel or in-line with accessories
- Port Size: G1/4
- Housing & Sub-base Material: Die-cast aluminium
- Bowl Material: PC
- Seals: NBR
- Filter Material: PE
- Membrane Material: NBR
- Control Panel: PA / POM
- Separating Plate: POM
- Weight: 275 g
- RoHS Compliant
