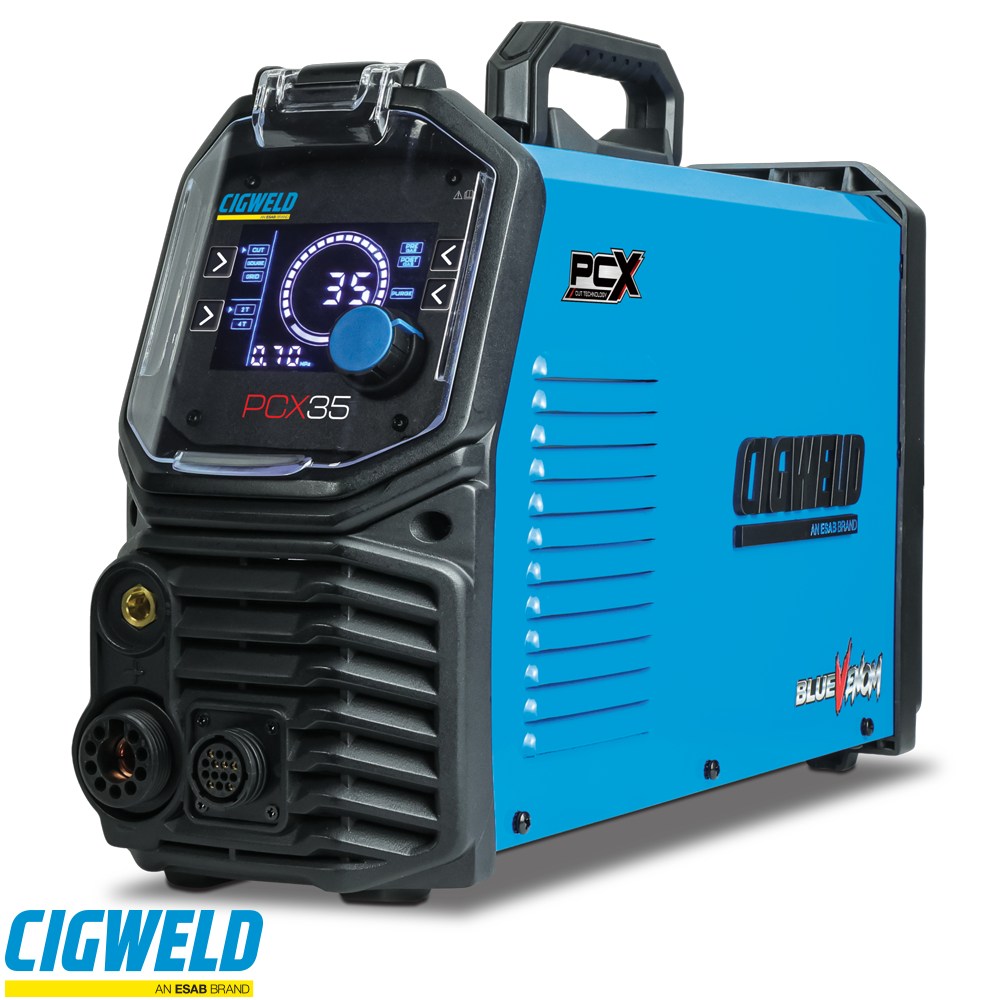

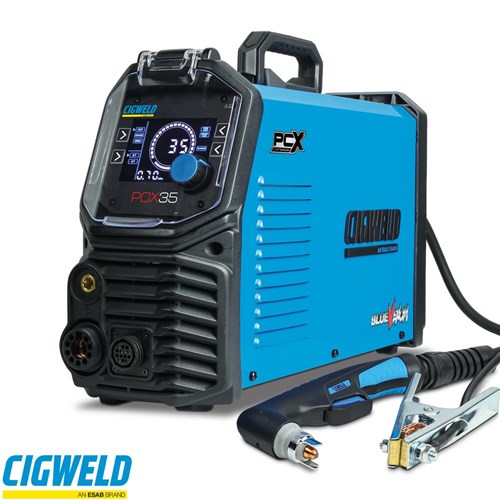

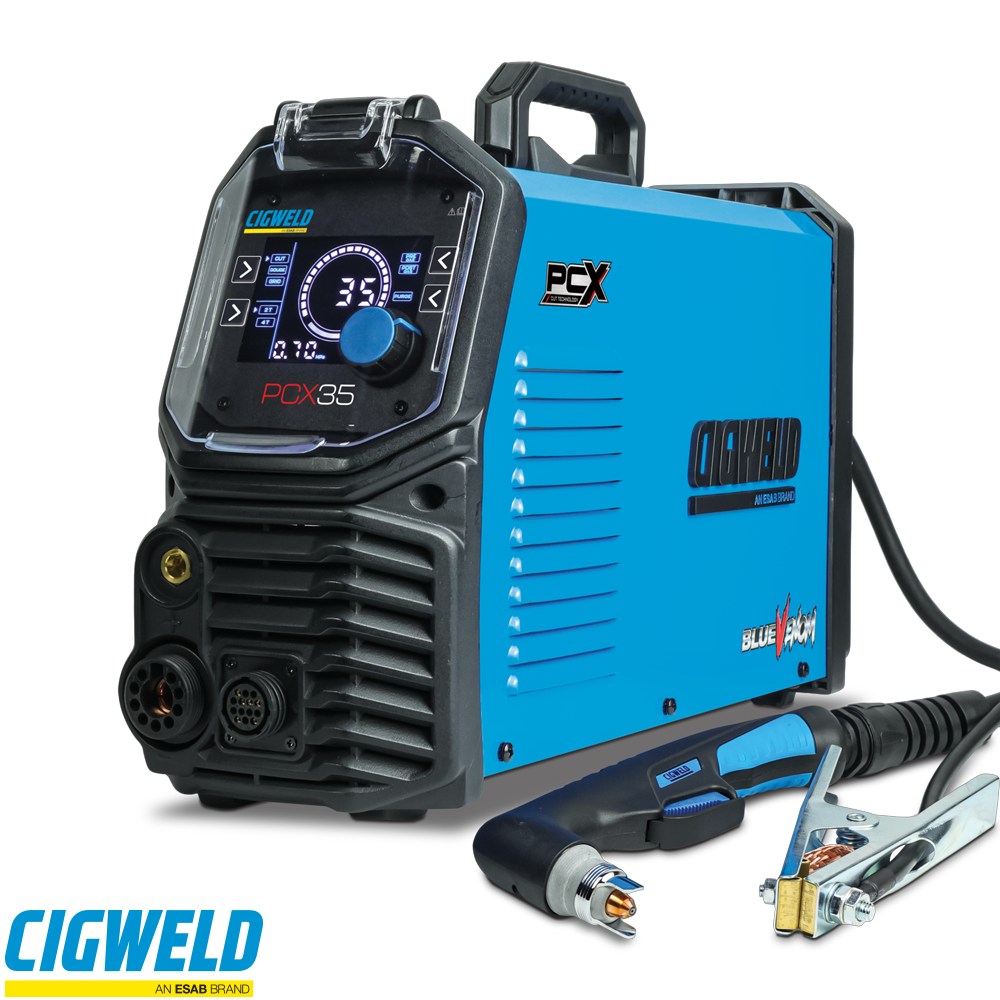

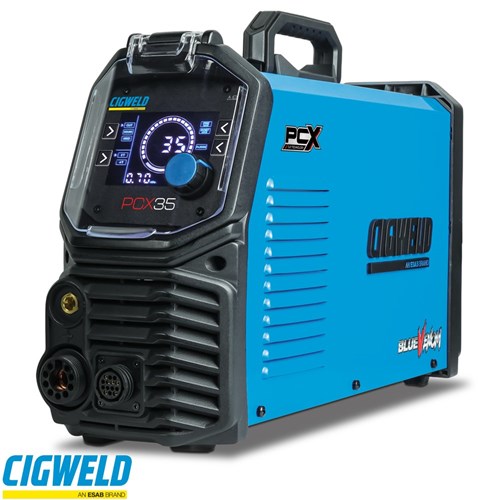

BLUEVENOM PCS35 PLASMA CUTTER
The BlueVenom PCS35 Plasma Cutter from Cigweld delivers powerful, precise cutting performance in a lightweight and portable design. Ideal for workshops, fabrication, maintenance, and on-site work, this 35A plasma cutter produces clean cuts through mild steel up to 12mm and severance cuts up to 16mm. Featuring Hover Start technology, Power Factor Correction, and CNC compatibility, it offers reliable performance for both handheld and automated cutting applications.
Features
- 35A plasma cutter delivers fast, clean, and accurate metal cutting
- Clean cutting capacity up to 12mm mild steel
- Severance cutting capacity up to 16mm mild steel
- Suitable for cutting mild steel, stainless steel, and aluminium
- Lightweight 8.8kg design for easy transport between workshop and job site
- Hover Start arc ignition provides reliable, non-contact arc starting
- Power Factor Correction improves efficiency and allows operation from a 10A outlet
- CNC ready for automated plasma cutting applications
- Ergonomic torch connection for comfortable handling and quick setup
- IP21S rated for added protection in workshop environments
- Ideal for fabrication, automotive, maintenance, repair, and metalworking applications
Includes
- BlueVenom PCS35 Plasma Cutter
- Plasma Cutting Torch
- Power Lead with 10A Plug
Specifications
- Brand: Cigweld
- Model: BlueVenom PCS35
- Product Type: Plasma Cutter
- Welding Process: Plasma Cutting
- Input Power: 230V Single Phase (10A Plug)
- Supply Frequency: 50/60Hz
- Amperage Range: 20A–35A
- Rated Duty Cycle: 35A @ 35%
- Clean Cut Capacity (Mild Steel): 12mm
- Severance Capacity (Mild Steel): 16mm
- Clean Cut Capacity (Stainless Steel): 10mm
- Clean Cut Capacity (Aluminium): 10mm
- Input Air Pressure: 0.38–0.75 MPa (5.5–7.5 bar)
- Minimum Generator Requirement: 6kVA
- Protection Rating: IP21S
- Power Source Weight: 8.8kg
- Package Weight: 15kg
- Power Source Dimensions: 483 × 147 × 292mm
- Package Dimensions: 560 × 255 × 345mm
- Warranty: 5 Years
- Australian Standard: AS 60974.1:2020
