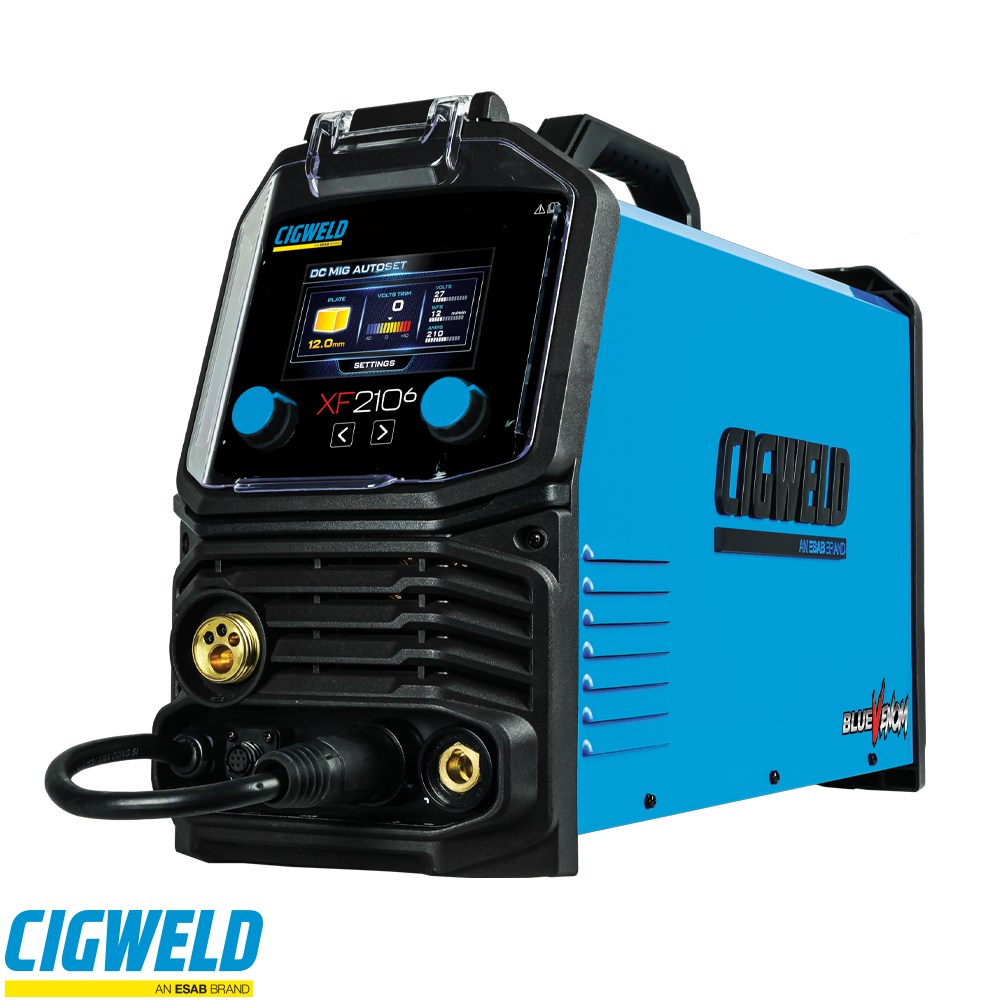

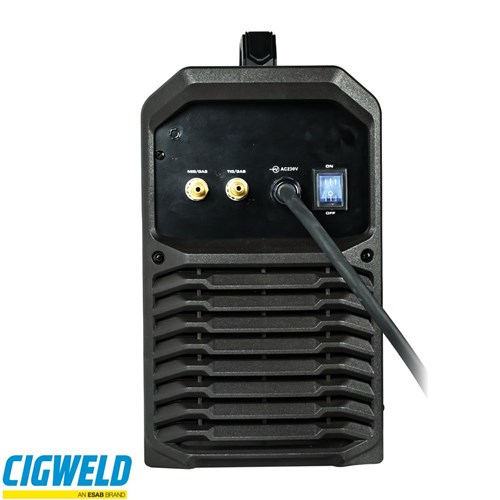

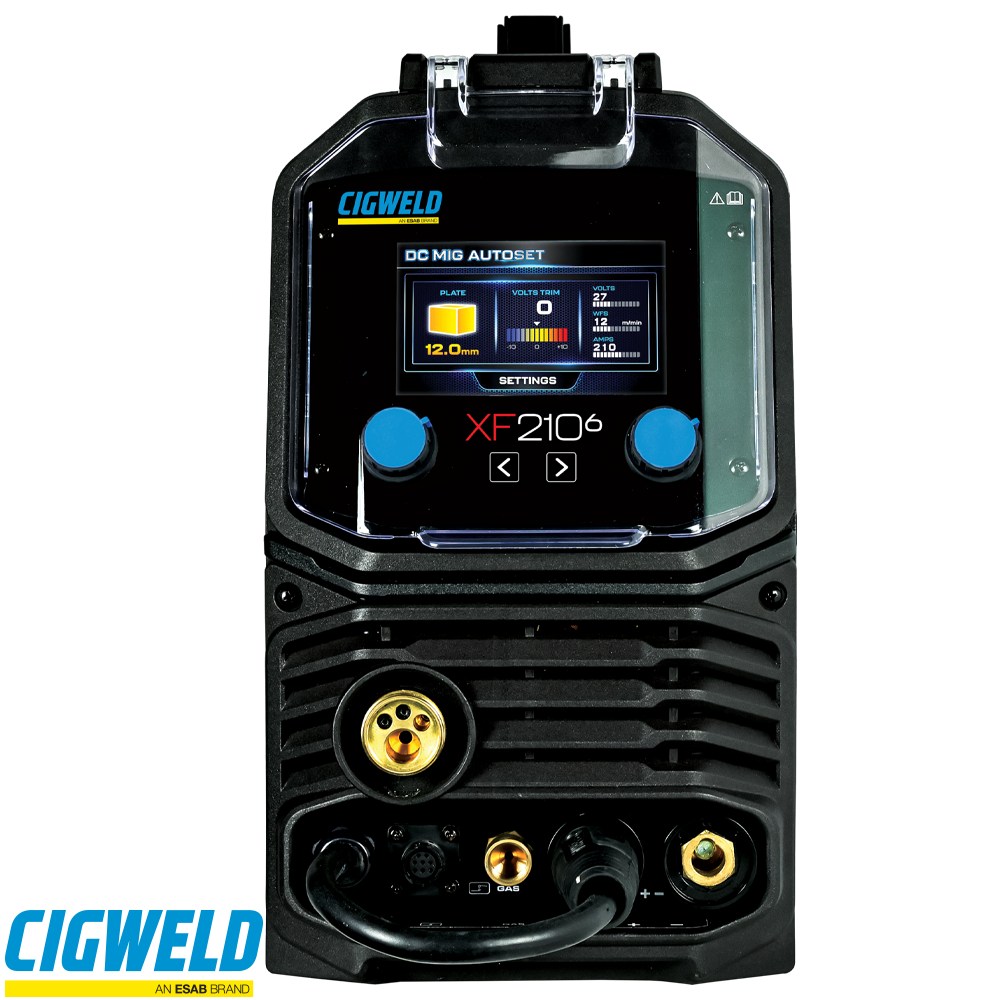

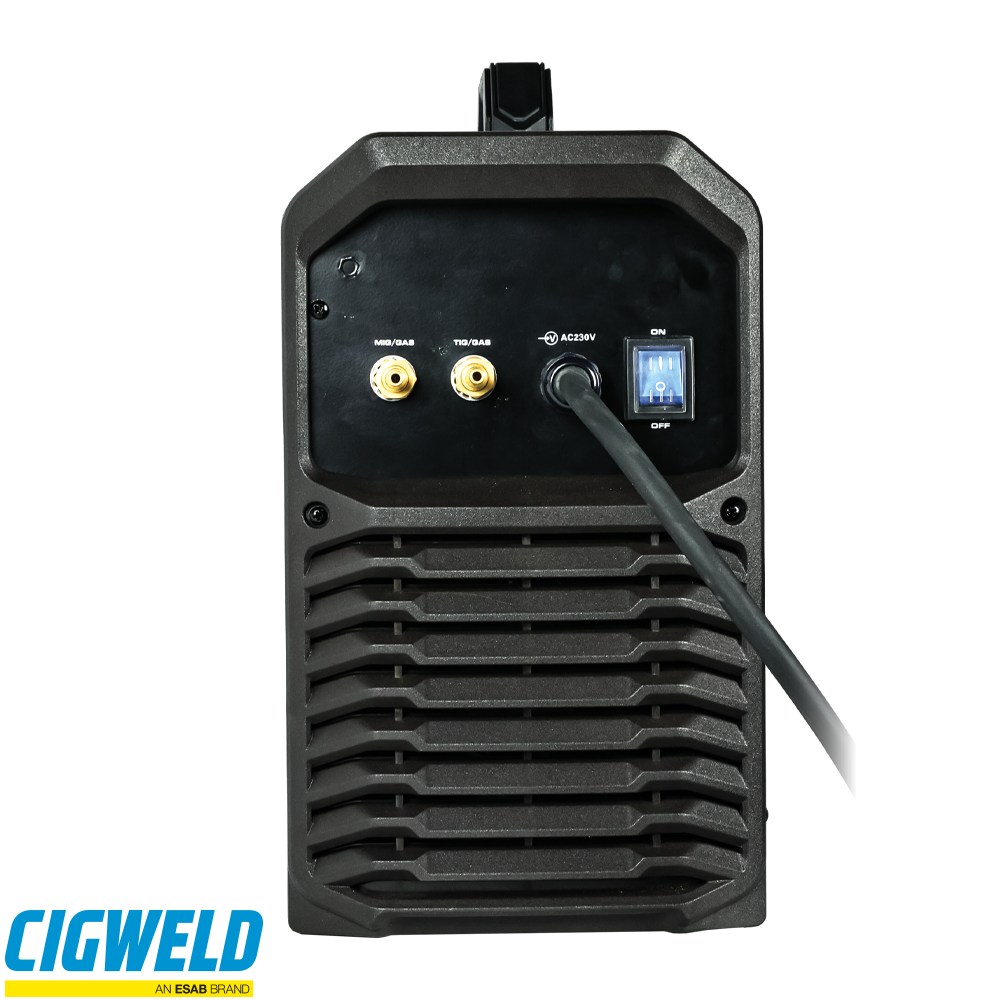

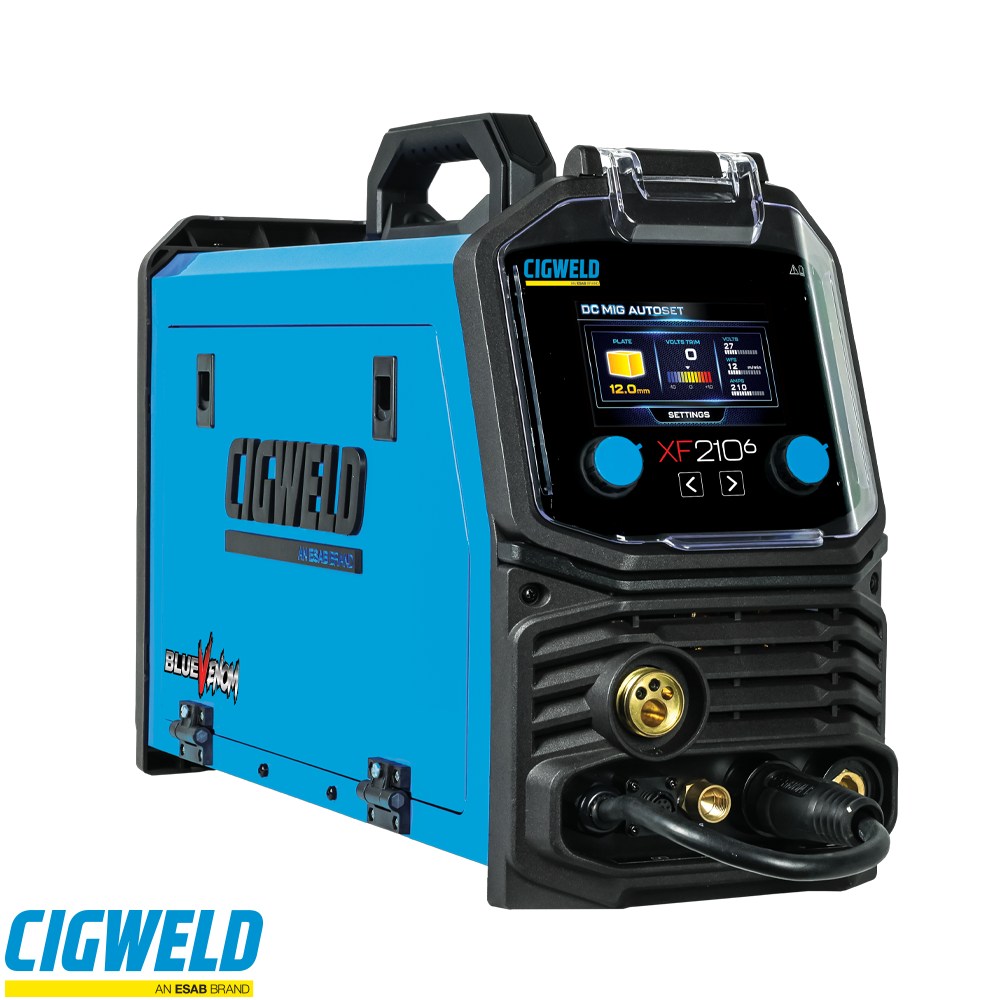

CIGWELD BLUEVENOM XF210ACDC MULTI PROCESS WELDING INVERTER

The Cigweld BlueVenom XF210ACDC is a professional 210A multi-process welding inverter designed to handle a wide range of fabrication, repair, and industrial welding applications. Supporting MIG, AC/DC TIG, Stick, Pulse, and Double Pulse welding, this versatile machine is ideal for welding mild steel, aluminium, stainless steel, and bronze. Featuring Power Factor Correction (PFC), advanced pulse technology, and a robust portable design, the XF210ACDC delivers exceptional welding performance, efficiency, and precision for demanding workshop and on-site applications.

Features

• 6-in-1 multi-process welding inverter for maximum versatility
• Supports MIG, Pulse MIG, Double Pulse MIG, AC/DC TIG, Cold Weld TIG, and Stick welding
• 210A output delivers professional performance across a wide range of materials
• Suitable for welding mild steel, aluminium, stainless steel, and bronze
• Power Factor Correction (PFC) improves energy efficiency and provides stable welding performance
• Pulse welding technology reduces heat input for improved weld quality and control
• AC TIG welding ideal for aluminium fabrication and precision welding
• Cold Weld TIG function helps minimise distortion on thin materials
• Voltage Reduction Device (VRD) enhances safety during Stick welding
• Air-cooled design for reliable operation in demanding environments
• IP23S protection rating for workshop and on-site use
• Ideal for industrial fabrication, manufacturing, automotive, maintenance, and professional welding applications

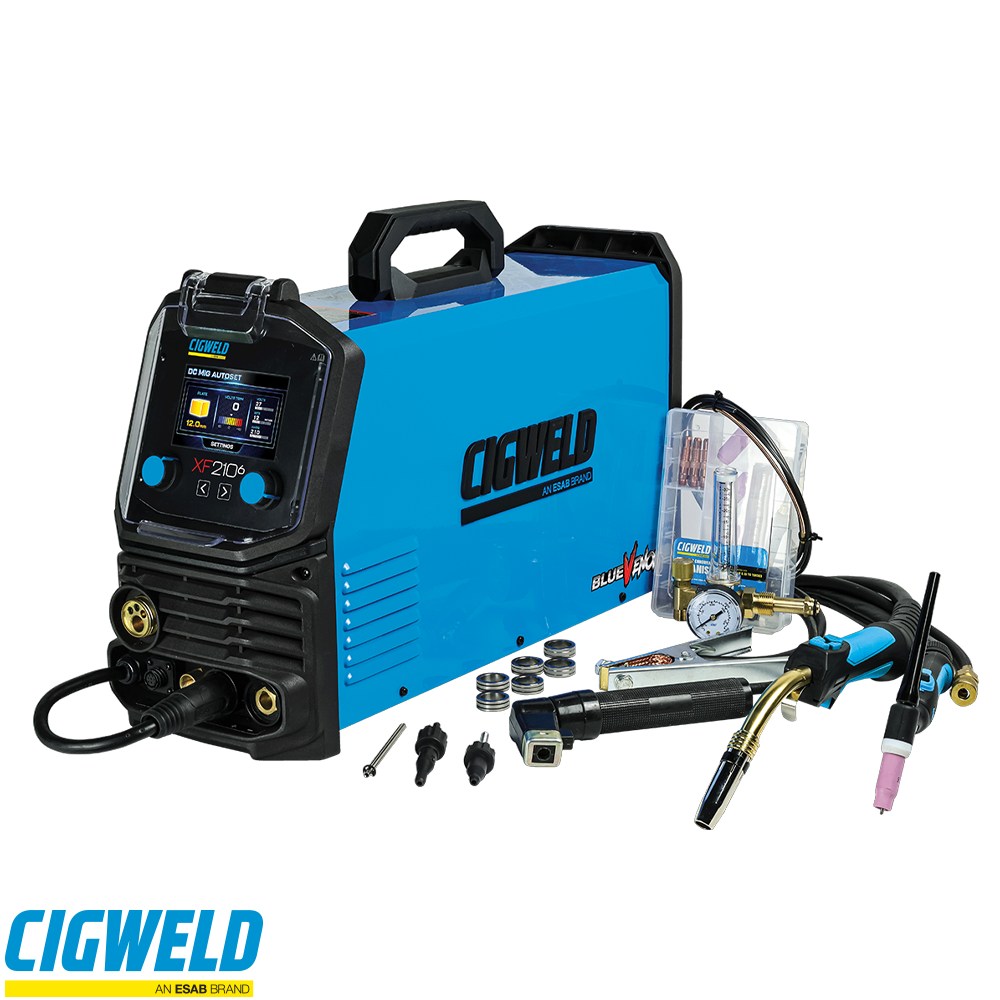

Includes

• BlueVenom XF210ACDC Multi Process Welding Inverter
• DGX24 4-Button Digital MIG Gun (3m)
• Flame Series WP26F Flex Head TIG Torch (4m)
• 200A Twist Lock Electrode Holder (3m)
• Feed Rolls (V-Groove, Knurled & U-Groove)
• 300A Earth Clamp (3m)
• BlueJet Regulator/Flowmeter
• 2m Quick Connect Gas Hose

Specifications

• Brand: Cigweld
• Model: BlueVenom XF210ACDC
• Product Type: Multi Process Welding Inverter
• Power Supply: Single Phase 230V ±10% (15A Plug)
• Processes: MIG, Pulse MIG, Double Pulse MIG, AC TIG, AC/DC TIG, Cold Weld TIG, DC TIG, Stick, Pulse Stick
• Output Current (MIG): 30A–210A
• Output Current (TIG): 10A–210A
• Output Current (Stick): 40A–185A
• Duty Cycle (MIG): 210A @ 25%
• Duty Cycle (TIG): 210A @ 35%
• Duty Cycle (Stick): 185A @ 25%
• Material Compatibility: Mild Steel, Aluminium, Stainless Steel, Bronze
• Pulse Function: Yes
• Cooling System: Air Cooled
• Voltage Reduction Device (VRD): Yes (Stick Mode)
• Protection Rating: IP23S
• Generator Requirement: 8.5kVA
• Supply Frequency: 50/60Hz
• Power Source Weight: 22kg
• Package Weight: 35.8kg
• Package Dimensions: 720 × 380 × 425mm
• Standards: AS 60974.1:2020, EN 60974-10:2021, IEC 60974-2:2019, IEC 60974-5:2019
