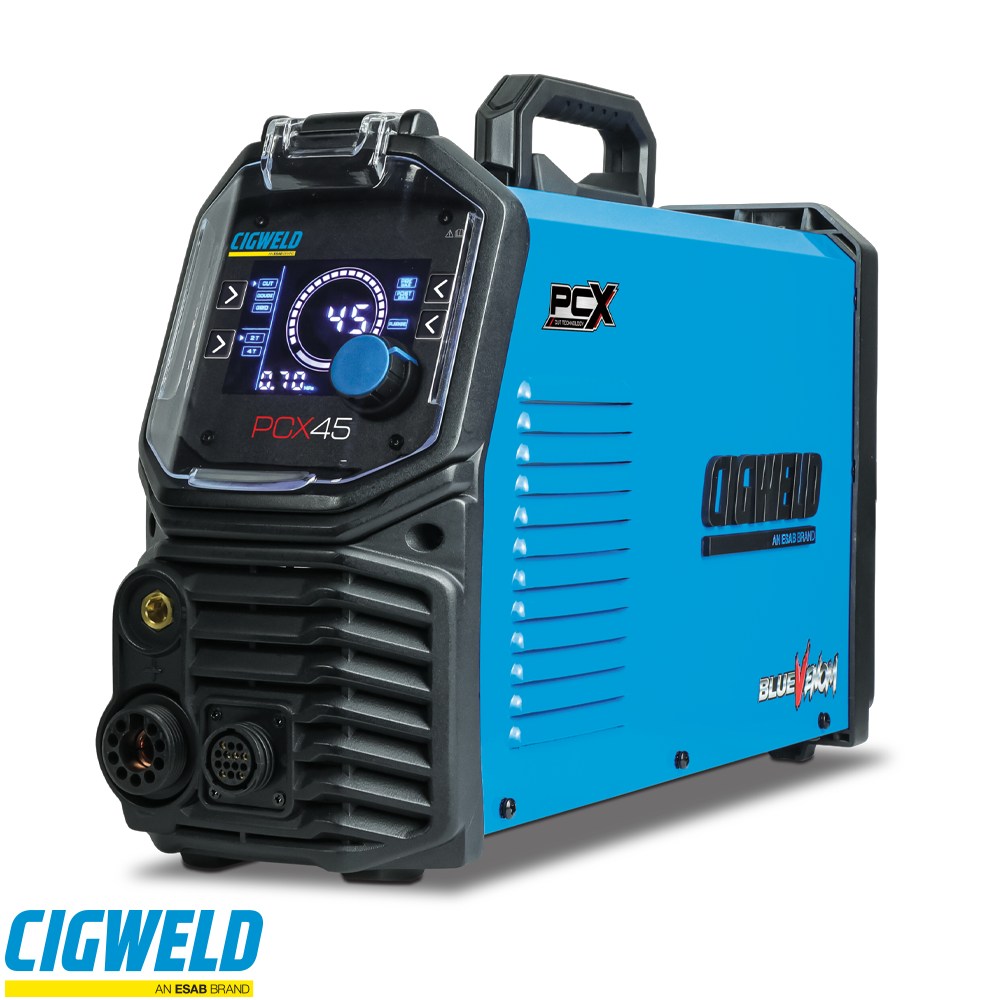

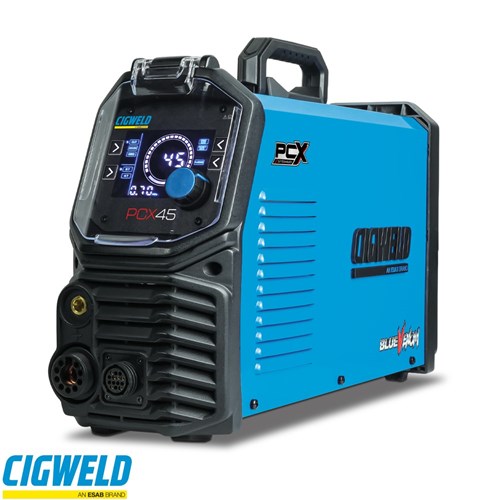

BLUEVENOM PCX45 PLASMA CUTTER
The BlueVenom PCX45 Plasma Cutter from Cigweld delivers professional-grade cutting performance with increased power for heavier fabrication and industrial applications. Designed for clean, accurate cuts through mild steel up to 16mm and severance cuts up to 25mm, this lightweight 45A plasma cutter combines portability with advanced features including Hover Start technology, Power Factor Correction, and CNC compatibility. Ideal for workshops, fabrication, automotive repairs, and on-site metal cutting.
Features
- 45A plasma cutter delivers fast, clean, and precise cutting performance
- Clean cutting capacity up to 16mm mild steel
- Severance cutting capacity up to 25mm mild steel
- Suitable for cutting mild steel, stainless steel, and aluminium
- Lightweight 9.1kg design for easy portability on-site or in the workshop
- Hover Start arc ignition provides reliable, non-contact arc starting
- Power Factor Correction improves efficiency and stable power performance
- CNC ready for automated and precision plasma cutting applications
- Ergonomic torch connection allows quick setup and comfortable operation
- IP21S rated for protection in workshop environments
- Ideal for fabrication, engineering, maintenance, automotive, and metalworking applications

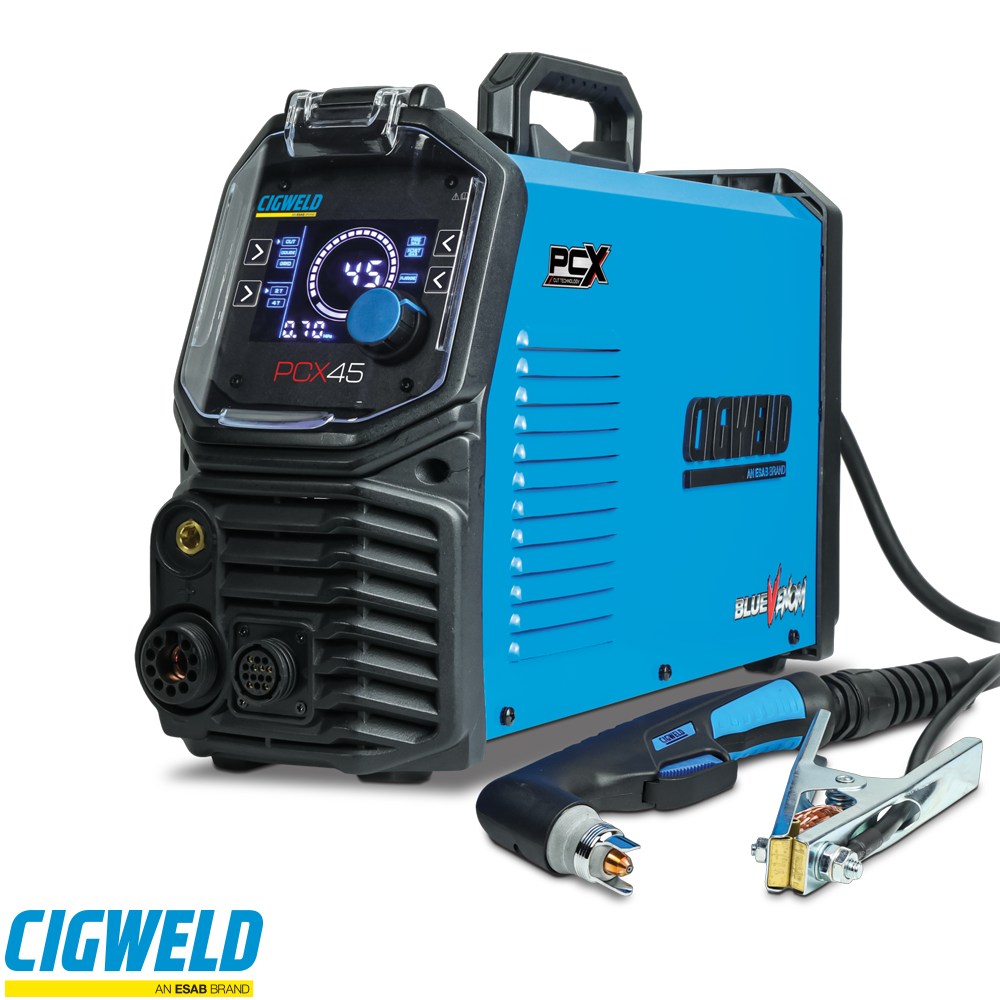

Includes
- BlueVenom PCX45 Plasma Cutter
- Plasma Cutting Torch
- Power Lead with 15A Plug
Specifications
- Brand: Cigweld
- Model: BlueVenom PCX45
- Product Type: Plasma Cutter
- Welding Process: Plasma Cutting
- Input Power: Single Phase 15A Plug
- Number of Phases: Single Phase
- Supply Frequency: 50/60Hz
- Amperage Range: 20A–45A
- Rated Duty Cycle: 45A @ 35%
- Clean Cut Capacity (Mild Steel): 16mm
- Severance Capacity (Mild Steel): 25mm
- Clean Cut Capacity (Stainless Steel): 12mm
- Clean Cut Capacity (Aluminium): 12mm
- Input Air Pressure: 0.38–0.75 MPa (5.5–7.5 bar)
- Minimum Generator Requirement: 7kVA
- Protection Rating: IP21S
- Power Source Weight: 9.1kg
- Package Weight: 15kg
- Power Source Dimensions: 483 × 147 × 292mm
- Package Dimensions: 560 × 255 × 345mm
- Warranty: 5 Years
- Australian Standard: AS 60974.1:2020
