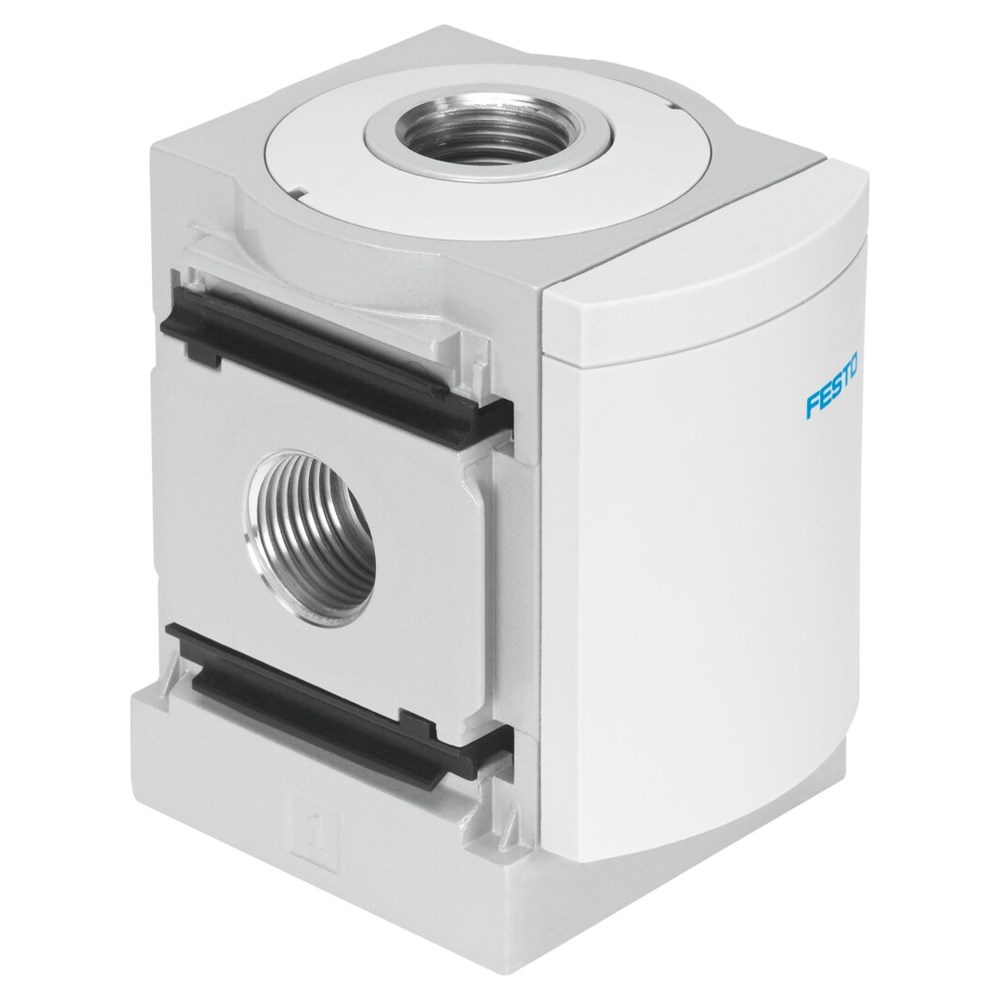

FESTO Branching Module 1/4" – MS4-FRM-1/4
This compact branching module allows efficient distribution of compressed air to multiple outlets, ensuring high flow capacity and reliable operation in pneumatic systems. Suitable for optional mounting, it delivers consistent performance in industrial and food-safe applications.
Features
- Distributes air efficiently to multiple outlets
- High flow capacity in main and secondary directions
- Compact, durable design
- Supports optional mounting
- RoHS compliant materials
Specifications
- Operating Pressure: 0–14 bar
- Flow Rate Main: 4600 L/min
- Flow Rate Upwards Outlet: 1500 L/min
- Flow Rate Downwards Outlet: 1500 L/min
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Corrosion Resistance: CRC2 (Moderate)
- Port Sizes: G1/4 (Ports 1–4)
- Housing Material: Die-cast aluminium
- Weight: 165 g
- RoHS Compliant
