Hay Tynes & Bushes

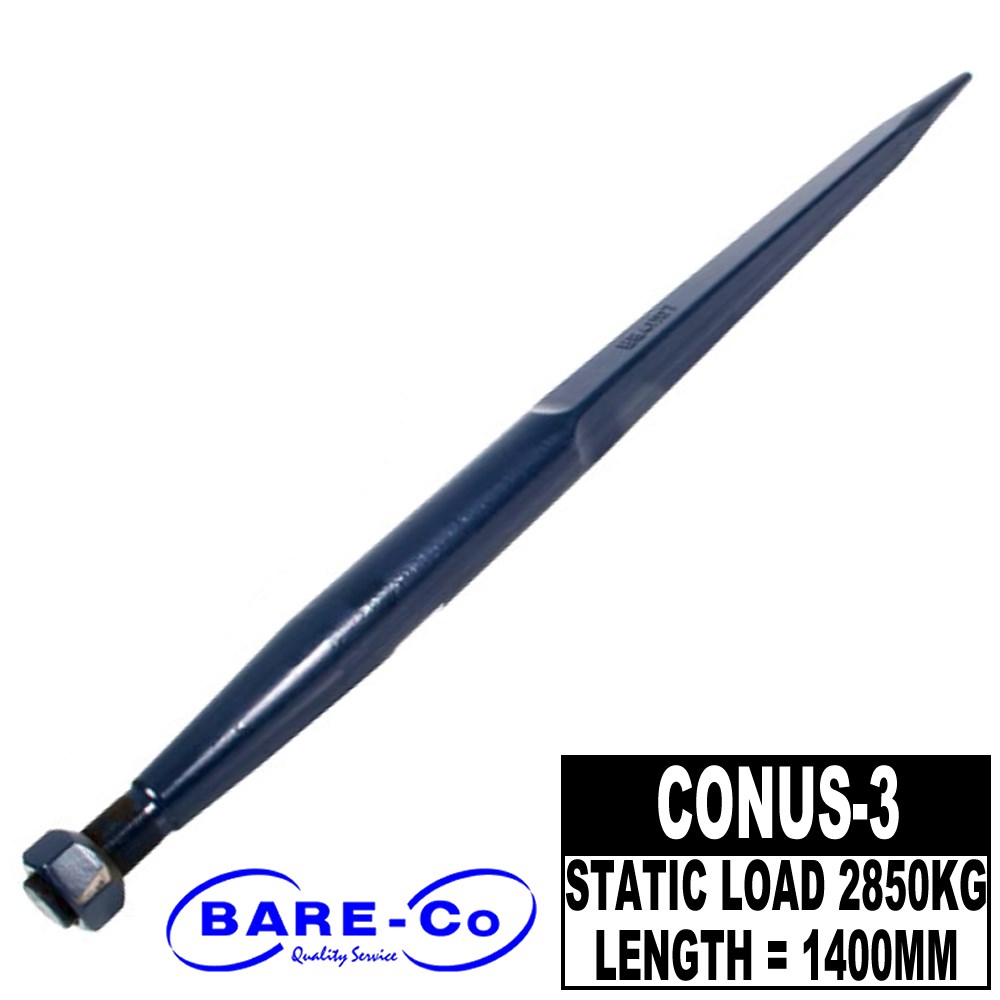

HAY TINE 1400MM CONUS-3 M33

STATIC MAX LOAD = 2850KG BALE SPEAR WITH NUT

Product Code: B84012
$311.25
Per EACH inc GST
Afterpay Logo
4 payments of $77.81
In Stock Low Stock Out Of Stock Please See Attributes 2
Increase value Decrease value



  • Product Detail

Bare-Co BLUE-LINE Hay Tines manufactured from superior quality alloy steel for increased capacity.

Blue-Line hay tines are forged, heat-treated and powder-coated for superior performance. Manufactured from S60Si7 Alloy Spring Steel with a tensile strength of 1650 N/mm sq. Each tine has a bright machined taper for positive location of the conus bush. Tines are supplied with nut.

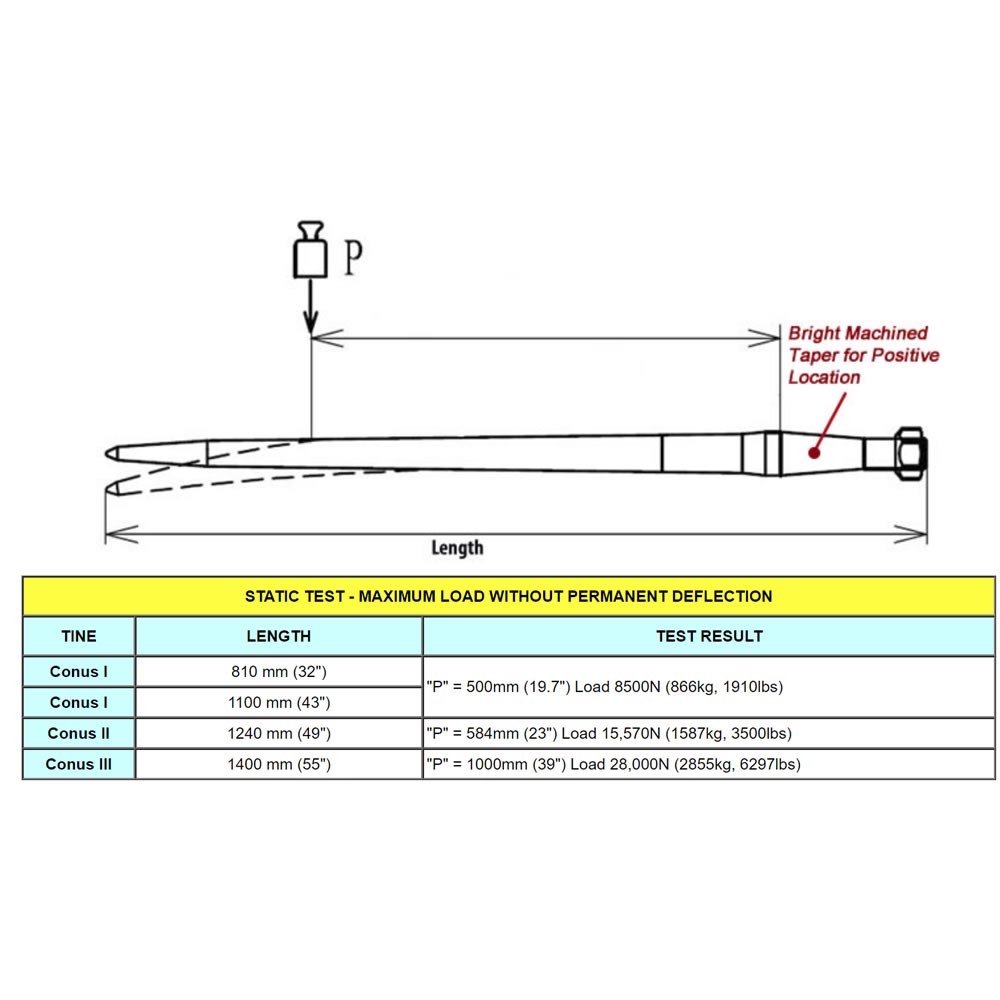

This is a straight tine with a Conus 2 taper. Static test load without permenent deflection is 28,000M, 2855KG, 6297Lbs.

  • MAX STATIC LOAD = 28,000N (2855KG, 6297Lbs)
  • CONUS 3 WITH 33MM x 2 NUT
  • POWDER-COATED
  • FORGED AND HEAT-TREATED
  • TINE LENGTH 1400MM (55")

Tightening Torque for Nut: 1000ft lbs. Failure at thread due to insufficient Torque is NOT covered by Warranty.
