CASE-IH® Compatible

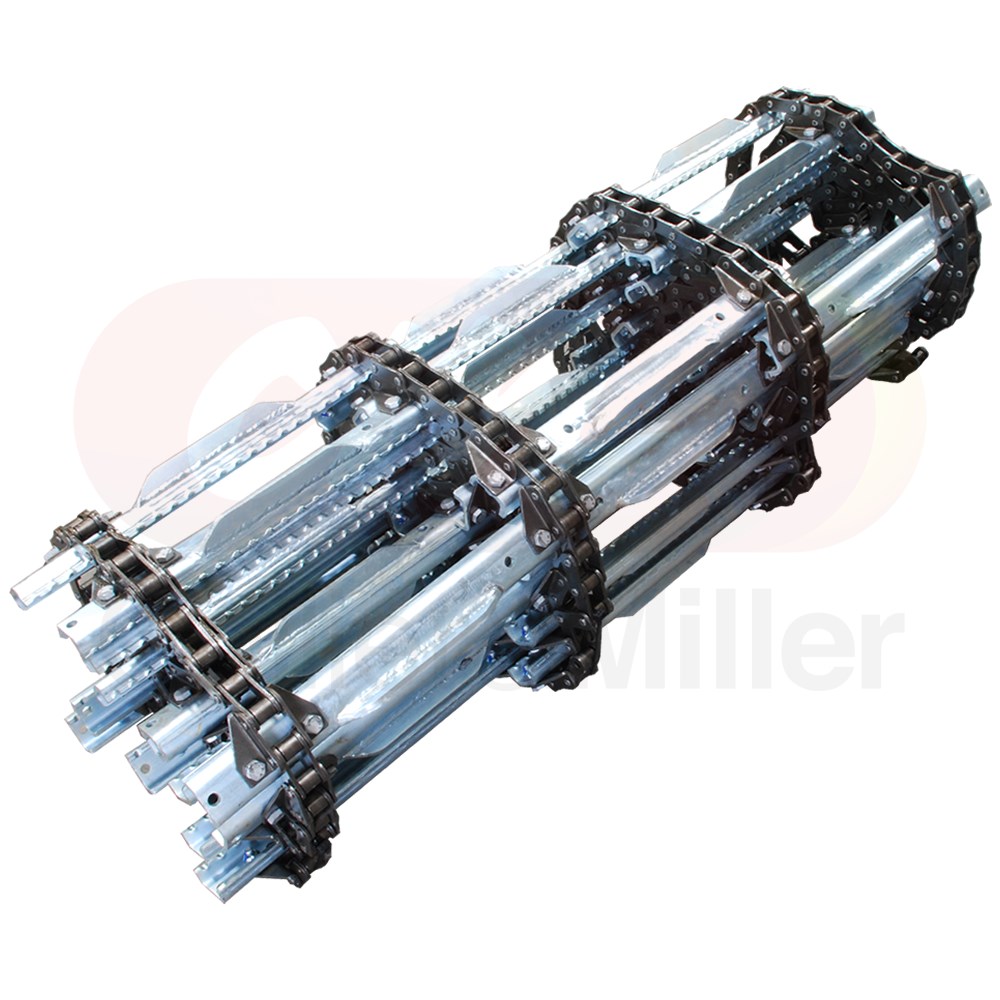

Feeder House Chain Assembly (Non Rock-Trap)

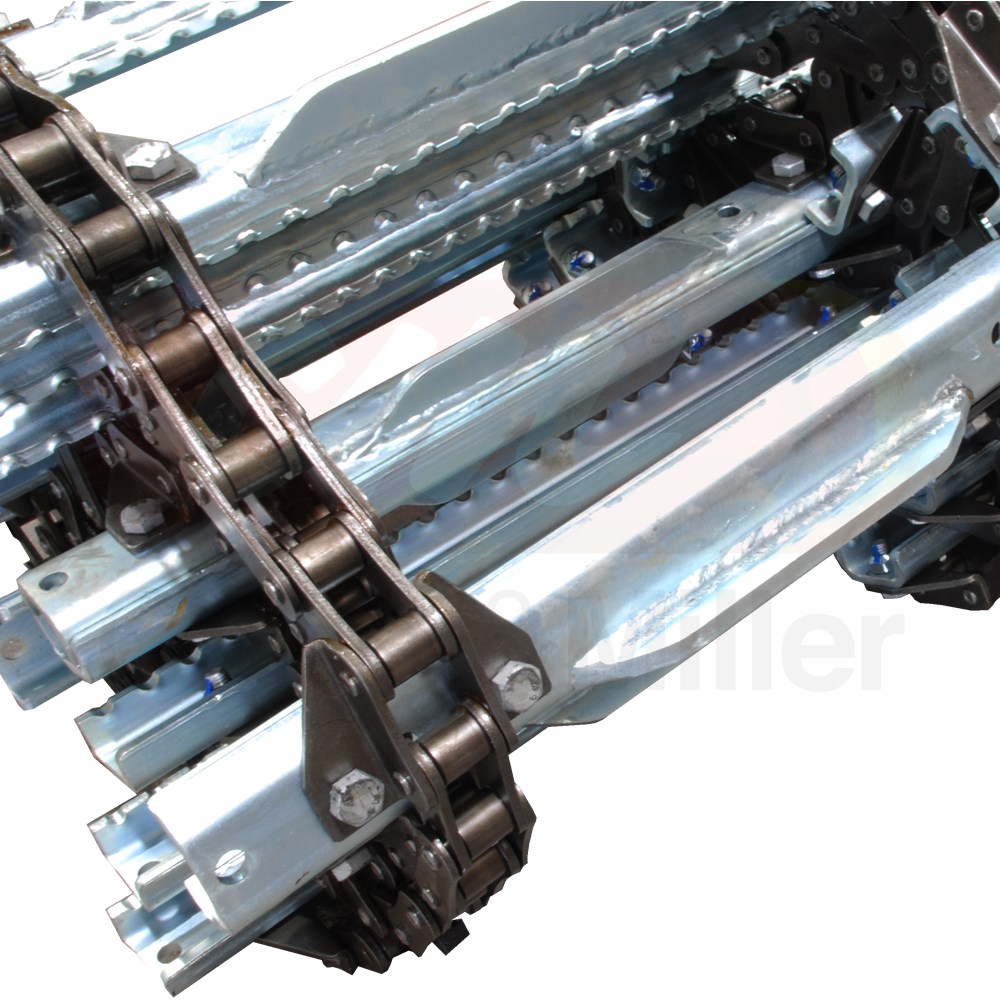

C&M replacement complete feeder house chain assembly to suit the front feeder house on CASE-IH® 250 series flagship combine harvesters (non rock-trap). This is a set of four (4) replacement chains fitted with special fabricated 6mm rolled-serration U-Bar slats with the same spacing as the CASE-IH® original chain.

This complete chain assembly is supplied with threaded connectors for each strand. We supply these chains in Australia from premium grade chrome pin chain and high performance zinc plated serrated 6mm U-Bar slats with bottom web for the 250 series combine models. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part Number

• 51534633

Series	Models	Serial Year
Case 250 Series	7250, 8250, 9250	Non Rock-Trap

Features

• C&M quality product
• Premium 960D Chrome Pin Chain

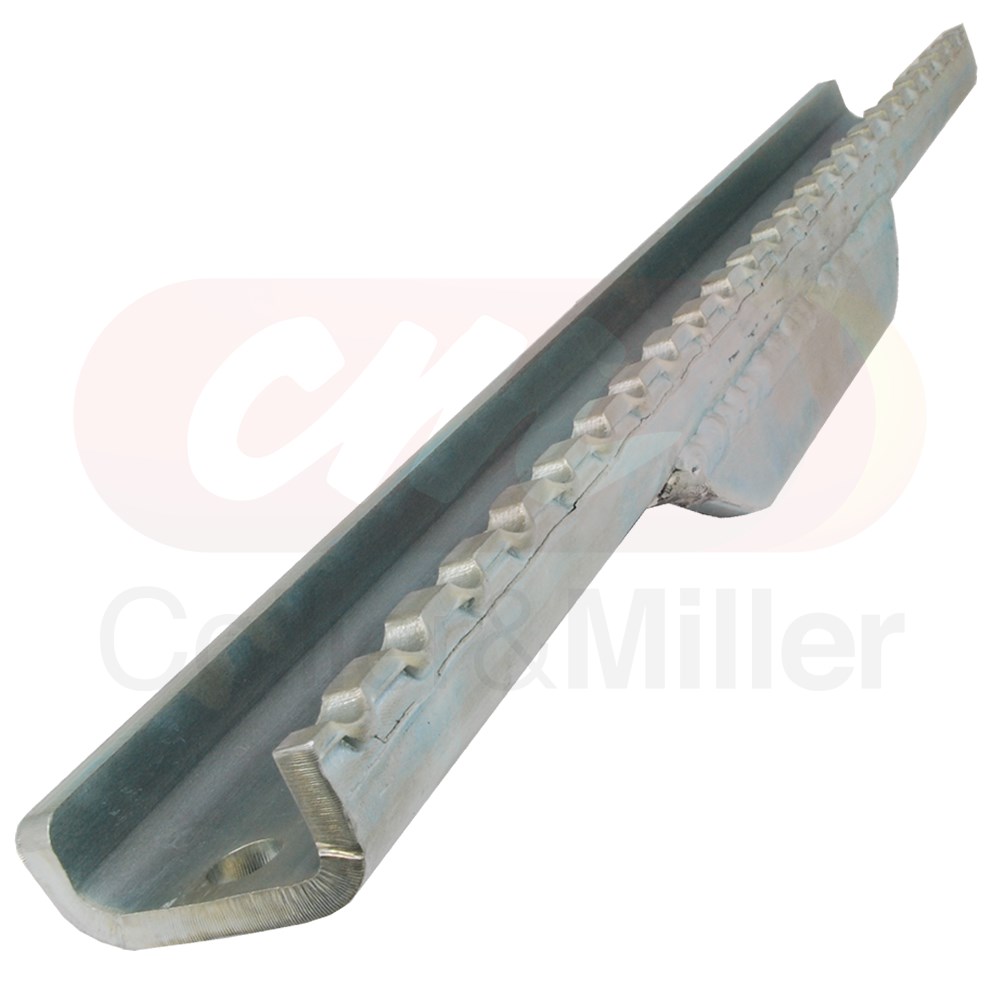

• 42 x fabricated G350, rolled-serration electroplated U-bars
• Comes with 4 x threaded connectors
• Supplied Fully Assembled

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.

51534633
