CASE-IH® Compatible

Feeder House Chain Assembly - Black Pin

54.5" FEEDER

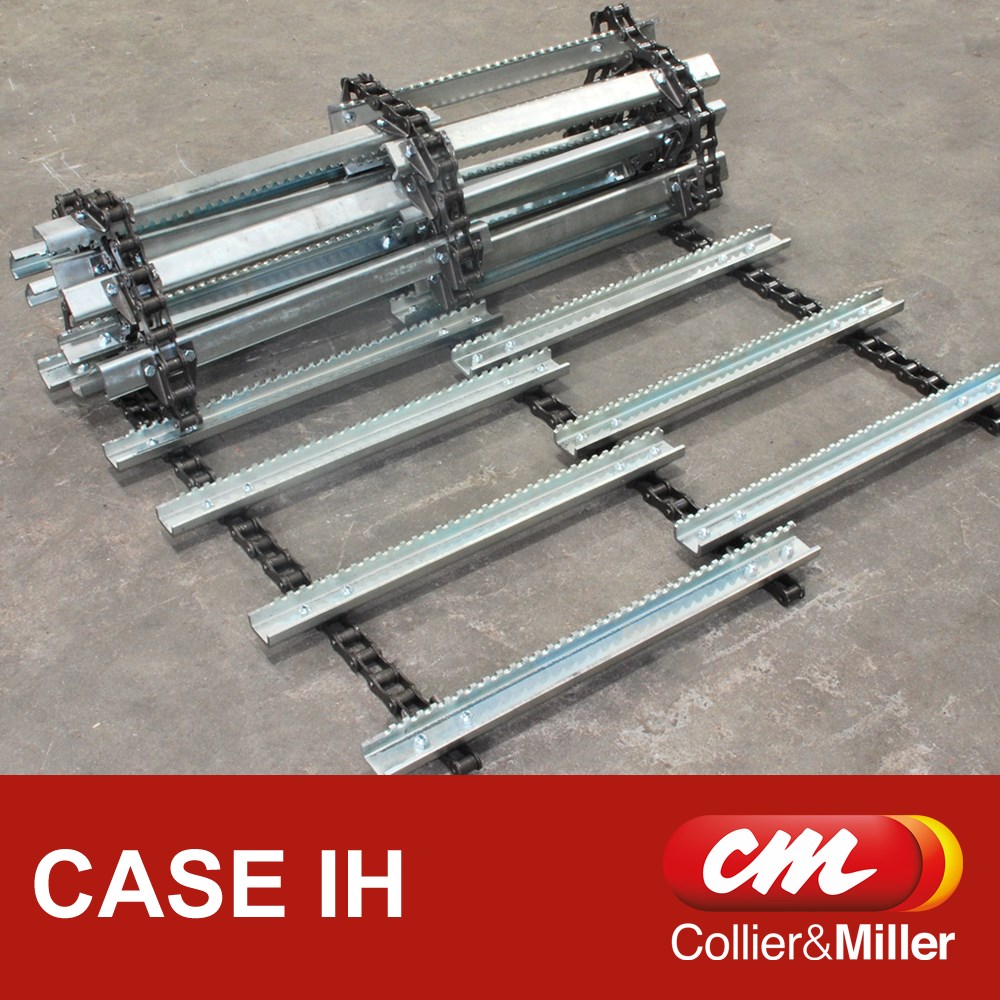

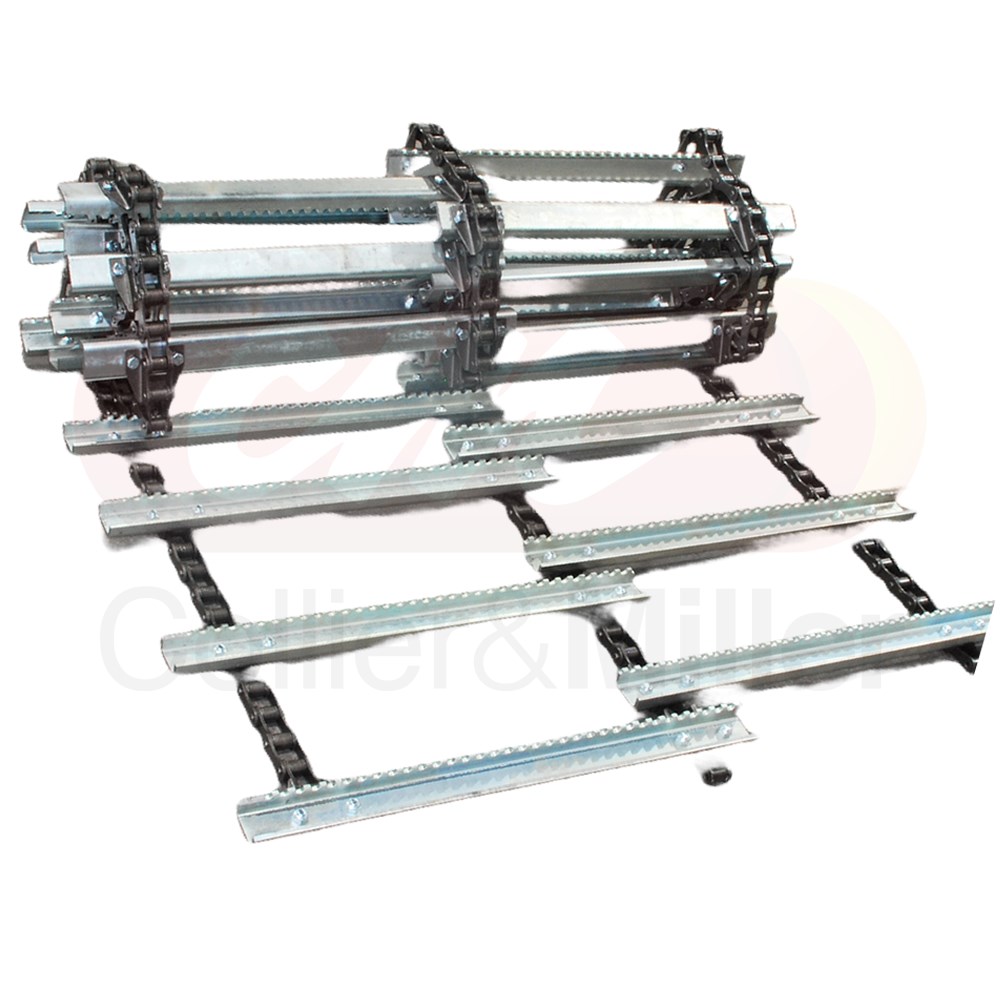

C&M replacement complete feeder house chain assembly to suit the front feeder house on CASE-IH Mid-Series combine harvesters.This is a set of three (3) replacement chains fitted with roll formed serrated u-bar slats with the same spacing as the Case-IH original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and high performance rolled serration 6mm grade 350 u-bar slats. We guarantee the quality of this assembly, however we recommend you fit a new sprocket at the time of installation.

Part Numbers	Notes	Fitment
84207190	54.5" Feeder House Chain Web Assembly - 69 Links 3 Strand - Serrated	54.5" Feeder - With Rock Trap

Series	Models	Serial/Year	Notes
CASE-IH® 2100 Series	2188	(01/95 - 12/97)	54.5" Feeder Chain
CASE-IH® 2300 Series	2377	BTW HAJ292001&HAJ300000.	54.5" Feeder Chain
	2388	BSN JJC0276640 (10/97-12/04)	54.5" Feeder Chain
CASE-IH® 2500 Series	2588	ASN HAJ300001	54.5" Feeder Chain
CASE-IH® 88 Series	5088	(04/07 - 01/12)
	6088	(12/07 - 12/11) (04/07 - 01/12)
	7088	(12/07 - 12/11) (04/07 - 01/12)

Features

• Fits combines with 54.5" feeder house - with rock trap
• Premium grade chain

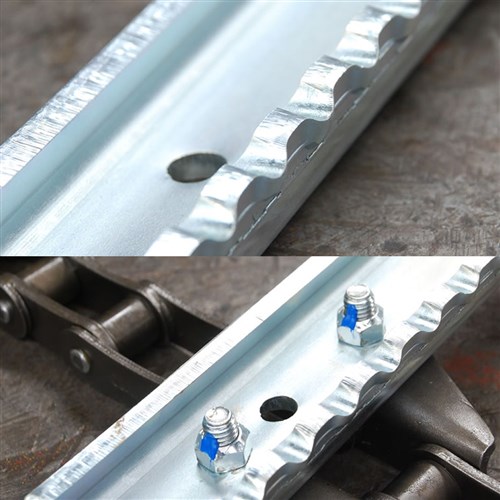

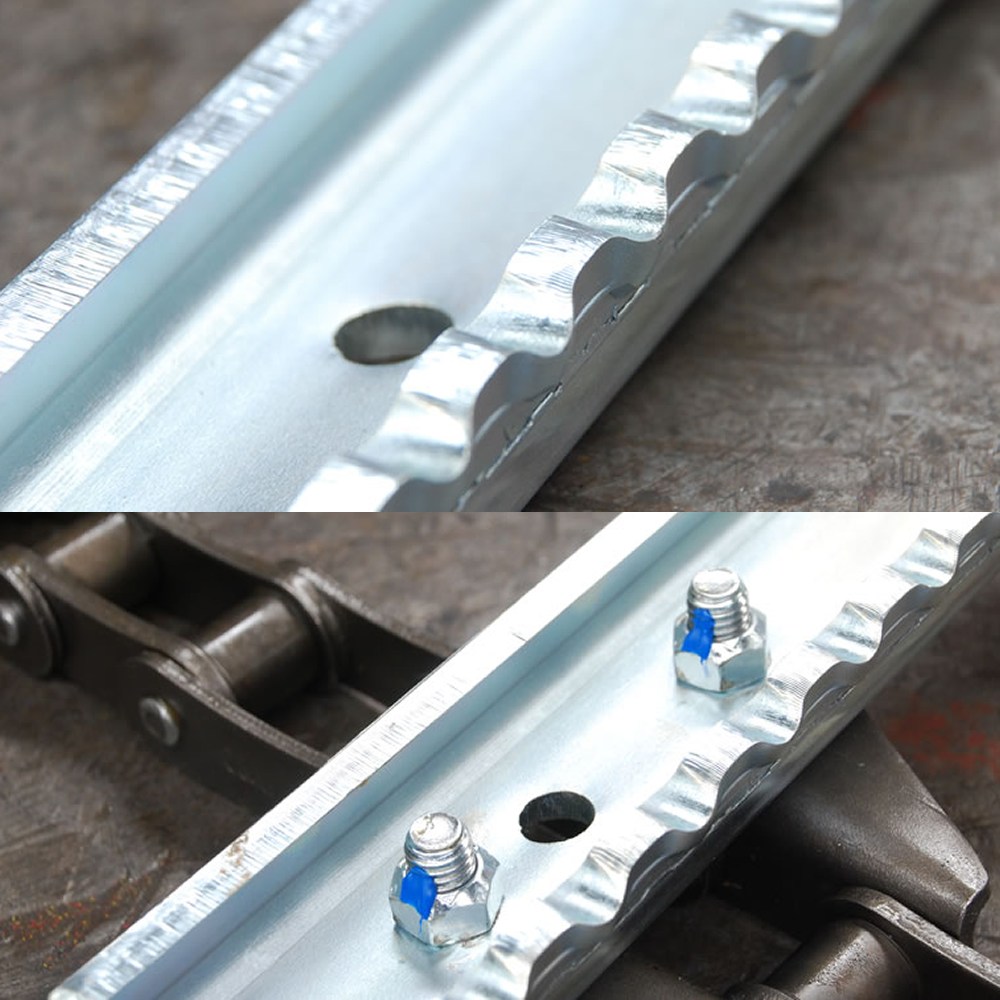

• Electroplated rolled serration 6mm u-bar
• Slat material grade 350 350MPa yield strength
• Connectors & half links included
• Bolted assembly ready to install.

C&M Technical Specifications

Item	Details	Notes
CM035OEMRT	Case-IH® Mid Series	54.5" feeder
Brand	AMEC	Stamped C&M

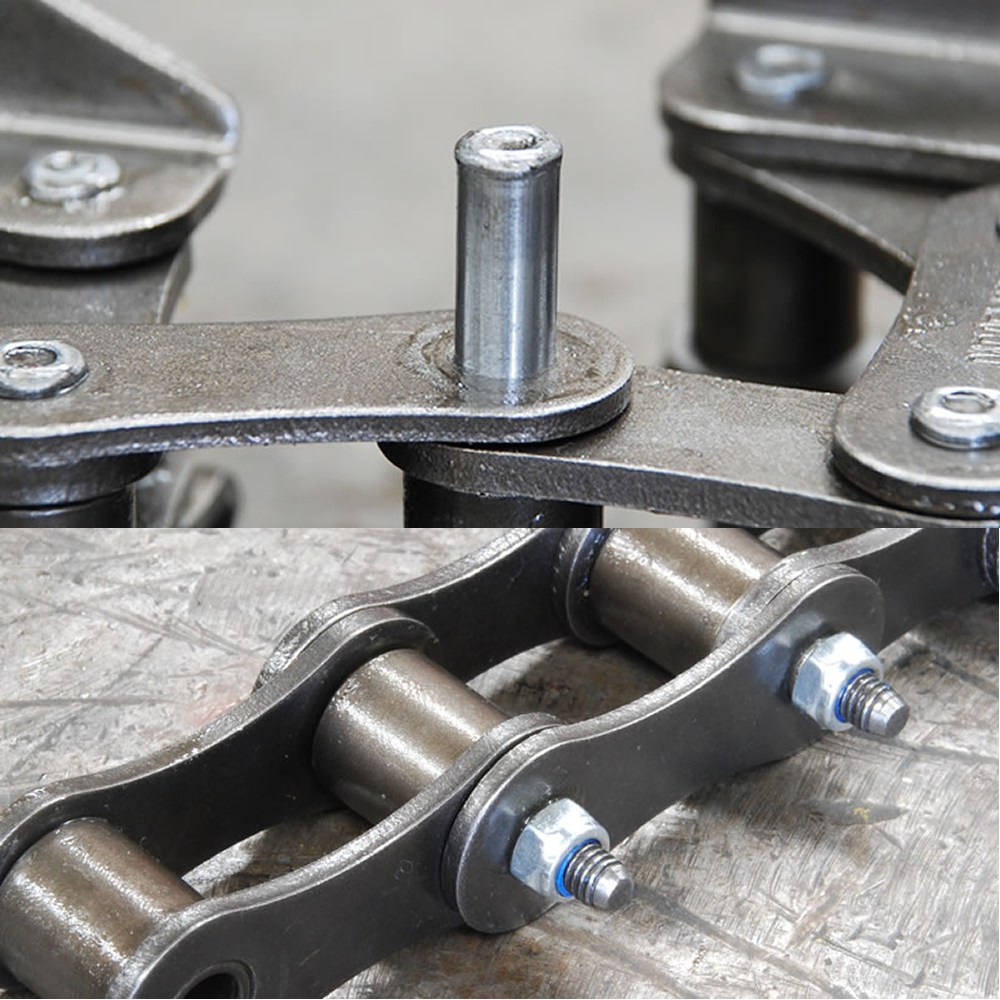

Chain Type	A557	Black Pin

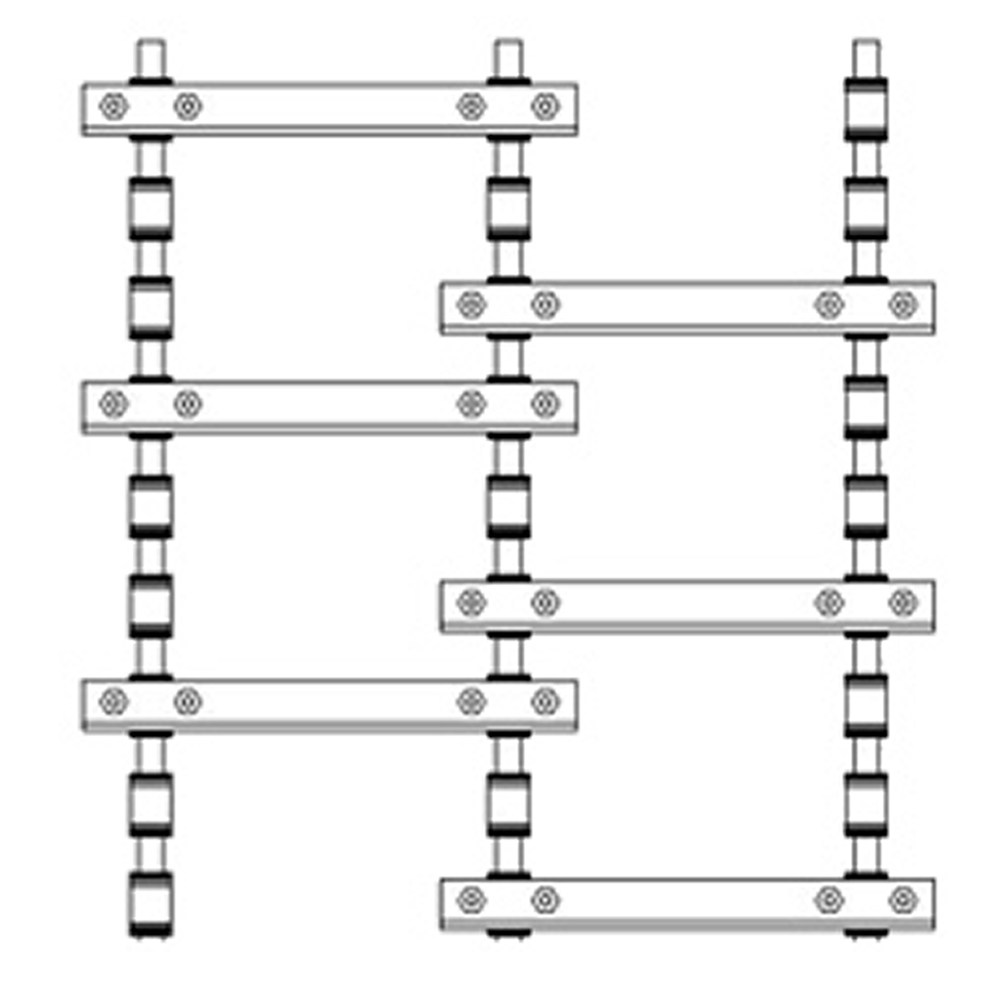

Chain Assembly	3 Chain with bars
Attachment Pattern	6-2/4-6	Same as Case-IH OEM
Number of Links	69	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)	1055mm	41.50"
Number of slats	22
Chain centre to centre	18-1/8"	461mm
Slat Detail	6mm U-Bar G350	Roll serrated & electroplated
Bolts	88 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	88 x M10 Cone lock	Torque prevailing

Build Sheet

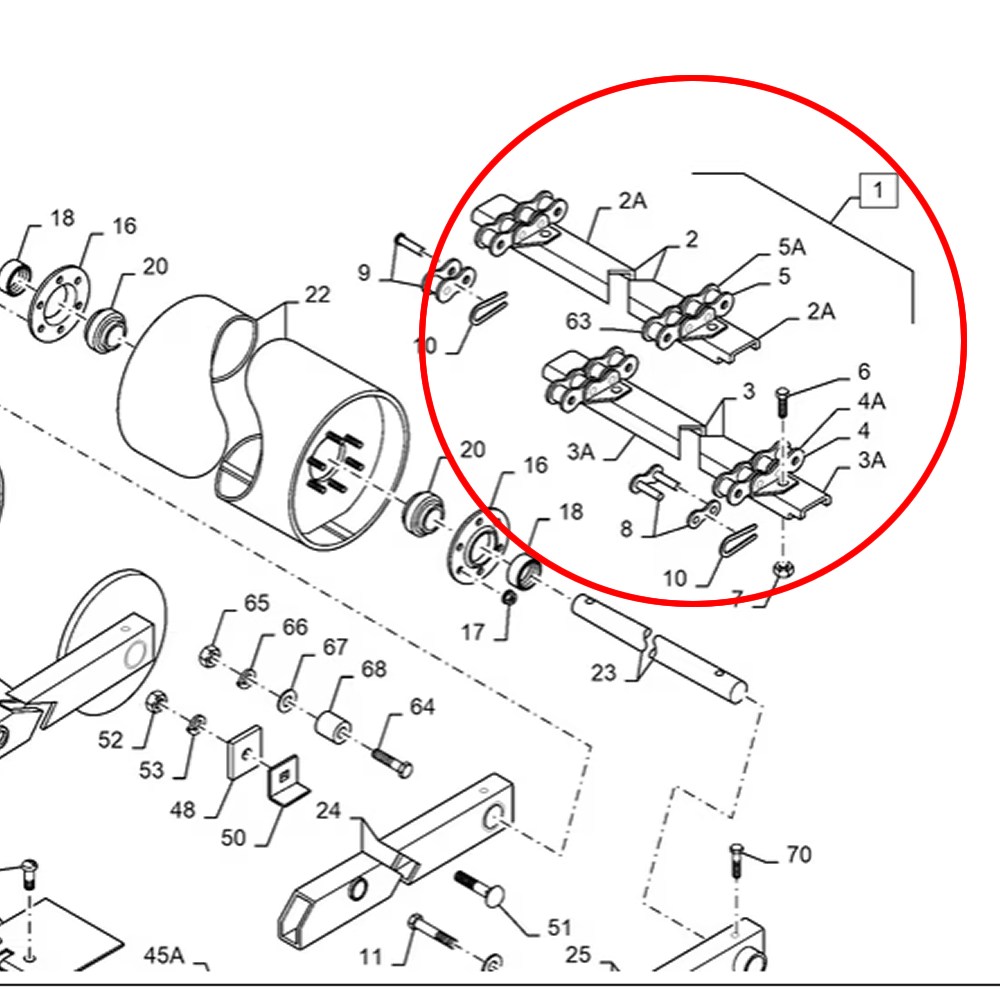

90410215 84207190
