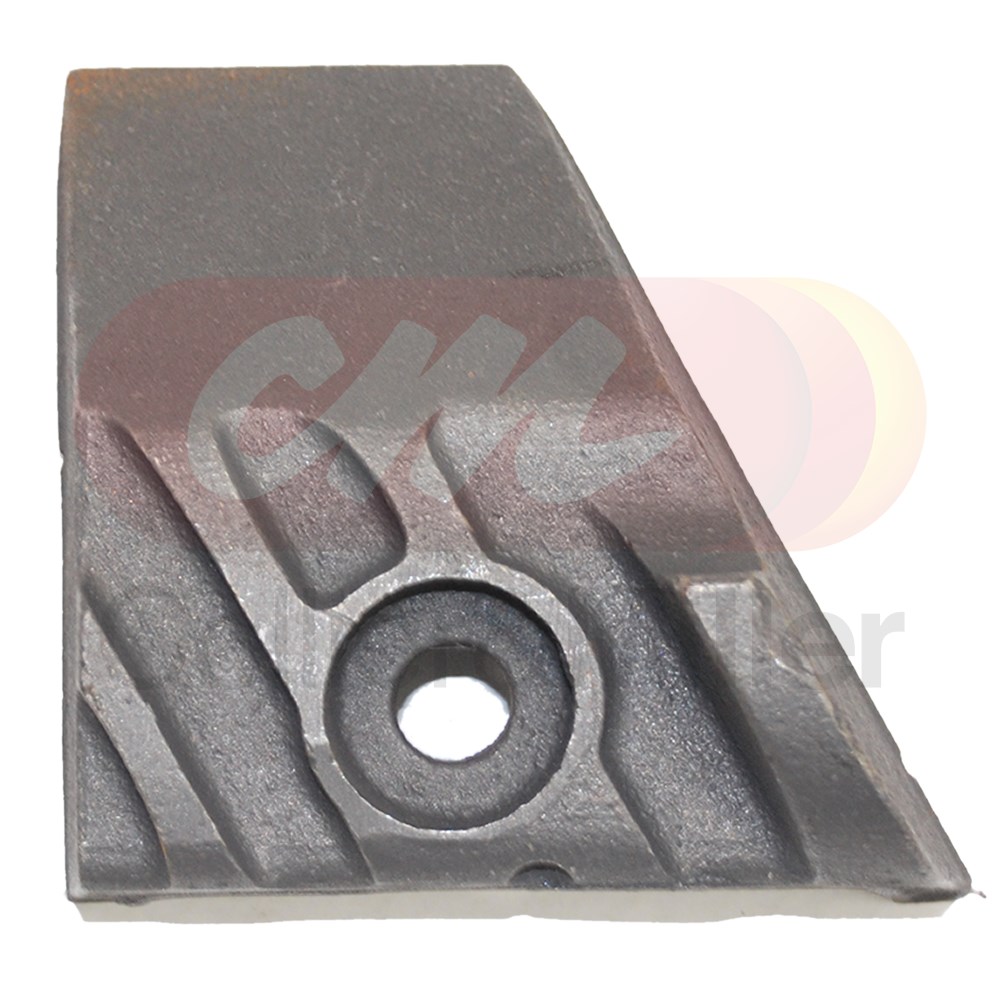

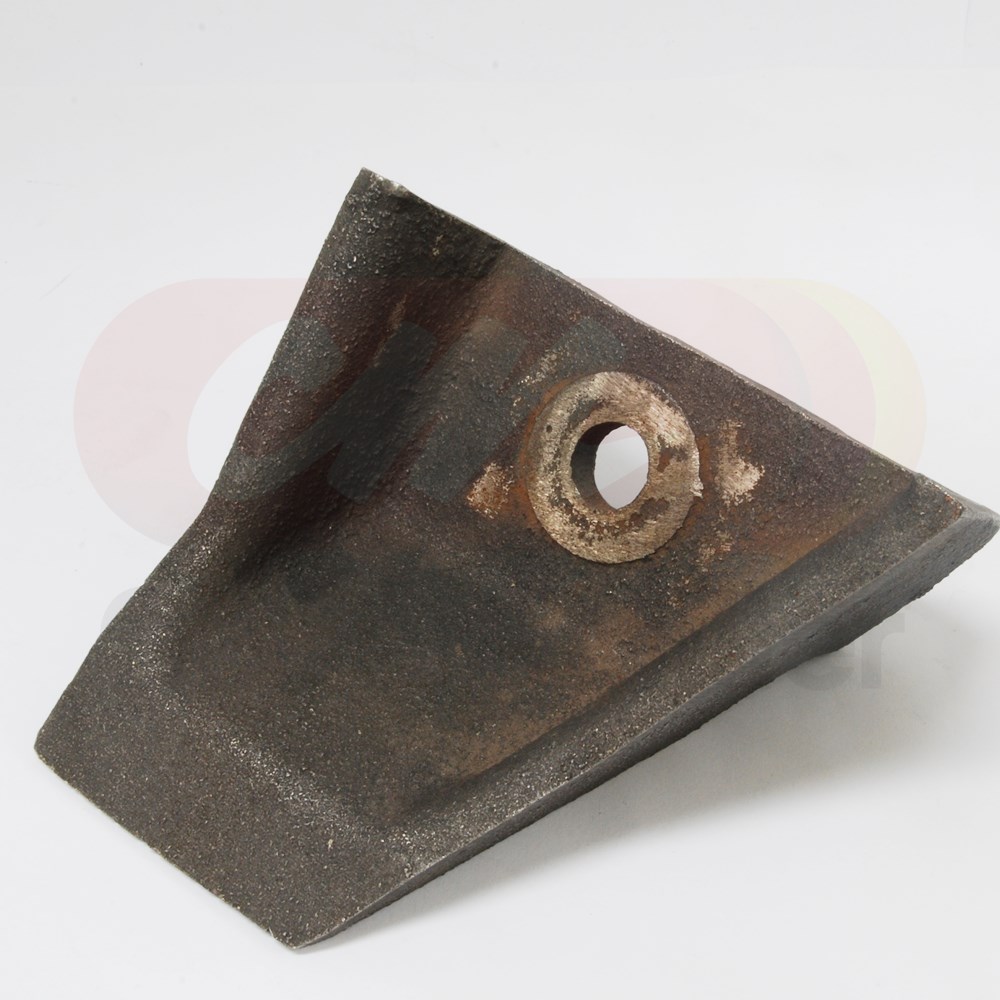

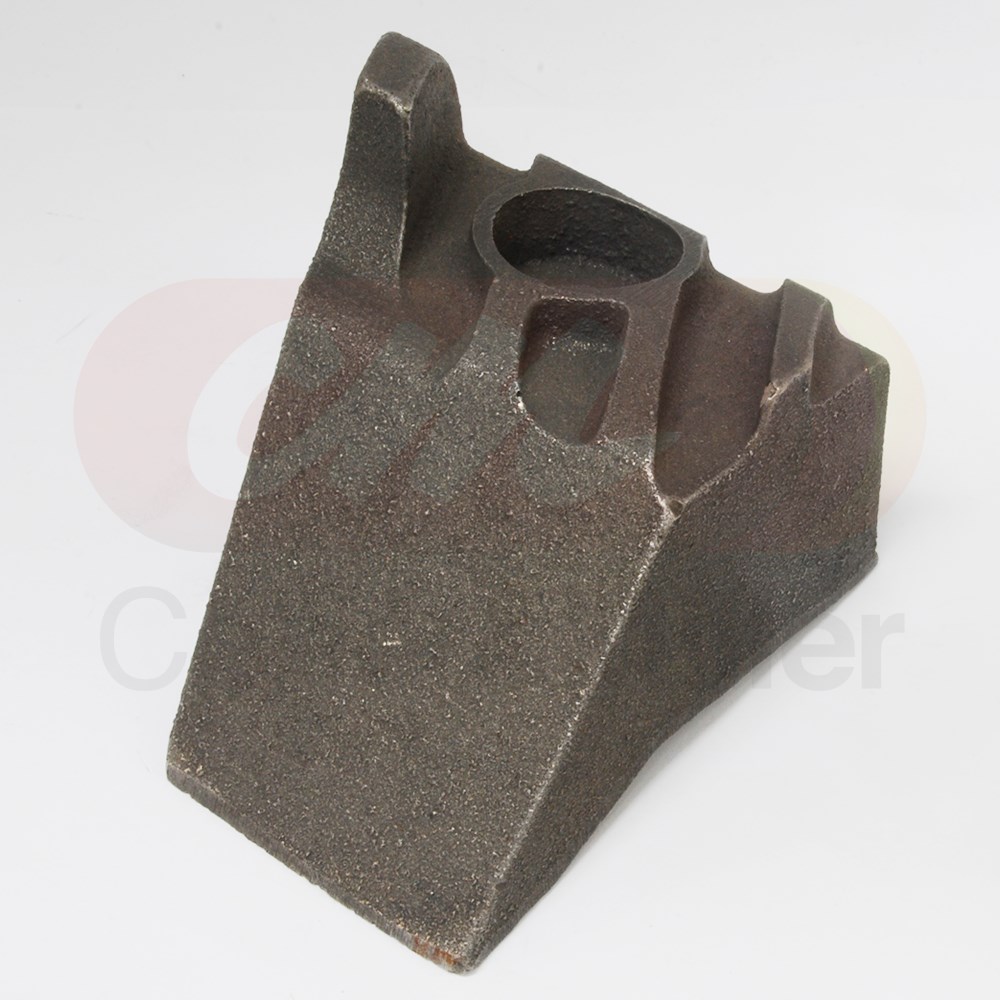

ROTOR RASP BAR CHROME ALLOY WITH SPIKE SUIT CASE IH 278820A2

WITH SPIKE SUIT CASE IH 278820A2

Product Code: CM278820A2

Qty
1.00 - 59.99	$38.50 (inc GST)
60.00+	$36.58 (inc GST)

Detail
Technical
Interchange
Downloads

Case-IH® Compatible

Rasp Bar with Hook

Aftermarket extended wear chrome rotor rasp bar with spike to suit Case IH and CNH combine harvesters. This extended wear chrome rotor rasp bar with spike has longer wearing characteristics with increased material on the leading edge for greater service life. Manufactured with an improved angle to allow product to flow better into the threshing area. Rasp bars should normally be replaced once the serrations are worn down to 3/16" in height.

Part numbers

278820A2, 278820A5, 4760336

Series	Models	Serial/Year
Case-IH® 1400 Series	1480
Case-IH® 16 Series	1640, 1640E, 1644, 1660, 1680, 1688
Case-IH® 21 Series	2144, 2166, 2188
Case-IH® 23 Series	2366, 2388, 2388-AFX
Case-IH® 25 Series	2577, 2588
Case-IH® 10 Series	7010, 8010, AFX8010
Case-IH® 88 Series	5088, 6088, 7088
Case-IH® 20 Series	7120, 8120, 9120
Case-IH® 130 Series	4130, 5130, 6130, 7130
Case-IH® 140 Series	4140, 5140, 6140, 7140
Case-IH® 150 Series	4150, 5145, 6150, 7150
Case-IH® 230 Series	7230, 8230, 9230
Case-IH® 240 Series	7240, 8240, 9240
Case-IH® 250 Series	7250, 8250, 9250
Case-IH® 260 Series	7260, 8260, 9260

New Holland Models

Series	Models	Serial/Year
CR60	CR6090
CR7.	CR7.80, CR7.90, CR7.90,	COMBINE & REVELATION
CR8.	CR8.80, CR8.90	COMBINE, ELEVATION & RELEVATION
CR80	CR8070, CR8090
CR9.	CR9.80, CR9.90	COMBINE & REVELATION
CR90.	CR9040, CR9060, CR9070, CR9080, CR9090	COMBINE & ELEVATION
CR10.	CR10.90	REVELATION

Features

Extended wear chrome
Improved product flow

CASE-IH® AFX™ Rotor Threshing Element Guide

The CASE-IH® AFX™ rotor can use several threshing, separation and discharge components. Each component changes how crop material is threshed, separated and moved through the rotor.

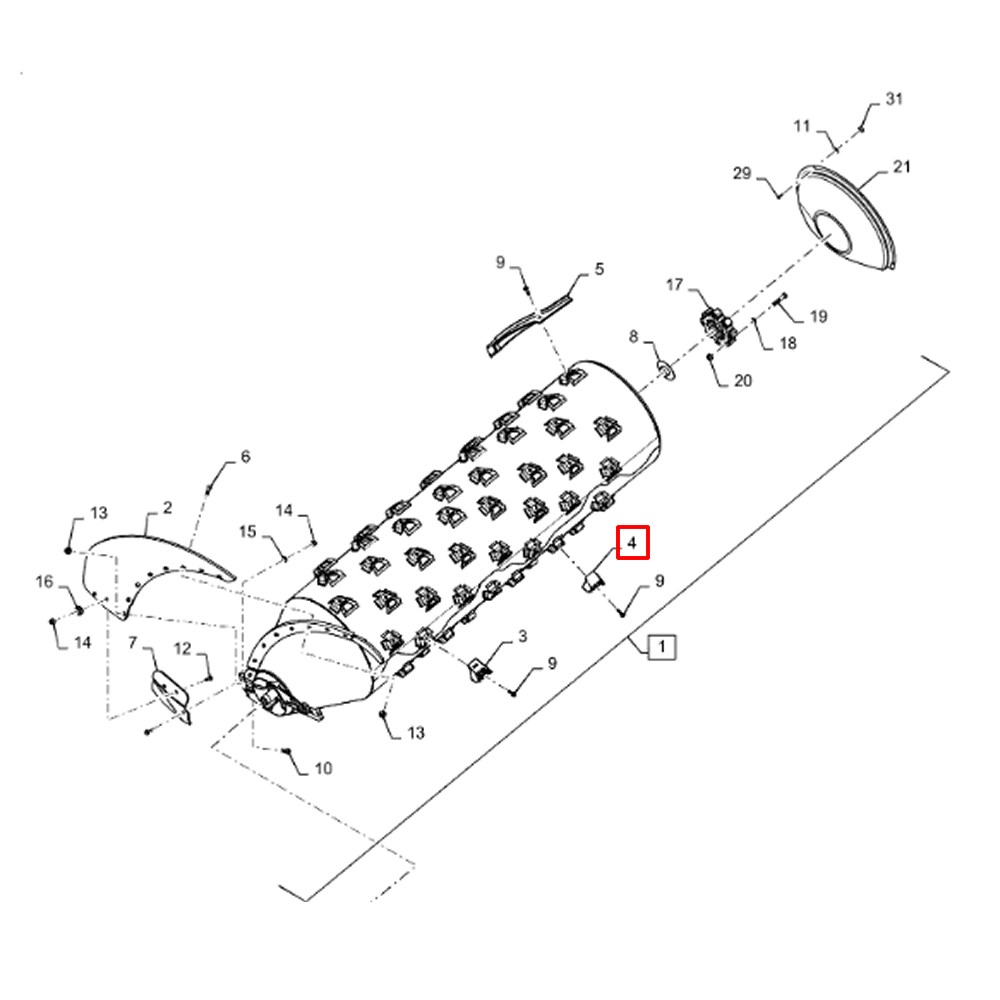

CASE-IH AFX rotor showing threshing, separation and discharge element positions

Typical component positions shown for identification only. Rotor configurations vary by crop and operating conditions.

Rotor Component Options

Component	Part Number	Purpose
Gorden Rotor Bar	CMRB049	Increases threshing action, material handling and separation while helping reduce rotor loss.
Non-Hooked Rasp Bar	CM278821A2	Provides standard, controlled threshing and steady crop movement.
Hooked Rasp Bar	CM278820A2 CM278820A2PS	Provides more aggressive crop-mat agitation and is commonly used in the separation area.
Gorden Separator Bar	CMRB051	Improves separating capacity and helps reduce grain loss from the rotor.
Kicker Bar	—	Moves the processed straw mat from the rear of the rotor cage.

Configuration Guide Only

Rotor configuration is crop-specific. Component type and position should be selected according to crop conditions, rotor loss, grain quality and required throughput.

Check rotor speed, concave clearance and overall machine setup before changing threshing elements. Consult an experienced operator or CASE-IH® dealer where required.

Disclaimer

This information is provided as a general guide only. CASE-IH® and AFX™ are trademarks of their respective owner. Part numbers and trademarks are used for identification and compatibility purposes.
