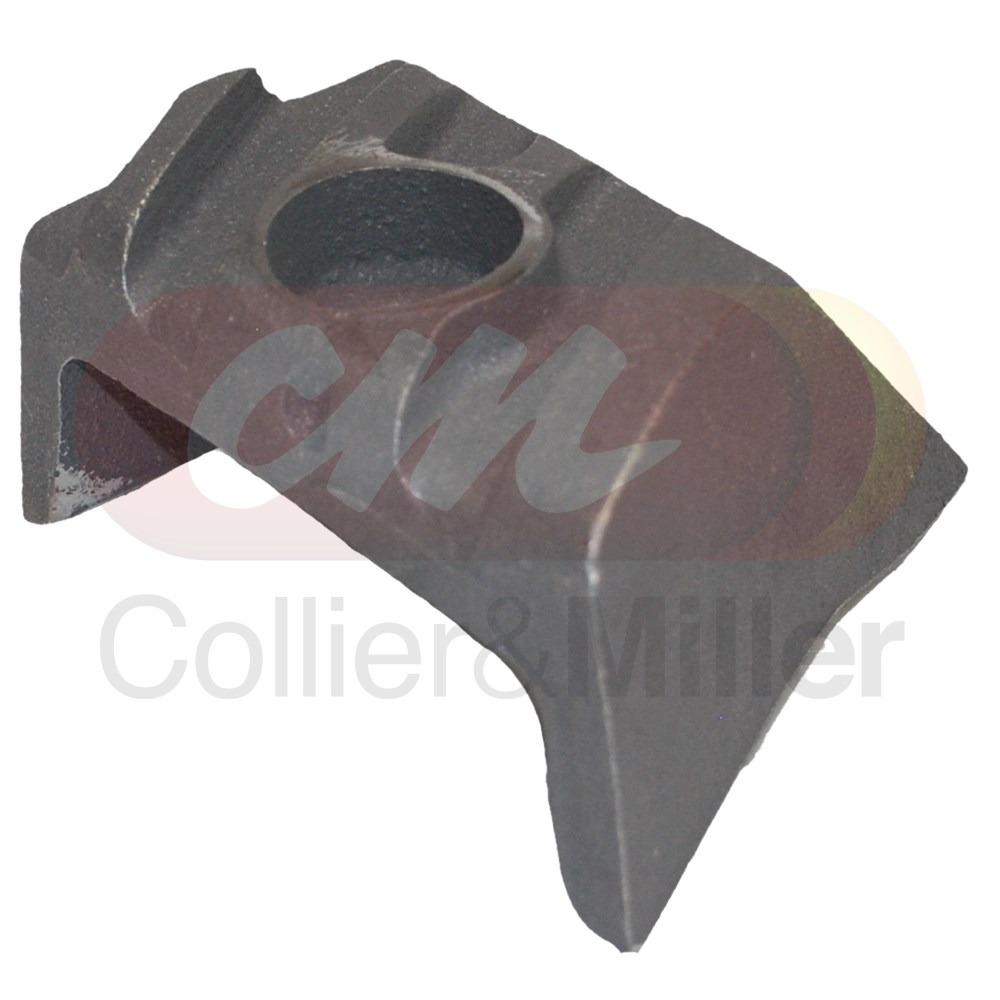

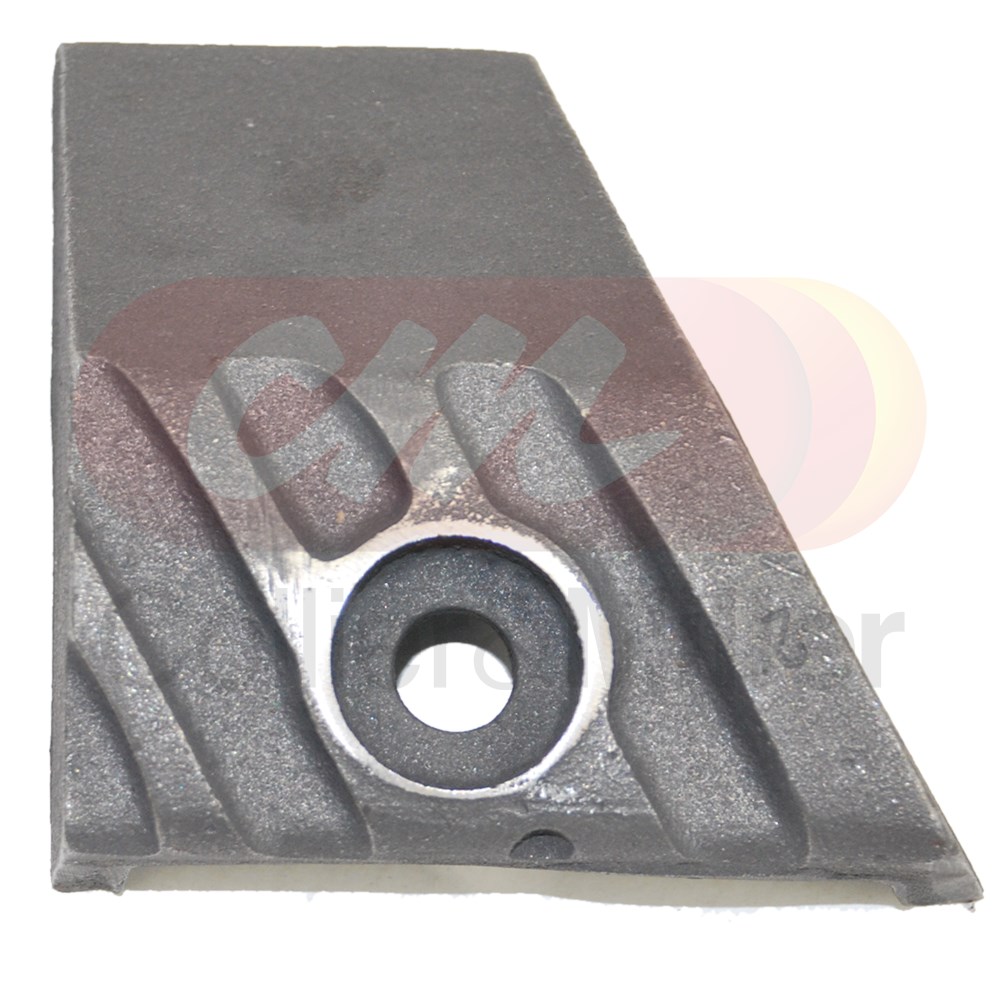

ROTOR RASP BAR CHROME ALLOY WITHOUT SPIKE SUIT CASE IH 278821A2 1968743C1

WITHOUT SPIKE SUIT CASE IH 278821A2 1968743C1

Product Code: CM278821A2

Qty
1.00 - 59.99	$36.30 (inc GST)
60.00+	$34.49 (inc GST)

Detail
Technical
Interchange

Aftermarket extended wear chrome rotor rasp bar without spike to suit Case IH & CNH combine harvesters. This extended wear chrome rotor rasp bar without spike has longer wearing characteristics with increased material on the leading edge for greater service life. Manufactured with an improved angle to allow product to flow better into the threshing area. Rasp bars should normally be replaced once the serrations are worn down to 3/16" in height.

Part numbers

1968742C1, 1968742C2, 278821A2, 278821A3 (KIT), 86996392, 87368807

Case Models

Series	Models	Serial/Year
10 Series	7010, 8010, 8010-AFX
16 Series	1640, 1640E, 1644, 1660, 1666, 1670, 1680, 1688
21 Series	2144, 2166, 2188
23 Series	2366, 2377, 2388
25 Series	2577, 2588
88 Series	5088, 6088, 7088
20 Series	7120, 8120, 9120
30 Series	4130, 5130, 6130, 7130, 7230, 8230, 9230
40 Series	4140, 5140, 6140, 7140, 7240, 8240, 9240
50 Series	4150, 5145, 6150, 7150, 7250, 8250, 9250

New Holland Models

Series	Models	Serial/Year
CR60	CR6090
CR7.	CR7.80, CR7.90, CR7.90,	COMBINE & REVELATION
CR8.	CR8.80, CR8.90	COMBINE, ELEVATION & RELEVATION
CR80	CR8070, CR8090
CR9.	CR9.80, CR9.90	COMBINE & REVELATION
CR90.	CR9040, CR9060, CR9070, CR9080, CR9090	COMBINE & ELEVATION
CR10.	CR10.90	REVELATION

Features

Without spike
Extended wear chrome
Improved product flow

CASE-IH® AFX™ Rotor Threshing Element Guide

The CASE-IH® AFX™ rotor can use several threshing, separation and discharge components. Each component changes how crop material is threshed, separated and moved through the rotor.

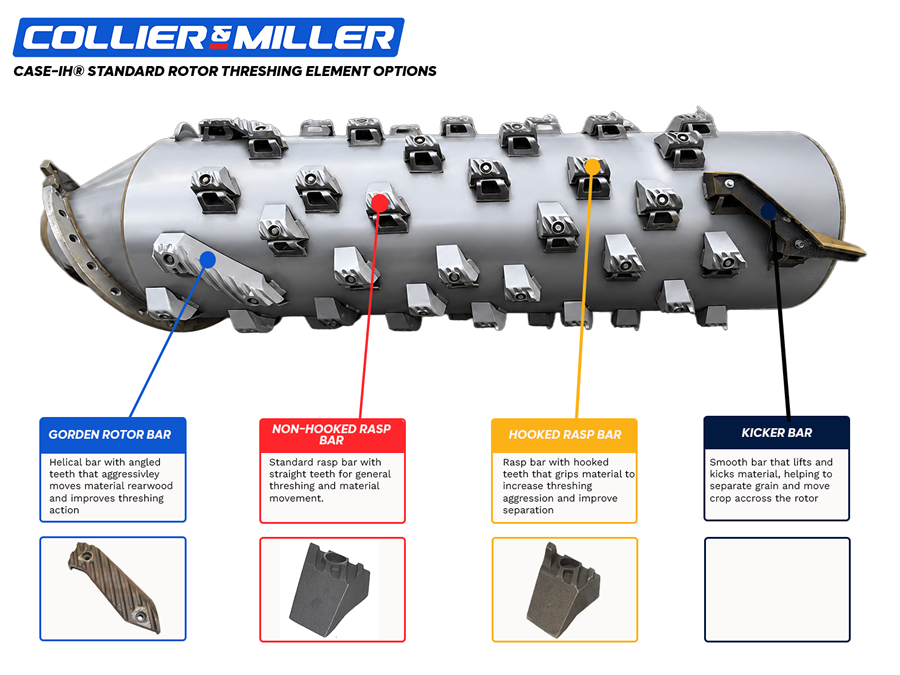

CASE-IH AFX rotor showing threshing, separation and discharge element positions

Typical component positions shown for identification only. Rotor configurations vary by crop and operating conditions.

Rotor Component Options

Component	Part Number	Purpose
Gorden Rotor Bar	CMRB049	Increases threshing action, material handling and separation while helping reduce rotor loss.
Non-Hooked Rasp Bar	CM278821A2	Provides standard, controlled threshing and steady crop movement.
Hooked Rasp Bar	CM278820A2 CM278820A2PS	Provides more aggressive crop-mat agitation and is commonly used in the separation area.
Gorden Separator Bar	CMRB051	Improves separating capacity and helps reduce grain loss from the rotor.
Kicker Bar	—	Moves the processed straw mat from the rear of the rotor cage.

Configuration Guide Only

Rotor configuration is crop-specific. Component type and position should be selected according to crop conditions, rotor loss, grain quality and required throughput.

Check rotor speed, concave clearance and overall machine setup before changing threshing elements. Consult an experienced operator or CASE-IH® dealer where required.

Disclaimer

This information is provided as a general guide only. CASE-IH® and AFX™ are trademarks of their respective owner. Part numbers and trademarks are used for identification and compatibility purposes.
