ROTOR RASP BAR WITH HOOK PRIMARY SALES SUIT CASE IH

PRIMARY SALES SUIT CASE IH

Product Code: CM278820A2PS

Qty
1.00 - 59.99	$50.60 (inc GST)
60.00+	$48.07 (inc GST)

Detail
Technical
Downloads

Case-IH® & New Holland® Compatible

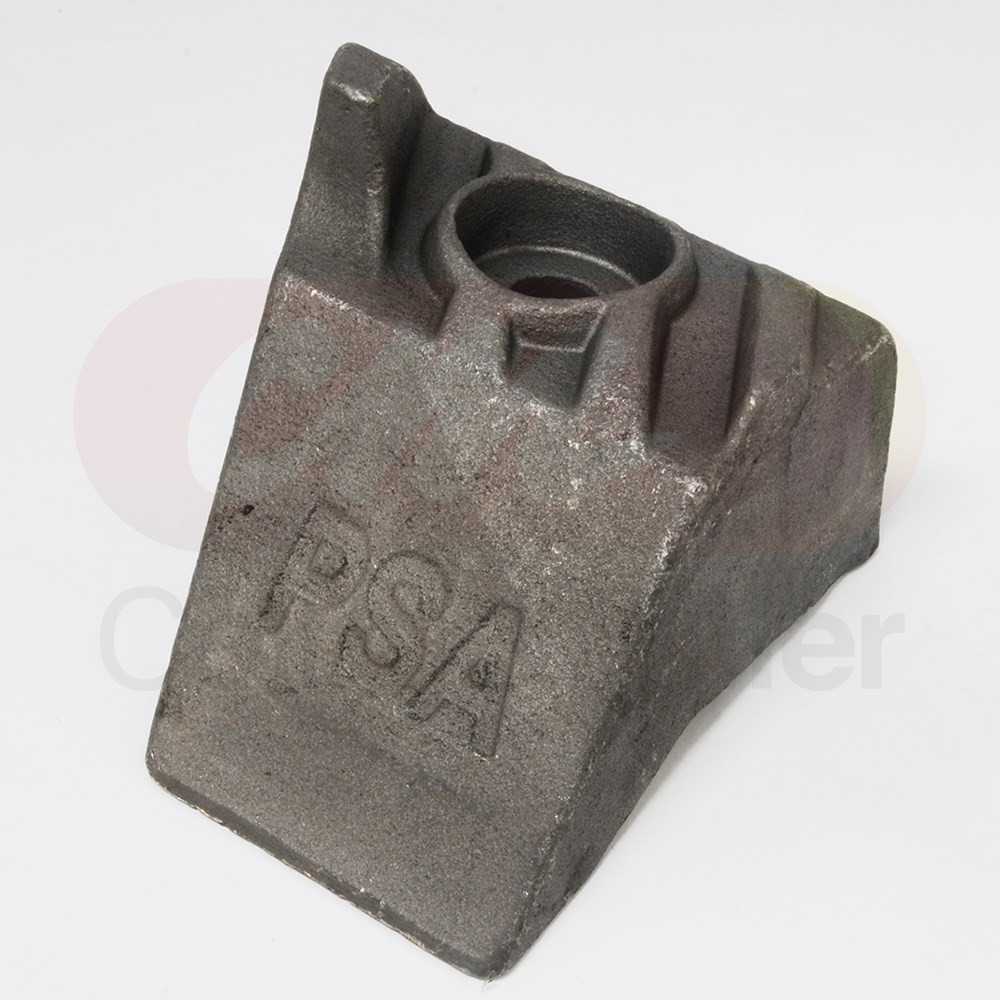

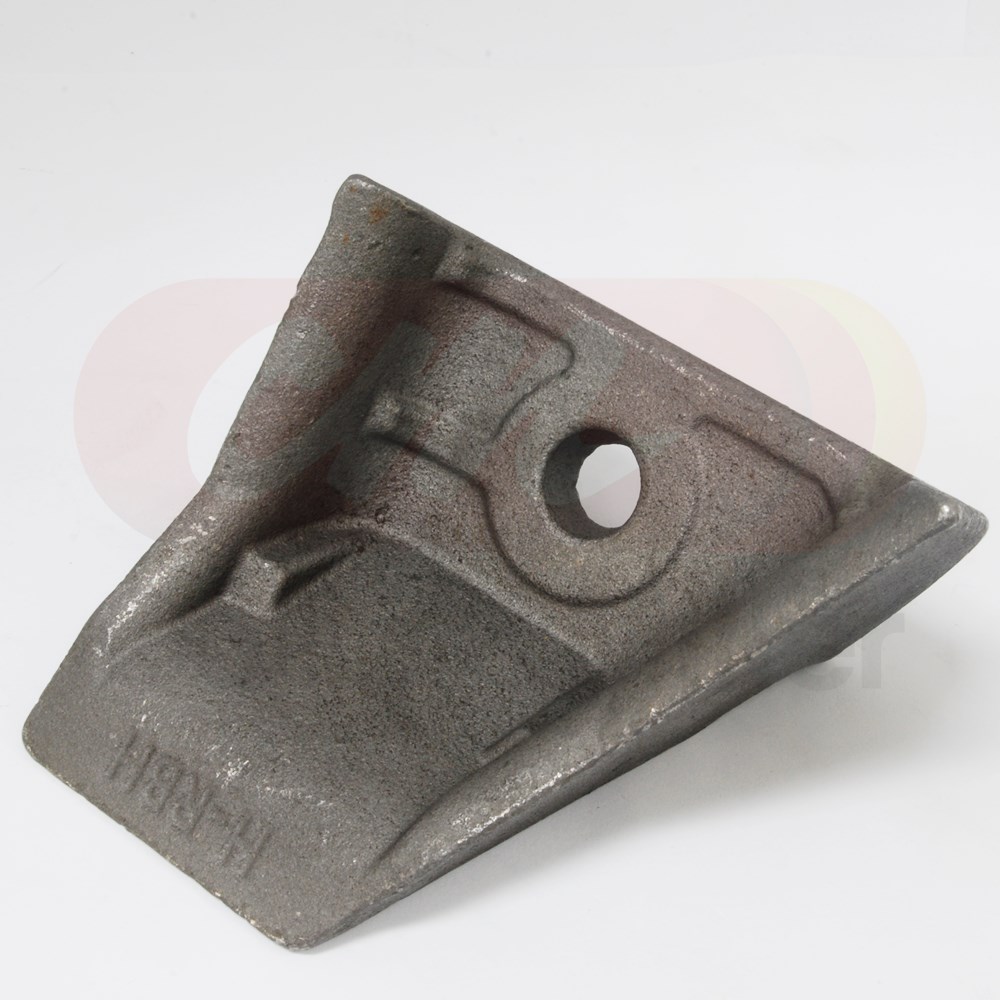

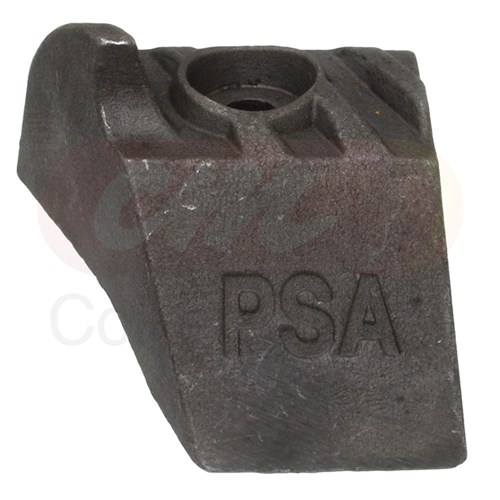

Rasp Bar With Spike (Left Hand)

Aftermarket extended wear rotor rasp bar to fit Case-IH® rotors and New Holland® Twin Rotor™ left rotor (from operators seat). Fitting of rasp bars with a hook protrusion provides an effective and aggressive separation of crop material through the separation area. The Primary Sales version of this rasp bar is a high quality casting with extra reinforcing and more material. This rasp bar mounts to the feft hand rotor and is used in conjunction with CM84257779PS rasp bar for the right hanbd hand rotor.

Part numbers

278820A2, 278820A5, 47603368

Series	Models	Serial/Year
Case-IH® 1400 Series	1480
Case-IH® 1600 Series	1640, 1640E, 1644, 1660, 1680, 1688
Case-IH® 2100 Series	2144, 2166, 2188
Case-IH® 2300 Series	2366, 2388, 2388-AFX
Case-IH® 2500 Series	2577, 2588
Case-IH® 10 Series	7010, 8010, AFX8010
Case-IH® 88 Series	5088, 6088, 7088
Case-IH® 120 Series	7120, 8120, 9120
Case-IH® 130 Series	4130, 5130, 6130, 7130
Case-IH® 140 Series	4140, 5140, 6140, 7140
Case-IH® 150 Series	4150, 5145, 6150, 7150

Series	Models	Serial/Year
New Holland® CR	CR6090
	CR7.80, CR7.90
	CR8.80, CR8.90
	CR8070, CR8090
	CR9.80, CR9.90
	CR9040, CR9060, CR9070, CR9080, CR9090
	CR10.90

Features

Agressive Hook
Improved product flow
Branding cast into bar for identification

CASE-IH® AFX™ Rotor Threshing Element Guide

The CASE-IH® AFX™ rotor can use several threshing, separation and discharge components. Each component changes how crop material is threshed, separated and moved through the rotor.

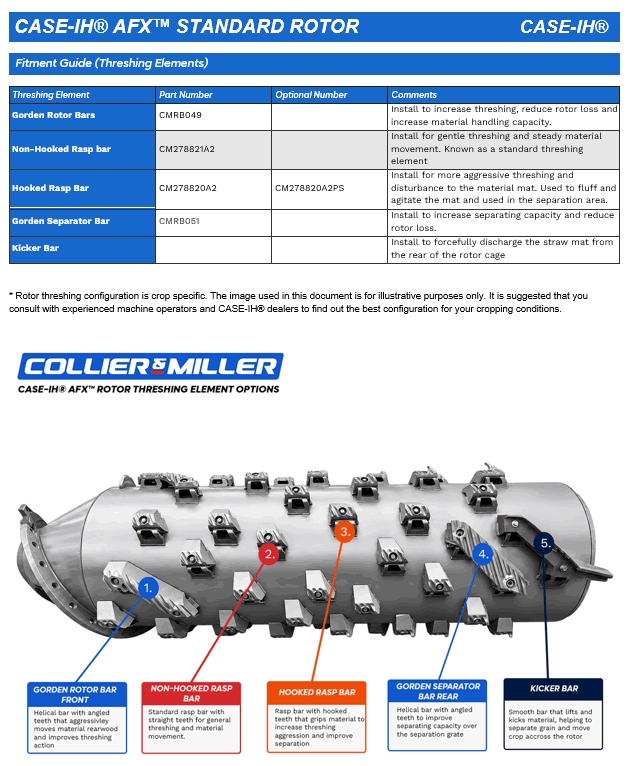

CASE-IH AFX rotor showing threshing, separation and discharge element positions

Typical component positions shown for identification only. Rotor configurations vary by crop and operating conditions.

Rotor Component Options

Component	Part Number	Purpose
Gorden Rotor Bar	CMRB049	Increases threshing action, material handling and separation while helping reduce rotor loss.
Non-Hooked Rasp Bar	CM278821A2	Provides standard, controlled threshing and steady crop movement.
Hooked Rasp Bar	CM278820A2 CM278820A2PS	Provides more aggressive crop-mat agitation and is commonly used in the separation area.
Gorden Separator Bar	CMRB051	Improves separating capacity and helps reduce grain loss from the rotor.
Kicker Bar	—	Moves the processed straw mat from the rear of the rotor cage.

Configuration Guide Only

Rotor configuration is crop-specific. Component type and position should be selected according to crop conditions, rotor loss, grain quality and required throughput.

Check rotor speed, concave clearance and overall machine setup before changing threshing elements. Consult an experienced operator or CASE-IH® dealer where required.

Disclaimer

This information is provided as a general guide only. CASE-IH® and AFX™ are trademarks of their respective owner. Part numbers and trademarks are used for identification and compatibility purposes.
