CASE-IH GRAIN HARVESTING KIT

SPROCKET & WEAR PLATES FLAGSHIP 120, 230, 240 SERIES

Product Code: CM48106919
  $2398.50
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 2
Increase value Decrease value

  • Detail
  • Parts & Codes

Case-IH® Compatible

Grain Harvesting Kit (48106919)

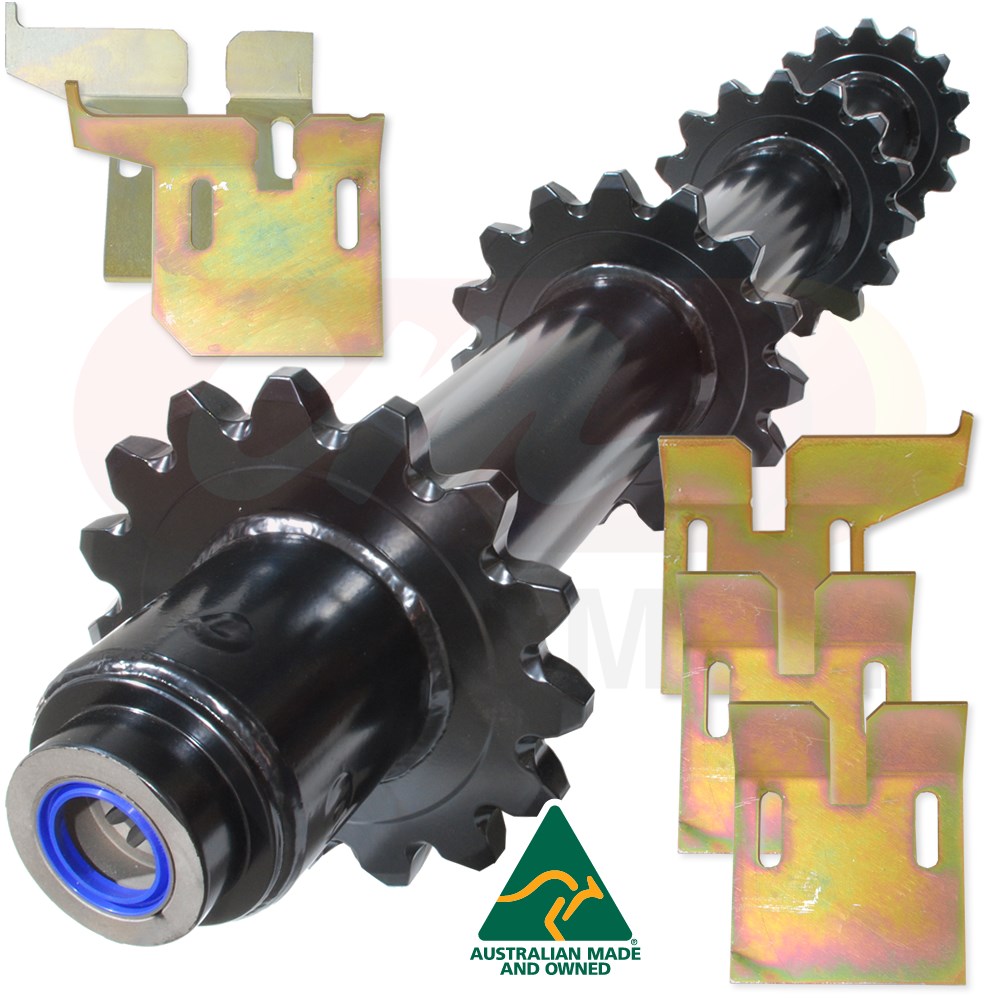

C&M aftermarket grain harvesting kit including a feeder house sprocket and set of pivot (stripper) plates kit to fit the feeder house on Case-IH® 120, 230 & 240 series combine harvesters.

Sprocket does not include a radial pin clutch. Not recommended where rocks are present.

Series Models Serial/Year
Case 120 Series 7120, 8120, 9120
Case 230 Series 7230, 8230, 9230
Case 240 Series 7240, 8240, 9240

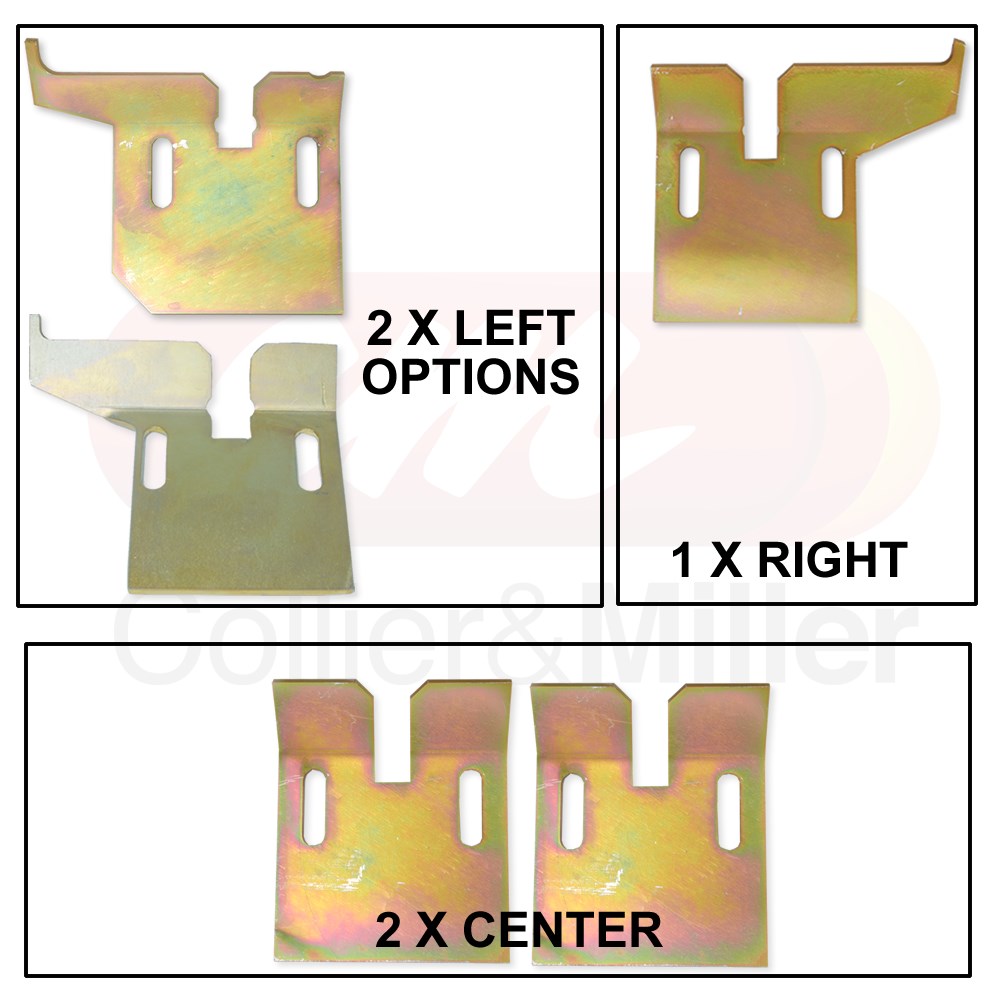

Item Description Qty
47994418 Sprocket (WI89) 1
48001318 Left Hand Stripper Plate 1
4800329 Right Hand Stripper Plate 1
48001642 Left Hand Stripper Plate 1
47963654 Center Stripper Plates 2
84334828 Lubrication Decal Not Supplied
86512497 Flange Nut Not Supplied
48107143 Instructions Not Supplied
84415750 Felt Seal Not Required
87695427 Carriage Bolt Not Supplied

Sprocket Features
  • C&M Made in Australia
  • Does not include a radial pin clutch. Not recommended where rocks are present.
  • Special heavy wall seamless tube to cope with high radial loading
  • Fully Australian designed and manufactured
  • Grade 1045 sprocket material
Stripper (pivot ) plate features
  • C&M Made in Australia
  • Grade g250 5mm plate
  • Precision pressed
  • Laser cut
  • Electroplated

84414906 A84414906AI 87673520 47994418 84166317
Case-IH® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine Case-IH® part. It is recommended prior to ordering you should verify the parts will fit your equipment. Case-IH® is a registered trademark of CNH Industrial America LLC

Kit Components
Code
Code
Qty
CM47963654
FEEDER HOUSE STRIPPER PLATE
2
CM48001318
FEEDER HOUSE STRIPPER PLATE LH
1
CM48001329
FEEDER HOUSE STRIPPER PLATE RH
1
CM48001642
FEEDER HOUSE STRIPPER PLATE LH
1
WI89
CASE FEEDER SPROCKET ASSY 15T
1
