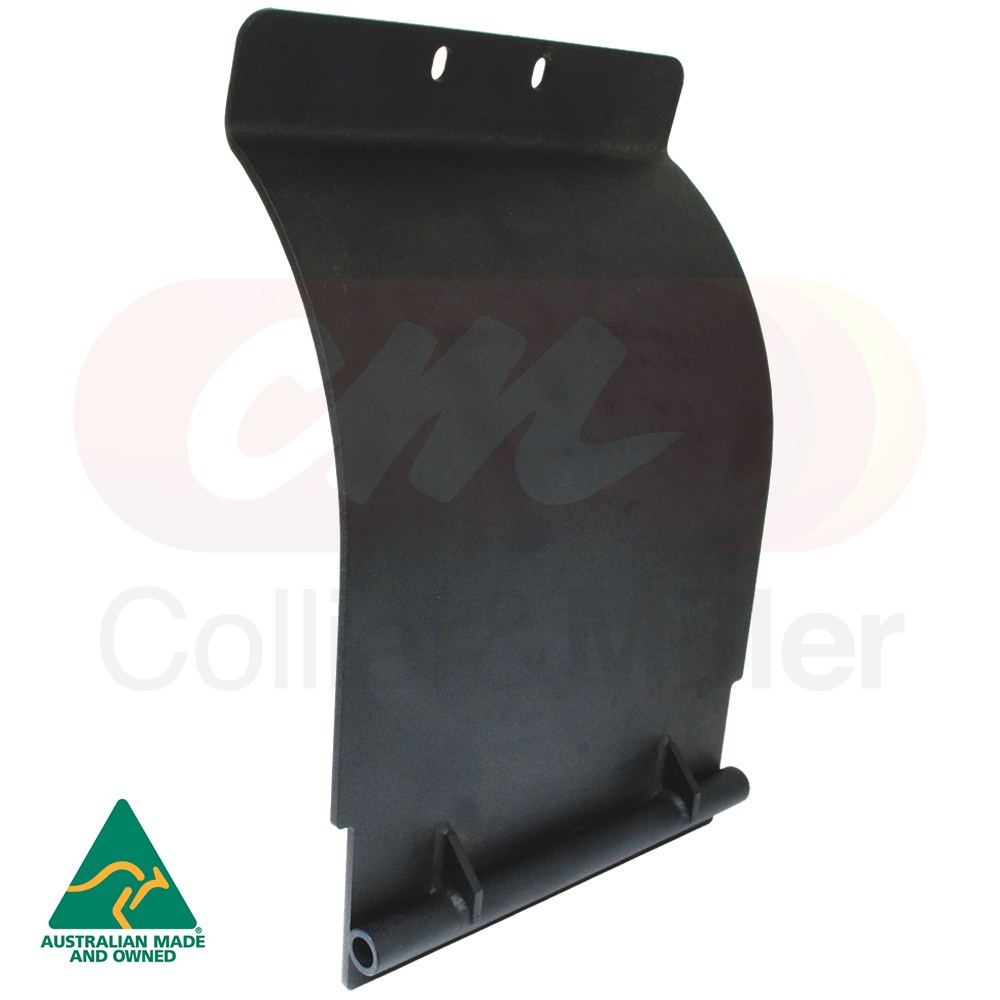

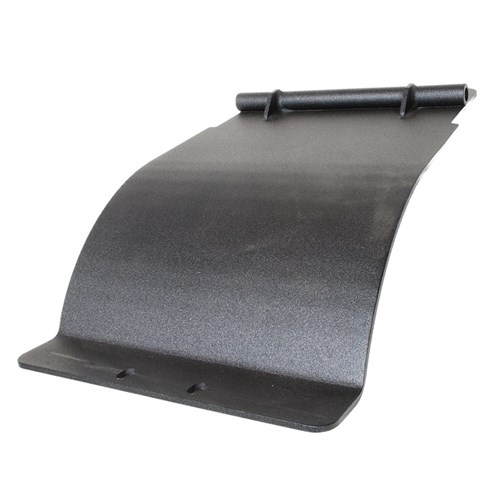

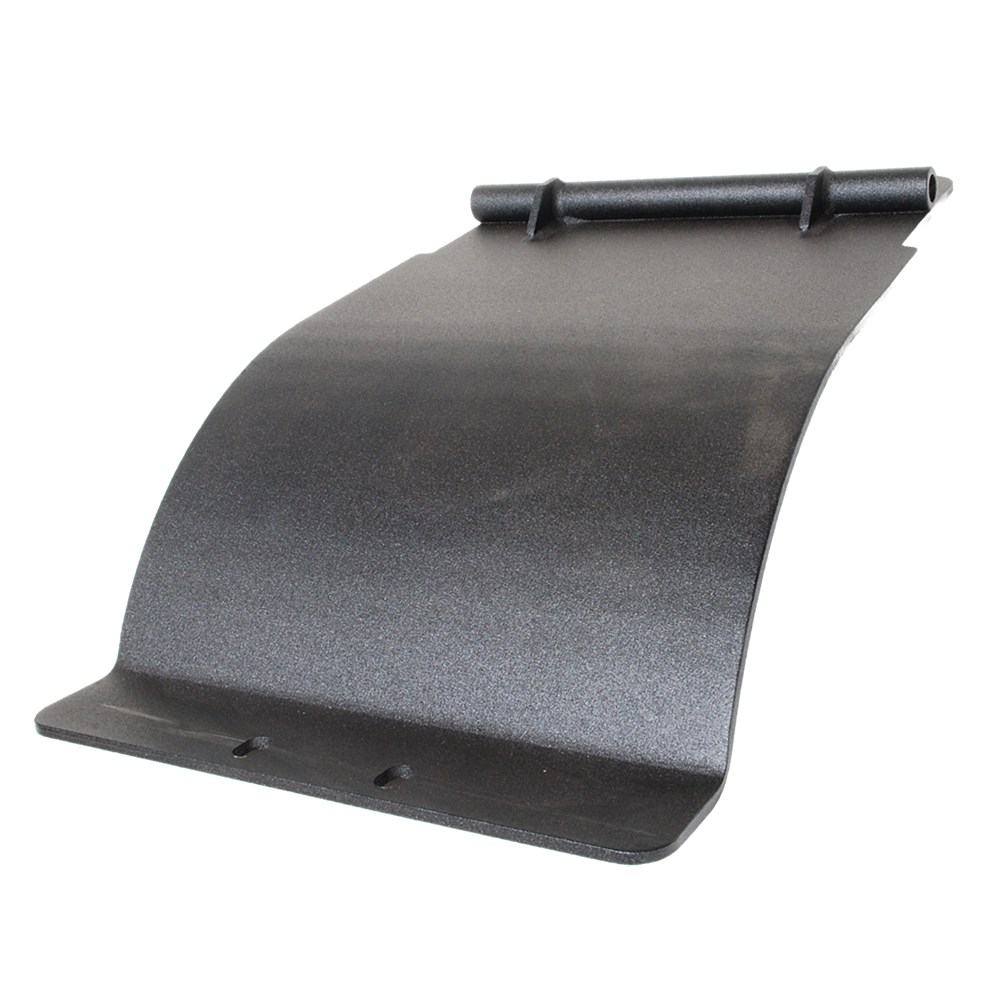

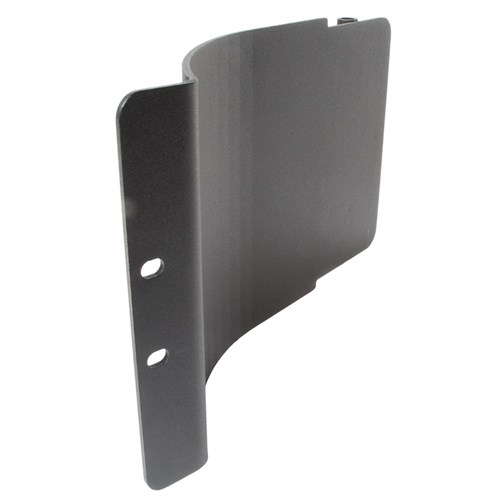

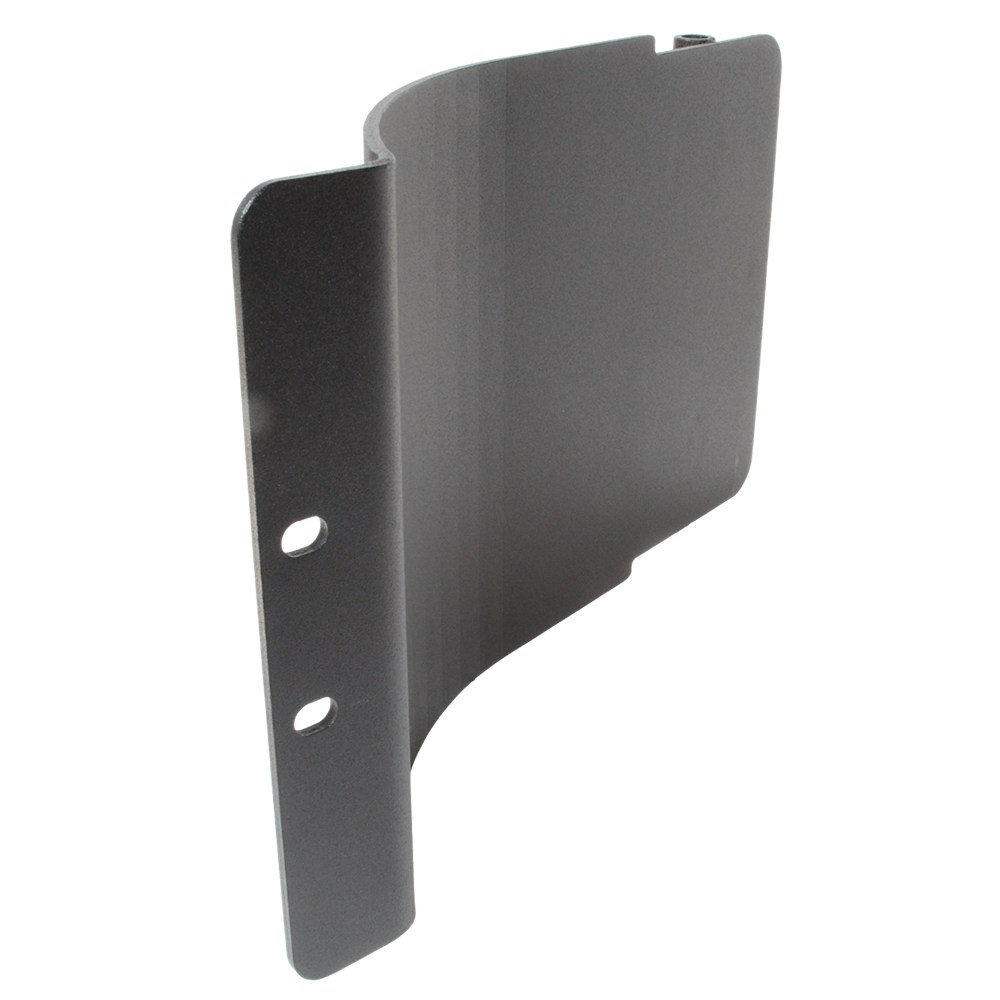

Case-IH® Compatible Stainless Steel Extended Wear Elevator Head Cover

Protect your clean grain system with this premium C&M Australian-made elevator head cover. Specifically engineered for Case-IH® Flagship combine harvesters, this abrasion-resistant 5mm stainless steel component provides a high-strength solution for the most demanding harvest conditions.

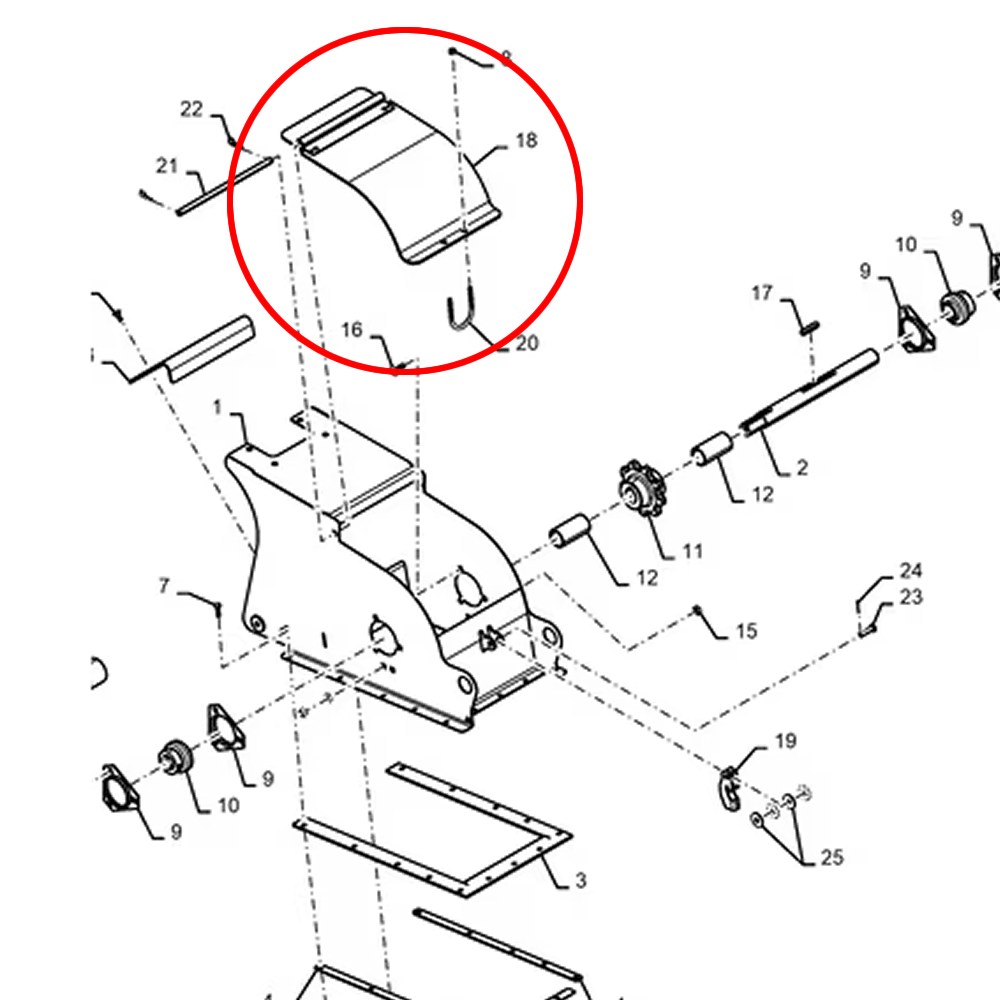

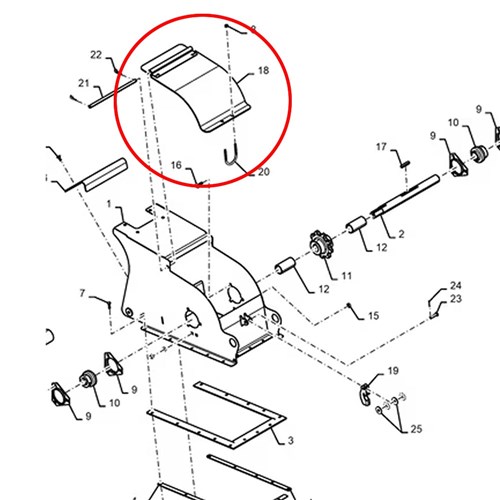

Manufactured by Collier & Miller in our Griffith factory, this cover is designed to fit the 47816431 elevator head. By utilizing heavy-duty 5mm stainless plate that is precision pressed and welded, this unit overcomes the common issues of rapid thinning and failure found in standard covers, ensuring a longer service life for your grain handling assembly.

Case-IH® OEM Cross-Reference

Replaces OEM Part Numbers: 51664927, 90442856

Technical Specifications & Features

• Manufacturer: Proudly C&M Australian made by Collier & Miller.
• Material: 5mm High-grade Stainless Steel plate for maximum abrasion resistance.
• Construction: Precision pressed and welded for a direct-fit replacement.
• Wear Rating: Extended wear configuration for heavy-duty harvesting.
• Dimensions: 280mm (Width) x 430mm (Length).
• Weight: 5.3kg (Heavy-duty build).
• Dispatch: Available for fast Australia-wide shipping from Collier & Miller.

Expert Maintenance Review

The elevator head cover is a primary impact point where high-velocity grain is directed toward the grain tank. Standard covers often fail at the hinge or center impact zone due to constant friction. We recommend inspecting the hinge area and the internal wear surface during every preventative maintenance cycle.

Upgrading to this 5mm stainless steel cover is a high-performance choice that significantly resists the "scoring" effect caused by abrasive crops. This extended wear component keeps your elevator head in top condition, preventing grain loss and ensuring your AFS sensors (if equipped) are protected from external dust and debris intrusion.
