GLEANER FRNT FEEDER CHAIN ONLY A557 8-4-4-8 4 ROW 106L 39B AGCO GLEANER S96 S97 S98

A557 8-4-4-8 4 ROW 106L 39B AGCO GLEANER S96 S97 S98

Product Code: CM71486837CO

Detail
Technical
Interchange
Downloads

AGCO Gleaner® Compatible

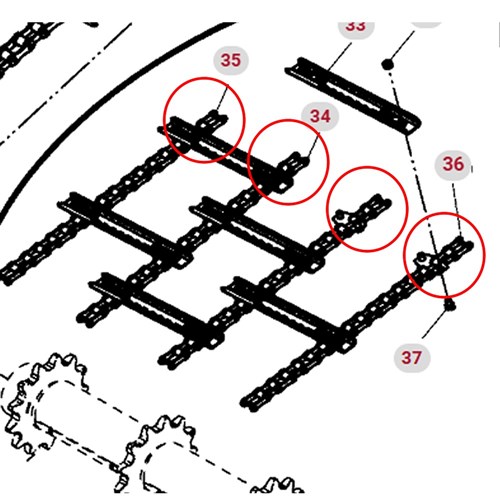

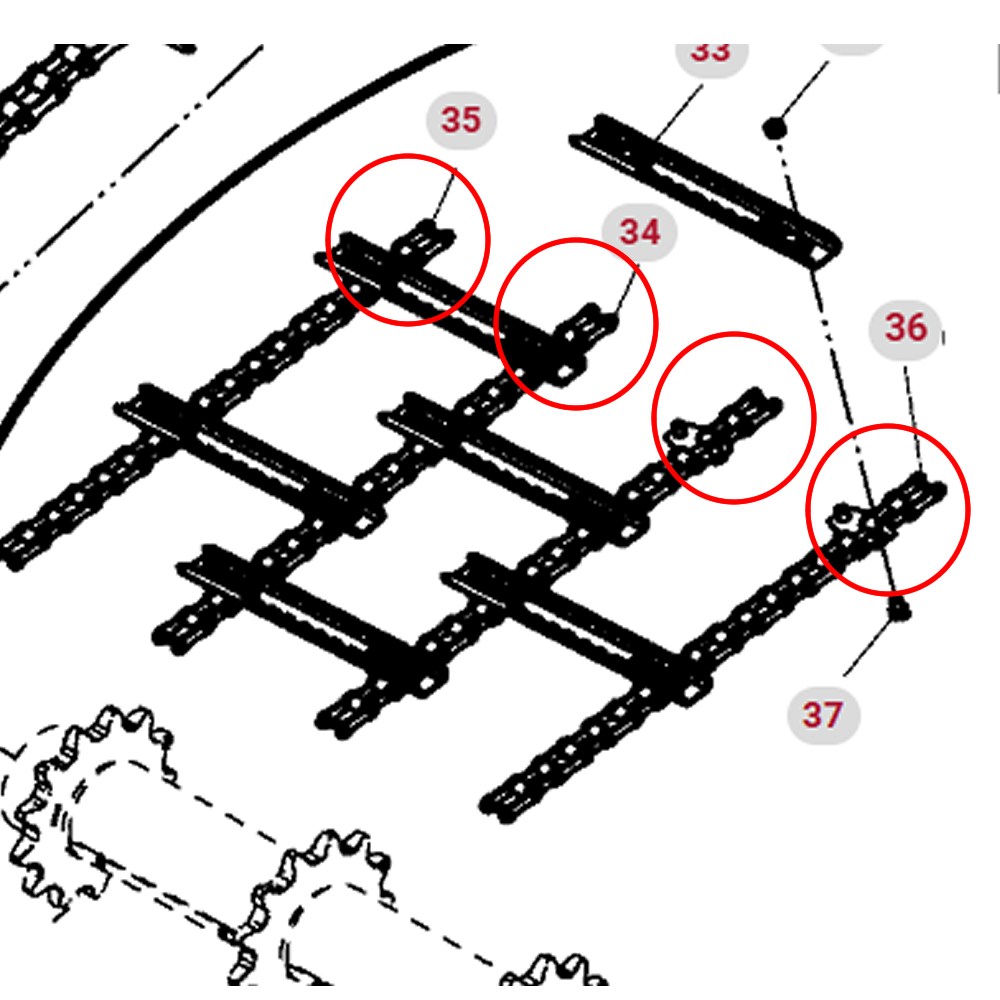

Feeder House Chains Only Set - Front Chain

C&M replacement complete feeder house chains only kit to fit the front conveyor on AGCO Gleaner® combine harvesters .This is a set of four (4) replacement chains with the same spacing and attachment hole spacing as the original Gleaner chain.

You can re-chain your assembly using the original Gleaner® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium chrome-pin chain. We warranty the quality of this kit, however we recommend you fit new sprockets at the time of installation

Part Number

71486838 71486839

Series	Models	Serial/Year
Gleaner S9	S96	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S97	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S98	2017) (HHTV8101-HHTV8999), (2018-2023) (JHTV8101-PHTV8999)
		S98 TRANSVERSE COMBINE (2018-2024) (JHTV8101-RHTV8999)

Features

C&M Assembled In Australia
Premium grade chrome-pin chain
4 x Connectors & 8 x Half Links Included
Same spacing as Gleaner® OEM Assembly
No fasteners supplied - reuse your original bolts

C&M Technical Specifications

Item	Details	Notes
CM71486837	Gleaner S9 Series	Front Feeder x 4 Chain
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Chrome Pin
Chain Assembly	4 Chain	Bars not included
Attachment Pattern	8-4-4-8	Same as AGCO OEM
Number of Pitches	106	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	39	Not included
Chain centre to centre	264MM + 264MM + 264MM
Bar Type	6mm U-Bar G350 Roll serrated & electroplated	Not included
Bolts	128 x CM121 1/2" X 1.0" UNC GRADE 8	Not included
Nuts	128 x NCCN12 1/2" CONE LOCK NUT	Not included
