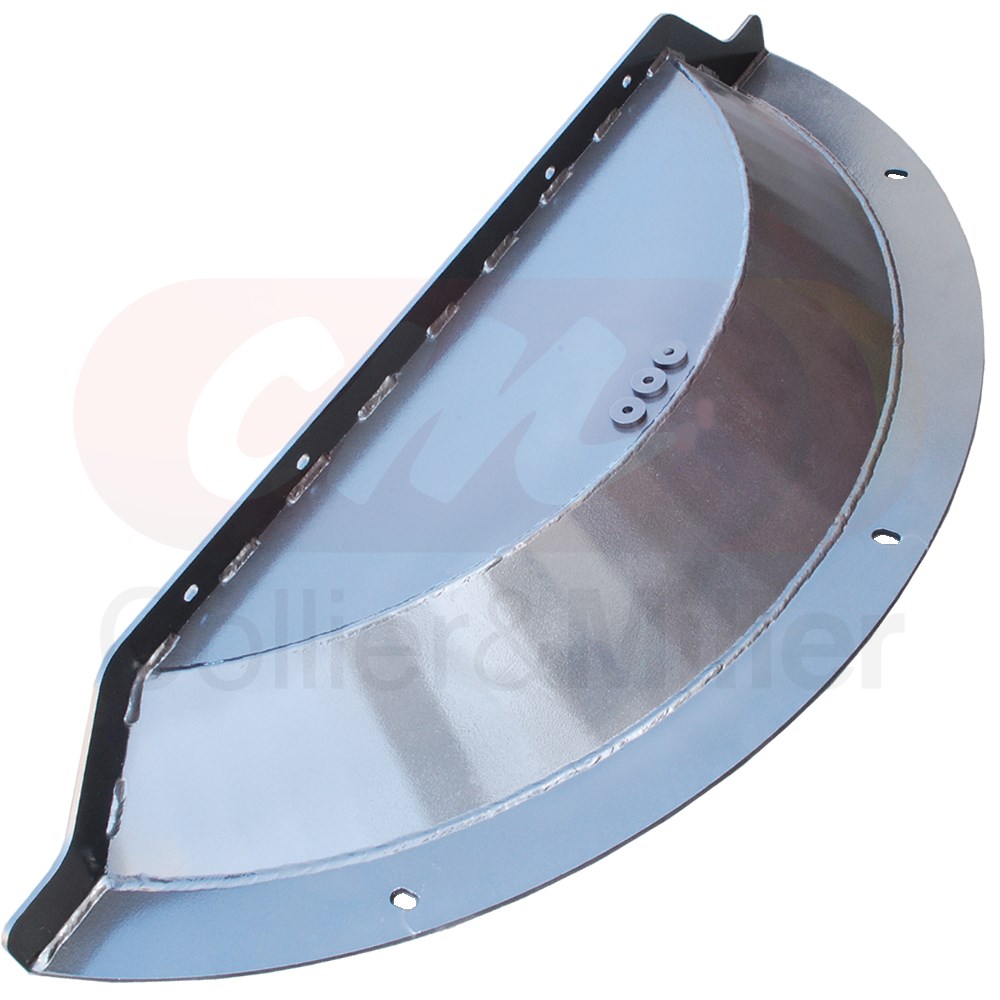

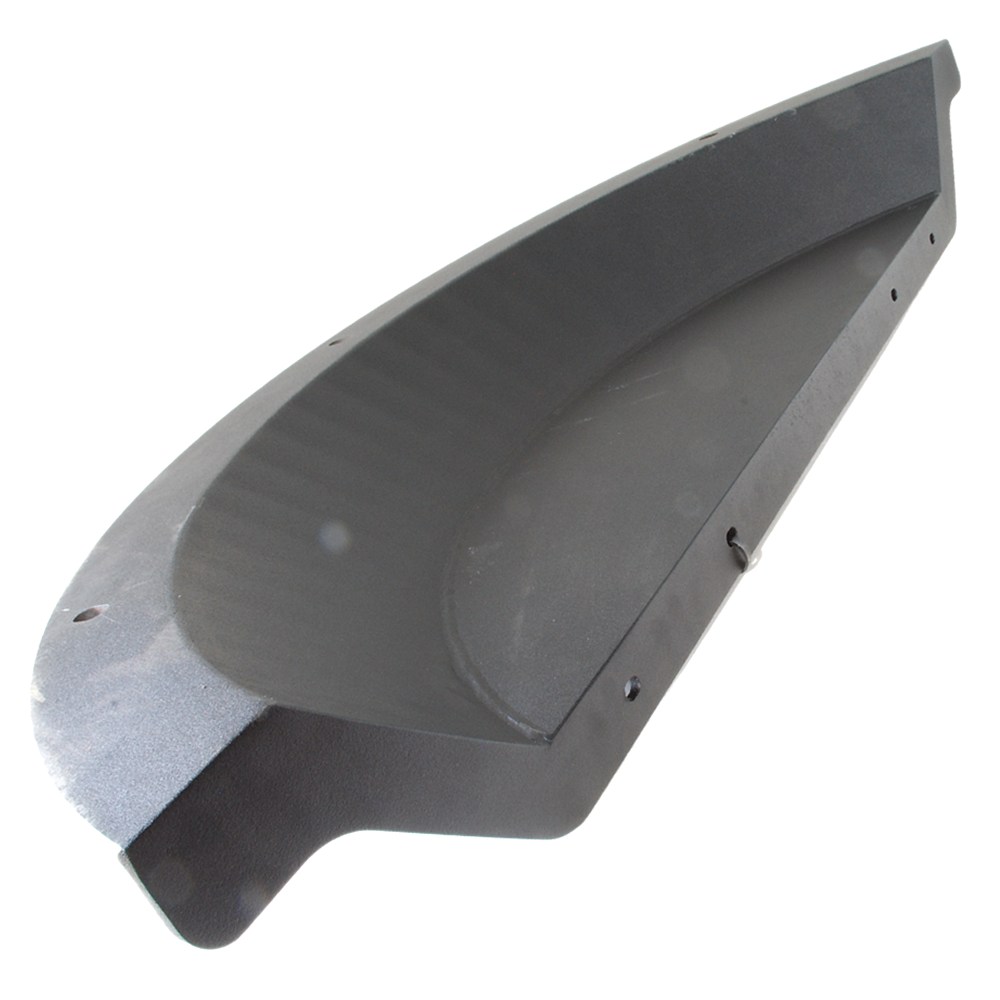

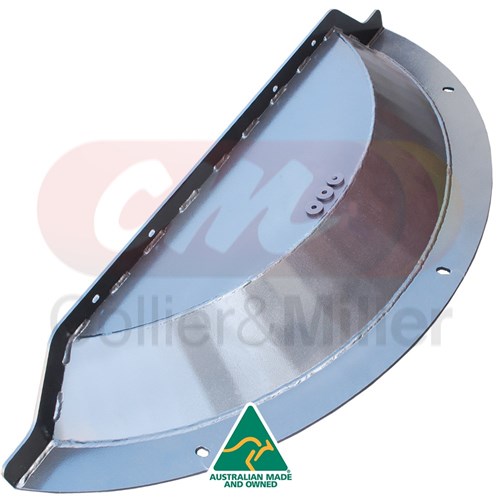

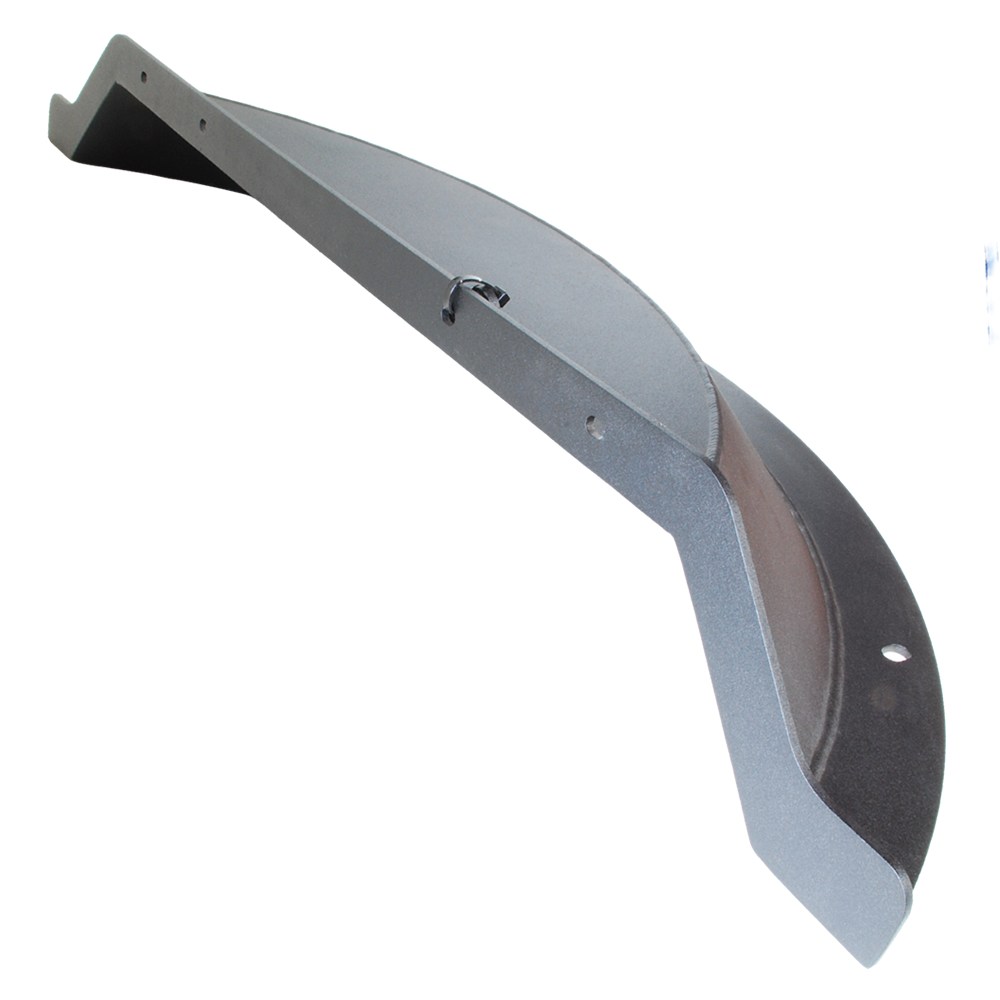

C&M Aftermarket High Wear Transition Cone Top Door Liner to suit CASE-IH Flagship combine harvesters. We manufacture these high wear top doors in our own factory to suit popular CASE-NH Axial Flow combines. This component has been meticulously manufactured to enure correct fitment to the transition cone.
This part includes pressed 6mm Bisalloy 400 radius segment. Responding to machinery owners and service technicians requests, we have manufactured a part that contains significantLy thicker material in the high wear area's. Coupled with the use of long lasting Bisalloy 400 plate in all components, this assembly will provide you with longer life and decreased maintenance costs.
All components have been precision laser cut, with the radius segment pressed for accurate alignment with the exiting rotor assembly. You will be required to re-use the existing fasteners from the original part.
Part Numbers
- Cover - 87492652
- Washers - 140041

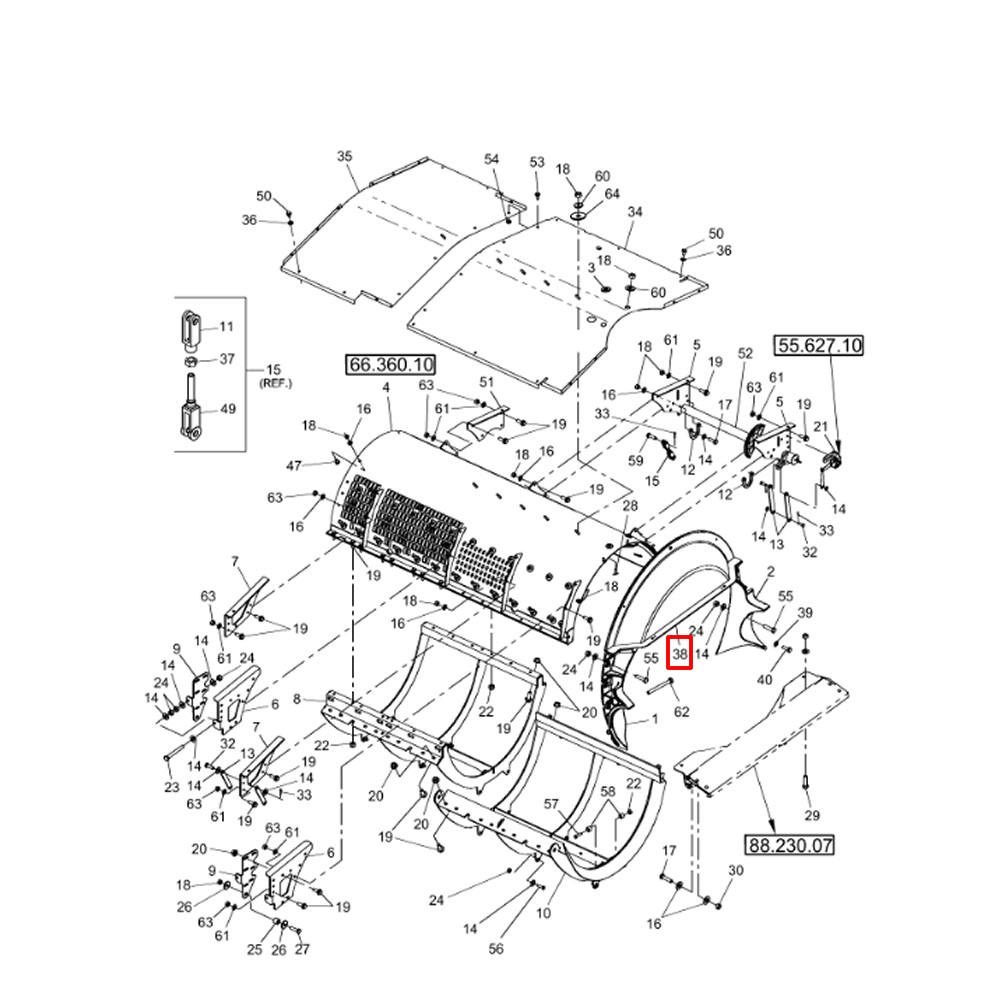

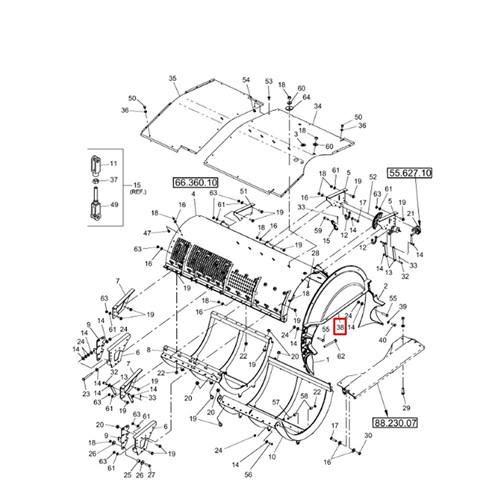

Location
- 66-Threshing - Transition cone
Models
Series |
Models |
Serial/Year |
Case 10 Series |
7010, 8010, 8010-AFX |
|
Case 20 Series |
7120, 8120, 9120 |
|
Case 30 Series |
7130, 8130, 9130, 7230, 8230, 9230 |
|
Case 40 Series |
7240, 8240,9240 |
|
Case 50 Series |
7250, 8250, 9250 |
|
Features
- Made in Australia
- Dimensionally tested against OE cover
- Bisalloy Material
- Precision laser cut components
- Longer lasting reduces maintenance costs
- Includes slotted holes with 3 x 140041 Bisalloy washers
