JOHN DEERE THRESHING ELEMENT HARDENED POS# 3,4&5 SET OF 3 TRISTREAM & VARIABLE ROTOR

HARDENED POS# 3,4&5 SET OF 3 TRISTREAM & VARIABLE ROTOR

Product Code: CMAH216677

Detail
Technical
Interchange

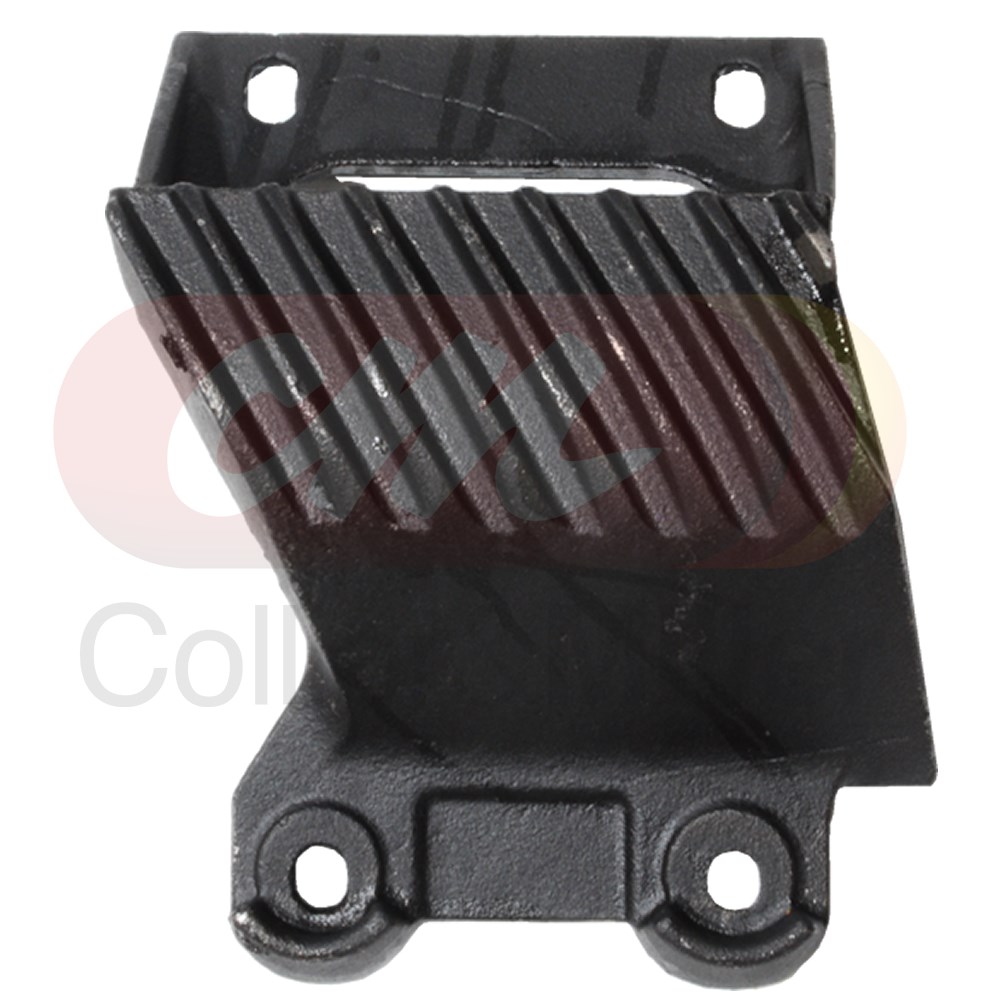

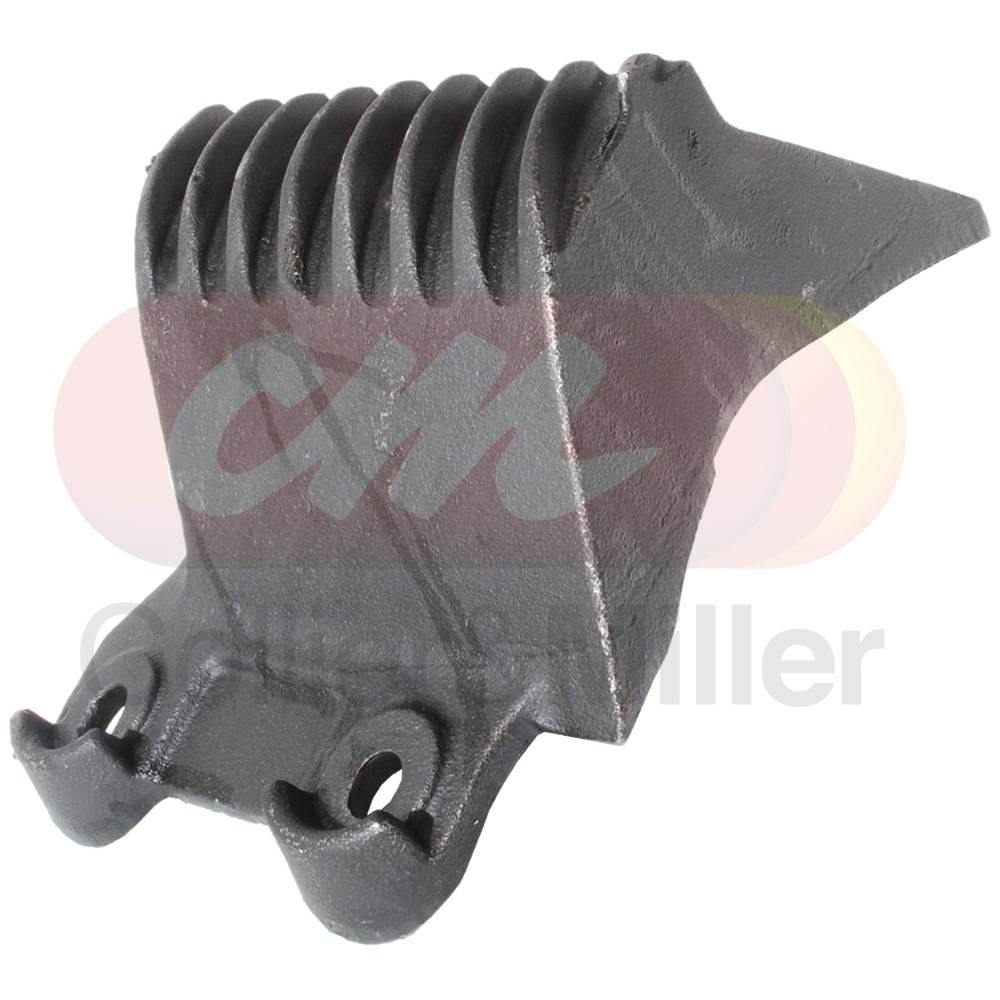

John Deere® Compatible Standard Fully Rifled Threshing Element Kit

Restore original threshing performance with this premium aftermarket standard fully rifled threshing element kit, designed as a direct replacement for selected John Deere® combine harvesters equipped with TriStream™ (Bullet™) and VariableStream™ rotors. This is the most commonly fitted threshing element configuration, providing reliable crop processing across a wide range of harvesting conditions.

Manufactured from premium hardened cast steel, these fully rifled threshing elements are engineered to withstand the demanding impact and abrasive conditions encountered during harvesting. The continuous fully rifled profile provides consistent crop engagement and dependable threshing performance while delivering excellent service life in both grain and corn harvesting applications.

John Deere® OEM Cross-Reference

Replaces OEM Part Numbers: AH216677, A-AH216677

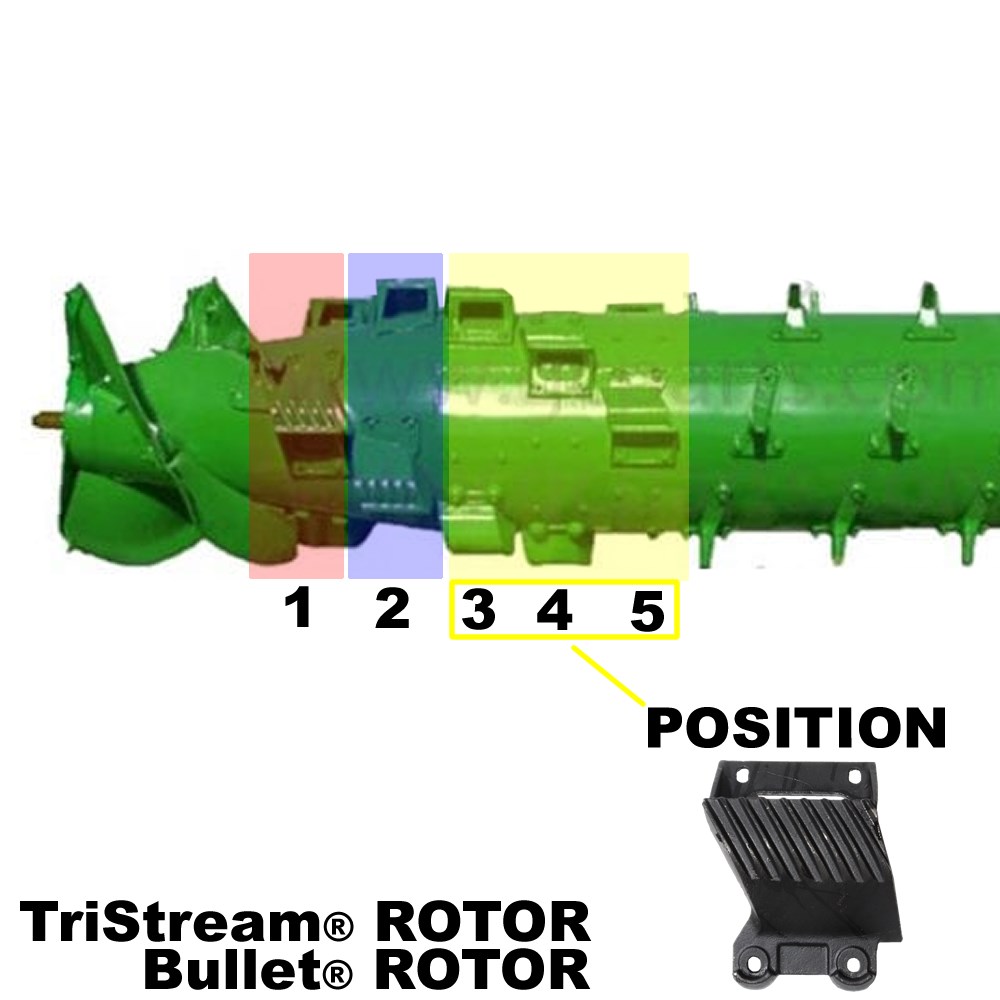

TriStream™ (Bullet™) Rotor: Positions 3, 4 and 5.

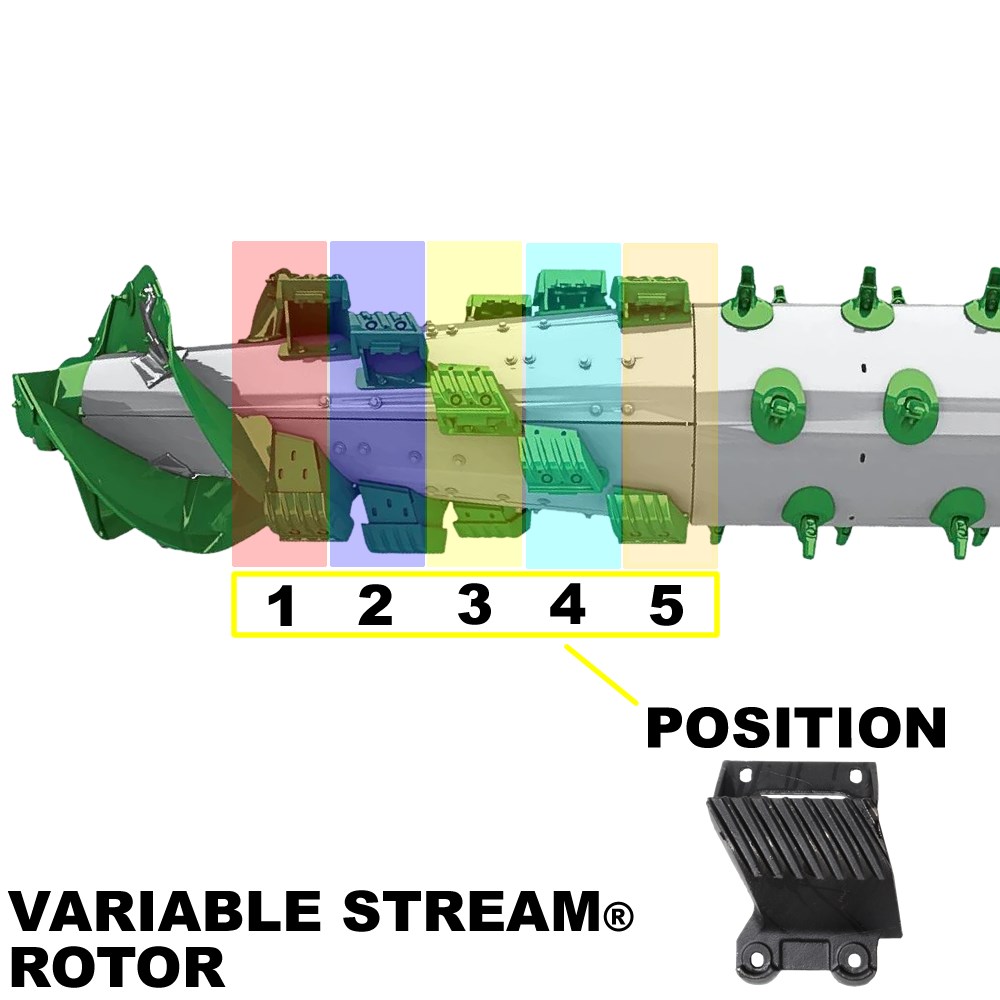

VariableStream™ Rotor: Positions 1, 2, 3, 4 and 5.

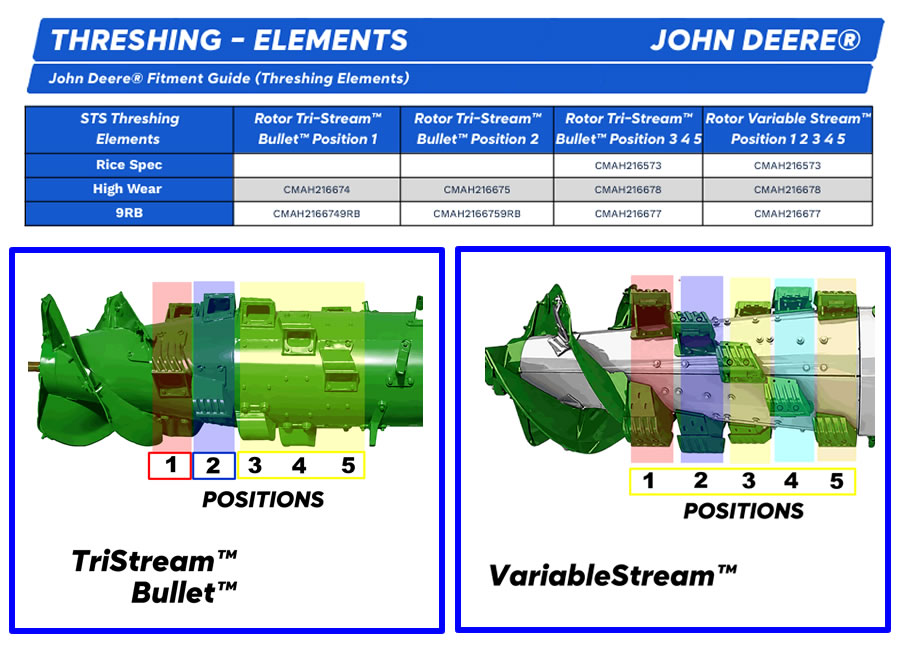

Rotor Fitment

Rotor Types: TriStream™ (Bullet™) and VariableStream™.
Rotor Locations: Positions 3–5 on TriStream™ rotors and Positions 1–5 on VariableStream™ rotors.

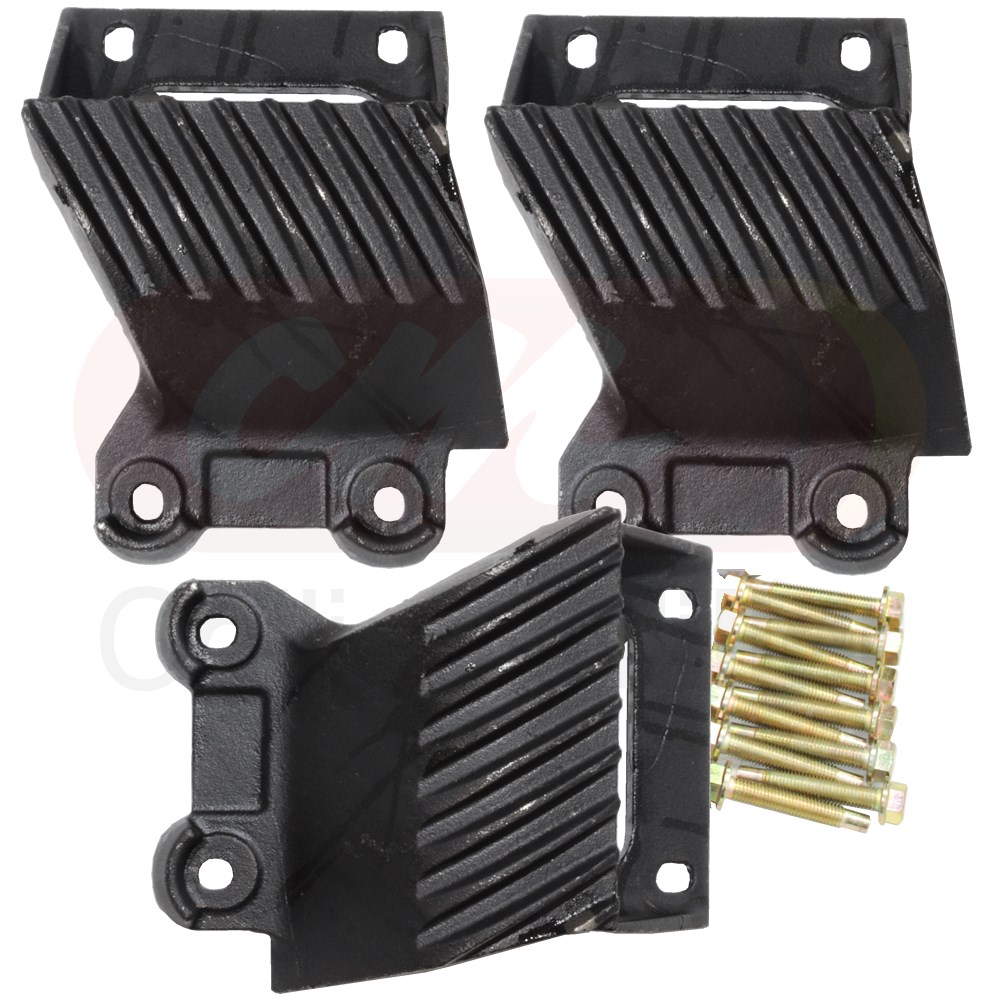

Kit Contents: Three fully rifled threshing elements complete with mounting hardware.

John Deere® Standard Fully Rifled Threshing Element Compatibility
Series	Models	Fitment
John Deere® STS 50 Series	9650STS, 9750STS	Standard Fitment
John Deere® STS 60 Series	9660STS, 9760STS, 9860STS	Serial Number 712198 onwards
John Deere® STS 70 Series	9670STS, 9770STS, 9870STS	Standard Fitment
John Deere® S6 Series	S660, S670, S680, S690	Standard Fitment
John Deere® S7 Series	S760, S770, S780, S790	Standard Fitment

Technical Specifications

Premium aftermarket standard fully rifled threshing element kit.
Continuous fully rifled working surface.
Premium hardened cast steel construction.
Direct replacement for OEM Part AH216677.
Suitable for TriStream™ (Bullet™) and VariableStream™ rotors.
Fits Positions 3, 4 and 5 on TriStream™ rotors.
Fits Positions 1, 2, 3, 4 and 5 on VariableStream™ rotors.
Suitable for grain and corn harvesting applications.
Supplied as a matched kit of three threshing elements.
Includes mounting hardware.
Fast Australia-wide shipping available.

Technical Overview

These fully rifled threshing elements are fitted throughout the primary threshing and separation sections of the rotor where they continue processing crop material after the initial feeding stage. As the working surfaces wear, threshing efficiency can gradually decline, making routine inspection and timely replacement an important part of preventative maintenance.

The fully rifled design features continuous diagonal ribs across the complete working surface, providing consistent crop engagement throughout the threshing process. This makes it the most commonly used threshing element configuration for John Deere® TriStream™ and VariableStream™ rotors. For a detailed explanation of fully rifled and interrupter-style threshing elements, including operating characteristics, typical crop applications and selection considerations, click the Technical tab.

Installation Tip

Replace threshing elements as complete sets around each rotor station to maintain correct rotor balance and consistent threshing performance. Before installation, inspect all mounting surfaces, remove accumulated debris and corrosion, and tighten all fasteners to the manufacturer's recommended torque specifications.

The C&M Difference

Collier & Miller supplies premium aftermarket threshing components engineered for dependable fit, extended wear life and reliable harvesting performance. Designed as direct-fit replacements for worn OEM components, these fully rifled threshing elements help restore rotor efficiency, maintain consistent crop processing and minimise costly harvest downtime.

Technical Guide: Fully Rifled and Interrupter Threshing Elements

John Deere® threshing elements are available in different working-surface configurations to change how crop material is moved and disturbed as it passes through the rotor.

The correct element configuration depends on crop type, moisture content, straw condition, threshing difficulty, rotor loading and the required balance between grain separation, throughput and grain quality.

The comparison below explains the general differences between a fully rifled threshing element and an interrupter-style threshing element.

Fully Rifled Threshing Element	Interrupter-Style Threshing Element

Element Design A fully rifled element has raised diagonal ribs extending continuously across the working surface. These ribs maintain consistent contact with crop material as it moves through the threshing section.	Element Design An interrupter-style element combines a rifled working surface with a raised cross-member. The diagonal ribs terminate against this bar rather than continuing across the full working face.
Operating Characteristics Provides continuous threshing action across the working surface. Promotes steady crop movement through the rotor. Maintains consistent contact with the crop mat. Can improve separation in tough or difficult-to-thresh crops. May help reduce crop slippage in green or damp conditions. Supports higher throughput where additional threshing action is required.	Operating Characteristics Interrupts crop movement across the rifled surface. Creates an additional change in crop direction at the cross-member. Produces a more concentrated point of crop disturbance. Can help break apart dense or matted crop material. May increase threshing action at a selected position within the rotor. Provides a different crop-handling effect from a continuously rifled element.
Typical Applications (Guide Only) The following crop types are general recommendations only. Actual performance will vary according to crop and machine conditions. Wheat Barley Oats Corn or maize Sorghum General cereal and grain crops Rice where the correct rice-specific configuration is fitted	Typical Applications (Guide Only) The following crop types are general recommendations only. Actual performance will vary according to crop and machine conditions. Tough or high-yield wheat Durum and other hard-to-thresh cereals Canola Green-stem soybeans High-moisture corn or maize Rice in damp or difficult harvesting conditions Crops producing dense or matted straw
Potential Advantages Consistent threshing action across the full working face. Good general-purpose crop movement. Suitable for a broad range of cereal and grain crops. Can assist rotor feeding in green or damp material.	Potential Advantages Creates additional crop disturbance at the cross-member. Can help open dense crop mats. May improve threshing where crop is passing through too smoothly. Can be used strategically as part of a mixed element configuration.
Potential Limitations More aggressive threshing may increase grain damage in fragile crops. Can create additional broken straw and fines. May increase load on the cleaning system if settings are too aggressive.	Potential Limitations Additional crop disturbance may increase straw break-up. Can increase fines or grain damage if incorrectly applied. May not be required where crop flow and separation are already satisfactory.

Fully Rifled Threshing Element

Interrupter-Style Threshing Element

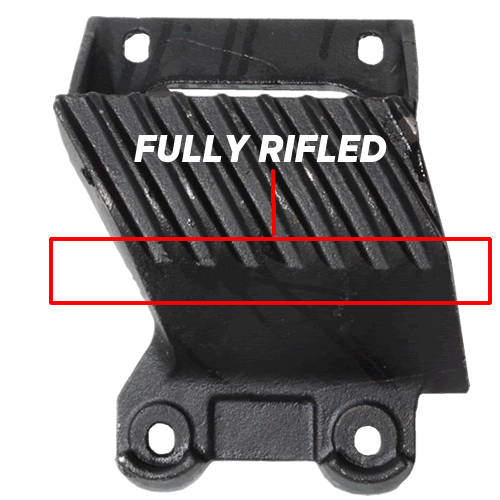

Fully rifled John Deere compatible threshing element with continuous diagonal ribs across the working surface

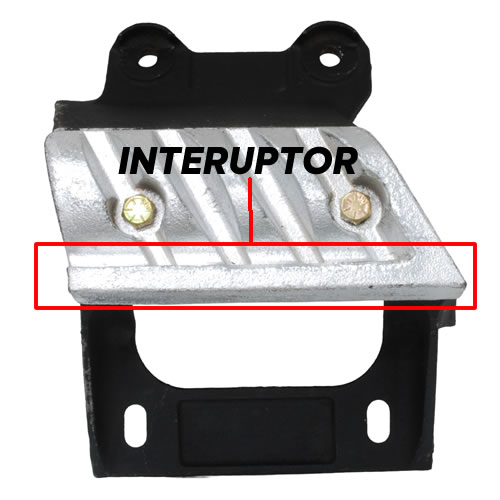

John Deere compatible interrupter threshing element with diagonal ribs terminating against a raised cross-member

Element Design

A fully rifled element has raised diagonal ribs extending continuously across the working surface. These ribs maintain consistent contact with crop material as it moves through the threshing section.

Element Design

An interrupter-style element combines a rifled working surface with a raised cross-member. The diagonal ribs terminate against this bar rather than continuing across the full working face.

Operating Characteristics

Provides continuous threshing action across the working surface.
Promotes steady crop movement through the rotor.
Maintains consistent contact with the crop mat.
Can improve separation in tough or difficult-to-thresh crops.
May help reduce crop slippage in green or damp conditions.
Supports higher throughput where additional threshing action is required.

Operating Characteristics

Interrupts crop movement across the rifled surface.
Creates an additional change in crop direction at the cross-member.
Produces a more concentrated point of crop disturbance.
Can help break apart dense or matted crop material.
May increase threshing action at a selected position within the rotor.
Provides a different crop-handling effect from a continuously rifled element.

Typical Applications (Guide Only)

The following crop types are general recommendations only. Actual performance will vary according to crop and machine conditions.

Wheat
Barley
Oats
Corn or maize
Sorghum
General cereal and grain crops
Rice where the correct rice-specific configuration is fitted

Typical Applications (Guide Only)

The following crop types are general recommendations only. Actual performance will vary according to crop and machine conditions.

Tough or high-yield wheat
Durum and other hard-to-thresh cereals
Canola
Green-stem soybeans
High-moisture corn or maize
Rice in damp or difficult harvesting conditions
Crops producing dense or matted straw

Potential Advantages

Consistent threshing action across the full working face.
Good general-purpose crop movement.
Suitable for a broad range of cereal and grain crops.
Can assist rotor feeding in green or damp material.

Potential Advantages

Creates additional crop disturbance at the cross-member.
Can help open dense crop mats.
May improve threshing where crop is passing through too smoothly.
Can be used strategically as part of a mixed element configuration.

Potential Limitations

More aggressive threshing may increase grain damage in fragile crops.
Can create additional broken straw and fines.
May increase load on the cleaning system if settings are too aggressive.

Potential Limitations

Additional crop disturbance may increase straw break-up.
Can increase fines or grain damage if incorrectly applied.
May not be required where crop flow and separation are already satisfactory.

Configuration Comparison

Feature	Fully Rifled	Interrupter Style
Working surface	Continuous diagonal ribs	Diagonal ribs terminating at a raised cross-member
Crop movement	Continuous movement across the working face	Crop movement is interrupted at the cross-member
Threshing action	Consistent across the working surface	More concentrated at the interruption point
Typical purpose	Promote crop flow and provide consistent threshing action	Increase crop disturbance and help break apart dense material
Typical use	General cereal and grain harvesting	Tough, damp, matted or difficult-to-thresh crop conditions

Guide Only

The crop and application recommendations shown on this page are intended as a general guide only. The optimum threshing element configuration will depend on crop variety, moisture content, straw condition, rotor speed, concave type, concave clearance, feed rate and overall machine setup.

Results may vary between crops, regions and harvesting conditions. Operators should assess grain quality, rotor losses, crop throughput and cleaning-system load when selecting or changing threshing elements.

Selecting the Correct Element

A fully rifled element is generally considered where continuous crop movement and consistent threshing action are required across the working surface.

An interrupter-style element may be considered where additional crop disturbance is required to break apart dense material, alter crop movement or increase threshing action at a selected position within the rotor.

Some machines may use a combination of fully rifled and interrupter-style elements. The number and position of each element should be selected according to the machine model, crop conditions and the required harvesting outcome.

Important Setup Note

Threshing performance is influenced by the complete machine setup, not the threshing element alone. Rotor speed, concave clearance, concave configuration, crop moisture and machine loading should all be checked before changing element configurations.

Machine adjustments should be made gradually while monitoring grain cracking, unthreshed heads, rotor losses, broken straw, fines and cleaning-system performance.

Technical References & Further Reading

This technical guide has been prepared using a combination of original equipment manufacturer (OEM) publications, published agricultural engineering resources and Collier & Miller's engineering experience supporting combine harvesters operating in Australian harvesting conditions.

Reference	Description
John Deere® Operator's Manuals	Rotor setup, threshing system adjustment and crop-specific operating recommendations.
John Deere® Parts Catalogues (PC Series)	Threshing element identification, rotor configurations and compatible component assemblies.
John Deere® Technical Manuals	Combine servicing procedures and threshing system maintenance information.
John Deere® Shop.Deere.com	Published descriptions of standard, high-wear and rifled threshing elements.
Kondex Corporation®	Published technical information relating to aftermarket threshing components and harvesting performance.
University Agricultural Extension Publications	Research relating to combine setup, grain quality, threshing efficiency and harvest loss reduction.

Related Technical Guides

Understanding John Deere® Threshing Elements
Choosing the Correct Concave for Your Crop
Rotor Speed and Concave Clearance Explained
Reducing Grain Damage During Harvest
Improving Combine Throughput in Tough Harvesting Conditions
Understanding Crop Flow Through the Rotor

Document Information

Document Type	Technical Information Guide
Subject	John Deere® Fully Rifled vs Interrupter Threshing Elements
Prepared By	Collier & Miller
Revision	Version 1.0
Technical Review	July 2026

Engineering Disclaimer

This article is provided for general technical information only and should not be interpreted as a definitive machine setup guide. Harvesting performance is influenced by crop variety, moisture content, straw condition, machine configuration, rotor speed, concave selection, feed rate and operating conditions.

The crop applications shown within this guide are intended as typical examples only and should not be considered prescriptive recommendations. Operators should always refer to the appropriate John Deere® operator's manual and adjust machine settings to suit prevailing harvesting conditions.

John Deere® is a registered trademark of Deere & Company. Reference to OEM part numbers, machine models and trademarks is for identification and compatibility purposes only. Collier & Miller is an independent manufacturer and supplier of aftermarket agricultural replacement parts.
