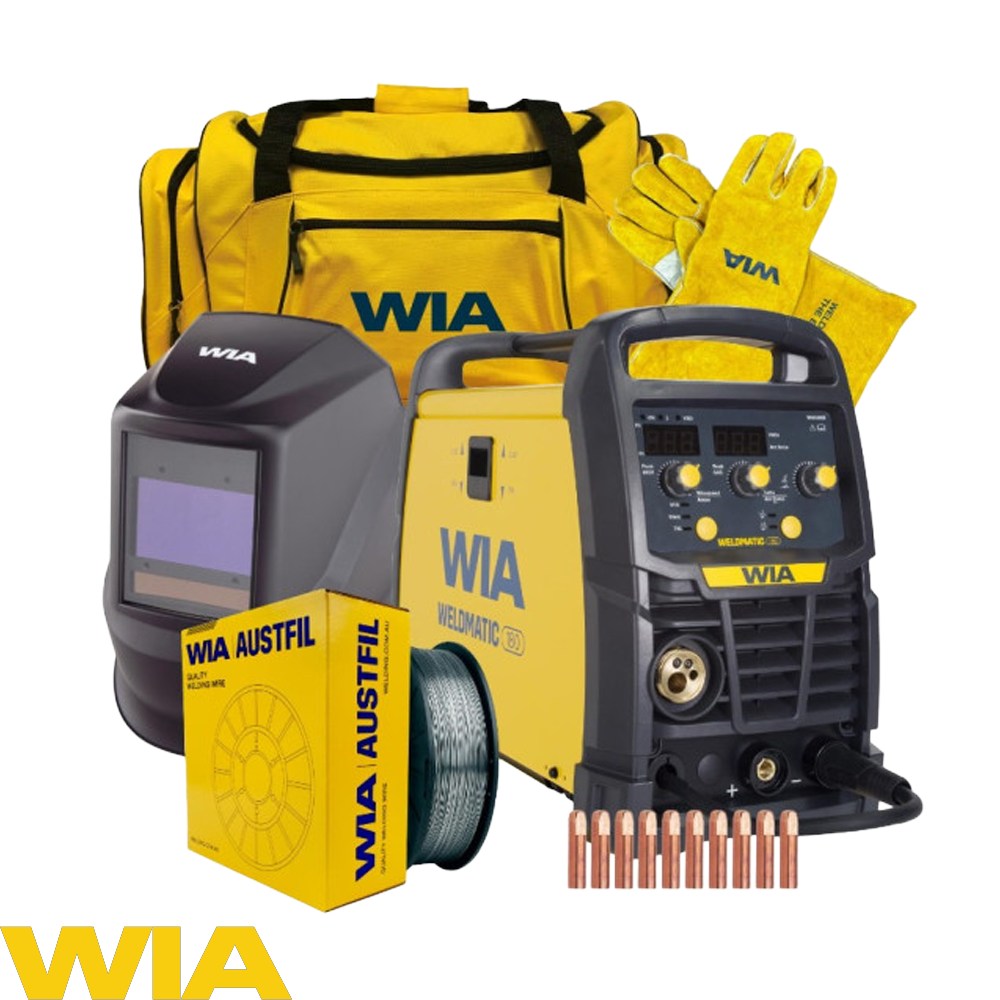

WIA WELDMATIC 180 BUNDLE MIG STICK TIG WELDER KIT
The WIA Weldmatic 180 Bundle is a versatile MIG, Stick and TIG welding package designed for light fabrication, repairs, maintenance, automotive, farming, building and construction. The compact 180A welder features digital meters, integrated wire feeding, thermal protection, VRD and an IP23S rating for added protection in harsh environments. The bundle includes a welding helmet, flux-cored wire, gloves, contact tips and duffle bag for a practical starter setup.
Features
- 180A single-phase MIG, Stick and TIG welder
- Digital meters for easy parameter adjustment
- Integrated wire feeder for a compact, lightweight design
- Suitable for gas-shielded and gasless flux-cored wires
- Spool capacity for 1kg and 5kg spools
- Built-in thermal protection
- Arc Force for a stable arc and reduced electrode sticking
- Hot Start for easier arc starting
- Burn Back control
- VRD (Voltage Reduction Device)
- IP23S rated
- Generator compatible up to 10kVA
- Suitable for steel, aluminium and stainless steel
- Portable 11kg design
Includes
- WIA CP141-1 Weldmatic 180 MIG / Stick / TIG Welder
- WIA OpticFX Nero Welding Helmet
- Austfil T-11 0.9mm 5kg spool of wire
- Pair of MIG welding gloves
- Pack of 10 contact tips
- WIA duffle bag
- 3m Euro gun cable
- 3m work lead
- Gas regulator
- 0.6/0.8mm V-groove drive rollers
- 0.9/1.2mm knurled drive rollers for gasless wire
- 0.6/0.8/0.9mm tips
- 3m industrial twist-lock electrode holder
- 0.9mm Austfil T-11 gasless sample wire
- 0.8mm ES6 steel sample wire
Specifications
- Primary Voltage: 240 VAC, 50/60Hz
- Rated Primary Current: 10 Amps
- Max Primary Current: 31 Amps
- Recommended Generator Power: 10kVA
- Supply Plug: 10 Amp
- IP Rating: IP23S
- Weight: 11kg
- Warranty: 3 Years
- Standards Compliance: AS60974.1 & AS1674.2 (VRD)
- MIG Output Range: 30A/15.5V–180A/23V
- MIG Rated Output: 180A/23V @ 10%, 73A/17.6V @ 60%, 57A/16.9V @ 100%
- MIG Wire Size: 0.6/0.8/0.9mm
- MIG Material Thickness: Up to 6mm steel plate, single pass
- Stick Current Range: 20A/20.8V–150A/26V
- Stick Rated Output: 150A/26V @ 10%, 61A/22.4V @ 60%, 47A/21.9V @ 100%
- TIG Current Range: 15A/10.6V–180A/17.2V
- TIG Rated Output: 180A/17.2V @ 10%, 73A/12.9V @ 60%, 57A/12.3V @ 100%
- Helmet Viewing Area: 100 x 60mm
- Helmet Shade Range: 9–13
- Helmet Reaction Time: 1/12,500 sec
- Helmet Weight: 555g
- Helmet Warranty: 3 Years
- Flux-Cored Wire Size: 0.9mm
- Flux-Cored Wire Weight: 5kg
- Flux-Cored Wire Current Range: 80–150A
- Flux-Cored Wire Arc Voltage Range: 15–18V
- Wire Classification: AS/NZS ISO 17632-B T49ZT11-1NA-H15; AWS A5.20 E71T-11
