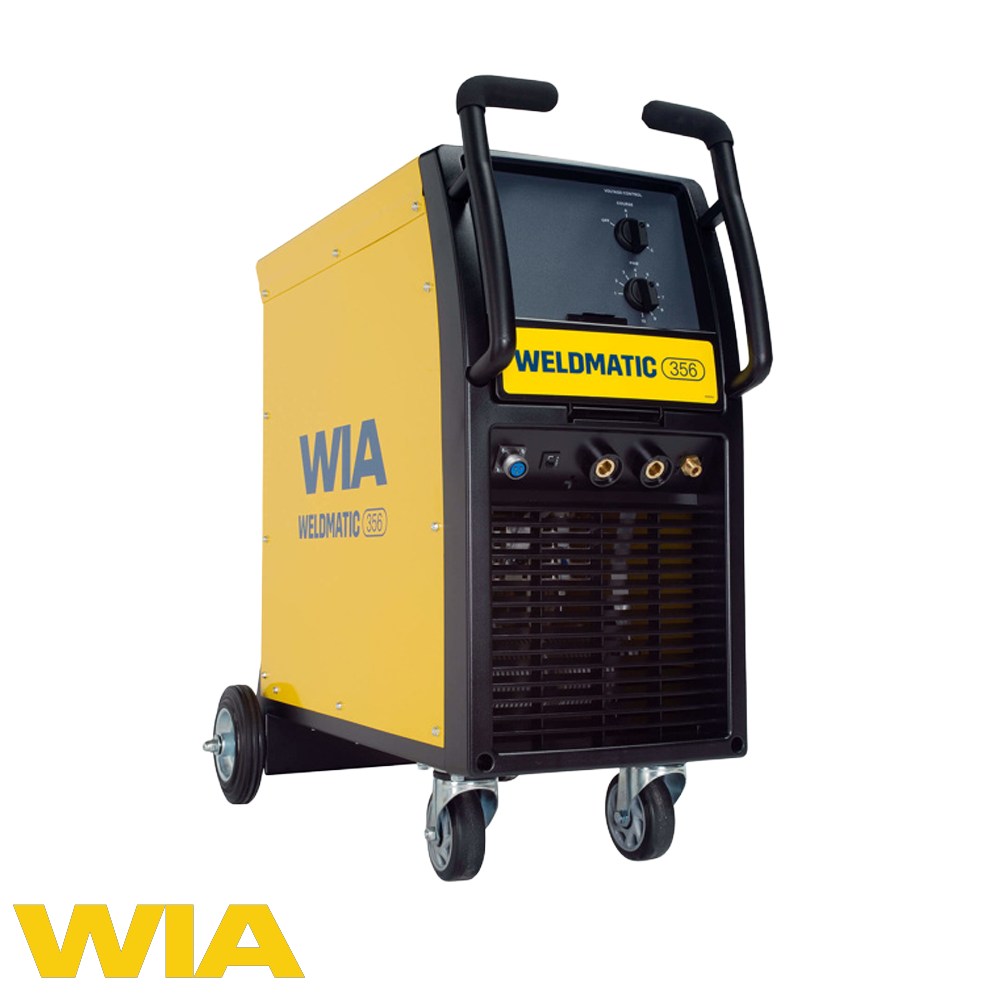

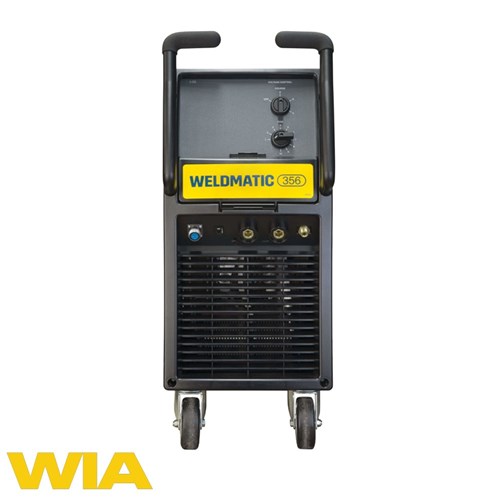

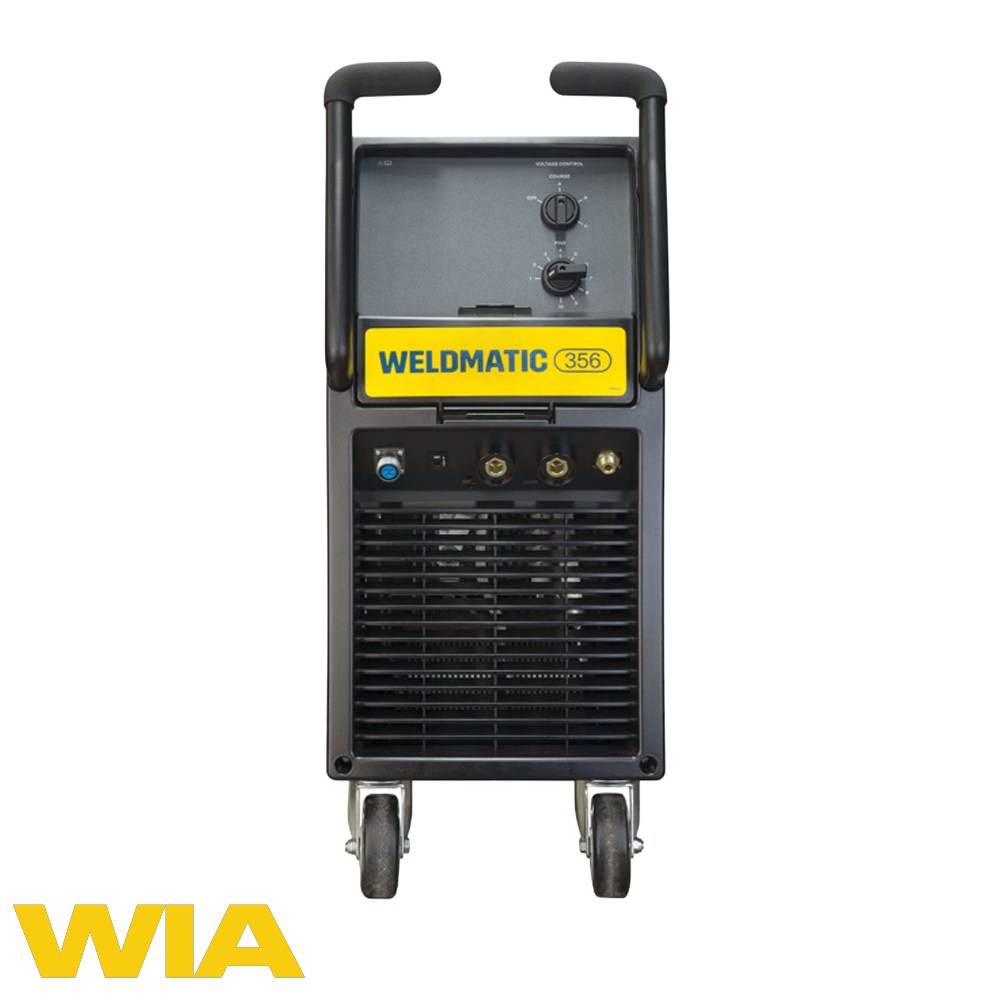

WIA Weldmatic 356 MIG Welder
Designed for medium to heavy fabrication, the WIA Weldmatic 356 delivers dependable power and precision for busy workshop environments. Engineered with Fan-on-Demand™ technology and a separate wire feeder, it offers improved efficiency, reduced maintenance and greater flexibility for custom setups. Whether you're working on structural steel or general fabrication, the Weldmatic 356 provides smooth, consistent performance across a wide range of applications.
Features
- Ideal for medium to heavy fabrication workshops
- Separate wire feeder for improved manoeuvrability and flexible machine positioning
- Fan-on-Demand™ cooling reduces noise, energy use and contamination
- Heavy duty four geared wire drive with strong gears and ball bearings for reliable feeding
- Adjustable arc start, wire speed, burn back, spot time, creep mode, pre and post gas
- Burnback control for clean wire finish at end of weld
- Suitable for gas shielded and gasless wires
- Welds up to 12mm+ steel plate in a single pass

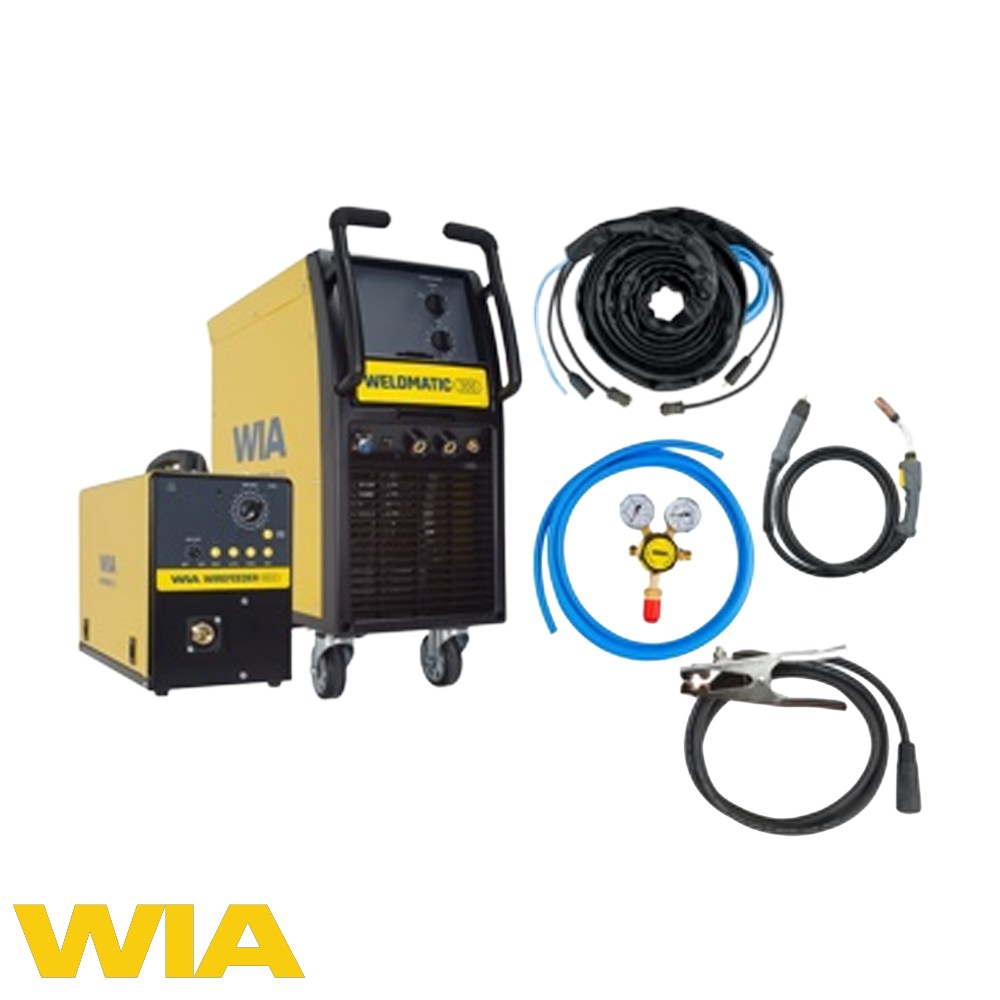

Includes
- W64-1 roll drive wire feeder (5kg and 15kg spool capacity)
- 3.6m Euro gun cable
- 10m work lead
- 10m interconnecting leads
- Gas regulator
- Bernard™ Centerfire™ 0.9mm tip
- 0.9/1.2mm V groove drive rollers
- 0.9/1.2mm knurled drive rollers (gasless, flux cored)
Specifications
- Primary voltage 415 VAC 50Hz
- Rated primary current 15 Amps
- Max primary current 23 Amps
- Recommended generator power 16.5 kVa
- Supply plug 32 Amp
- Weight 126kg
- Output range 30A/15.5V – 355A/31.8V
- Rated output @ 40°C (10min) 355A/31.8V @ 40%
- 290A/28.5V @ 60%
- 225A/25.3V @ 100%
- Wire size range 0.6–1.6mm solid, 0.8–1.6mm cored
- Material thickness range up to 12mm+ steel plate, single pass
