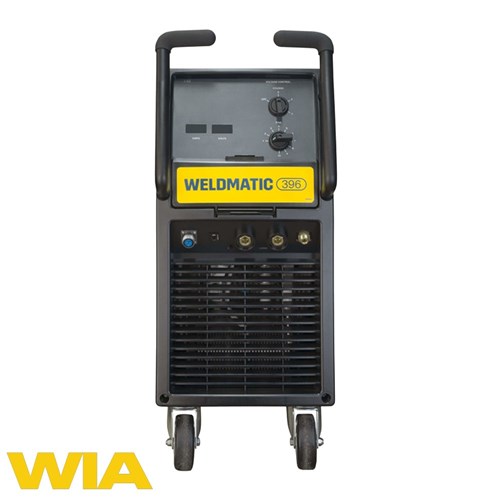

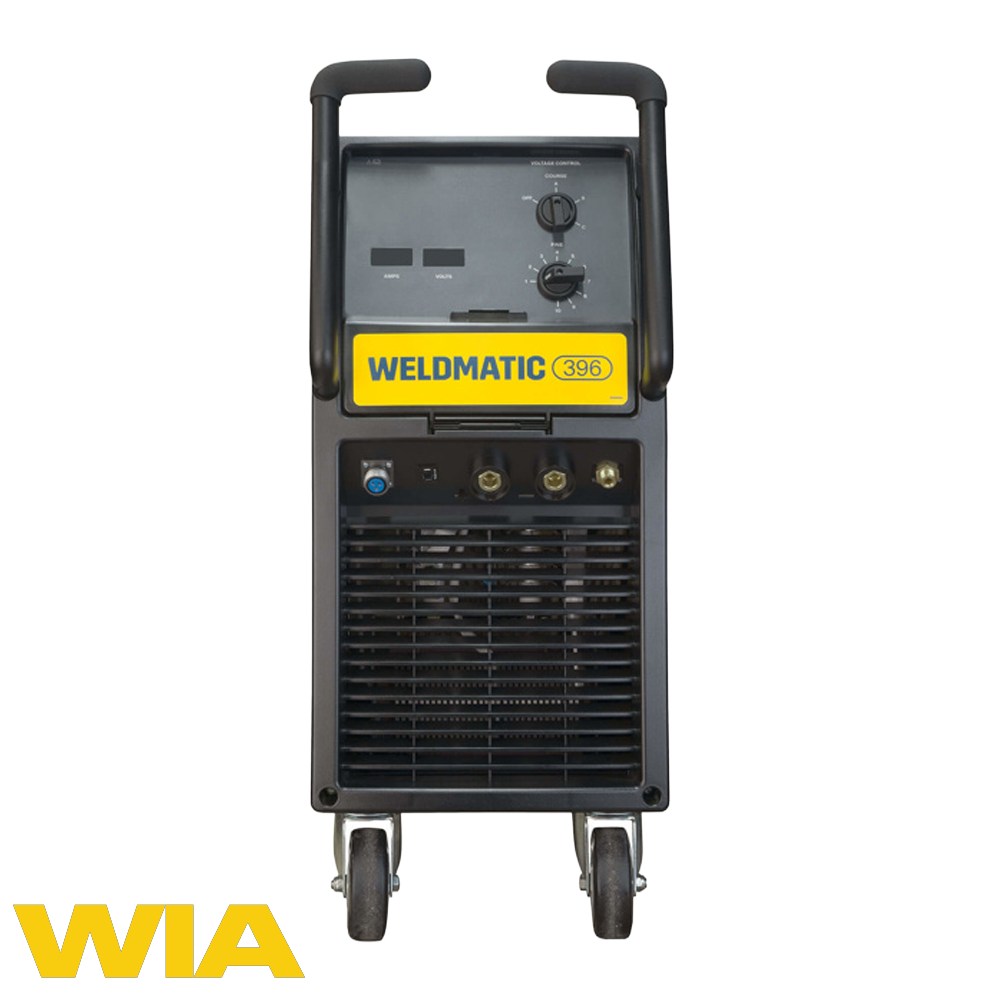

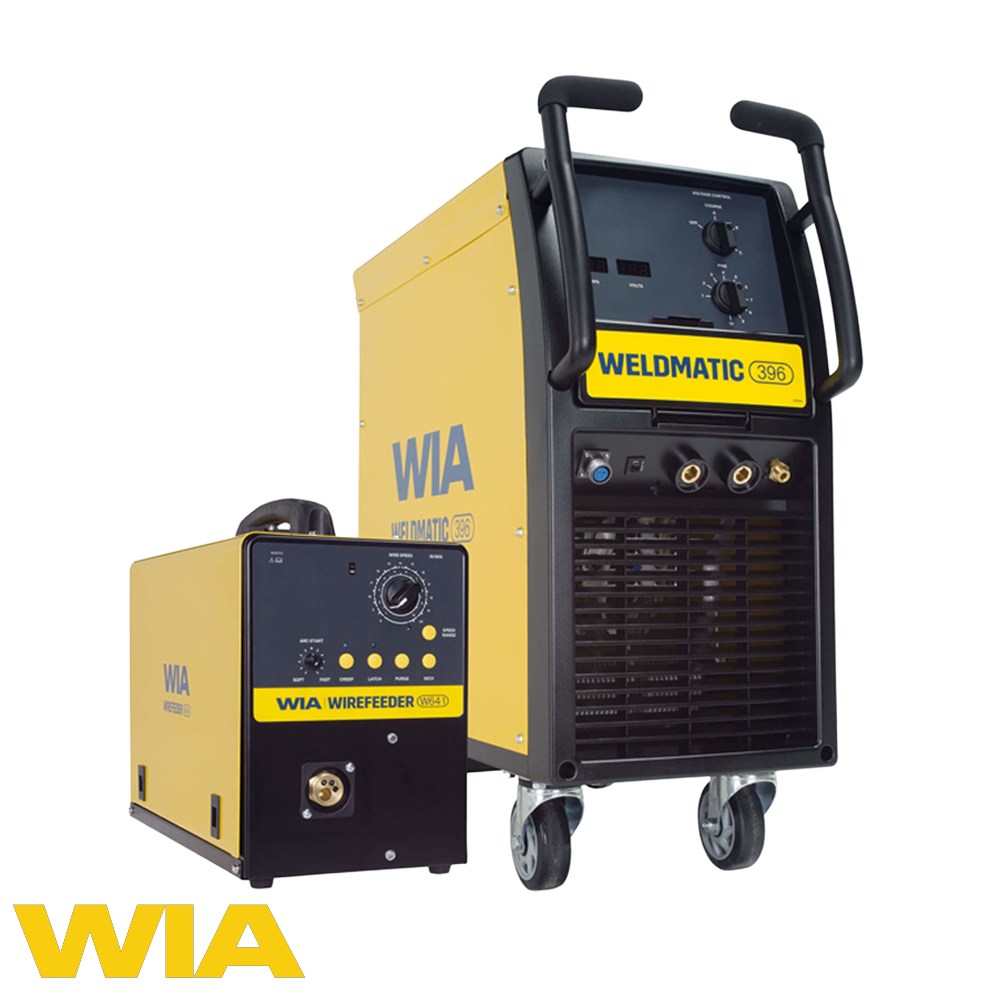

WIA Weldmatic 396 Multi-Process Welder
The WIA Weldmatic 396 is a heavy-duty multi-process welder designed for medium to industrial fabrication tasks. Perfect for steel, stainless steel, and aluminium, it delivers high-quality, precise welds while offering unmatched flexibility. With a separate wire feeder, adjustable settings for arc start, wire speed, burnback, spot time, creep mode, and pre/post gas, this machine adapts to workshops of all sizes, including hard-to-reach or elevated positions. Fan-on-Demand™ cooling reduces noise, energy use, and contamination, while digital meters make monitoring and adjusting your weld parameters simple.
Features
- Heavy-duty multi-process welding for steel, stainless steel, and aluminium
- Separate wire feeder supporting 5kg & 15kg spools, gas-shielded or gasless
- Fan-on-Demand™ cooling reduces noise, energy use, and contamination
- Digital meters for easy parameter monitoring and adjustments
- Four-geared wire drive with ball bearings for reliability and performance
- Burnback control for precise wire management
- Compact and maneuverable for tight spaces or elevated welding positions

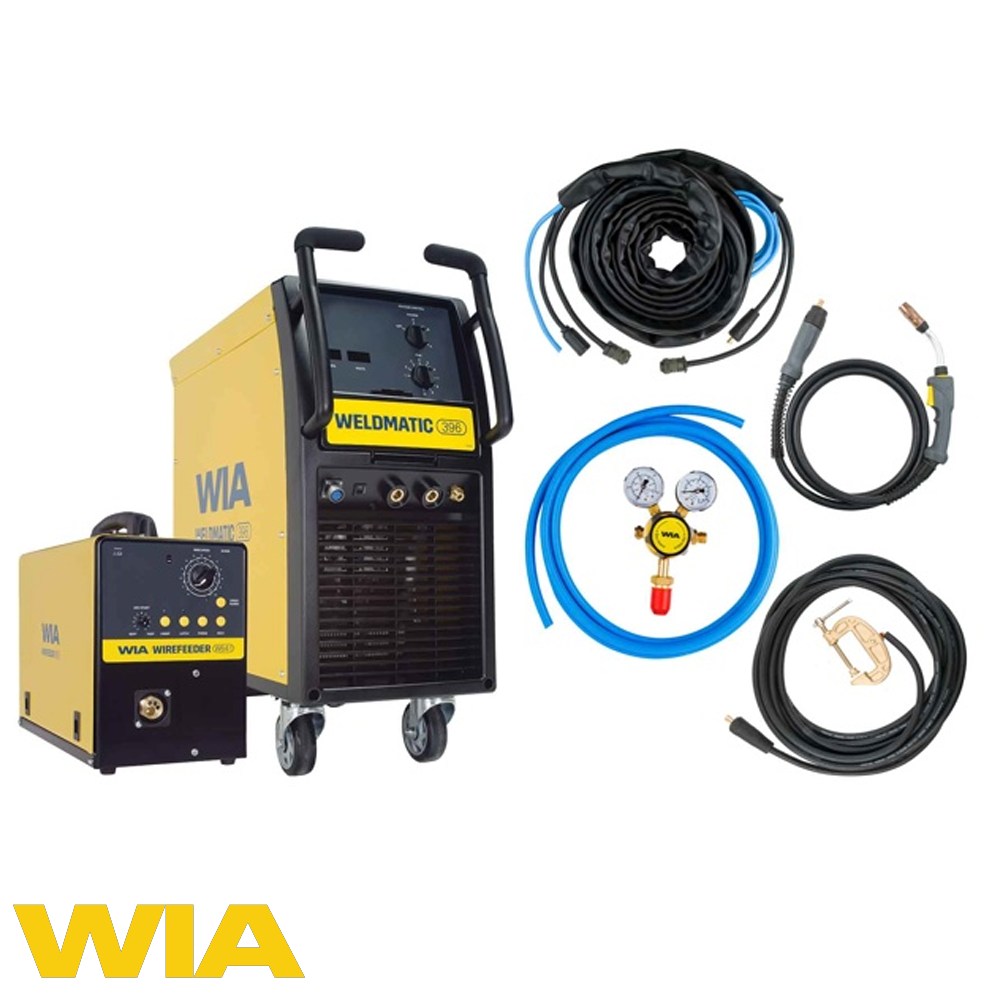

Includes

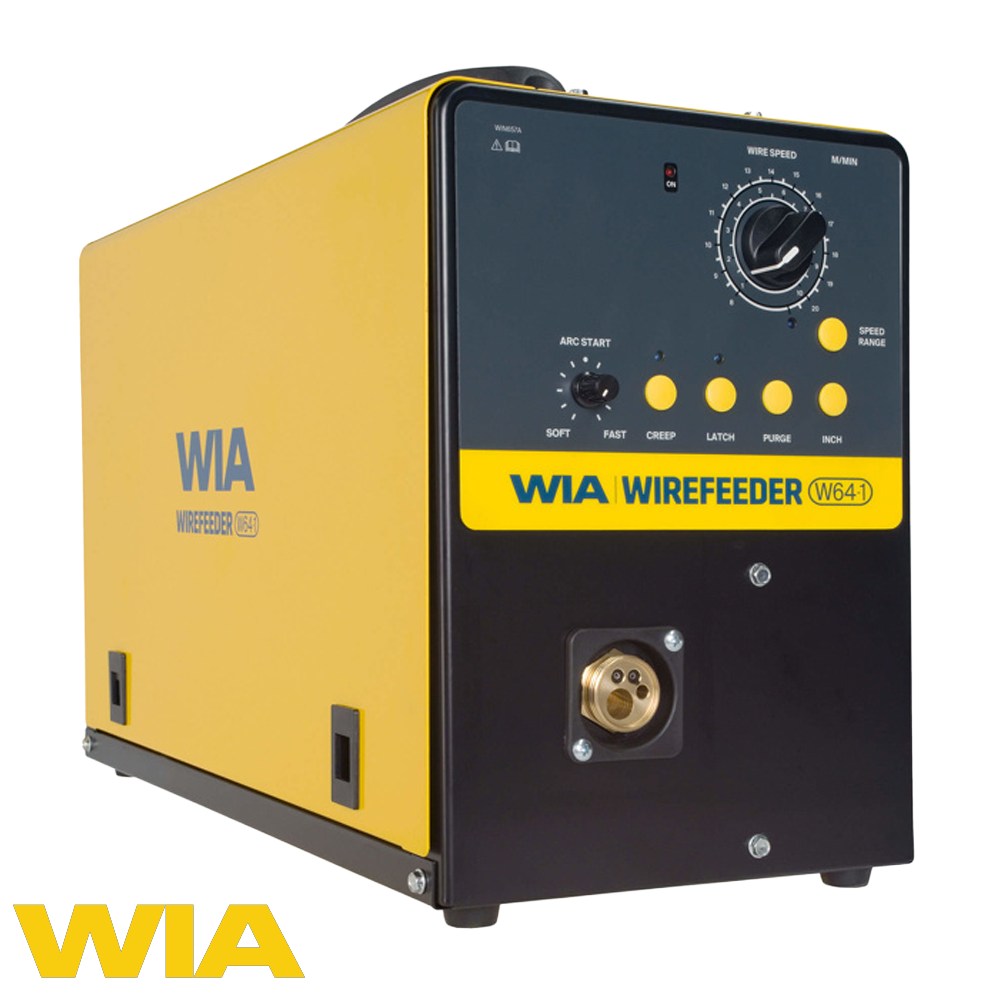

- W64-1 Roll Drive Wire Feeder
- Euro Gun Cable (3.6m)
- Work Lead (10m)
- Interconnecting Leads (10m)
- Gas Regulator
- Bernard™ Centerfire™ Tip (0.9mm)
- Drive Rollers: 0.9/1.2mm V Groove, 0.9/1.2mm Knurled (Gasless/Flux Cored)
Specifications
- Machine
- Primary Voltage: 415 VAC-50Hz
- Rated Primary Current: 15 Amps
- Max Primary Current: 27 Amps
- Recommended Generator Power: 20 kVA
- Supply Plug: 32 Amp
- Weight: 127 kg
- MIG Performance
- Current Range: 20A/15.5V – 395A/33.8V
- Rated Output @ 40°C (10min): 395A/33.8V @ 30%, 280A/28V @ 60%, 220A/25V @ 100%
- Wire Size Range: 0.6–1.6mm (Solid), 0.8–1.6mm (Cored)
- Material Thickness Range: Up to 12mm+ steel plate, single pass
