CASE-IH FEEDER 4 CHAIN KIT

9230 36B 862628 96L 15T ROCK-TRAP

Product Code: KIT9230-F-36B
  $6025.00
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail
  • Warranty
  • Parts & Codes
  • Downloads

Case-IH® Compatible

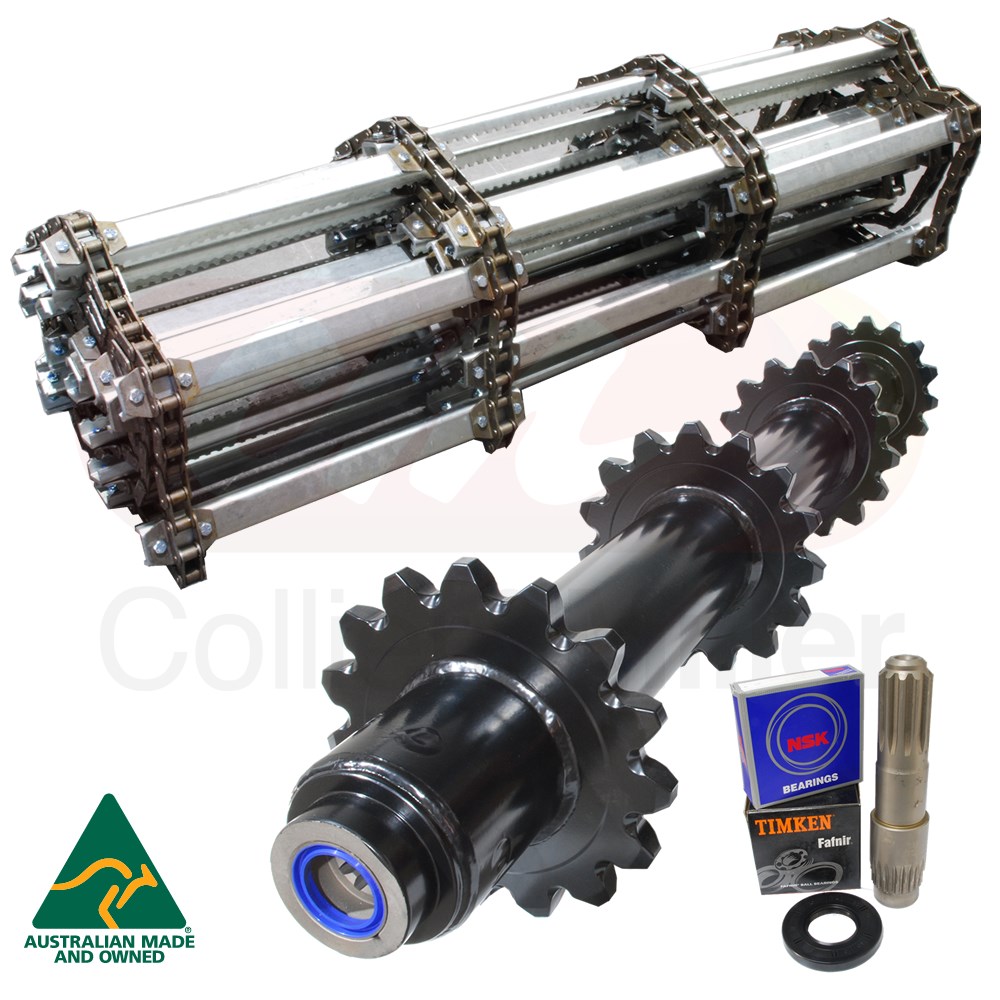

9230 Feeder House Chain Kit (With Rock-Trap)


C&M aftermarket 4 strand feeder house chain and sprocket kit to fit the feeder house on CASE-IH® 9230 model combine harvesters with a rock trap. This kit contain 1 x feeder chain set (including bars) the correct length for feeder-houses with a rock trap and 1 x tube style feeder sprocket kit (without radial pin clutch). Order this kit to refurbish your feeder house.

Chain assembly is the correct length to fit a feeder house without a rock-trap.

Sprocket does not include a radial pin clutch. Not recommended where rocks are present.
Brand Part No. Description
CASE-IH 84179636 - Assembly CHAIN Feeder, 100 Links x 41.4mm = 4140mm; Feeder, With Rock Trap
84414906 SPROCKET Assy

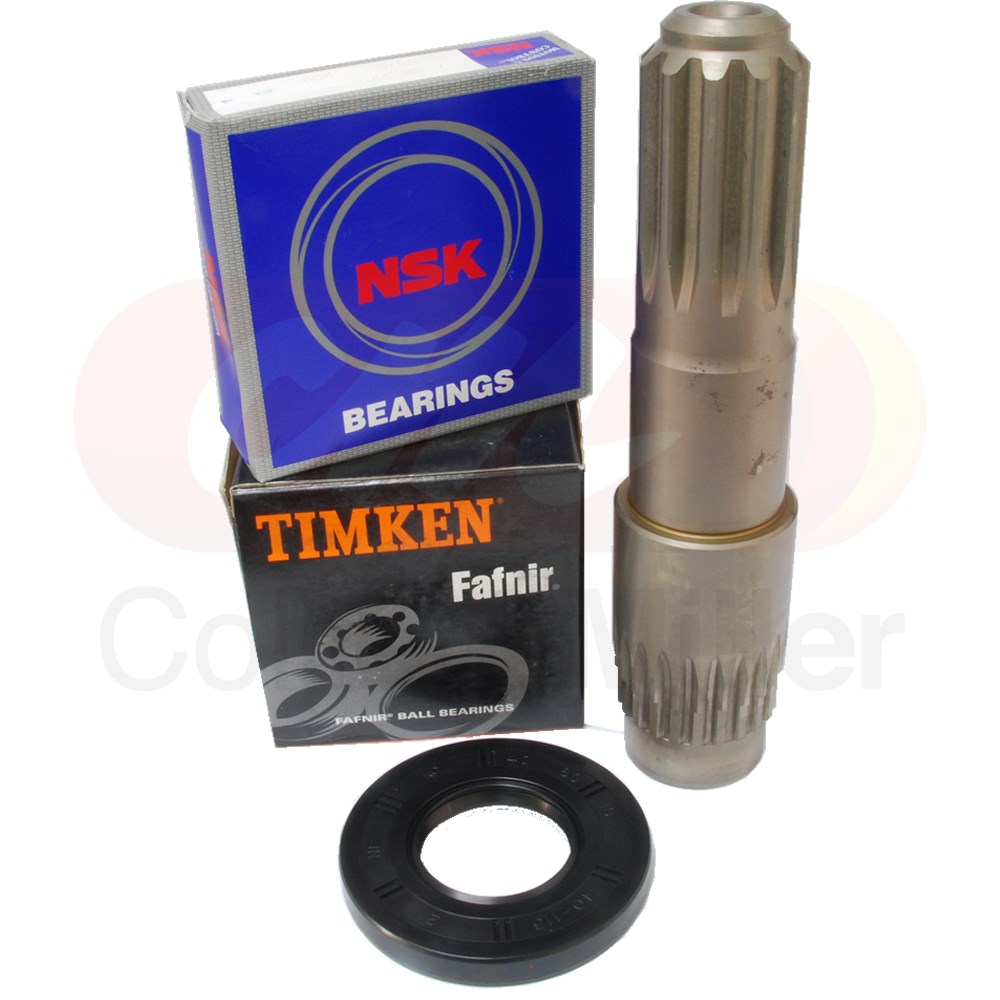

86995212 Bearing 38.1mm x 43mm
87282003 Shaft Feeder Conveyor Drive
301164 Gearbox deep groove bearing 6208
87612665 Gearbox cenveyor seal

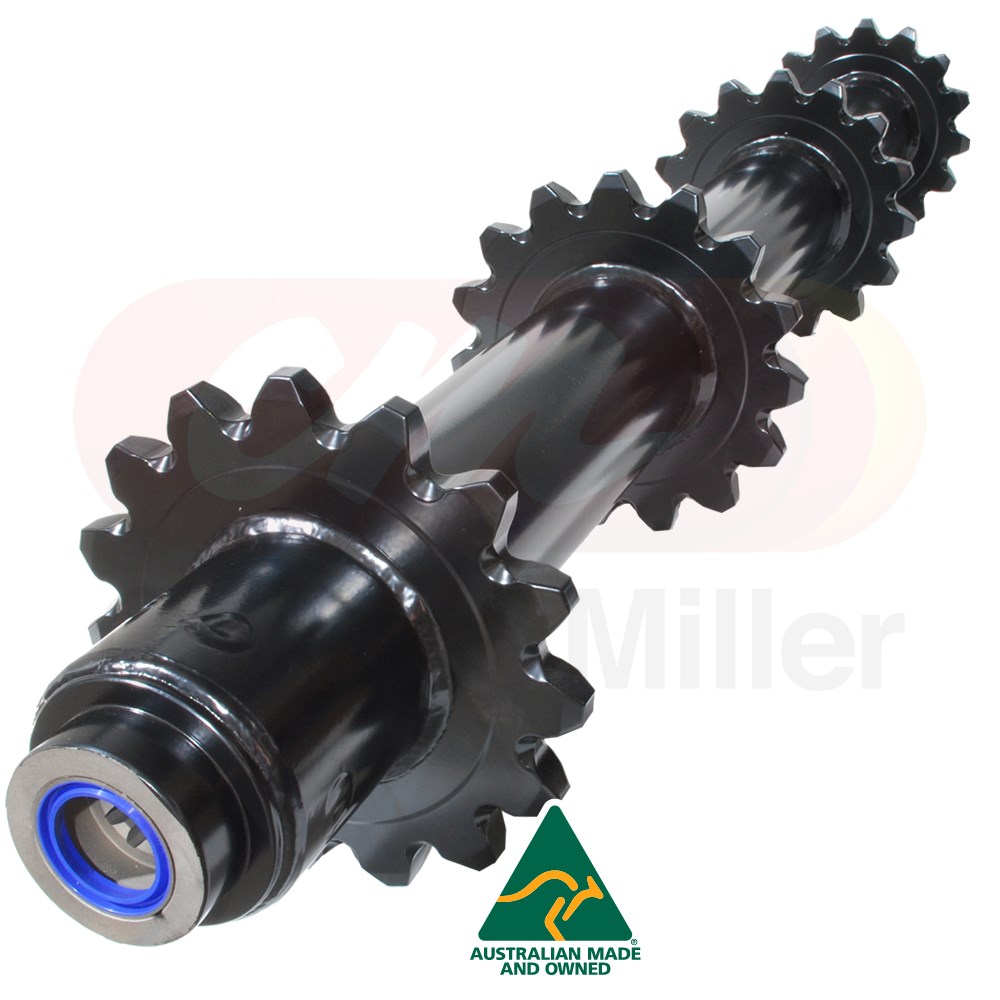

Sprocket Features
  • C&M Made in Australia
  • Does not include a radial pin clutch. Not recommended where rocks are present.
  • Special heavy wall seamless tube to cope with high radial loading
  • Fully Australian designed and manufactured
  • Grade 1045 sprocket material

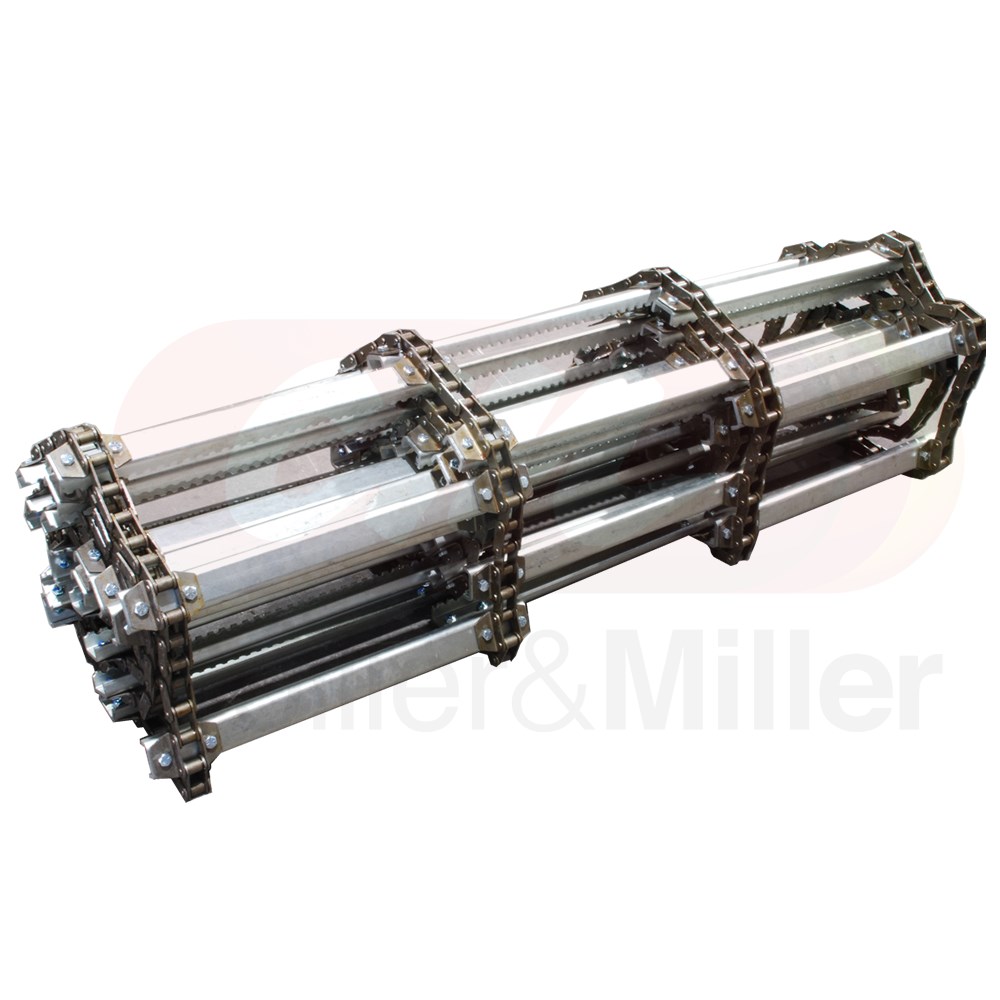

Chain Features
  • Fits Feeder House with Rock-Trap
  • Quality A557 Chain premium grade chrome pin chain
  • Premium Electroplated roll formed 6mm seratted U-Bar
  • Same spacing as original
  • Connectors & Half Links Included
  • Bolted assembly ready to install
  • High tensile fasteners

SPROCKET DRIVE SPLINE AND BUSH SERVICE LIFE IS DIRECTLY AFFECTED BY INSTALLATION. ACCURATE GEARBOX OUTPUT SHAFT ALIGNMENT PERFORMED IN ACCORDANCE WITH CNH RECOMMENDATIONS WILL ENSURE OPTIMUM SERVICE LIFE.

DAMAGE AND WEAR OF THE SPLINED BUSH AND SPLINED SHAFT IS DIRECTLY ASSOCIATED WITH INCORRECT ALIGNMENT OF THE GEARBOX AND FEEDER CHAIN TOP SPROCKET DURING INSTALLATION AND/OR OPERATION. ANY DAMAGE AND WEAR ASSOCIATED WITH THESE PARTS WILL BE CONSIDERED NORMAL WEAR, TEAR OR AN INSTALLATION/OPERATION ISSUE AND WILL NOT BE COVERED BY WARRANTY.

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer Law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty


SPROCKET DRIVE SPLINE AND HUB SERVICE LIFE IS DIRECTLY AFFECTED BY INSTALLATION. ACCURATE GEARBOX OUTPUT SHAFT ALIGNMENT PERFORMED IN ACCORDANCE WITH CNH RECOMMENDATIONS WILL ENSURE OPTIMUM SERVICE LIFE. WEAR OF THE SPLINED HUB AND SHAFT IS DIRECTLY ASSOCIATED WITH THE MISALIGNMENT OF THE GEARBOX AND FEEDER CHAIN TOP SPROCKET DURING INSTALLATION AND/OR OPERATION. ANY WEAR ASSOCIATED WITH THESE PARTS WILL BE CONSIDERED NORMAL WEAR, TEAR OR AN INSTALLATION/OPERATION ISSUE AND WILL NOT BE COVERED BY WARRANTY.


Process

In the event of a defect which may result in a warranty claim:
  • The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
  • At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller factory or other location advised by a Collier & Miller authorised representative.
  • The Warranty is not transferable to any third party or subsequent purchaser.
  • Components and conditions not covered by warranty include: Spline drive shaft and splined hub (This is a wear part and subject to installation and operational variables)
84179636 84217950 87625524 84414906
Case-IH® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine Case-IH® part. It is recommended prior to ordering you should verify the parts will fit your equipment. Case-IH® is a registered trademark of CNH Industrial America LLC.

Kit Components
Code
Code
Qty
CM039OEMRTCP
CASE IH FEED CHAIN ASSY R/TRAP
1
WI89KIT
CASE FEEDER SPROCKET ASSY 15T
1
