CLAAS LEXION 770 4 CHAIN KIT 54B 624246 108L 11T APS W=1700MM

54B 624246 108L 11T APS W=1700MM

Product Code: KITLEXION770-F

Detail
Tech Specs
Interchange

Claas® Lexion™ Compatible

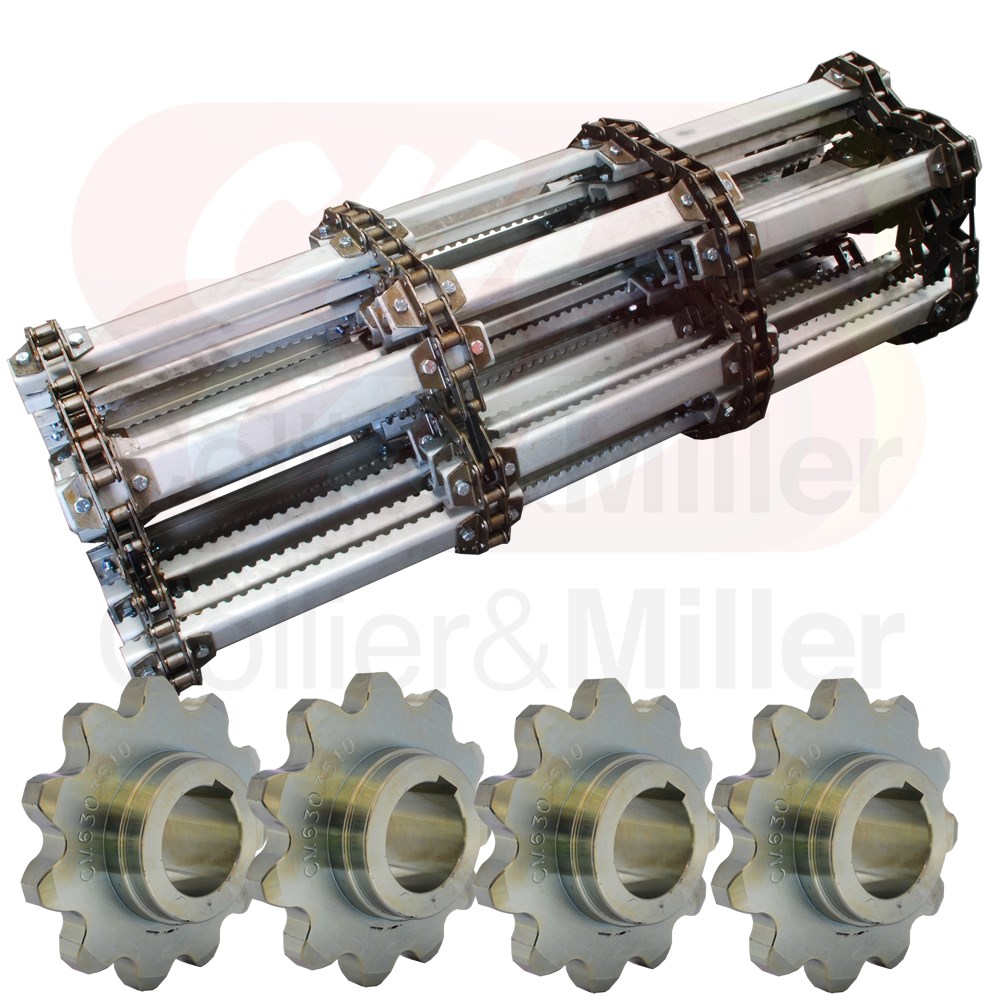

770 Feeder House Chain Kit (4 Chain)

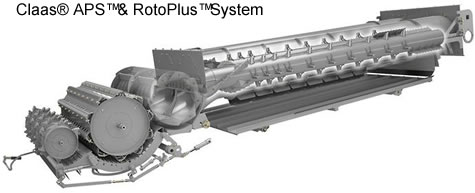

C&M aftermarket 4 strand feeder house chain and sprocket kit to fit the 1700mm APS feeder house on Claas® Lexion™ 770 European model combine harvester. This kit contain 1 x feeder chain set and 4 x feeder sprockets. Order this kit to refurbish your feeder house.

Brand	Part No.	Description
Lexion™ 770 Chain Assy	0005179341CL 0005179340	Gen 1, 2 & 3
Lexion™ 770 Sprockets	0006303510CL 6303510	10 Tooth 50mm Bore x 12mm Key

Sprocket Features

C&M Made in Australia
Grade 1045 sprocket material
10T x 50mm Bore

Chain Features

Drive Inc. USA 38.4 VB CA512 CA624 Chain
Same spacing as the OEM chain
54 x 6mm Roll-Serrated Electroplated Bars
4 x Connectors 8 x Offset Links
High tensile fasteners
Ready to install

Technical Specifications

Assembly Code	CM021OEM
Assembly Width	1505mm (59.21")	APS width 1700mm
Chain Type	CA512(CA624)	Drives Inc USA
Chain Attachment	K1
Chain Strands	4
Chain Length	108 Links	Inc Connectors
Chain Connectors	4	Cottered
Chain Offset Links	8	Cottered
Bar Length	558.8mm (22.0")	6mm U-Bar Roll Serrated G350 Zinc
Bar Quantity	54 x 6mm Roll-Serrated U-Bars	All bars the same
Bar Chain Center	475mm (18.500")
Fastener Specs	M10X25 Zinc Class 10.9 Loctite - 35Nm	M10 Zinc torque prevailing cone lock nut
