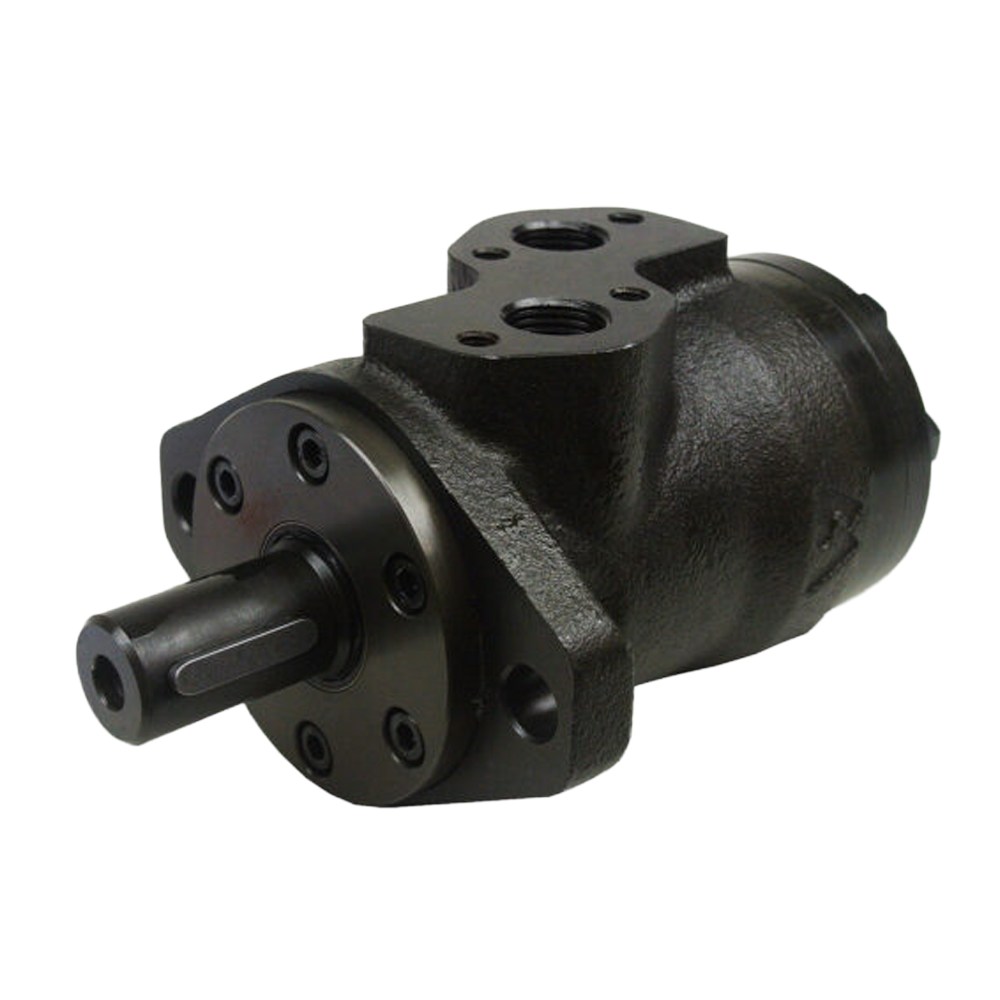

Hydraulic Motor 623.6cc – MP Series Gerotor SAE A 2-Bolt (1" Keyed, 200 Bar)
Built for higher torque and heavier-duty applications, the MP Series Gerotor Motor from M+S Hydraulic delivers reliable performance under increased pressure loads. Manufactured in Europe, this motor is designed to provide smooth, consistent output while maintaining durability in demanding hydraulic systems.
Features
- High-displacement gerotor design for increased torque output
- Strong, durable construction for industrial and mobile equipment use
- 1″ straight keyed shaft ensures secure and stable connection
- SAE A 2-bolt mount for straightforward installation
- Rated up to 200 bar for higher pressure applications
- Efficient performance with smooth, low-speed operation
Specifications
- Displacement: 623.6 cc/rev
- Maximum speed: 95 RPM
- Maximum flow: 60 LPM
- Pressure drop: 55 bar
- Maximum inlet pressure: 140 bar
- Torque: 440 Nm
- Weight: 10.10 kg
- Ports: 1/2″ BSPP
- Case drain: 1/4″ BSPP
