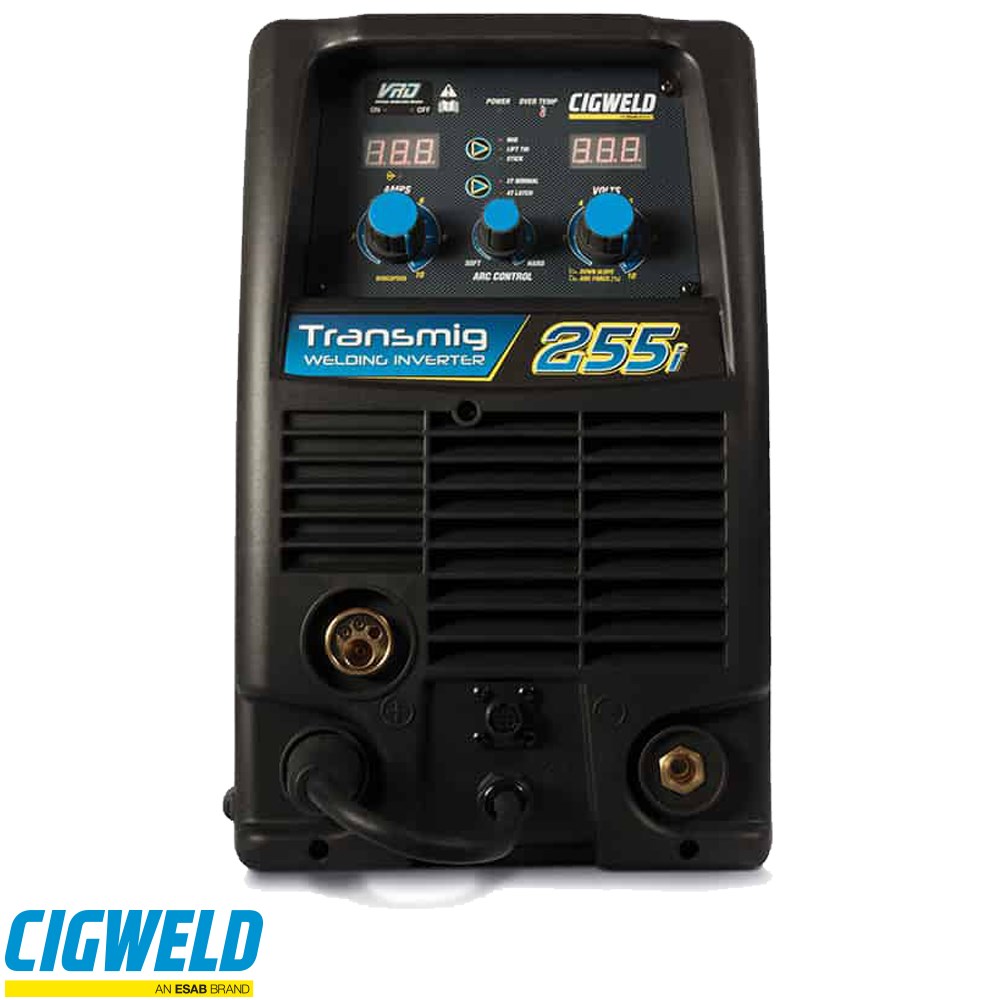

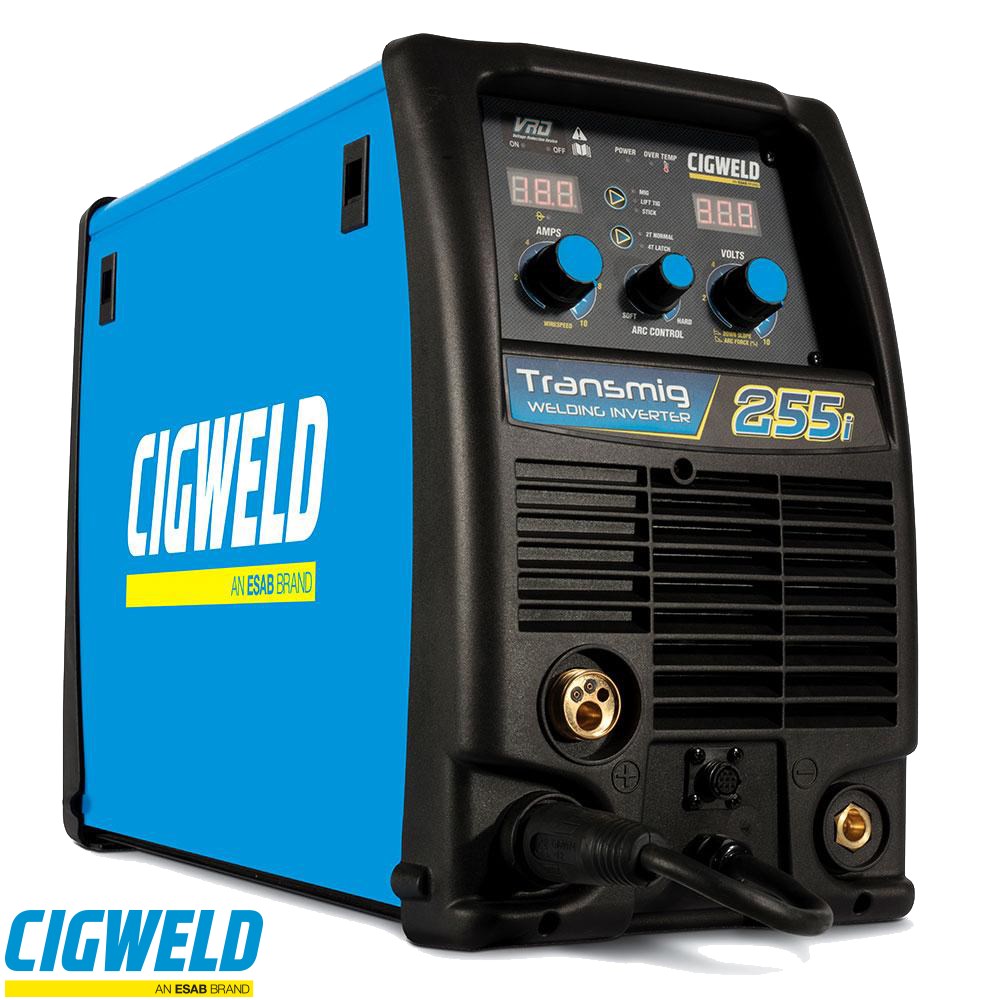

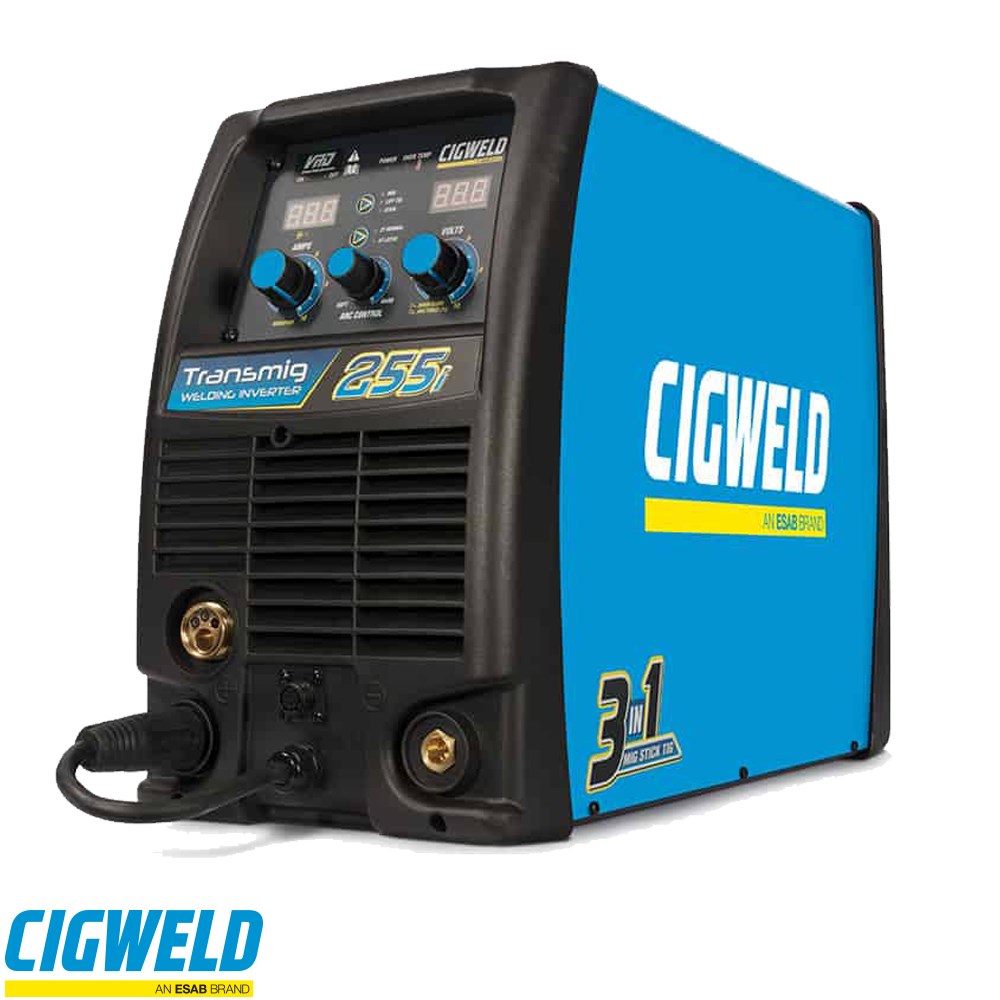

Cigweld Transmig 255i
The Transmig 255i is equipped with an integrated wire feed unit to fit 300mm spools whilst being compliant to Australian Standard AS 60974.1-2006. It is ideal for indoor/outdoor use with an enclosure rating of IP23S.
The 255i can be upgraded with a 25 Amp plug and 4mm2 supply lead which increases your duty cycle so you can run it harder for longer.
Ideal for onsite repairs and maintenance, medium industrial workshops, car panel repairs or serious welders that want a single phase inverter they can plug in and use around their own home workshop.
Features
- Adjustable Inductance
- Adjustable Burnback
- 2T/4T Trigger Mode
- Hot Start & Anti-Stick (Stick)
- Down Slope (TIG)
- Adjustable Arc Force (Stick)
- VRD (Stick)
- Power Factor Correction (PFC)
- Fan on Demand
- Spool Gun Compatible (Tweco SGT 250)
Includes
- Transmig 255i Inverter Power Source (27kg)
- Tweco Professional Fusion 250 MIG Torch, 3m
- COMET Professional Argon regulator/flowmeter
- Feed Rolls: 0.9/1.2mm “V” groove (fitted), 0.6/0.8mm “V” groove, 0.9/1.0mm (U) groove, 0.8/0.9mm “V” knurled
- Contact Tips: 0.9mm (fitted), 0.8mm, 0.9mm, 1.0mm
- Twistlock Electrode Holder with 4m lead
- Work Clamp with 4m Lead
- Shielding Gas Hose Assembly
- Operating Manual
Specifications
- Current Range: G: 30-255A | STICK: 10-230A | TIG: 10-255A
- Dimensions: 435H x 266W x 617D mm
- Duty Cycle: 15Amp (fitted plug and lead): MIG (GMAW/FCAW): 255A @ 20% | Stick (MMAW): 230A @ 20% | TIG (GTAW): 255A @ 20%
25 Amp 4mm2* (upgraded plug and lead): MIG (GMAW/FCAW): 255A @ 40% | Stick (MMAW): 230A @ 40% | TIG (GTAW): 255A @ 40%
- Generator Requirement: 10 kVA (at 0.8 Power Factor) | 8 kW (at 1.0 Power Factor)
- Processes: MIG (GMAW/FCAW), Stick (MMAW), Lift TIG (GTAW)
- Supply Voltage: 240 VAC ± 15%
- Power Source Weight: 27kg
- Number of Phases: Single Phase
- Nominal Supply Frequency: 50 / 60Hz
- Output Terminal Type: Dinse Style 50mm
- Protection Class: IP23S
- Open Circuit Voltage (VRD On): <35V DC
- Effective Input Current (I1eff): 15 Amps
- Maximum Input Current (I1max ): 33 Amps
