FESTO Double Acting Cylinder – ADVU-25-50-A-P-A
Compact and dependable, this FESTO cylinder delivers precise bidirectional motion in a durable square-body design. With a 25mm bore and 50mm stroke, it provides smooth operation in automation, assembly, and general machinery applications where space efficiency and reliability are key.
Features
- Compact square profile

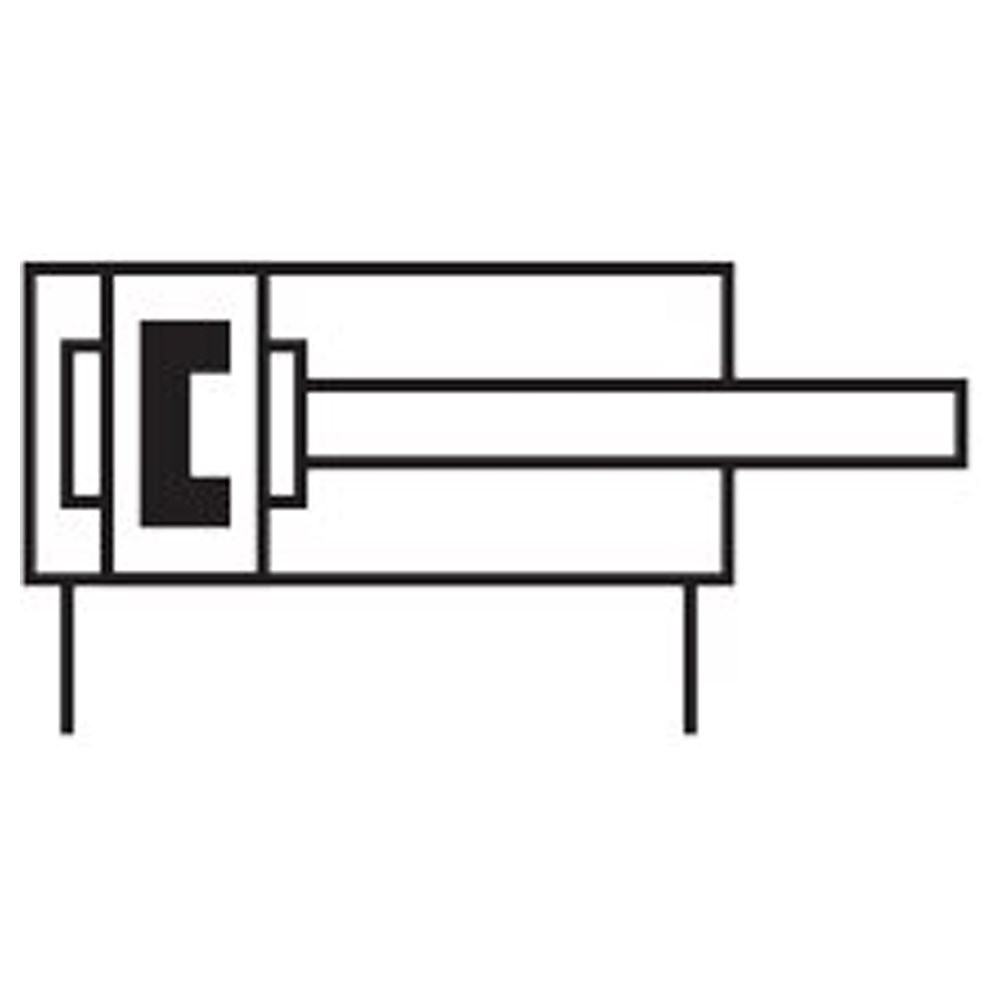

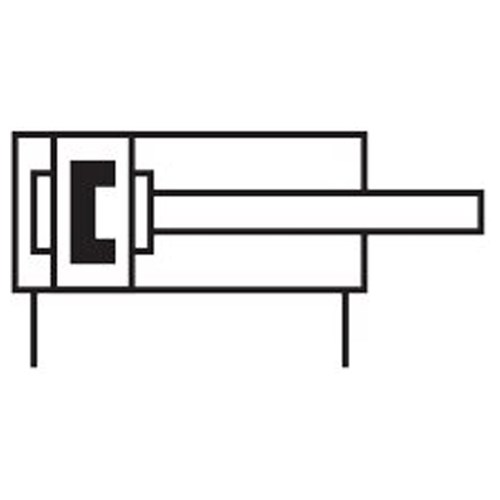

- Double-acting for controlled extend and retract
- Elastic cushioning at both ends
- Suitable for any mounting orientation
- Compatible with proximity switches for position sensing
- High-strength stainless-steel piston rod
- Designed for long service life in industrial environments
Specifications
- Bore: 25mm
- Stroke: 50mm
- Piston Rod Thread: M10 x 1.25
- Operating Pressure: 1–10 bar (14.5–145 psi)
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient Temperature: -20°C to 80°C
- Corrosion Resistance: CRC2 (Moderate)
- Cushioning: Elastic rings/plates both ends
- Pneumatic Port: M5
- Cylinder & Cover Material: Wrought aluminium alloy
- Piston Rod Material: High-alloy stainless steel
- Seal Material: NBR / TPE-U(PU)
